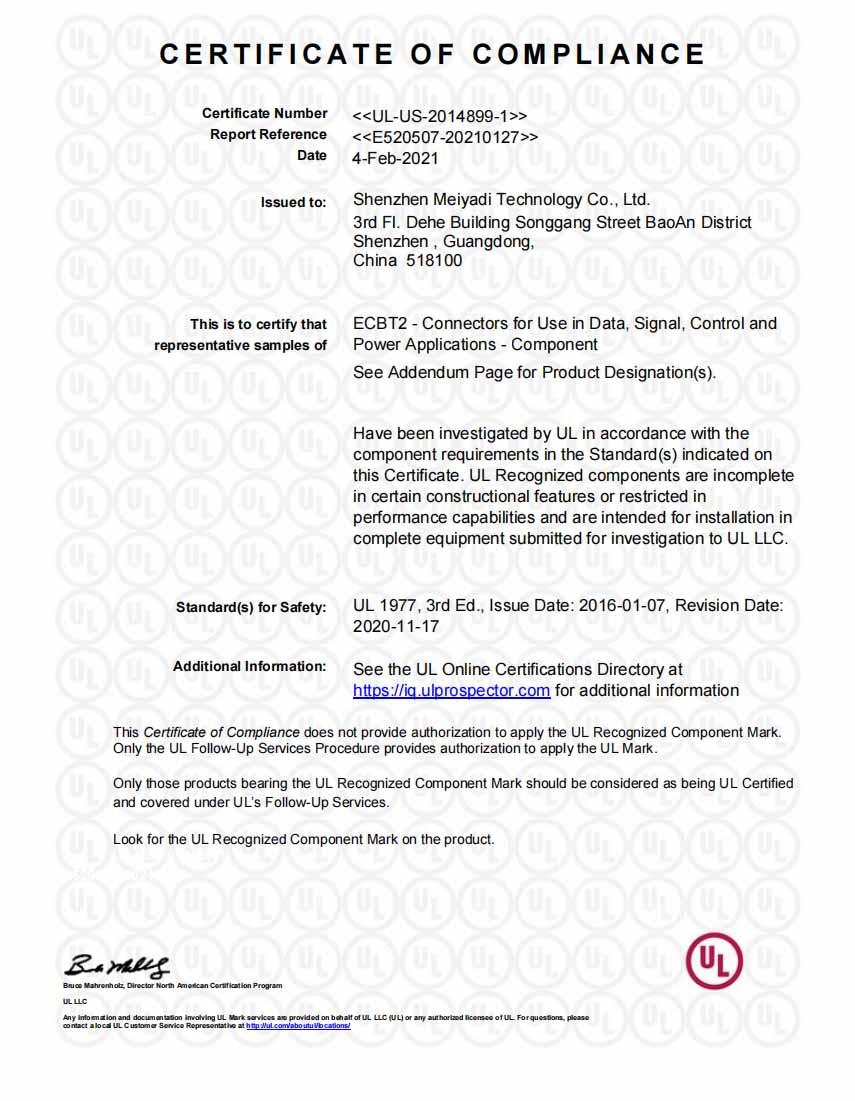

UL Certified Pre-Wired DIN 13 Pin Male and Female Power Cable Assembly

SD20/SP20 Square Flange Connector Design and Installation Guide

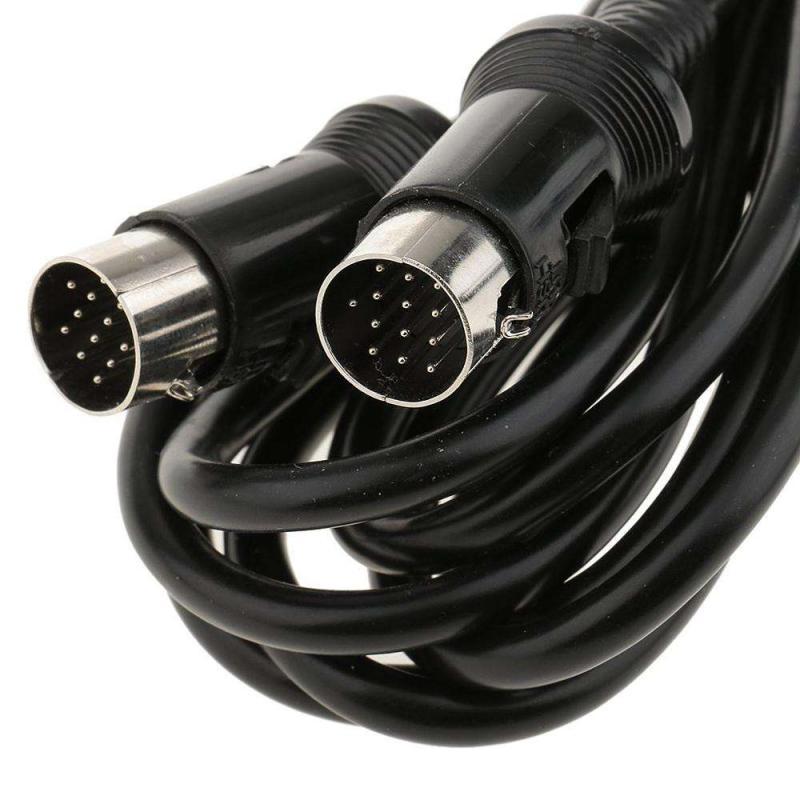

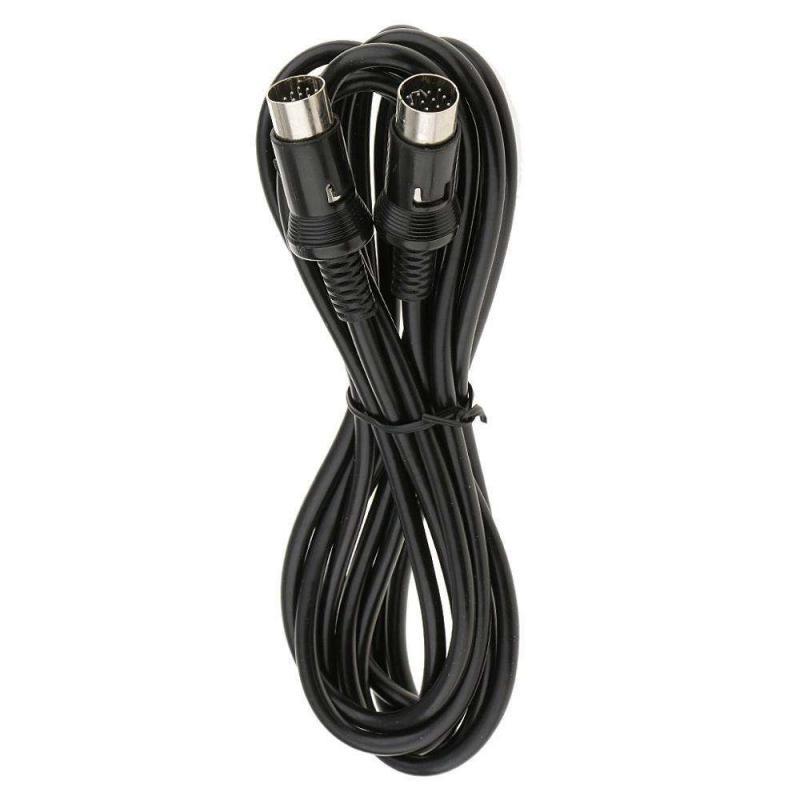

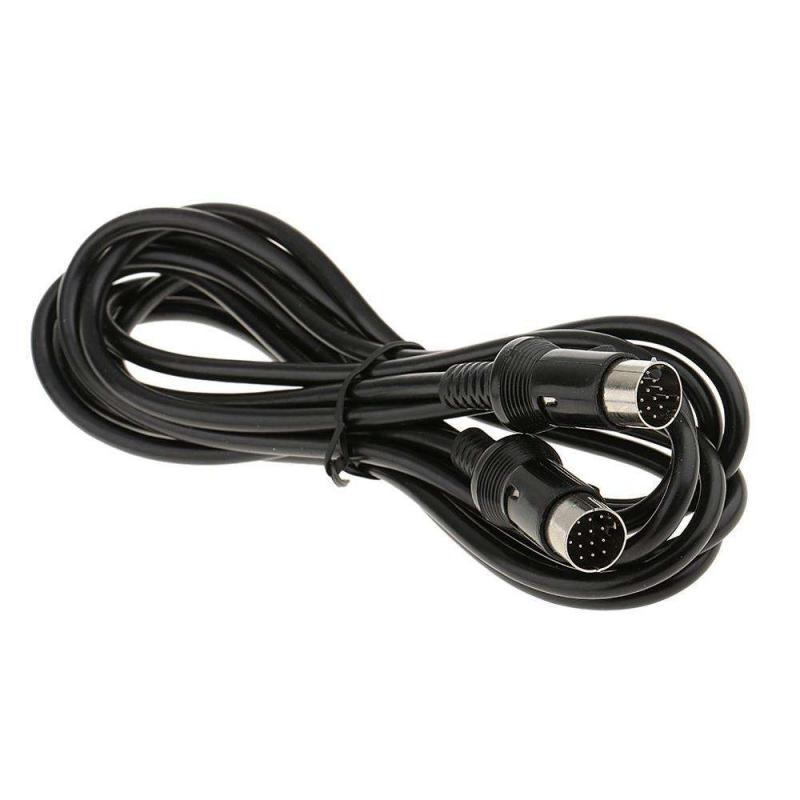

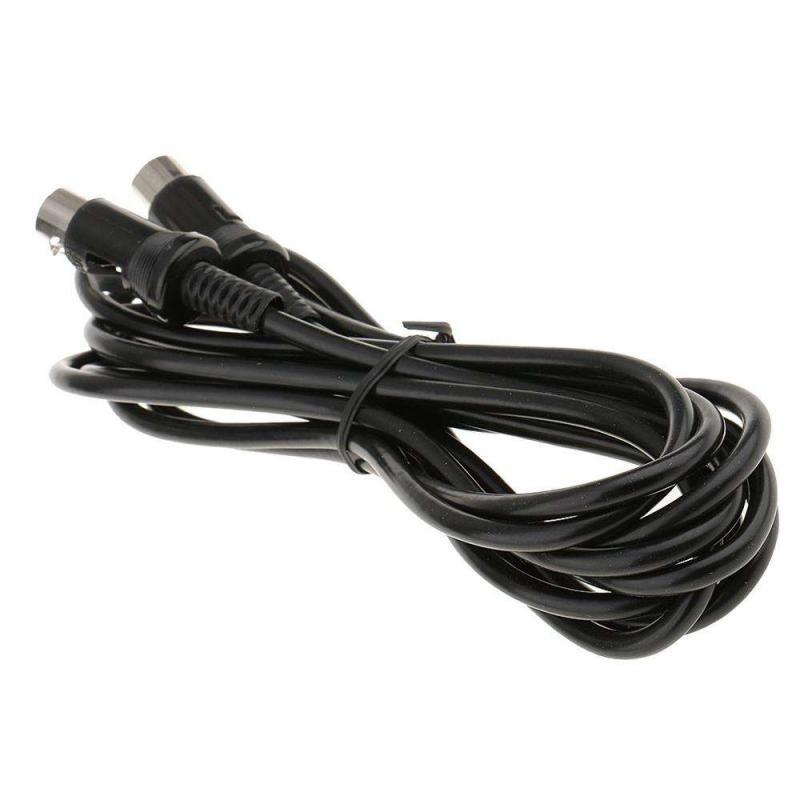

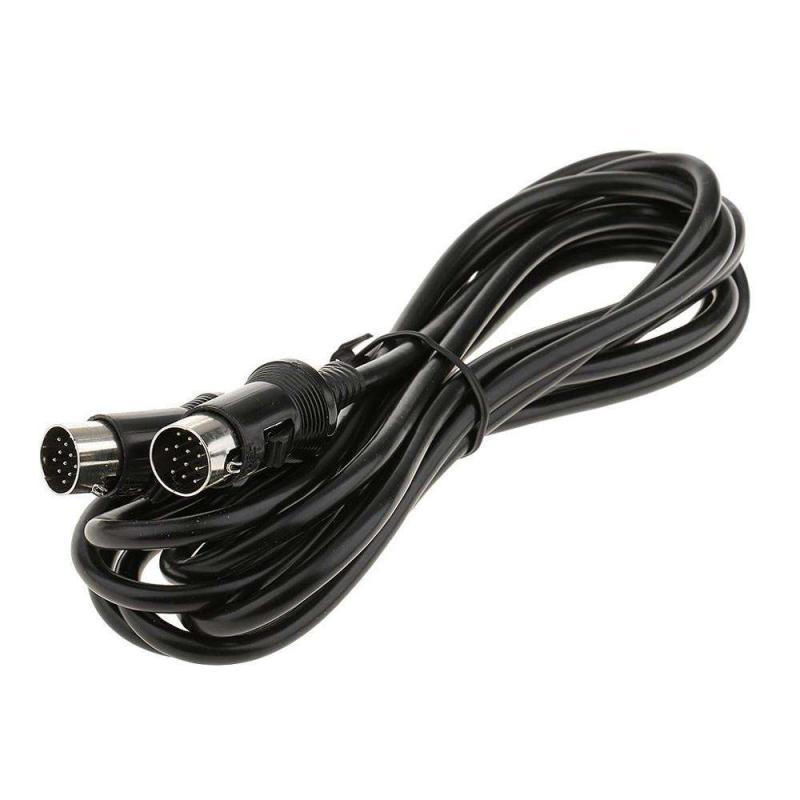

Pre-Wired DIN 13 Pin Connector Male and Female Power Cable Assembly

This factory-assembled industrial connection solution integrates a male DIN connector, a female DIN connector, and a cable harness into one ready-to-install system. It is designed for equipment manufacturers and automation integrators who need a complete, safety-compliant power and signal interface without sourcing components and assembly services separately.

Selection Criteria for Your DIN Cable Assembly

When specifying this 13-pin assembly, confirm the following variables to ensure a correct match for your equipment:

• Mating interface: Verify the male and female connector keying and pin layout against your device's mating port.
• Cable specification: Confirm the required cable length, conductor size, and whether a shielded structure is needed for your signal integrity.
• Electrical load: Define the current and voltage per pin for your power and control circuits to validate the assembly's suitability.
• Environmental conditions: Check the operating temperature range and exposure to moisture or vibration in your installation area.

Applications and Integration Scope

This multi-pin assembly supports power transmission, signal communication, and control circuits simultaneously. It is commonly applied in industrial automation systems, electrical control cabinets, machinery power integration, robotics, industrial testing devices, and production line control equipment.

Construction and Factory-Controlled Consistency

The assembly uses a nickel-plated brass housing and follows standardized manufacturing and testing procedures before shipment. Pin mapping and electrical verification are completed in advance to reduce field assembly errors. This pre-wired design reduces on-site installation workload and speeds up equipment deployment.

Quality Control and Verification Process

Each DIN cable assembly undergoes electrical continuity testing, pin mapping verification, pull-force and mechanical durability testing, insulation resistance testing, connector locking inspection, and final appearance checks. These procedures help ensure reliable industrial performance.

Customization and OEM/ODM Support

Flexible customization is available, including cable length adjustment, different wire specifications, shielded cable structures, connector orientation adjustment, logo printing, and customized packaging. Support ranges from prototype development to large-scale OEM production.

In-House Manufacturing Capability

Our integrated production system includes connector mold development, CNC machining, injection molding, terminal stamping and plating, cable processing, soldering and overmolding assembly, and electrical testing. This workflow helps ensure stable quality from raw material to finished cable assembly.

Suitable and Unsuitable Use Cases

This assembly is suitable for industrial equipment requiring a pre-verified 13-pin DIN connection with integrated power and signal lines. It is not intended for applications requiring a different pin count, non-DIN interface, or where the operating environment exceeds the verified temperature range. Confirm your specific electrical and mechanical requirements before ordering.

Inquiry Input Checklist

To receive an accurate quotation and technical confirmation, please provide the following details:

• Required cable length and conductor size (AWG or mm²)
• Pinout or wiring diagram for your application
• Operating voltage and current per pin
• Environmental conditions (temperature, moisture, vibration)
• Connector orientation and mounting requirements
• Order quantity and target delivery schedule

Contact us for professional pre-wired DIN 13 pin connector cable assembly solutions tailored to your industrial application. We provide sample support, technical consultation, OEM/ODM engineering service, and factory-direct pricing.
