M8 Connectors for Smart Door Lock Control Boards

SD20/SP20 Square Flange Connector Design and Installation Guide

M8 Connectors in Smart Door Lock Systems: Project Background

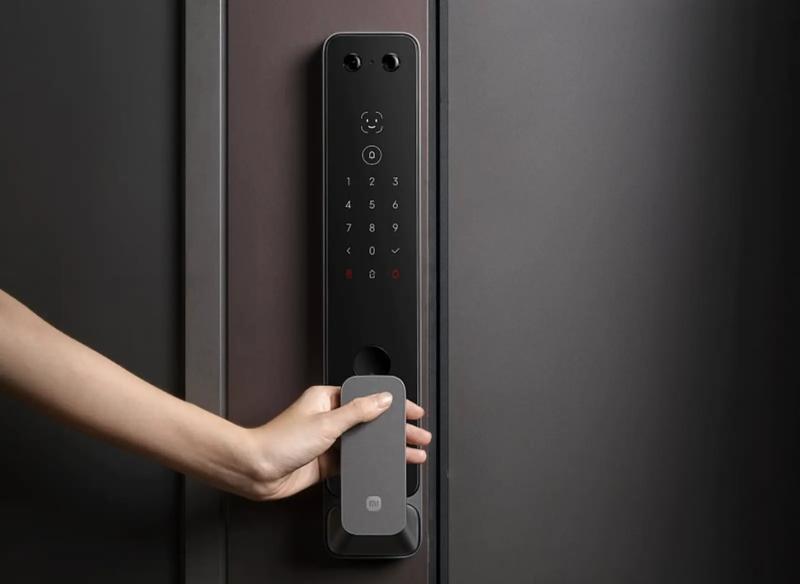

Smart door locks require reliable electrical connections between control boards, sensors, and actuators within a compact housing. M8 connectors are selected for this application due to their small form factor and secure mating design, which support efficient installation during manufacturing and straightforward maintenance in the field.

Customer Requirement and Application Environment

In residential smart lock deployments, the connector interface must withstand daily exposure to dust and occasional moisture while maintaining signal integrity for lock actuation and sensor feedback. The M8 connector series meets these demands with an IP67 ingress protection rating, ensuring reliable performance in typical indoor and sheltered outdoor mounting positions.

Solution: Compact M8 Interface for Control and Power

The chosen M8 connectors provide a secure, keyed interface that prevents mismating during assembly. Their threaded coupling ensures vibration resistance, while the compact diameter suits the limited internal space of modern smart lock housings. This configuration supports both sensor signal lines and low-current actuator control circuits without requiring additional sealing components.

Installation and Commissioning Notes

During installation, the M8 connector's push-pull or screw-locking mechanism allows quick termination to pre-wired cables, reducing assembly time on the production line. For maintenance, the connector can be disconnected and reconnected without special tools, simplifying field service. It is important to verify the cable strain relief and bending radius to avoid mechanical stress on the contact points over repeated locking cycles.

Result and Reliability Evidence

The IP67-rated M8 connectors deliver consistent electrical contact and environmental protection for smart door lock applications. Their proven mating cycle durability supports long-term use in residential settings, where occasional cleaning and humidity exposure are expected. For engineers evaluating connector options for compact automation or security devices, the M8 series offers a balanced combination of size, sealing, and ease of assembly.

For related guidance on selecting miniature connectors for smart home devices, refer to our FAQ on connector selection for home smart door locks. For broader industrial applications requiring higher pin counts or different sealing levels, review the 12G Series Circular Connectors range.

If you have specific electrical load, cable length, or mounting requirements for your smart lock project, please use the inquiry form or contact us via WhatsApp to discuss the optimal M8 connector configuration.
