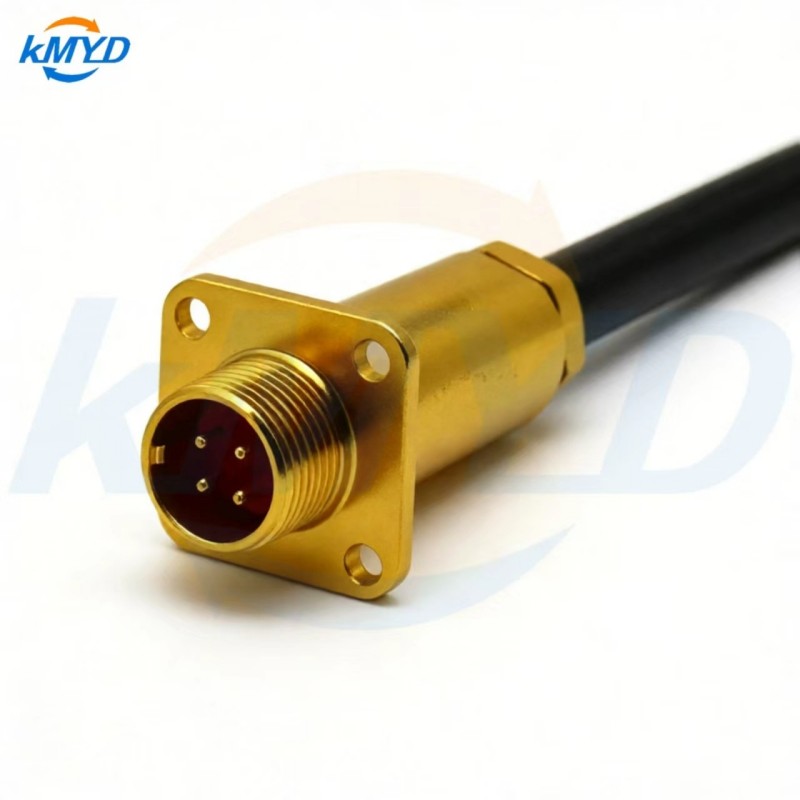

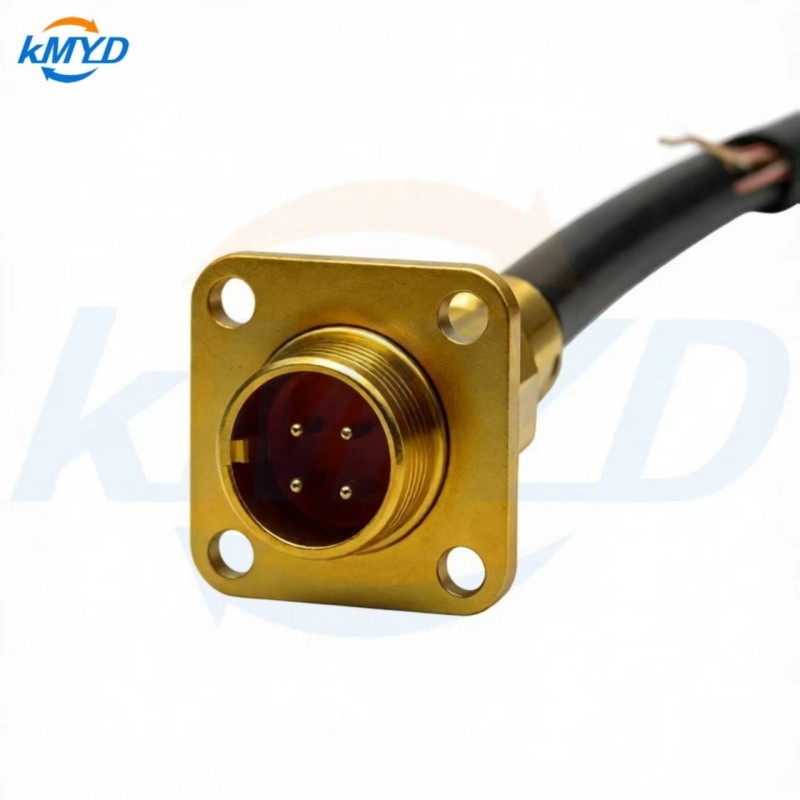

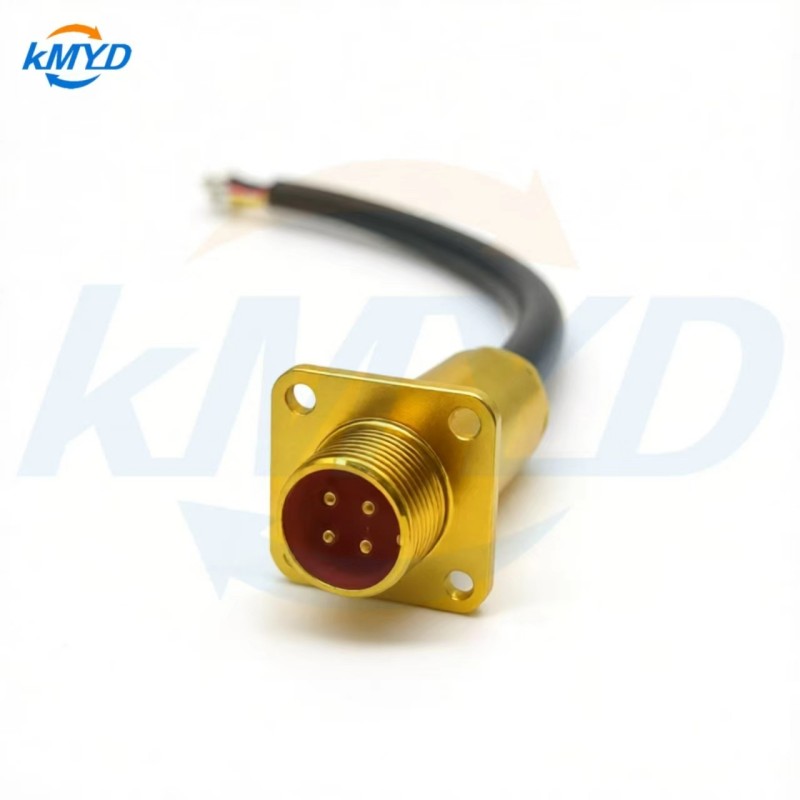

PC4/PY04 4 Pin Male Connector Cable Assembly with Silicone Rubber Cable Jacket

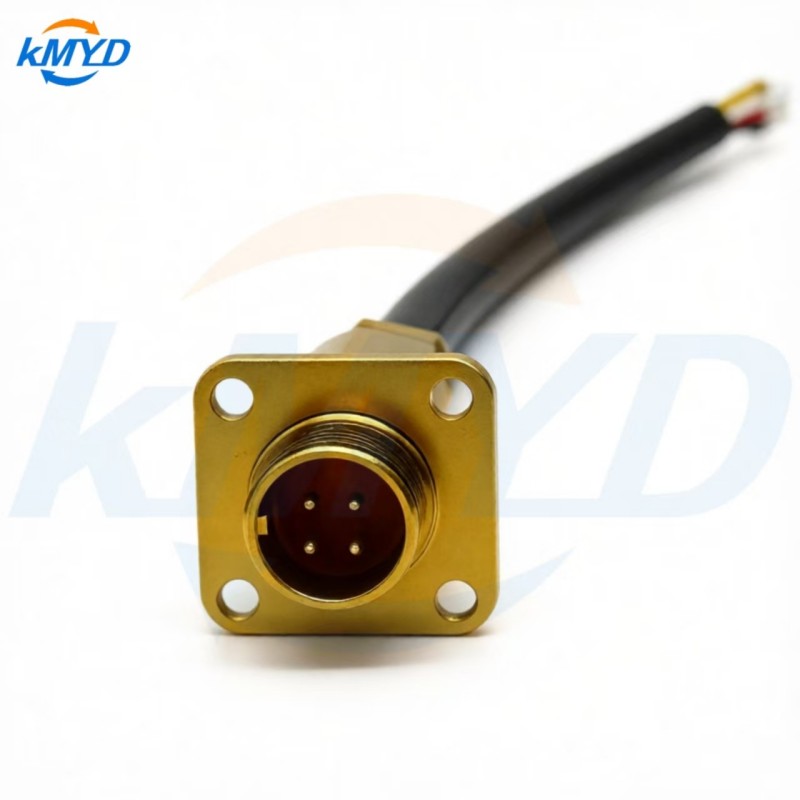

The PC4/PY04 4 Pin Male Connector Cable Assembly is a pre-wired solution engineered for dependable power and signal transmission in industrial equipment and specialized electrical systems. Built around a Russian standard circular connector interface, this assembly provides a secure and stable connection for applications that demand durability and consistent performance.

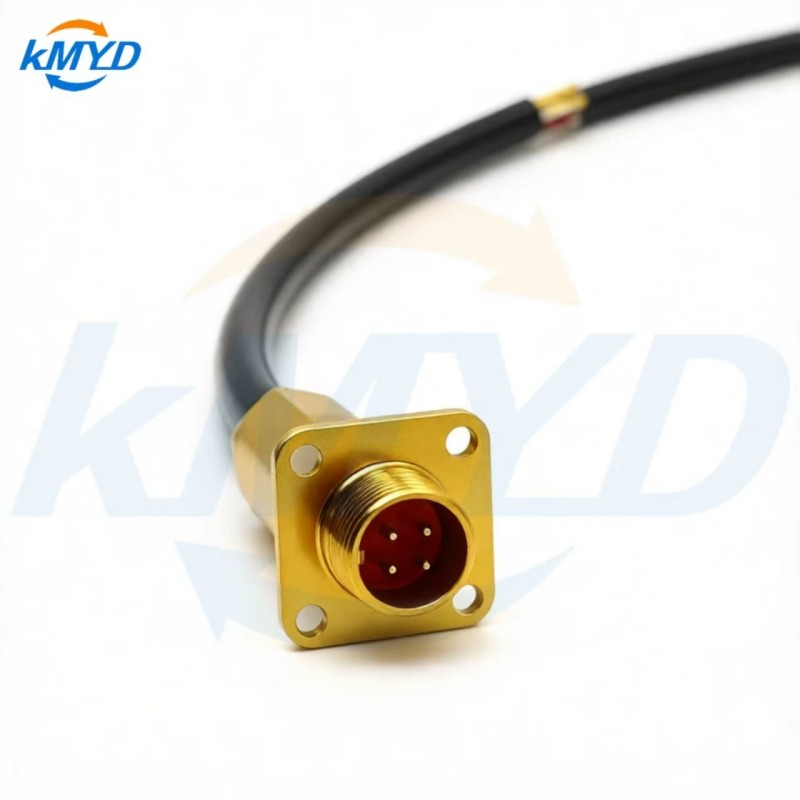

The connector employs a threaded coupling locking system, enabling the male plug to achieve a firm connection with the mating socket through screw engagement. This design enhances resistance to vibration and accidental loosening, ensuring reliable operation in demanding environments.

Construction and Materials

This cable assembly features a custom silicone rubber cable jacket, offering excellent flexibility, heat resistance, and environmental adaptability. The silicone material maintains stable performance across a wide temperature range, making it suitable for equipment operating in harsh conditions. The connector housing is constructed from aluminum alloy, with brass contact cores and a phenolics insulator, providing a robust and reliable interconnection solution.

Configuration and Mating Requirements

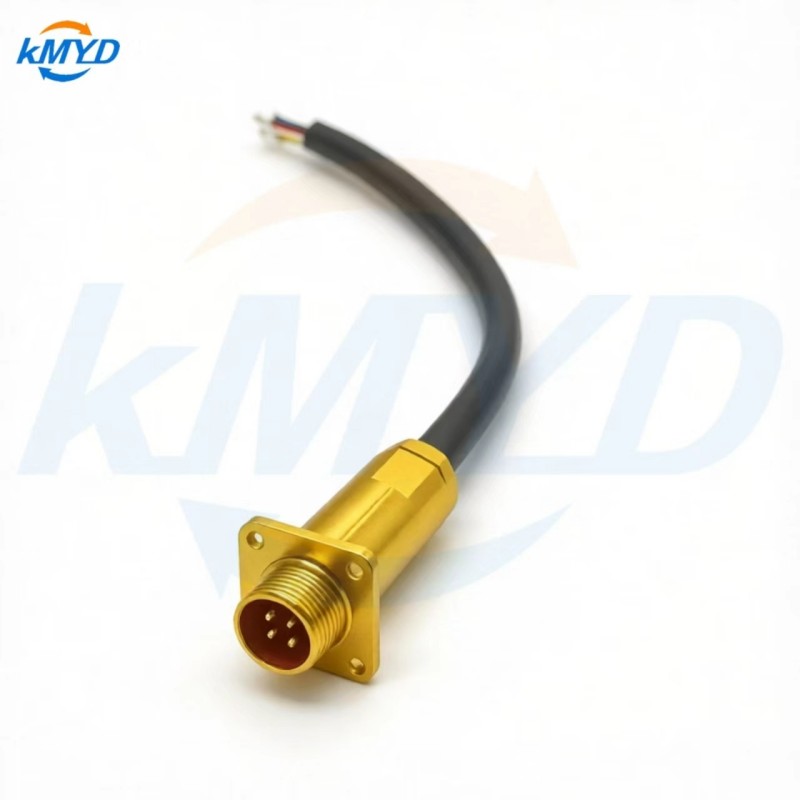

With a 4-pin contact configuration, the cable assembly supports dependable electrical transmission while maintaining a compact and easy-to-install design. Cable length, wire specifications, connector configuration, and other requirements can be customized according to customer applications. For proper mating, please confirm the corresponding female socket or receptacle requirements, including the pinout or drawing, to ensure correct interface compatibility.

Key Features

• PC4/PY04 4-pin connector – Russian standard circular interface for reliable equipment integration
• Threaded coupling locking – Provides secure mating and improved vibration resistance
• Silicone rubber jacket cable – Offers flexibility, heat resistance, and long service life
• Stable electrical performance – Suitable for power and signal transmission applications
• Custom cable assembly – Supports OEM/ODM solutions for different equipment requirements
• Durable industrial construction – Designed for continuous operation in demanding environments

Typical Applications

• Industrial control equipment
• Heating systems
• Automation machinery
• Power supply equipment
• Medical and laboratory devices
• High-temperature electrical applications

Manufacturing Capability

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer with extensive experience in industrial connection solutions. Meiyadi integrates R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection, providing complete manufacturing capabilities from product design to mass production.

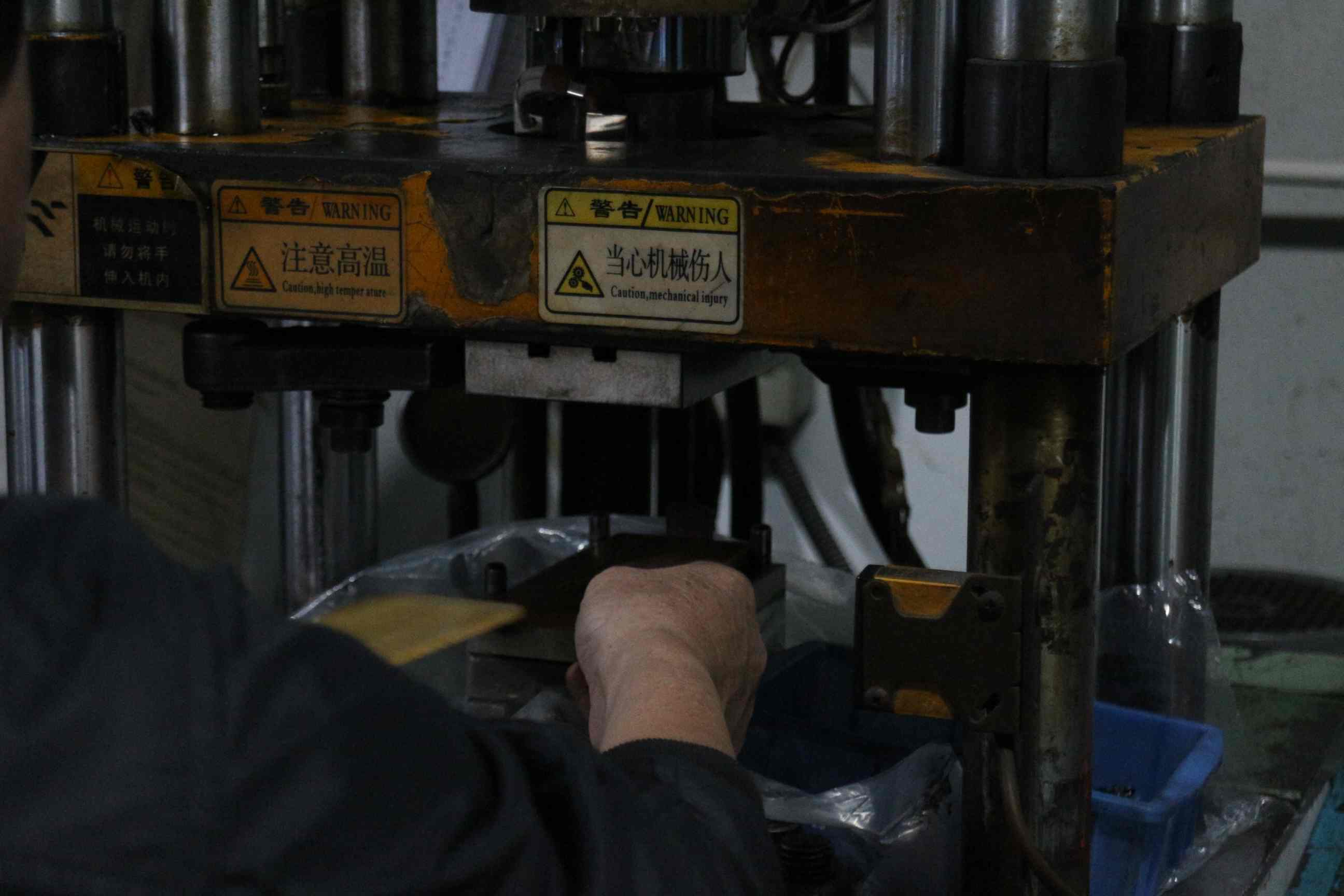

With advanced testing equipment and strict quality control procedures, the factory ensures stable electrical performance, reliable mechanical strength, and consistent product quality for every cable assembly.

Through OEM/ODM customization, flexible production capabilities, and professional engineering support, Meiyadi provides reliable connector solutions for industrial equipment, automation systems, and specialized applications worldwide.

Ordering Information

To ensure correct configuration and mating compatibility, please provide the following details when placing an inquiry:

• Mating connector requirement (female socket or panel mount receptacle), including pinout or drawing
• Required cable length and conductor size
• Electrical load (current and voltage) for your application
• Operating environment and temperature range
• Order quantity and any specific customization needs

For related connector options, please review the Aviation Plug Connectors range or consult the OHS Circular Connector for additional Russian standard interface solutions. For a pre-wired alternative with a different pin configuration, see the PC7 7 Pin Female Connector Cable Assembly with 6 Core Silicone Jacket Cable.
