M8 Connectors in Agricultural Sensors: Reliable Connectivity for Precision Farming

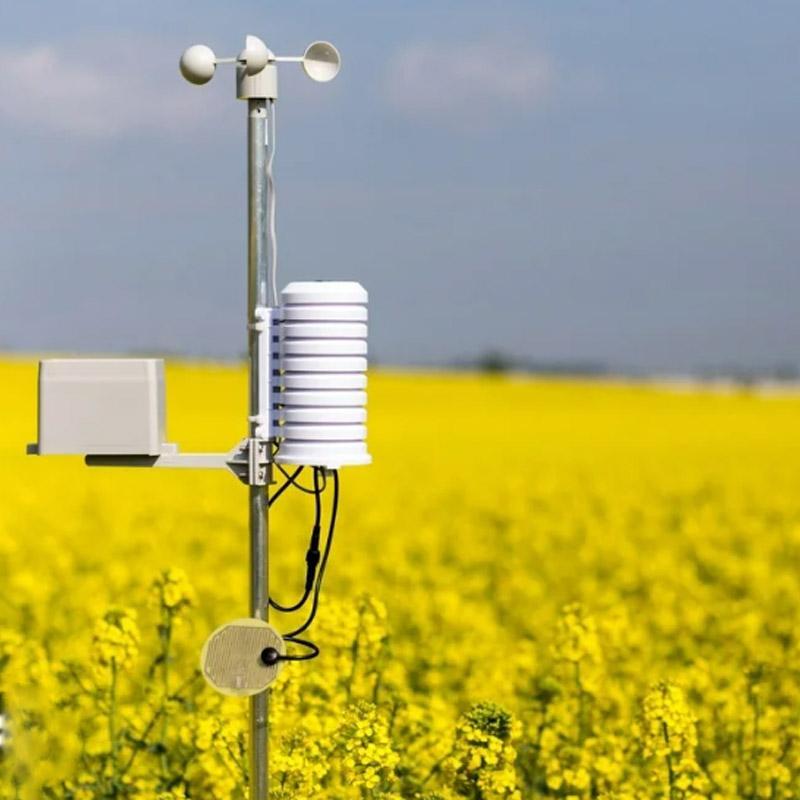

In modern agriculture, sensors play a crucial role in monitoring soil conditions, crop health, and environmental factors. M8 connectors are widely used to connect these sensors to control units, data loggers, and irrigation or fertilization systems, ensuring reliable signal and power transmission even in demanding field conditions.

Agricultural sensors are often exposed to dust, moisture, vibration, and temperature fluctuations. M8 connectors, with their compact design, robust construction, and secure locking mechanisms, maintain stable connections under these harsh conditions. They provide waterproof and corrosion-resistant performance, making them ideal for outdoor deployment across large farms and greenhouses.

Additionally, M8 connectors simplify installation and maintenance. When sensors need to be replaced or relocated, the connectors allow quick and secure reconnections without interrupting system operation. By providing dependable connectivity, M8 connectors help enhance data accuracy, optimize irrigation and fertilization, and support precision farming practices that improve crop yield and efficiency.

Project Background and Industry Context

This application overview addresses the agricultural sector, where environmental monitoring systems rely on compact, sealed interconnect solutions. The M8 connector series is selected for its small footprint and robust sealing, which suit the space constraints and outdoor exposure typical of field-deployed sensor networks.

Application Requirements and Connector Selection

For agricultural sensor applications, the key selection criteria include the number of signal or power pins, the required ingress protection rating, and the cable diameter range. The M8 interface provides a threaded locking mechanism that resists vibration-induced loosening, while the available IP-rated versions protect against dust and water ingress. When choosing a connector, verify the pin count matches the sensor output and confirm the cable gland accommodates your specified cable outer diameter.

Installation and Commissioning Considerations

During installation, ensure the mating faces are clean and the coupling nut is tightened to the specified torque to maintain the declared sealing performance. For sensors that may be relocated seasonally, the quick-disconnect feature of M8 connectors reduces downtime and minimizes the risk of wiring errors during reconnection.

Related Resources

For further guidance on selecting and installing circular connectors in similar environments, refer to the SD20/SP20 Square Flange Connector Design and Installation Guide. To review the broader range of sealed interconnection options, see the Waterproof Connectors catalog.

Next Step

To discuss your specific sensor interface requirements or request samples, please use the inquiry form or contact us via WhatsApp. Provide your pin count, cable diameter, and environmental rating needs to receive a tailored recommendation.
