M12 12 Pin Female Aviation Connector Cable Assembly for SU17 LiDAR

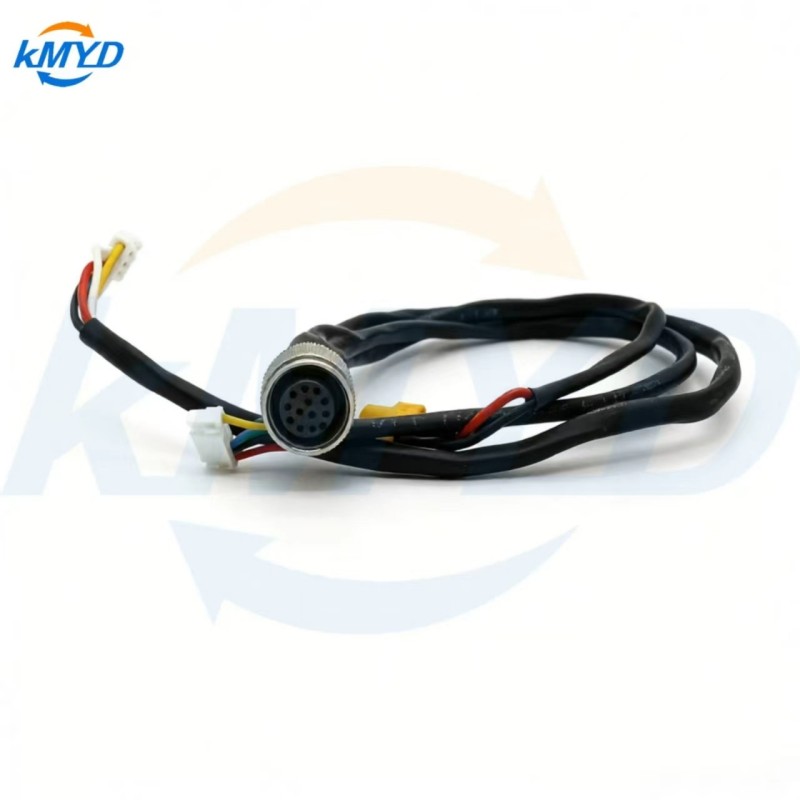

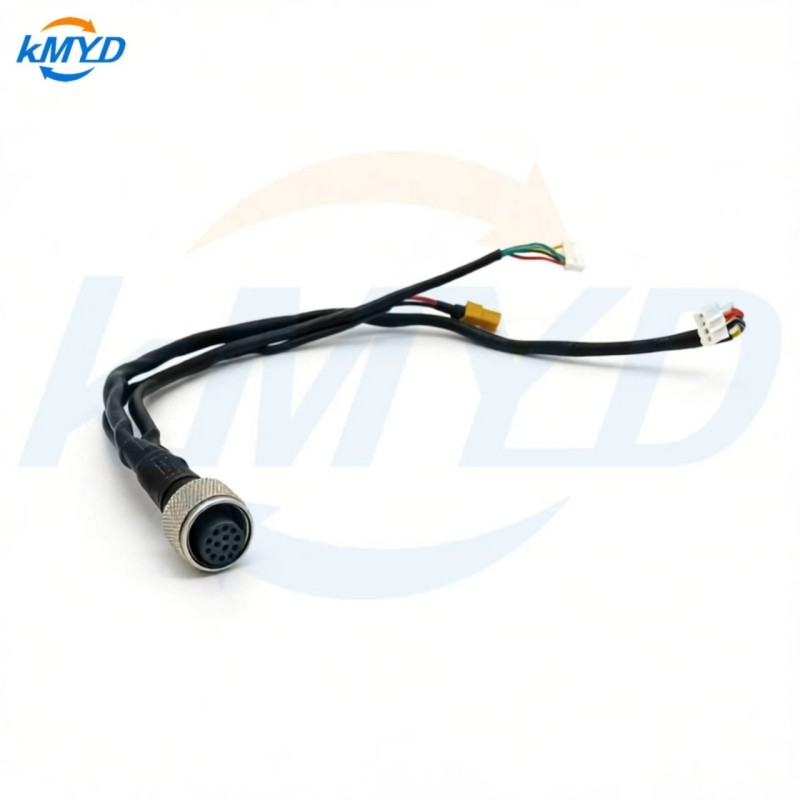

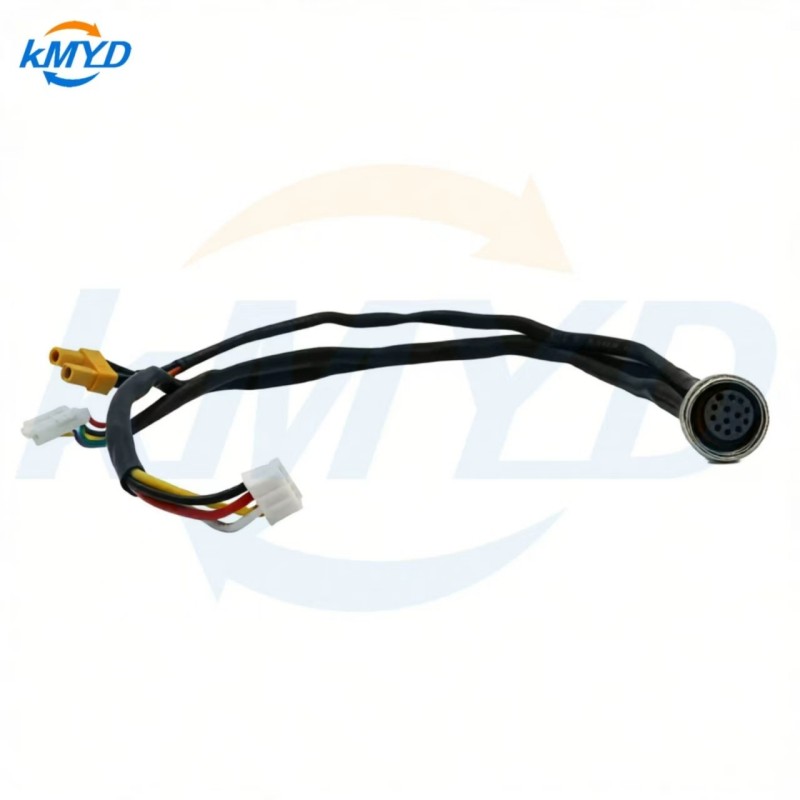

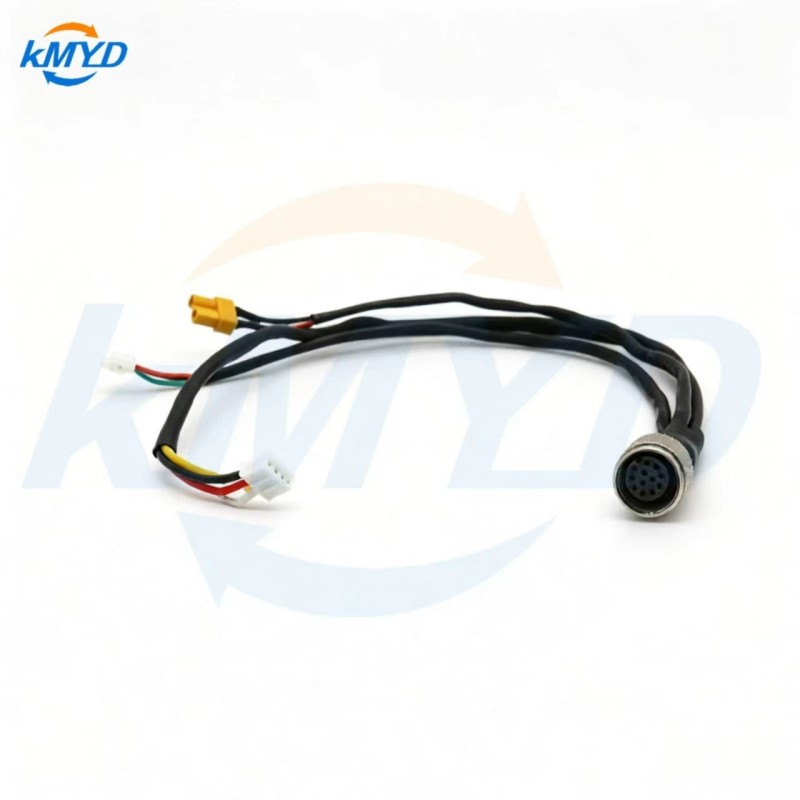

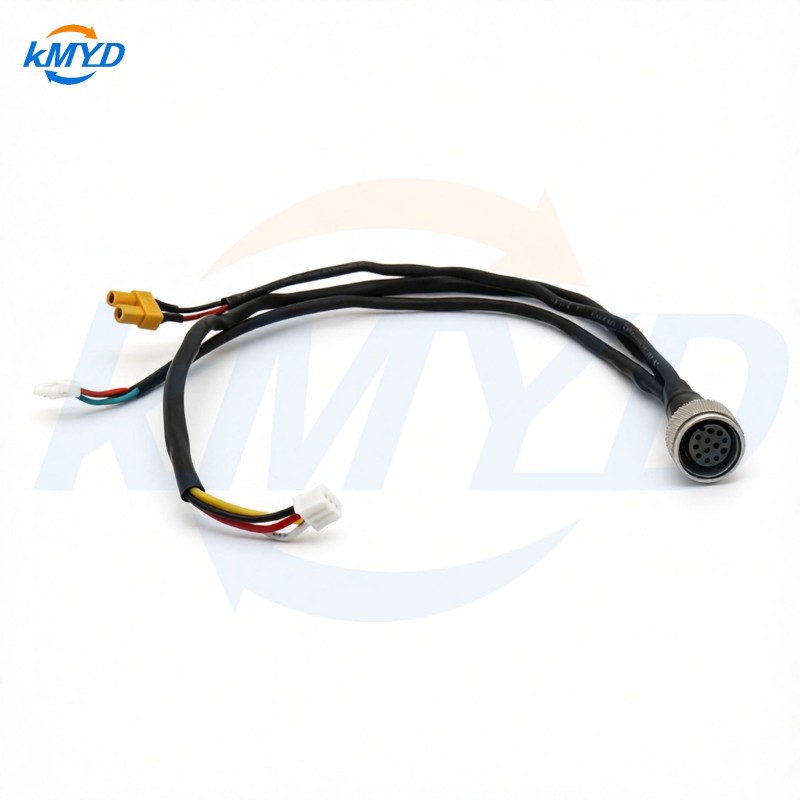

The M12 12 Pin Female Aviation Connector Cable Assembly is engineered for SU17 LiDAR systems, delivering a dependable interface for both power supply and signal transmission. Its high-density 12-pin M12 circular connector supports stable communication between the LiDAR unit and external control electronics, making it a practical choice for precision sensing applications.

Construction and Mechanical Reliability

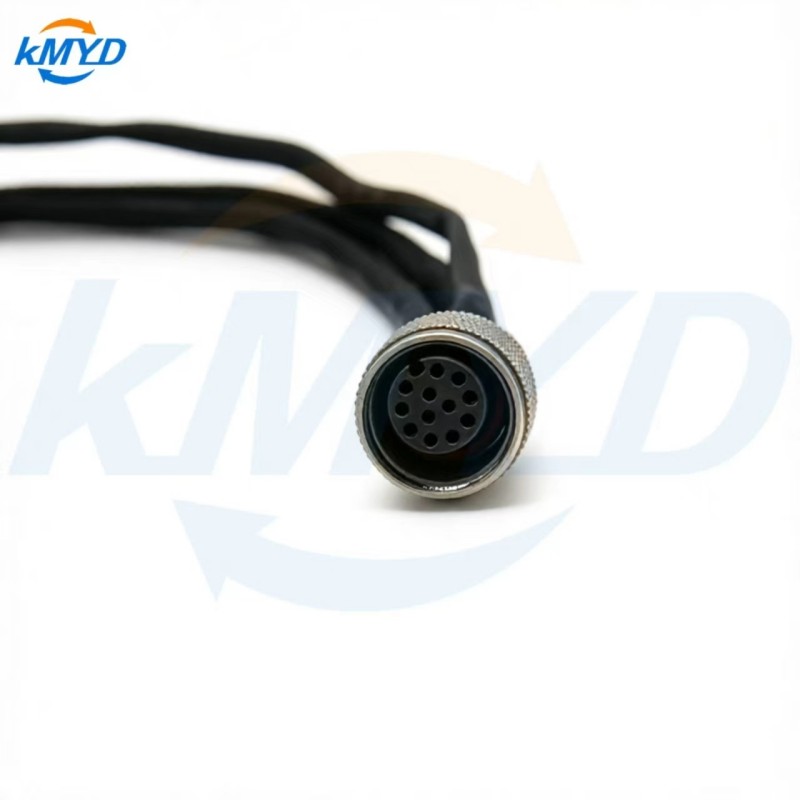

The aviation-style circular housing provides secure mating and robust mechanical performance during continuous operation. The precision pin layout ensures accurate alignment, while the durable cable structure is built to withstand the demands of industrial environments. Screw locking further reinforces connection stability against vibration and incidental pull forces.

Key Selection Considerations

• Mating Interface: Confirm the SU17 LiDAR mating connector type and pinout before ordering to ensure correct gender and wiring alignment.
• Power and Signal Integration: Verify the current and voltage requirements of your LiDAR system to confirm the assembly supports your specific load.
• Cable Length and Routing: Specify the required cable length and bend radius for your installation layout, particularly for robotic or mobile platforms.
• Environmental Exposure: Assess whether the operating environment involves moisture, dust, or temperature extremes to confirm the connector's suitability.
• Custom Configuration: For non-standard wiring or cable lengths, confirm customization options with the manufacturer before finalizing your design.

Application Scope

This cable assembly is intended for SU17 LiDAR systems and similar precision electronic equipment, including robotics platforms, autonomous navigation systems, industrial scanning devices, smart manufacturing machinery, and measurement instruments. It is best suited for indoor or protected environments where the connector remains mated during operation.

Suitability Boundaries

This product is not designed for submersion, high-vibration rotating joints, or applications requiring frequent unmated exposure to harsh conditions. For outdoor or high-moisture installations, verify the IP rating and environmental sealing with the manufacturer. It is also not intended for high-current power distribution beyond the rated capacity of the M12 12-pin interface.

Factory and Quality Assurance

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., this assembly benefits from over 15 years of connector and cable manufacturing experience. The production system covers R&D, mold development, precision machining, injection molding, cable assembly, and quality inspection, enabling consistent control from design through mass production.

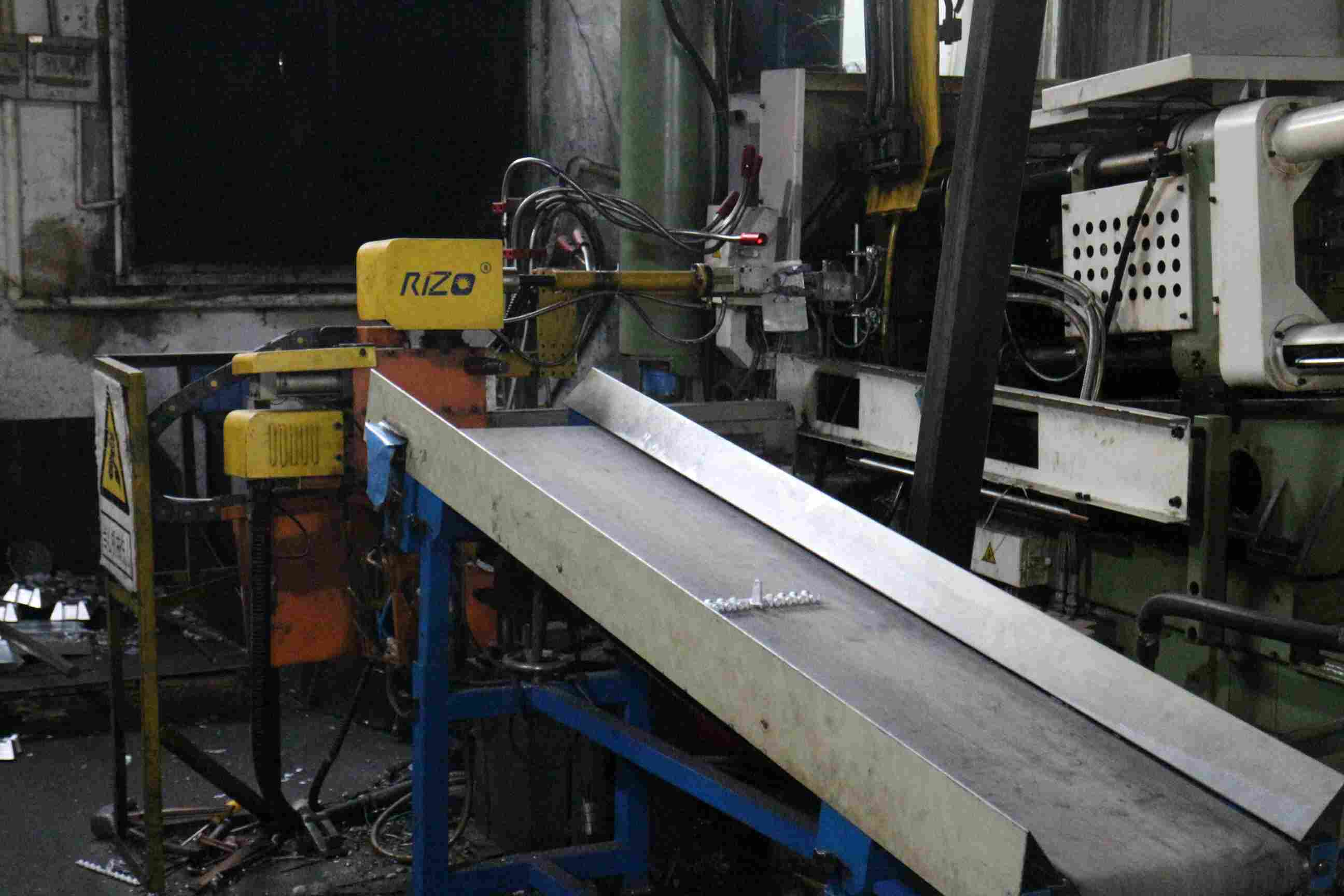

The factory uses professional testing equipment to verify electrical performance, mechanical reliability, and dimensional accuracy. Strict quality management processes support consistent output for global customers.

Customization and OEM/ODM Support

Custom cable lengths, wiring configurations, and connector requirements can be accommodated through the company's OEM/ODM capabilities. For a precise match, provide your mating connector specification, pinout drawing, cable diameter, conductor size, electrical load, and required quantity.

Inquiry Checklist

• Mating connector type and pinout for the SU17 LiDAR
• Required cable length and connector orientation
• Electrical load (current and voltage) of your system
• Operating environment and any IP protection requirements
• Order quantity and target delivery schedule
