Project Background: Laboratory Measurement Equipment Connectivity

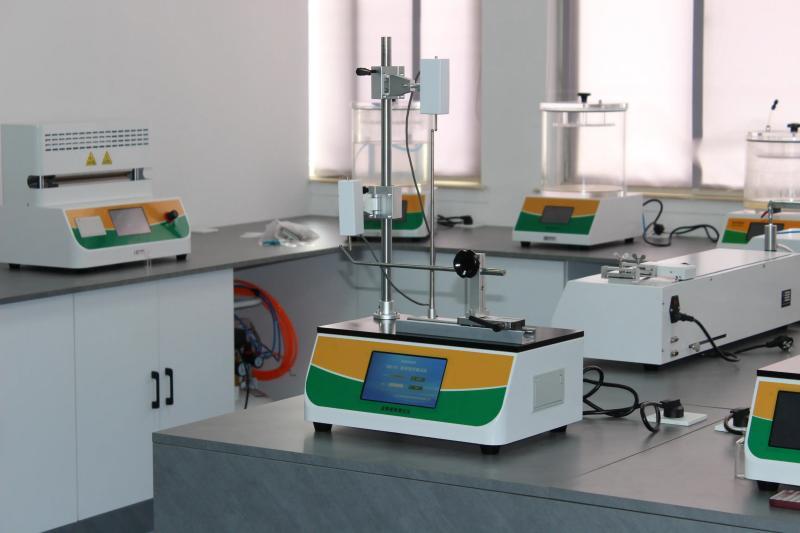

In laboratory measurement equipment, reliable signal and power transmission between sensors, actuators, and measurement modules is critical for accurate data acquisition. The SY17 and SY21 circular connectors are used to establish secure and flexible connections in these instruments, supporting frequent adjustments and reconfigurations without compromising performance.

Interface and Environmental Requirements

The equipment requires connectors that can withstand repeated mating and unmating cycles during routine calibration and testing procedures. The bayonet locking mechanism of the SY17 and SY21 series ensures quick assembly and reliable operation, reducing downtime during instrument setup and maintenance. The connectors are designed to maintain stable electrical contact under typical laboratory conditions, including moderate temperature variations and exposure to common laboratory environments.

Connector Solution and Configuration

The SY17 and SY21 series provide a compact, robust interconnection solution for laboratory instruments. Their design supports secure cable-to-panel or cable-to-cable connections, accommodating the wiring needs of measurement modules and peripheral devices. The bayonet coupling allows for fast, tool-free locking, which is essential for applications where instruments are frequently reconfigured or serviced.

Commissioning and Delivery Process

During the integration phase, the connectors were evaluated for mating consistency and contact reliability. The bayonet locking mechanism was verified to provide a positive, audible click upon full engagement, confirming proper connection. Cable strain relief and contact retention were checked to ensure long-term durability in daily laboratory use.

Verified Results and Application Fit

The SY17 and SY21 connectors have demonstrated stable performance in laboratory measurement equipment, supporting reliable signal integrity and power delivery. Their quick-locking design minimizes assembly time, while the robust construction reduces the risk of accidental disconnection during instrument handling. For engineers selecting connectors for similar test and measurement applications, these series offer a practical balance of speed, security, and electrical reliability.
