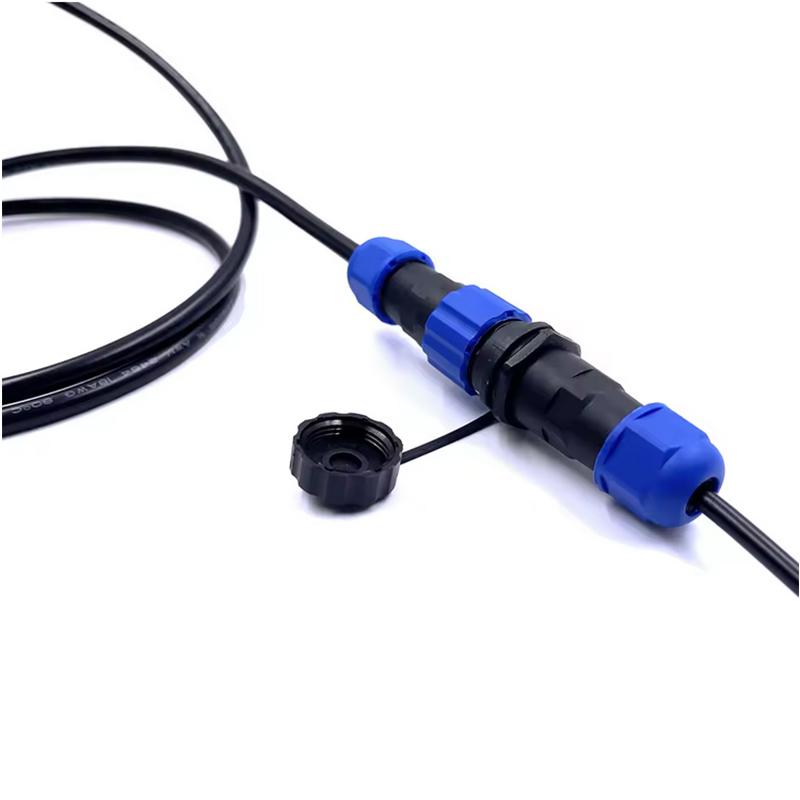

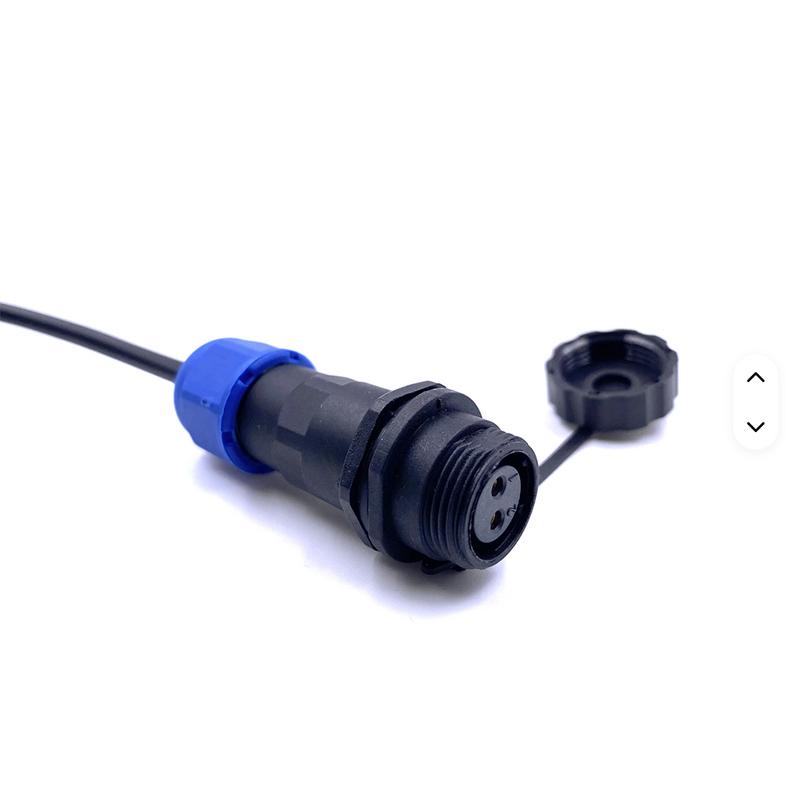

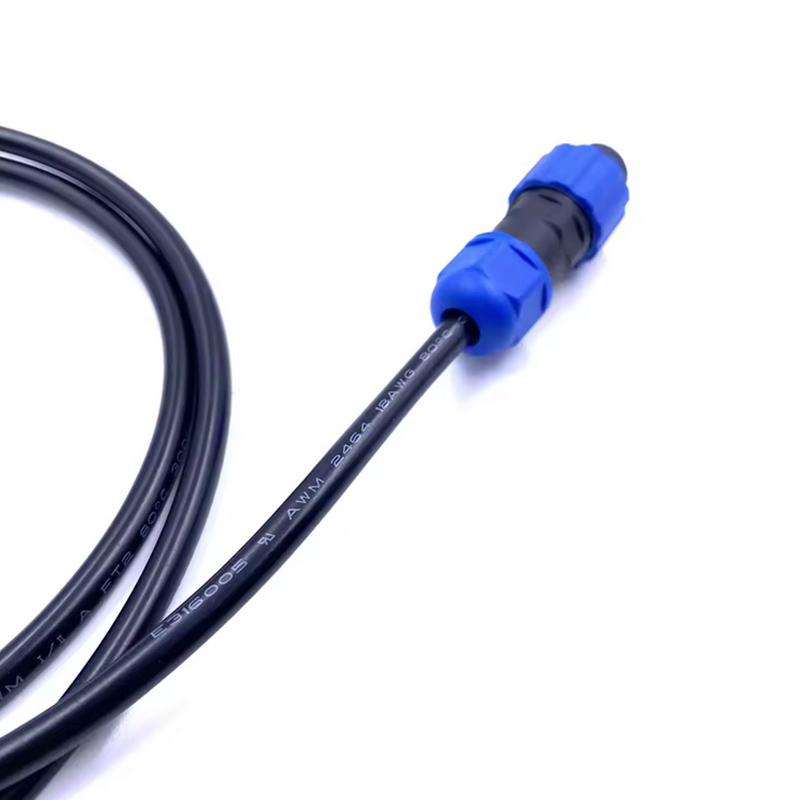

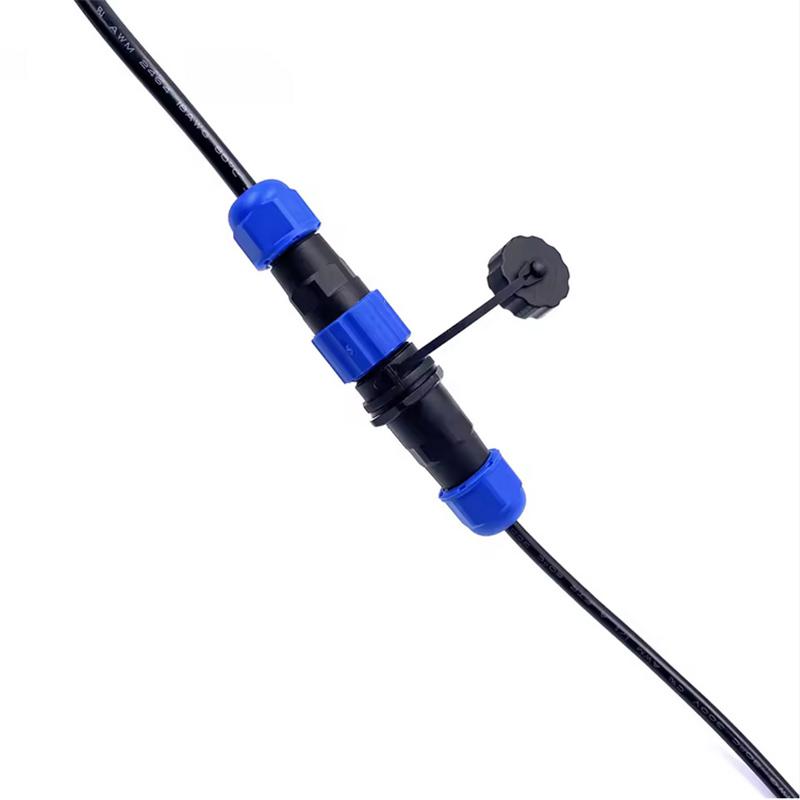

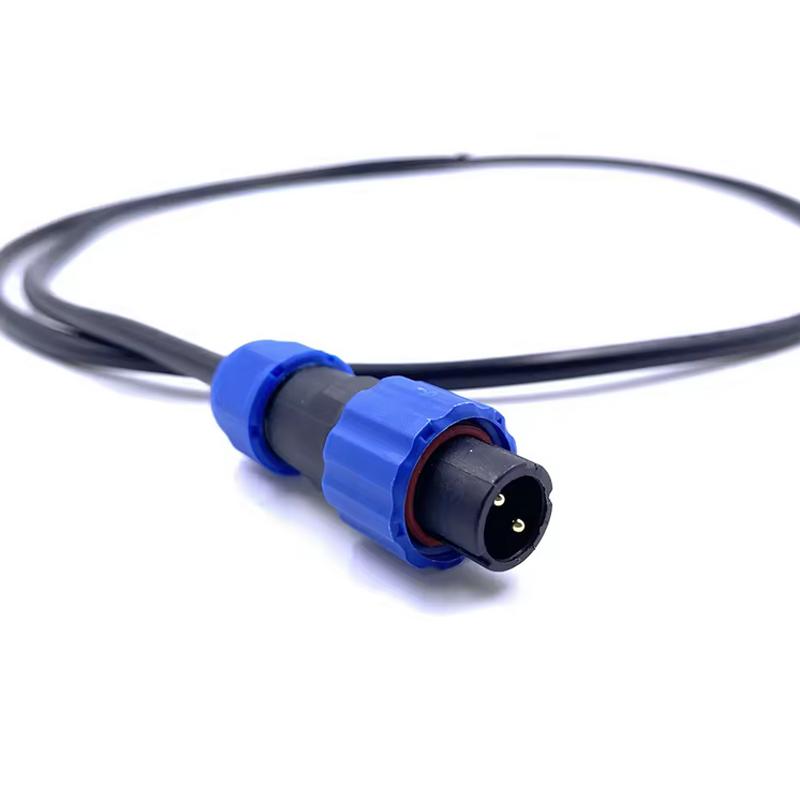

SD13/SP13 Waterproof Connector with Cable Overview

The SD13/SP13 waterproof connector with cable is a pre-wired circular connector assembly engineered for secure electrical connections in demanding industrial and outdoor environments. Its robust waterproof sealing structure and durable thermoplastic housing provide protection against water, dust, and mechanical stress, supporting stable performance in harsh working conditions.

Supplied as a complete cable assembly, this connector simplifies installation and reduces on-site wiring time. Dependable conductivity and a threaded locking mechanism help maintain consistent power and signal transmission across a range of electrical systems, making it suitable for applications where reliability and durability are critical.

Key Selection Criteria for SD13/SP13 Cable Connectors

When evaluating this connector for your application, consider the following decision points:

• Environmental Protection: IP67/IP68 rated sealing supports reliable performance in wet and dusty environments, but confirm the unmated protection level with your application requirements.
• Installation Efficiency: The pre-wired cable assembly eliminates field wiring, saving labor and reducing installation errors.
• Mechanical Durability: Impact-resistant PA66/PA6 housing and a threaded locking system provide vibration-resistant connections for long-term industrial use.
• Electrical Stability: Silver-plated brass contacts ensure consistent power or signal transmission; verify current and voltage ratings against your load.
• Configuration Flexibility: Available in 1-7 pin configurations with male or female gender options to match your equipment design.

Customization Options for Cable Assemblies

To meet specific installation and project requirements, flexible customization services are available for cable assemblies:

• Custom Cable Length: Produced according to your specified requirements.
• Custom Cable Specification: Support for different wire gauges, core numbers, and insulation materials.
• Cable Type Selection: PVC, PUR, silicone, shielded cable, and other options available.
• Connector Pin Configuration: Multiple pin options to match your equipment design.
• Logo and Packaging Customization: OEM and ODM services supported.

Our engineering team can assist in selecting the most suitable cable solution based on your application environment and electrical requirements.

Typical Applications for SD13/SP13 Cable Connectors

The SD13/SP13 waterproof connector with cable is widely used in applications requiring reliable, waterproof electrical connections, including:

• LED lighting systems
• Industrial automation equipment
• Outdoor electrical installations
• Control systems
• Security and surveillance devices
• Marine and outdoor equipment
• Power distribution systems

Manufacturing and Quality Assurance

Since 2007, we have specialized in the development and production of circular connectors and cable assemblies. Our complete manufacturing system covers die-casting, mold design, injection molding, assembly, and testing, enabling efficient production and consistent product quality.

All products undergo strict quality inspection procedures, including waterproof sealing tests, insertion and withdrawal force testing, salt spray resistance testing, and electrical performance verification. Our products comply with international standards such as UL, CE, RoHS, and ISO9001, ensuring reliability and safety for global customers.

Suitability Boundaries

This connector is well-suited for outdoor lighting, industrial control, and marine equipment where IP67/IP68 protection and pre-wired convenience are required. It is not recommended for applications demanding high-frequency signal transmission, extreme temperature ranges beyond the housing material limits, or environments requiring chemical resistance beyond standard PA66/PA6 capabilities. For specialized requirements, consult our engineering team to verify material compatibility.

Inquiry Checklist for Ordering

To ensure accurate matching and configuration, please provide the following information when inquiring:

• Required pin count and gender (male/female)
• Cable length and wire gauge
• Cable type (PVC, PUR, silicone, shielded, etc.)
• Electrical load (current and voltage)
• Application environment (temperature, moisture, chemical exposure)
• Mating connector or equipment interface details
• Order quantity and delivery requirements
