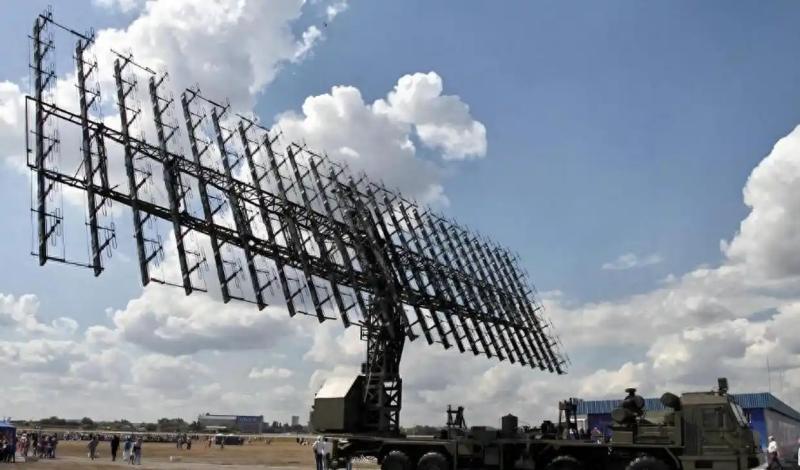

RF Connectors in Radar Antenna Systems: Project Background

RF connectors are widely used in radar antenna systems to transmit high-frequency signals between antennas and processing units. Common types include SMA and N-type connectors, selected based on frequency range and installation requirements. These connectors are deployed in ground-based radar, marine radar, and air traffic monitoring systems where consistent signal integrity is essential for reliable operation.

Application Requirements and Connector Selection

For radar antenna systems, the selection of RF connectors depends on the operating frequency band, power handling capability, and environmental exposure. SMA connectors are typically chosen for applications up to 18 GHz with lower power requirements, while N-type connectors are preferred for higher power handling and lower signal loss at frequencies up to 11 GHz. The mating interface, impedance rating (50 Ω), and cable type must be matched to the system design to ensure proper performance.

Solution: Ensuring Signal Integrity and Environmental Fit

The chosen RF connectors support consistent signal integrity through precise impedance matching and robust mechanical construction. Proper impedance matching is important to minimize signal loss and reflection, particularly in radar systems where signal clarity directly affects detection accuracy. For outdoor installations, the connector housing and sealing must meet the required IP rating to withstand moisture, temperature variations, and vibration.

Installation and Commissioning Considerations

During installation, attention must be given to torque specifications, cable preparation, and mating alignment to avoid damage to the connector interface. For marine radar applications, corrosion-resistant materials and proper grounding are critical. The commissioning process should include a visual inspection of the mating surfaces and, where possible, a verification of the standing wave ratio (SWR) to confirm the assembly meets the system's electrical requirements.

Related Resources

For further guidance on connector selection and specifications, refer to the Aviation Plug Connectors catalog or the Din Circular Connector Types and Specifications Guide. For radar-specific applications, see the article on Coaxial Connectors for Radar Signal Processing Equipment.

Inquiry and Next Steps

If you are evaluating RF connectors for a radar antenna system, please provide your operating frequency, power level, cable type, and environmental requirements. Use the inquiry form or contact us via WhatsApp to discuss your specific application and receive a tailored recommendation.
