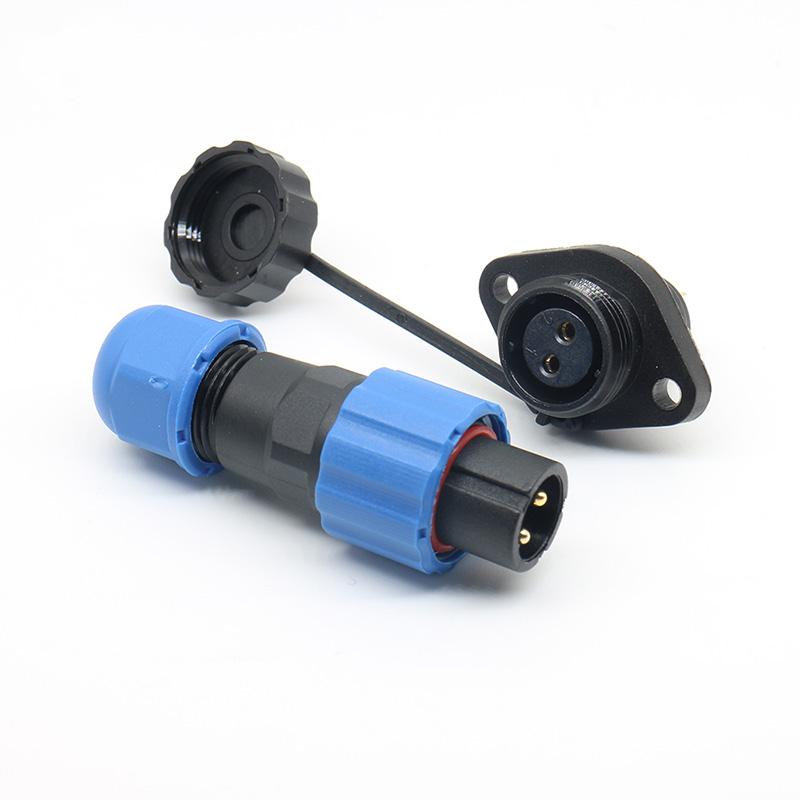

SD13/SP13 Durable Flange Connector: Technical Reference Overview

This technical reference provides the verified dimensions, specifications, and materials for the SD13/SP13 durable flange connector. It is intended for engineers and procurement specialists who need to confirm panel cutout requirements, mating interface details, and material compatibility before integrating this connector into an enclosure or cable assembly.

Key Selection Criteria for the SD13/SP13 Flange Connector

When evaluating this connector for your application, focus on the following decision points to ensure a proper fit and reliable performance:

• Mounting Configuration: Confirm whether your design requires a panel-mount flange for the socket (female) side and a cable-mount plug (male) side, and verify the flange hole pattern against your enclosure.
• Mating Interface and Keying: Verify the specific pin count and contact layout for the SD13/SP13 series to ensure it matches your cable assembly and prevents mismating.
• Environmental Protection: Check the Ingress Protection (IP) rating for the mated condition to confirm suitability for your required dust and water exposure levels.
• Electrical Ratings: Confirm the rated current and voltage against your load requirements, and account for any derating based on ambient temperature or wire gauge.
• Termination Method: Identify whether the contacts are solder, crimp, or screw type to align with your production or field-wiring process.

Understanding the Dimensional Diagram

The accompanying diagram provides a clear depiction of the SD13/SP13 durable flange connector's dimensions, specifications, and materials for technical reference. Use this drawing to verify the following critical measurements before panel fabrication:

• Panel cutout diameter and mounting hole spacing for the flange.
• Overall connector length and depth behind the panel.
• Recommended cable outer diameter range for the cable-mount side.

Material and Construction Notes

The material selection for the housing, contacts, and sealing components directly affects the connector's durability and environmental resistance. Refer to the diagram and the product datasheet for the specific material grades used in the SD13/SP13 series. If the material data is not visible in the diagram, consult the detailed catalog entry for the complete bill of materials.

Application Boundaries

This flange connector is designed for industrial and outdoor equipment where a secure, waterproof connection is required. It is suitable for applications such as LED lighting, sensors, and control systems. However, verify that the operating temperature range and chemical resistance of the housing material are compatible with your specific environment. The IP rating is only guaranteed when the connector is fully mated and the locking mechanism is engaged.

Next Step: Verify Your Configuration

Before placing an order, confirm the exact pin count, gender, and mounting style required for your project. For a detailed dimensional drawing and material specification, review the SD13/SP13 panel mount connector dimensions and specs. If you are comparing this with a larger variant, see the SD16/SP16 robust flange connector dimensions and materials for reference. Use the inquiry form or WhatsApp to send your required configuration and panel cutout details for a compatibility check.
