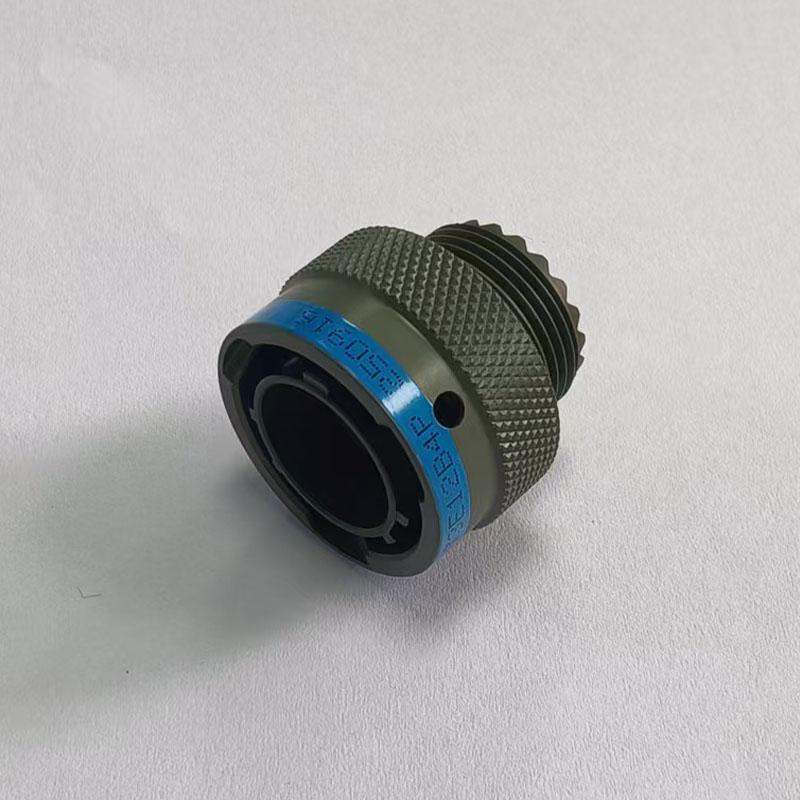

MS27473E12B4P Connector
< >

MS27473E12B4P 6-Pin Bayonet Coupling Connector for Maritime Radar

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 4 Pins
Contact DiameterContact Diameter(mm) 1.02 mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -65°C to +175°C
TerminationTermination Crimp
Rated CurrentRated Current(A) 7.5A
Rated VoltageRated Voltage(Ac.V) 600V
Test VoltageTest Voltage(Ac.V)1Min 1800V
Insulation ResistanceInsulation Resistance (MΩ) ≥ 5000 MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 3 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

MS27472 Military Connector

The MS27473E12B4P connector is a rugged, high-reliability solution designed for maritime radar antenna units. It ensures secure signal transmission even in harsh marine environments.

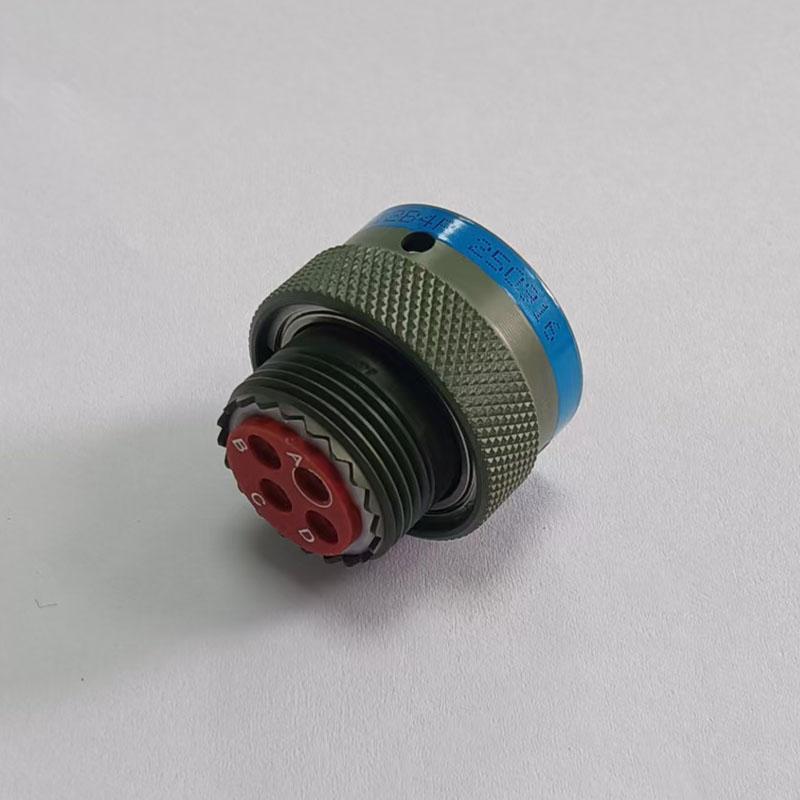

MS27473E12B4P connector for maritime radar antenna units

Key Features

  • Durable construction resistant to saltwater corrosion and vibration
  • High-performance electrical contacts for reliable radar signal integrity
  • Compact design suitable for confined radar module spaces

Applications

Ideal for naval ships, patrol vessels, and offshore radar systems, providing dependable connectivity for antenna units and radar transceivers. The 6-pin configuration supports the signal and power paths typically required in radar antenna assemblies.

Why Choose MS27473E12B4P

Engineered to meet military and industrial standards, this connector guarantees long-term performance, minimizing maintenance needs and downtime in critical maritime operations. The aluminum alloy housing and gold-plated brass contacts provide a corrosion-resistant interface suited for salt-laden atmospheres.

Selection Considerations

When evaluating this connector for your radar system, confirm the following before ordering:

  • Mating connector gender and shell style for your existing cable or panel assembly
  • Cable diameter and termination method (crimp or solder) for field installation
  • Operating temperature range and vibration profile of the antenna unit
  • Required IP protection level for the mounting location

For related military-grade interconnection options, review the MS27472 Military Connector series or explore the broader Aviation Plug Connectors range for alternative shell sizes and contact arrangements.

Inquiry Checklist

To receive an accurate quotation and mating recommendation, please provide the following details with your inquiry:

  • Quantity and target delivery schedule
  • Mating connector part number or shell size and gender
  • Cable type, outer diameter, and conductor gauge
  • Any specific plating or material requirements beyond the standard offering

GX12 Aviation Connector

Item Parameters
Number of Cores 6 Pins
Gender Male/Female
Housing Material Aluminum Alloy
Cores Material Brass Plated with Gold
Insulator Material PEFT
Locking System Bayonet Coupling
Temperature Range -65°C to +175°C
Rated Current (A) 7.5A
Rated Voltage (AC.V) 600V
Test Voltage (AC.V) 1 Min 1800V
Insulation Resistance (MΩ) 5000 MΩ
Contact Resistance (MΩ) ≤3 MΩ
Termination Crimp
