SP17 Waterproof Connectors
< >

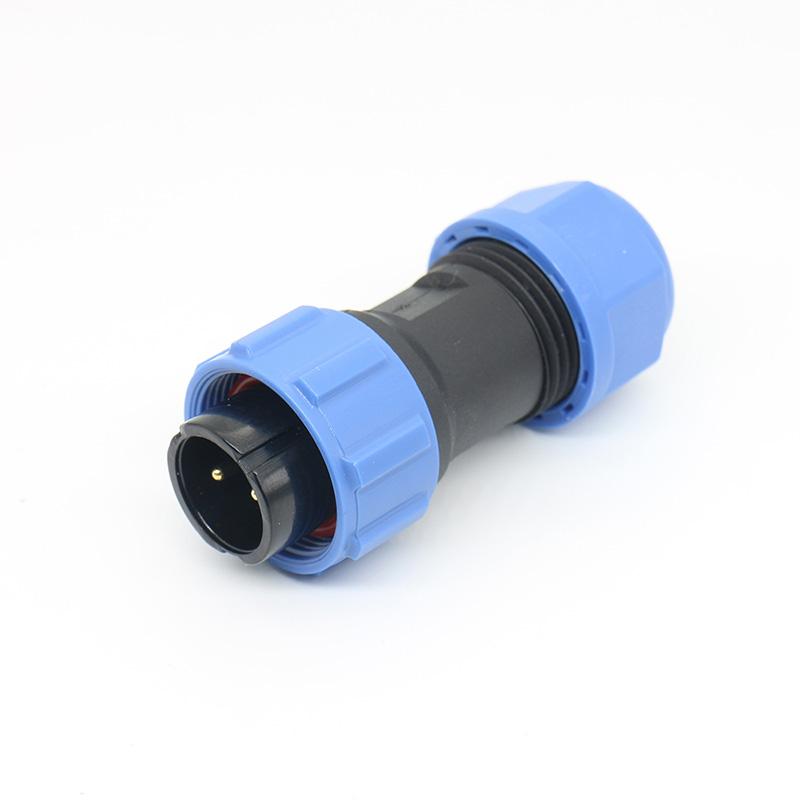

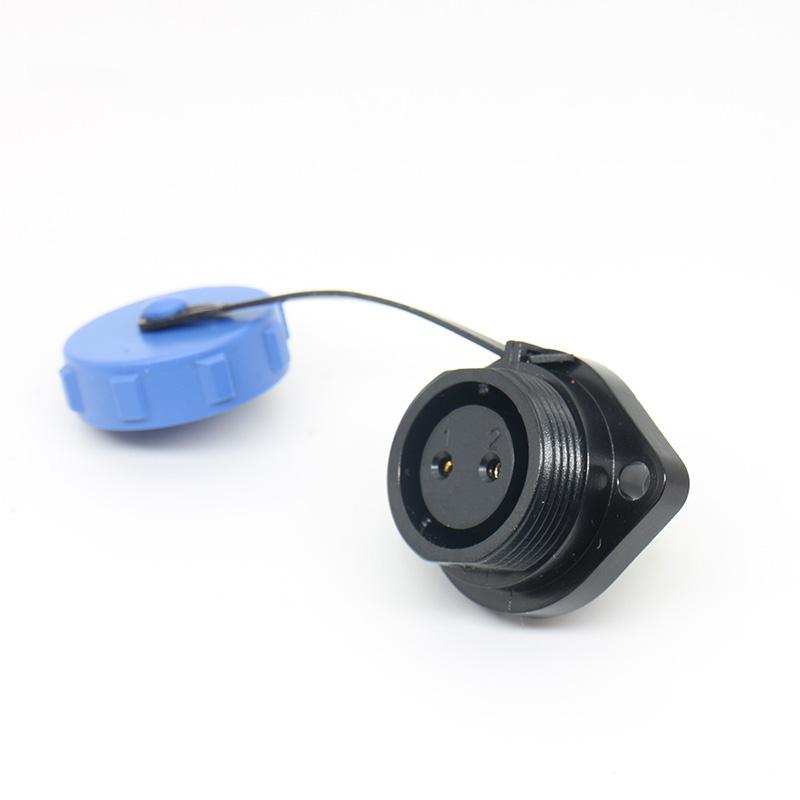

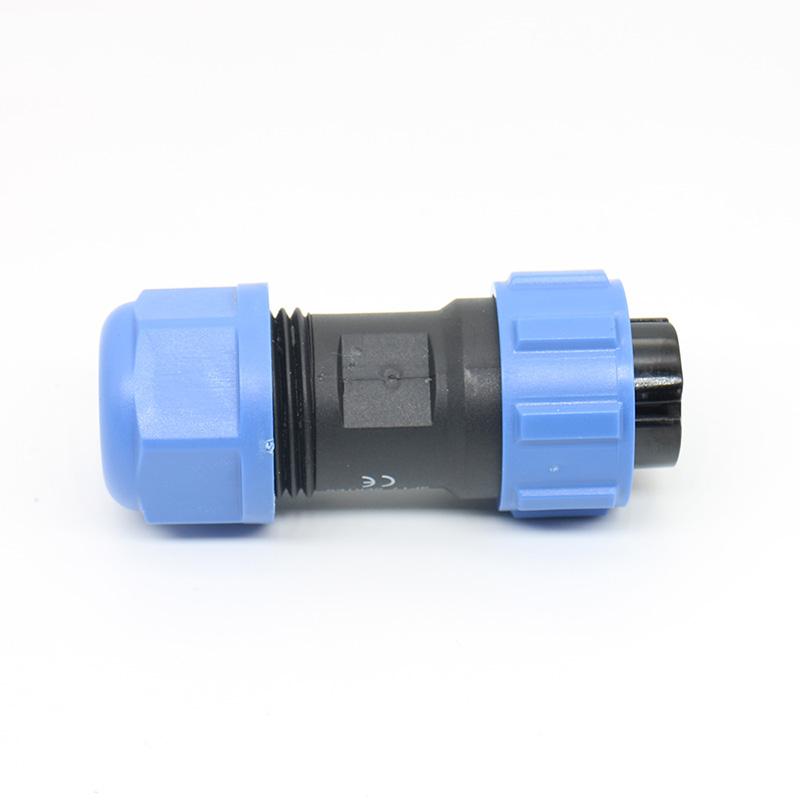

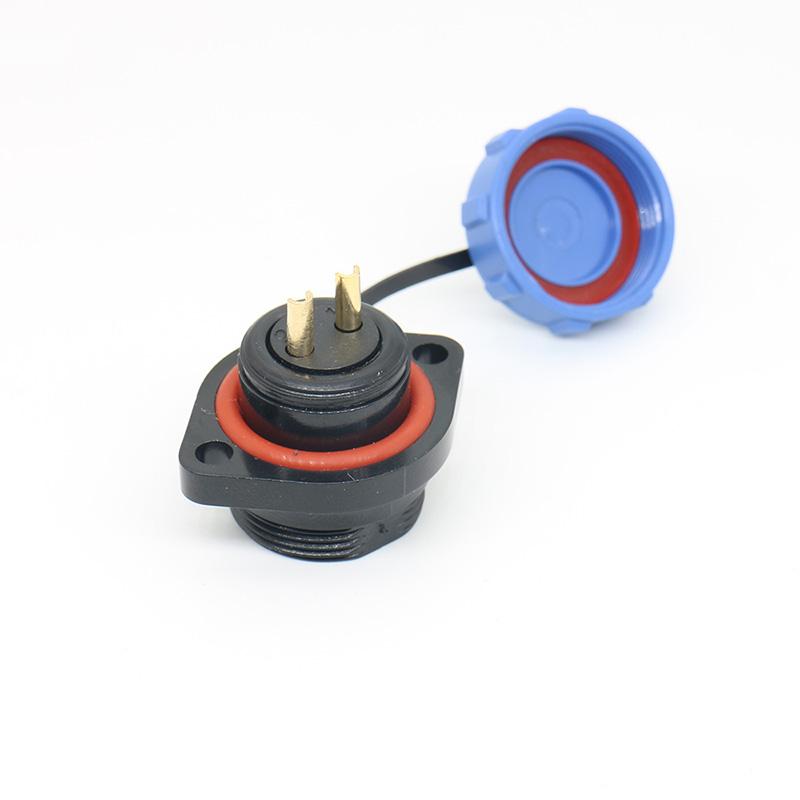

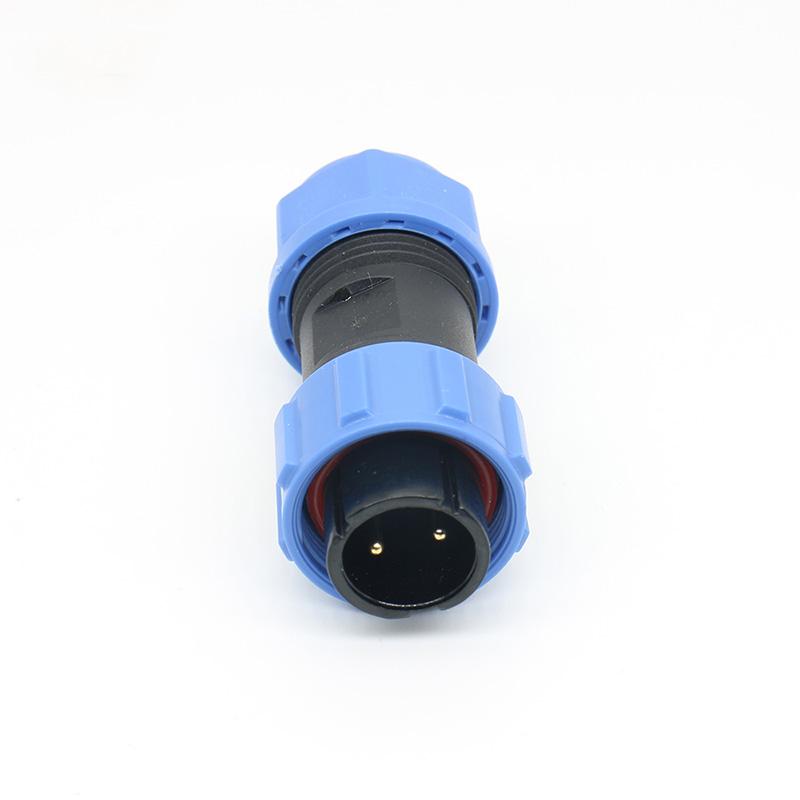

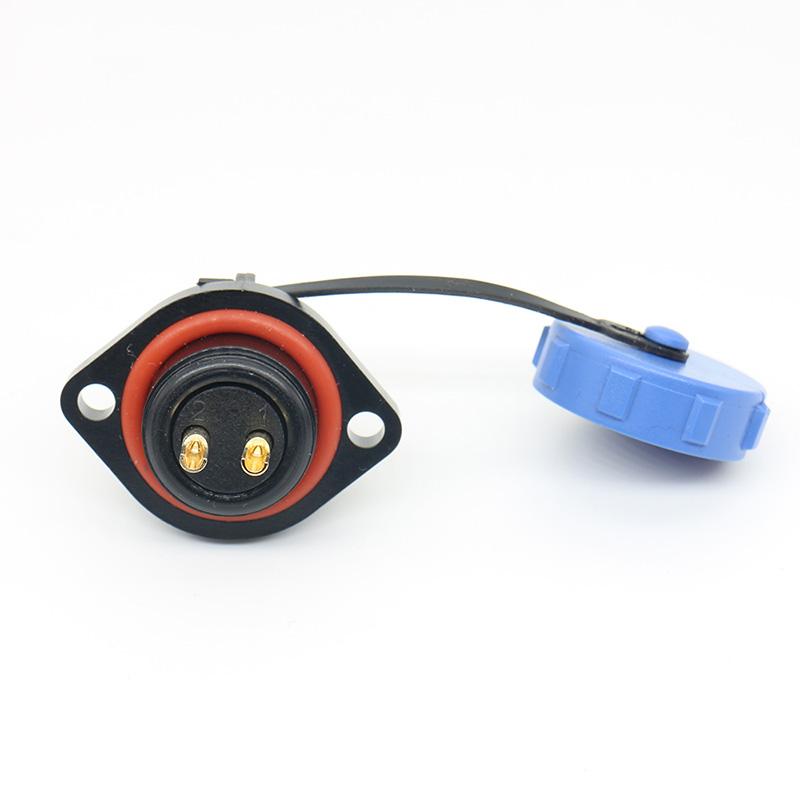

SP17 Connector for Compact Surveillance Radar Devices

>Number Of CoresNumber Of Cores 2 - 9Pin
Contact DiameterContact Diameter(mm) 1.0mm/1.5mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 5A-100A
Rated VoltageRated Voltage(Ac.V) 400V-500V
Test VoltageTest Voltage(Ac.V)1Min 1000V-1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

SP17 Connector for Compact Surveillance Radar Devices

The SP17 Connector for Compact Surveillance Radar Devices is engineered for high-reliability connections in radar monitoring equipment. Its compact circular design allows efficient integration into space-limited radar devices while ensuring stable electrical performance.

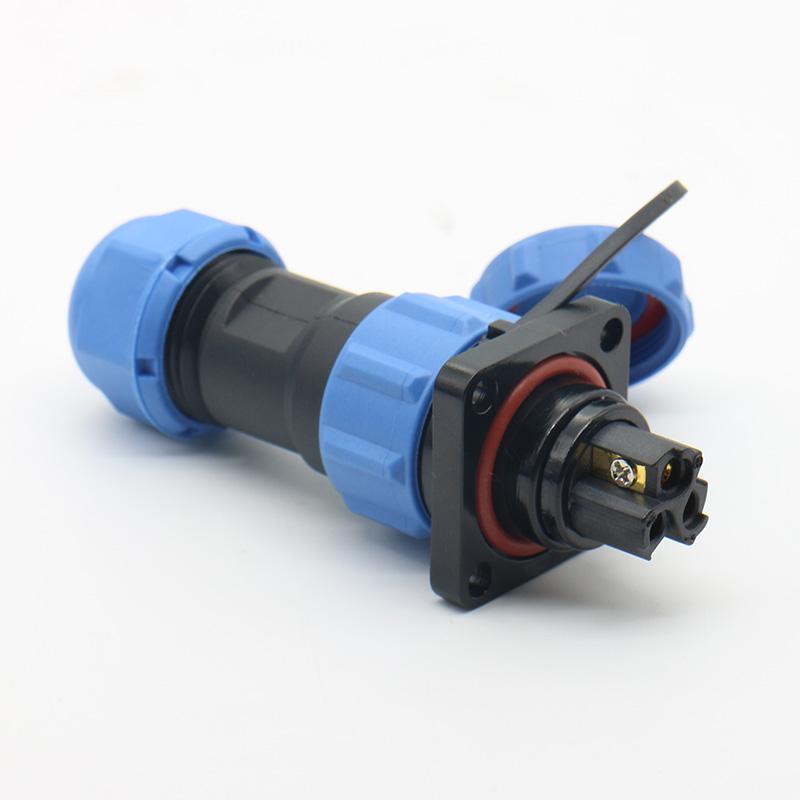

SP17 Connector


Reliable Signal and Power Transmission

The SP17 Connector supports stable signal and power transmission required for surveillance radar devices. It helps maintain consistent communication between radar modules such as signal processors, receivers, and control units.

Durable Design for Harsh Environments

Manufactured with high-quality materials, the SP17 Connector provides excellent resistance to moisture, dust, and mechanical vibration. This makes it suitable for outdoor radar installations and portable monitoring equipment.

Compact Structure for Radar Devices

Thanks to its compact size and secure locking mechanism, the SP17 Connector for Compact Surveillance Radar Devices is ideal for compact radar systems where space efficiency and reliability are critical.

Item

Parameters

Number of Cores

2-9Pin

Gender

Male/Female

Housing Material

PC/PA66

Cores Material

Brass Plated with Gold

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

5A - 10A

Rated Voltage (AC.V)

400V - 500V

Test Voltage (AV.C)1Min

1000V - 1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Solder
