MS27468E13B35PB MIL-DTL-38999 22-Pin Connector for Radar Systems

MS27467 Circular Connectors

MS27468E13B35PB Connector for Ground Surveillance Radar Systems

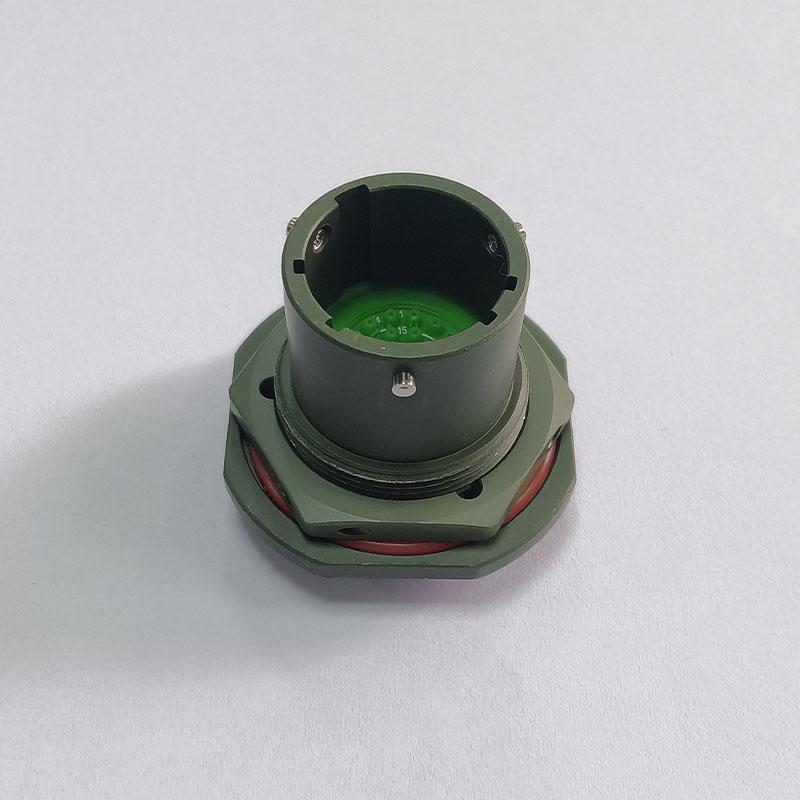

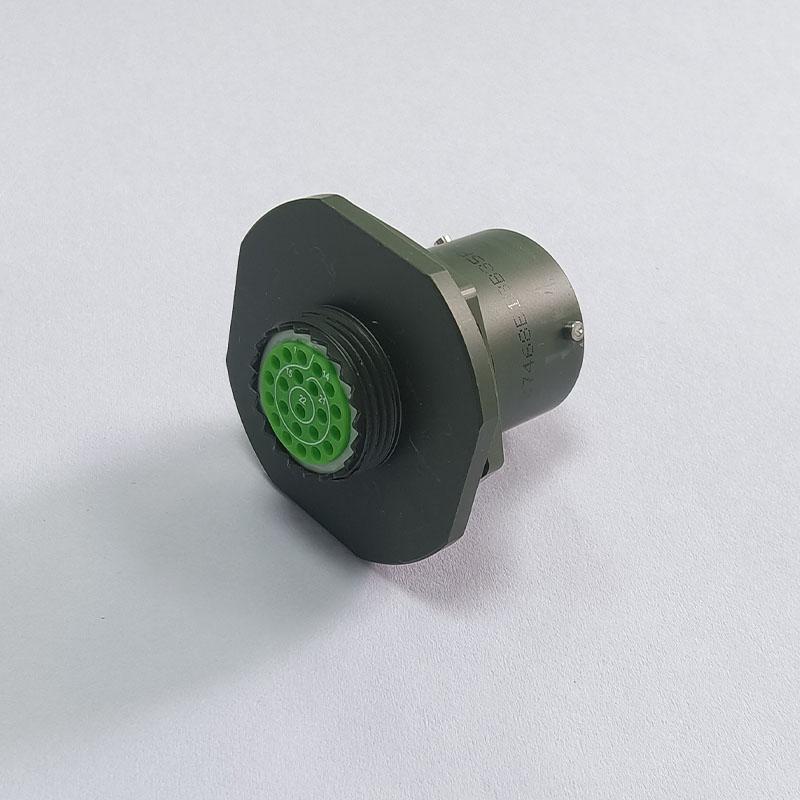

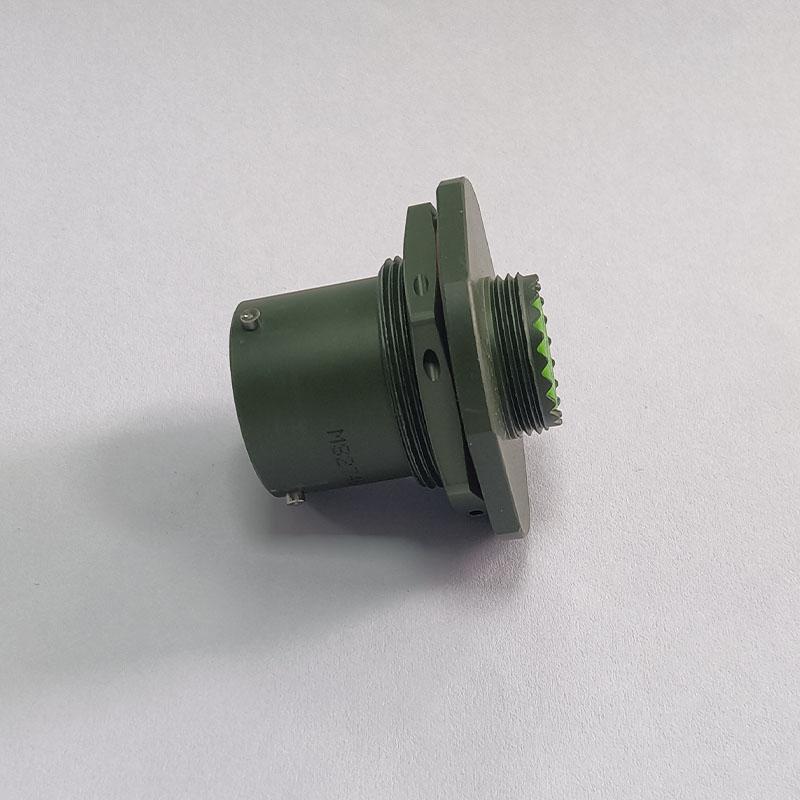

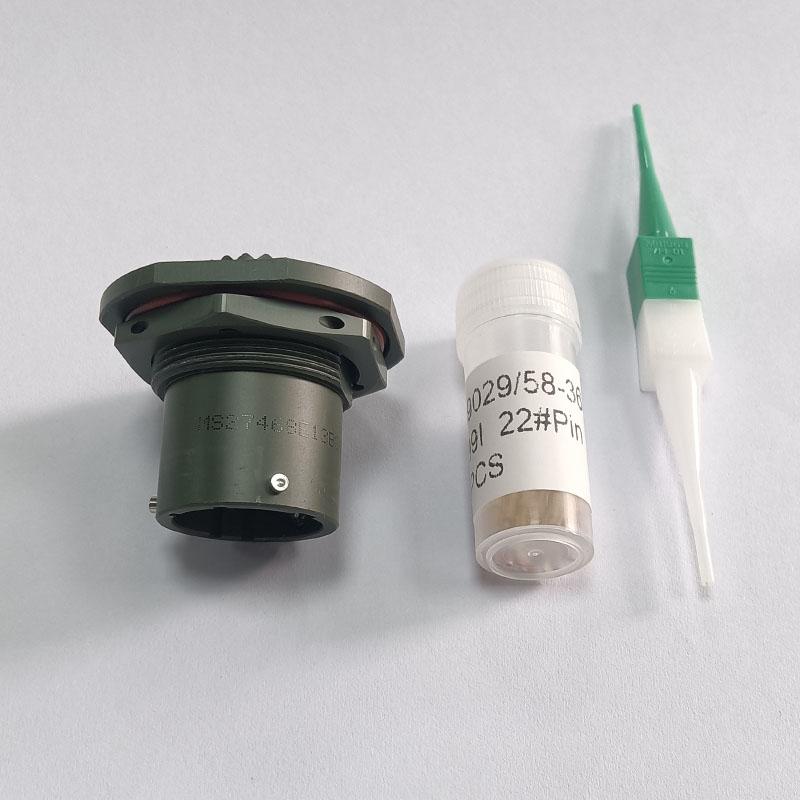

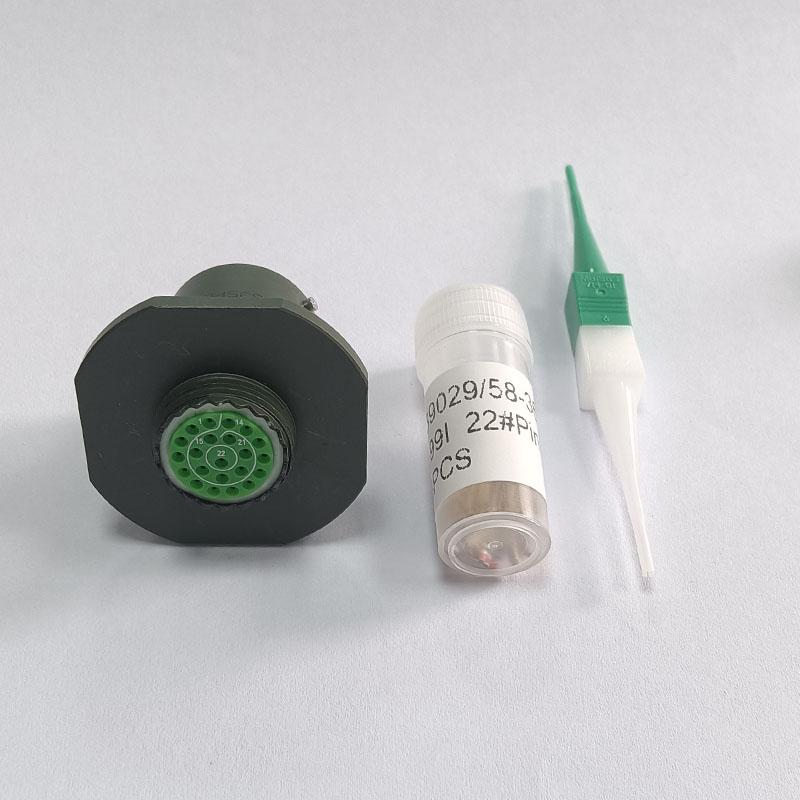

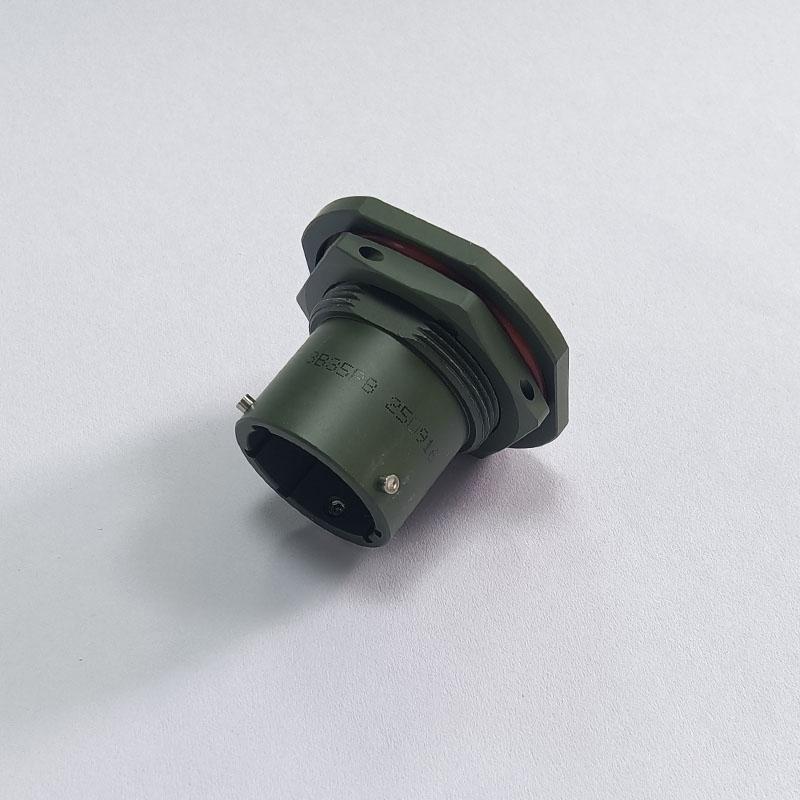

The MS27468E13B35PB circular connector is a high-reliability electrical connector designed for demanding communication radar equipment. Compliant with MIL-DTL-38999 specifications, it ensures stable signal transmission and secure connections in radar monitoring and defense systems.

Reliable Connection for Radar Signal Equipment

In ground surveillance radar systems, connectors must maintain stable performance under vibration, electromagnetic interference, and harsh outdoor environments. The MS27468E13B35PB connector provides dependable connectivity for radar signal processing modules and communication units.

Rugged Design for Harsh Environments

Manufactured with durable materials and precision contacts, this connector offers strong resistance to vibration, moisture, and temperature changes, making it suitable for mission-critical radar applications.

Typical Applications

• Ground surveillance radar systems
• Radar signal processing units
• Military communication equipment
• Radar control modules
• Defense electronic systems

Key Selection Considerations

When evaluating the MS27468E13B35PB for your radar system, consider the following decision points:

• Mating interface: Confirm that the mating plug or receptacle matches the MS27468 series bayonet coupling style and the 13B35 insert arrangement before integration.
• Pin configuration: Verify the 22-pin layout and gender orientation against your system's wiring diagram to avoid mismatched signal routing.
• Environmental exposure: Assess the vibration profile, temperature range, and moisture exposure at the mounting location to confirm the aluminum alloy housing and gold-plated brass contacts meet your reliability requirements.
• EMI shielding: For radar applications near transmitters, confirm the connector's shielding effectiveness aligns with your electromagnetic compatibility plan.

Application Boundaries

The MS27468E13B35PB is well suited for ground-based radar signal processing, military communication racks, and defense electronics where MIL-DTL-38999 performance is specified. It is not intended for underwater mating, high-current power distribution, or applications requiring non-standard pin arrangements. For radar antenna drive systems or phased array control units with different interface requirements, review the mating connector series before specifying.

Configuration and Mating Dependencies

This connector follows the MS27468 bayonet coupling standard, meaning the mating plug must share the same shell size, insert arrangement, and keying position. Before ordering, confirm the following with your engineering team:

• The exact mating connector part number and its gender
• The cable diameter and termination method (crimp or solder) for your harness
• The required pinout diagram for your radar signal channels
• Mounting orientation and panel thickness at the installation point

Inquiry Checklist

To receive an accurate quotation and configuration recommendation, please provide the following details when contacting us:

• Your system's operating voltage and current per contact
• The cable type and wire gauge planned for termination
• Environmental requirements such as IP rating, temperature range, and vibration levels
• Quantity and target delivery schedule
• Any custom marking or packaging requirements

For related MIL-DTL-38999 connector options, review the MS27467 Circular Connectors catalog. For guidance on EMI-resistant radar connectors, see how to make connectors for shipborne radars resistant to electromagnetic interference.
