LD16 Waterproof Connectors
< >

LD16/SP16 2 Pins Right Angle Flange Connector Waterproof

>Number Of CoresNumber Of Cores 2 - 12Pins
Contact DiameterContact Diameter(mm) 1.0mm/1.8mm/2.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA6(Flame Retardant)
Temperature RangeTemperature Range -25°C to +85°C
TerminationTermination Screw Crimping
Rated CurrentRated Current(A) 5A/10A/20A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 1 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

LD16 / SP16 2 Pins Right Angle Flange Connector Waterproof

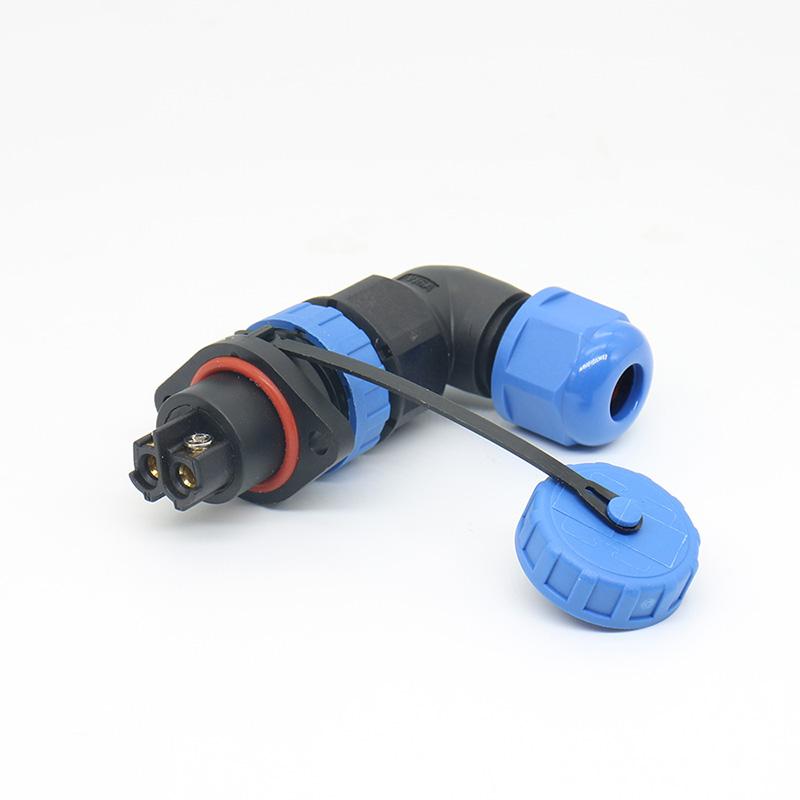

The LD16 / SP16 2 Pins Right Angle Flange Waterproof Connector is specifically designed for compact equipment and installations where space optimization and cable management are critical. Featuring a right-angle structure combined with a flange mounting design, this connector allows cables to be routed parallel to the panel, reducing bending stress and improving overall layout efficiency.

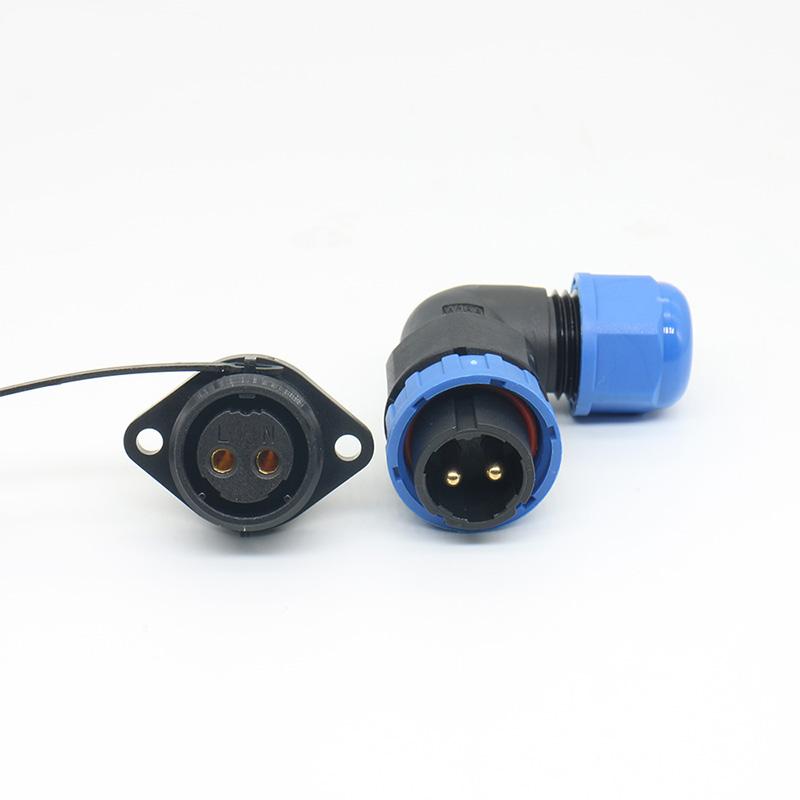

LD16/SP16 Connector
With its 2-pin configuration, it is ideal for simple power transmission applications requiring stable performance and reliable sealing in challenging environments. The connector is widely used in compact devices, control systems, and outdoor equipment where both durability and space-saving design are essential.

Key Features & Advantages of LD16/SP16 Right Angle Flange Connector
Right Angle Design for Space Optimization
The 90-degree cable outlet allows cables to run along the panel surface, minimizing installation depth and making it ideal for confined spaces or compact enclosures.

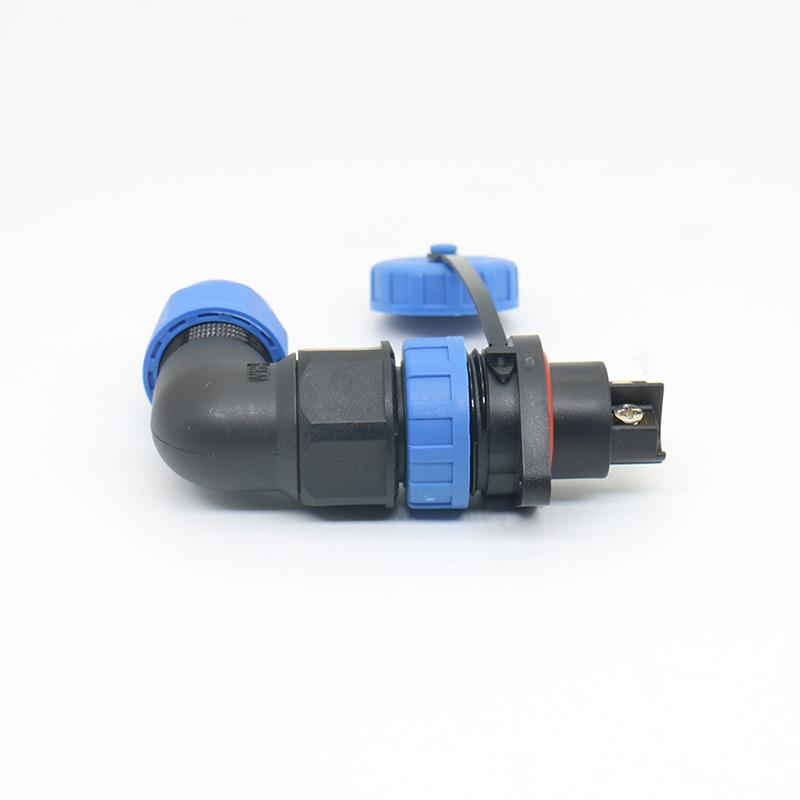

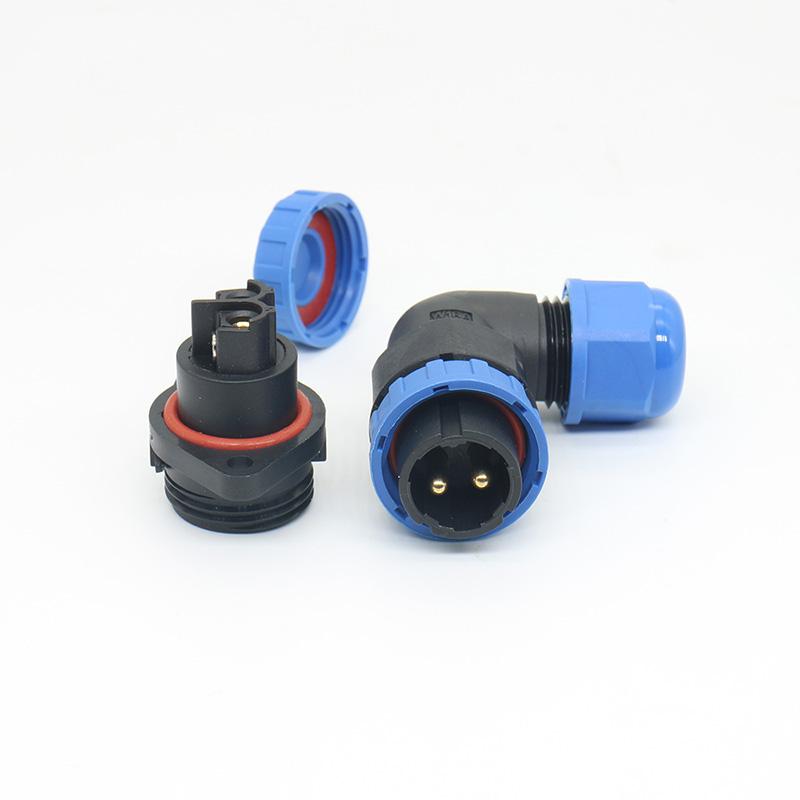

LD16 Connector
Secure Flange Mounting Structure
The flange design ensures stable and firm installation on panels, reducing the risk of loosening under vibration or long-term use.
SP16 Connector
Reliable Waterproof Protection
Equipped with sealing components to effectively prevent water and dust ingress, ensuring consistent performance in outdoor and humid environments.

2 Pins for Simple Power Applications
Optimized for low-pin-count applications such as basic power supply connections, offering a cost-effective and practical solution.

Reduced Cable Stress and Longer Lifespan
The right-angle structure helps avoid sharp cable bending, extending cable life and improving overall system reliability.

Manufactured for Reliability
Professional Connector Manufacturer
With over 15 years of experience in connector and cable assembly production, we deliver stable and reliable products for global industrial applications.
Connectors' Factory
Complete In-House Production

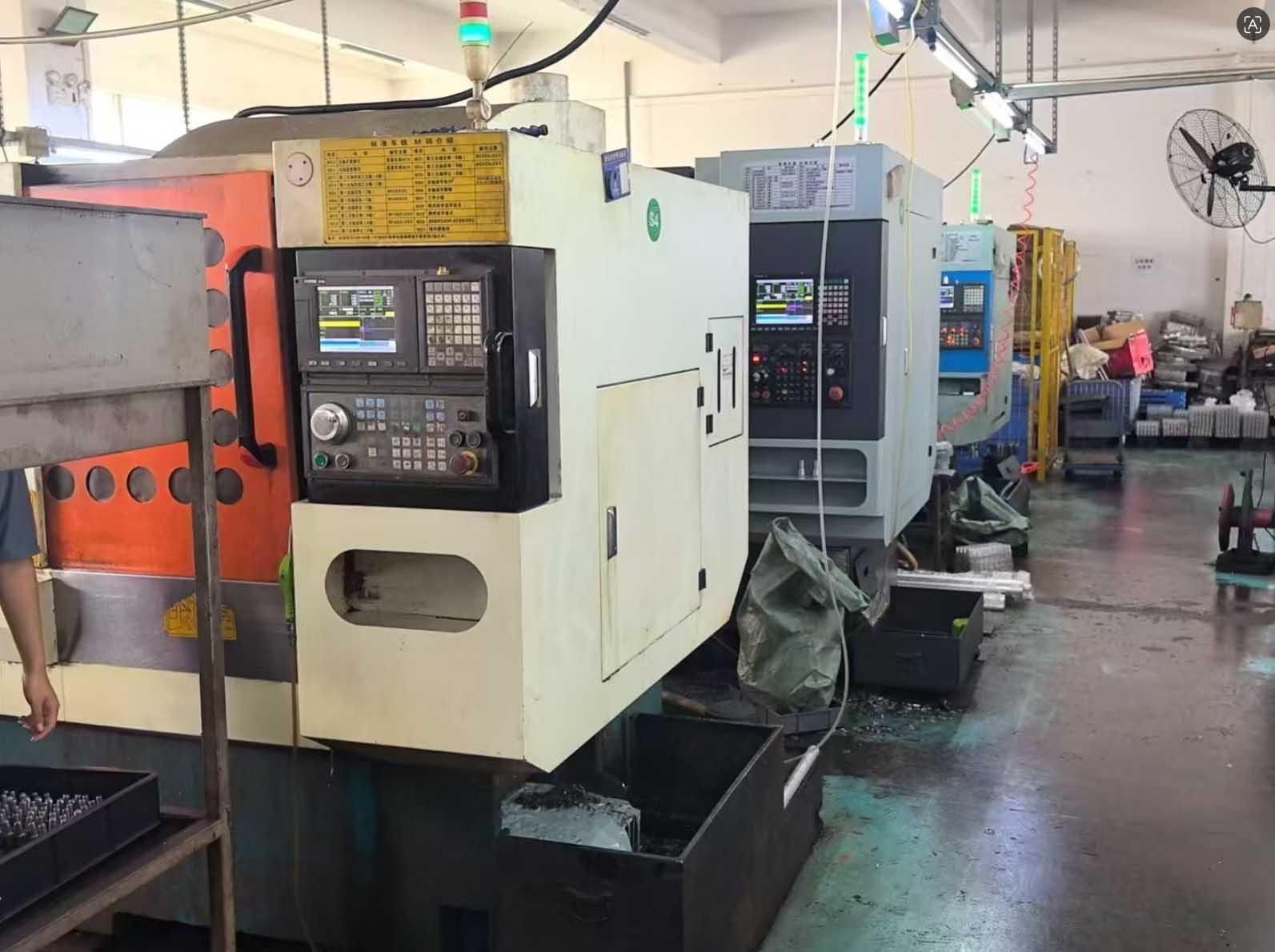

Our factory integrates mold development, die-casting, machining, injection molding, and assembly, ensuring strict quality control and consistent product performance.
Connector
Comprehensive Testing Process
All connectors undergo waterproof testing, electrical testing, mechanical durability testing, and quality inspection before shipment.

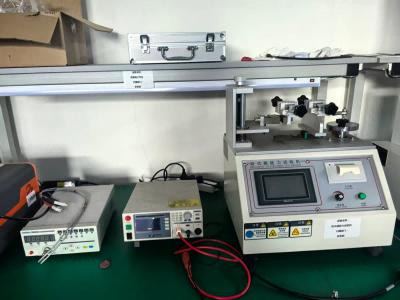

Connector's Testing
Flexible Customization Options
We support customization such as cable direction, wire type, connector color, and packaging to meet different project needs.

Typical Applications for LD16/SP16 Connector
·Compact Control Systems
·Industrial Equipment with Limited Space
·Outdoor Electrical Devices
·Power Supply Units
·Automation Equipment
·LED and Lighting Systems

If you are looking for a space-saving and reliable waterproof connector solution, this right-angle flange connector is an ideal choice.
Contact us today for samples, customization options, or a competitive quotation.

 Item

 Parameters

 Number of Cores

 2-12Pin

 Gender

 Male/Female

 Housing Material

 Thermoplastic PA6(Flame Retardant)

 Cores Material

 Brass Plated with Gold

 Insulator Material

 Thermoplastics

 Locking System

 Threaded Connection

 Temperature Range

 -25℃, +85℃

 Rated Current (A)

 5A/10A/20A

 Rated Voltage (AC.V)

 250V/380V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤1㏁

 Termination

 Screw Crimping
