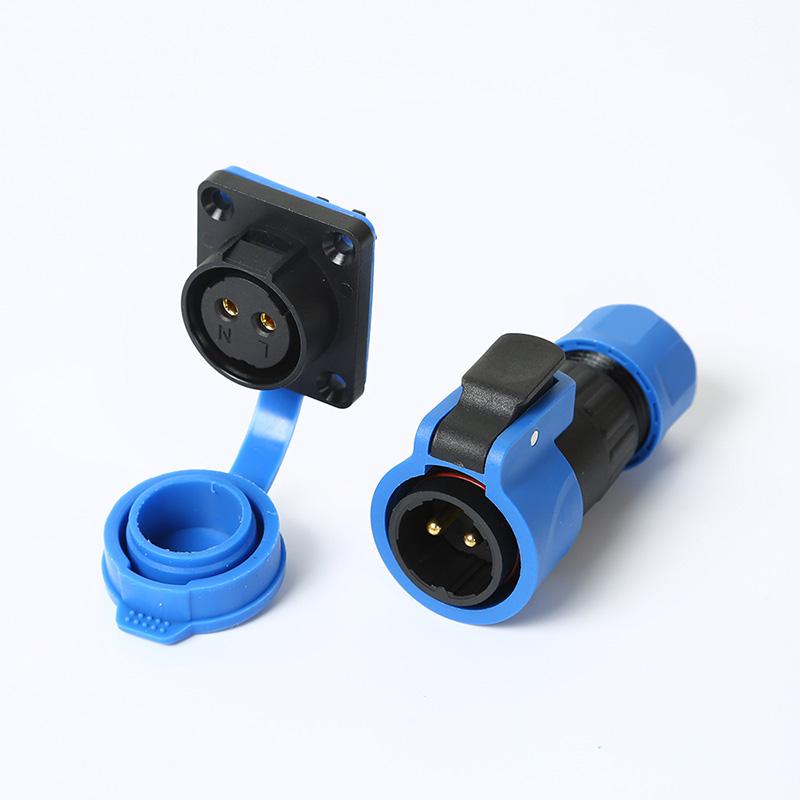

FD20 Square Connector
< >

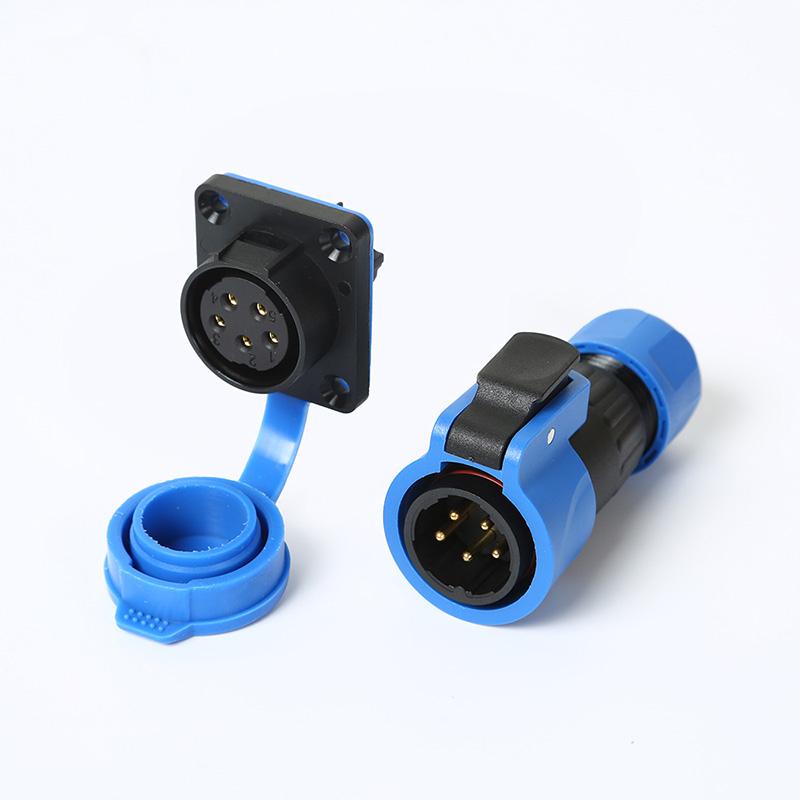

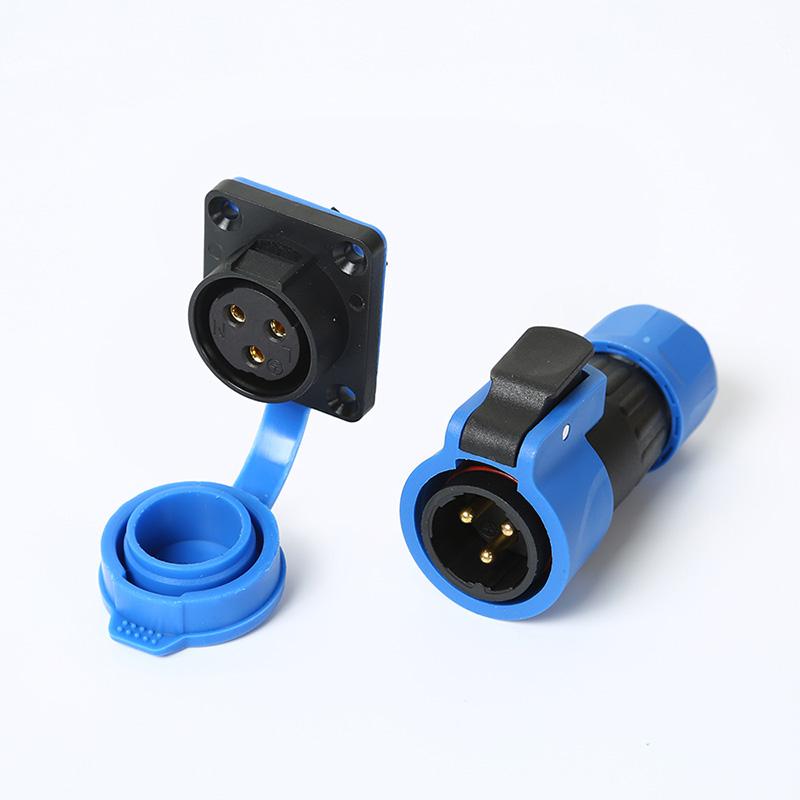

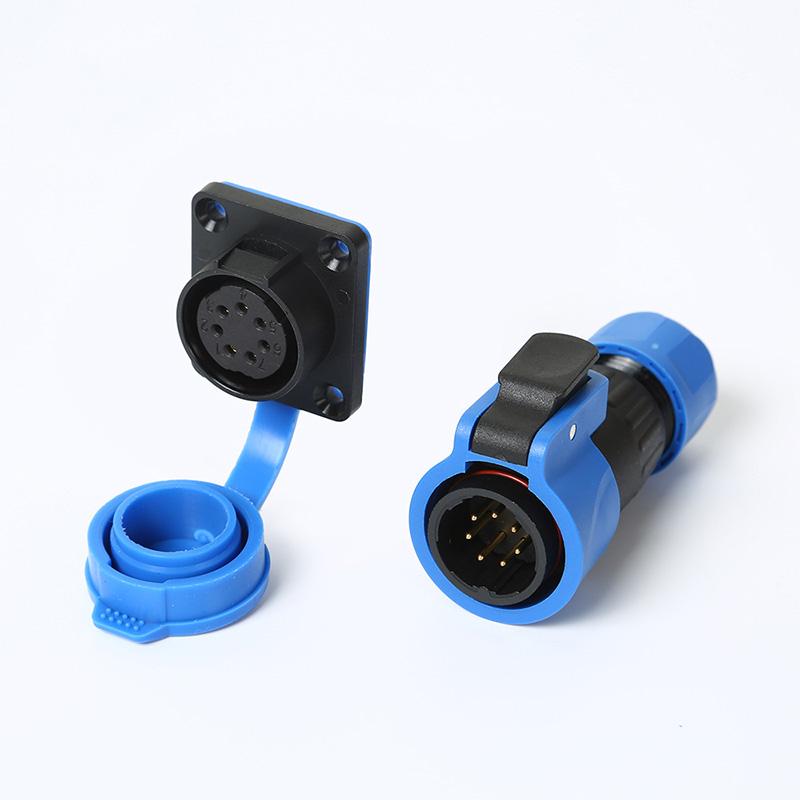

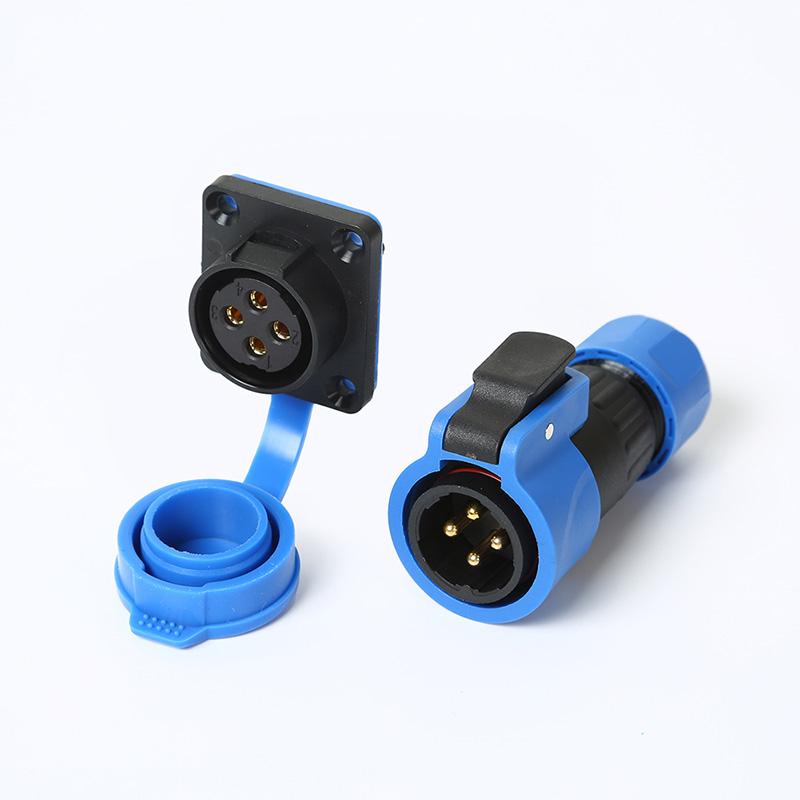

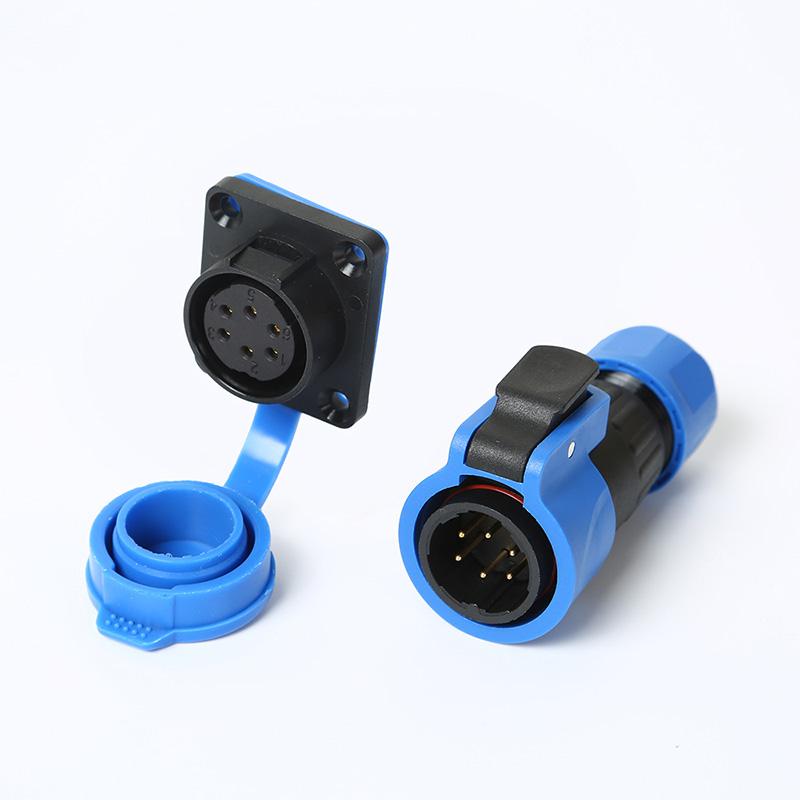

FD20 3 Pins Wire Connector Waterproof

>Number Of CoresNumber Of Cores 2-20 Pin
Contact DiameterContact Diameter(mm) 1.0mm / 1.5mm / 2.0mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40°C to +105°C
TerminationTermination Solder / Crimp / PCB
Rated CurrentRated Current(A) 5–15 A
Rated VoltageRated Voltage(Ac.V) 250 V AC
Test VoltageTest Voltage(Ac.V)1Min 1500 V AC
Insulation ResistanceInsulation Resistance (MΩ) ≥1000MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

FD20 3 Pins Waterproof Wire Connector -  4-Hole Square Flange Type
The FD20 3 Pins Waterproof Wire Connector with a 4-hole square flange design is engineered for secure and stable panel installation in industrial and outdoor equipment. Its reinforced mounting structure provides superior mechanical stability, ensuring reliable connections even in environments exposed to vibration, dust, and moisture.

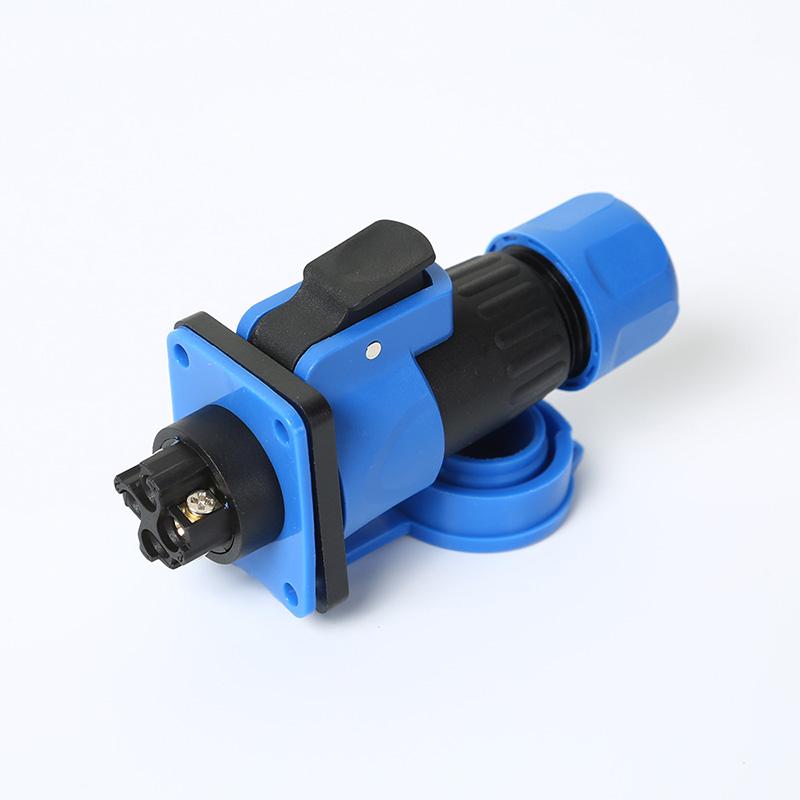

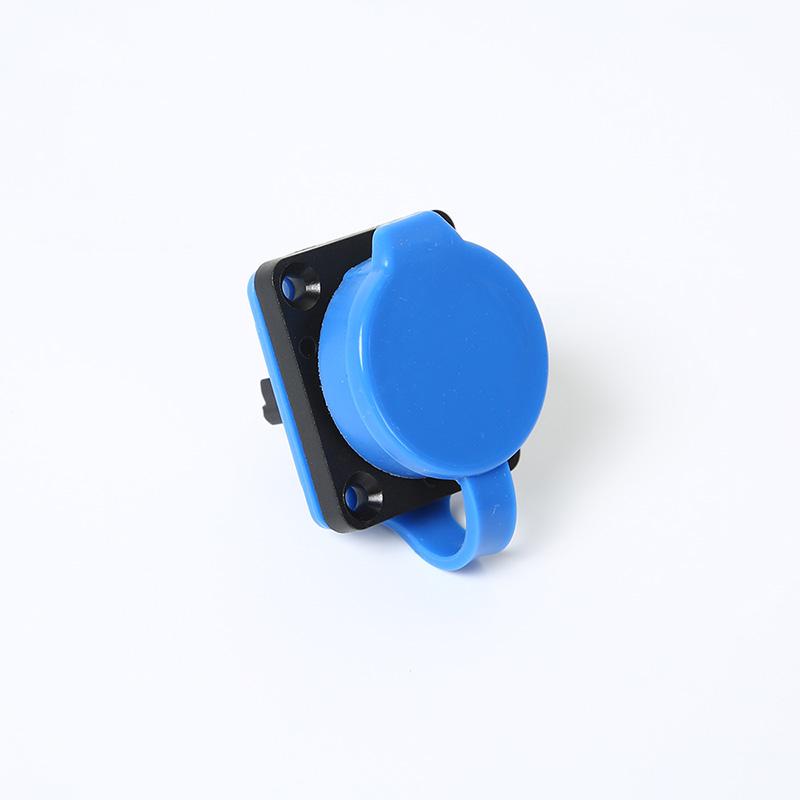

FD20 Flange Connector
This connector is widely used in control cabinets, power distribution systems, machinery, and outdoor devices where strong fixation and long-term sealing performance are essential. The square flange structure allows the connector to be firmly mounted to panels or enclosures, effectively preventing loosening during operation and improving overall equipment safety.

Key Product Advantages of FD20 Flange Connector
Secure 4-Hole Square Flange Mounting
The square flange design with four mounting holes provides stronger fixation compared to standard connectors, reducing movement and ensuring stable installation in high-vibration environments.

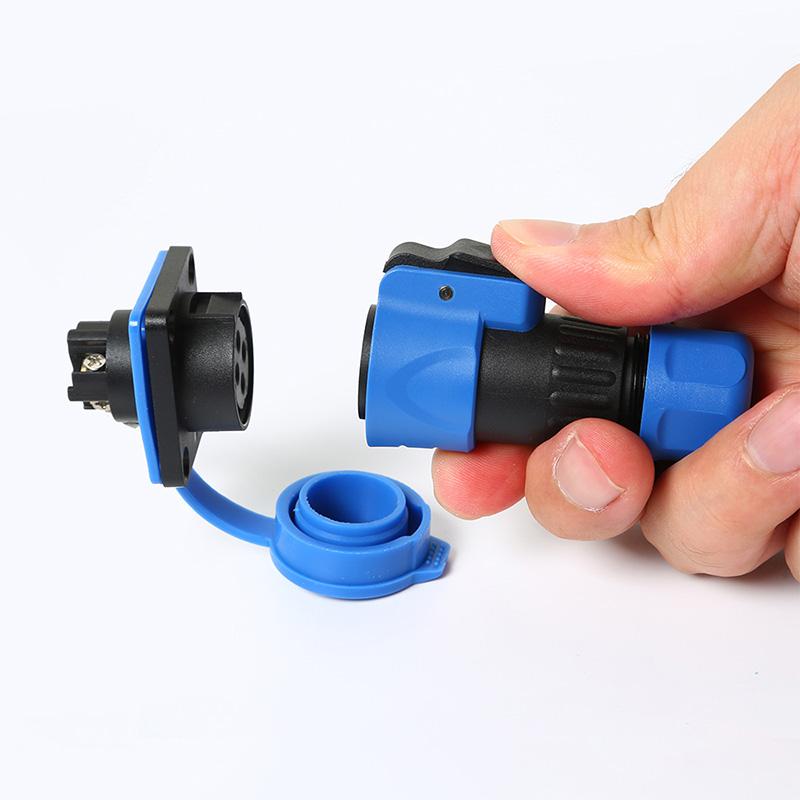

Waterproof Connector
Reliable Waterproof Sealing Performance
Equipped with precision sealing components, the connector effectively prevents water and dust ingress, making it suitable for outdoor and industrial applications requiring dependable protection.

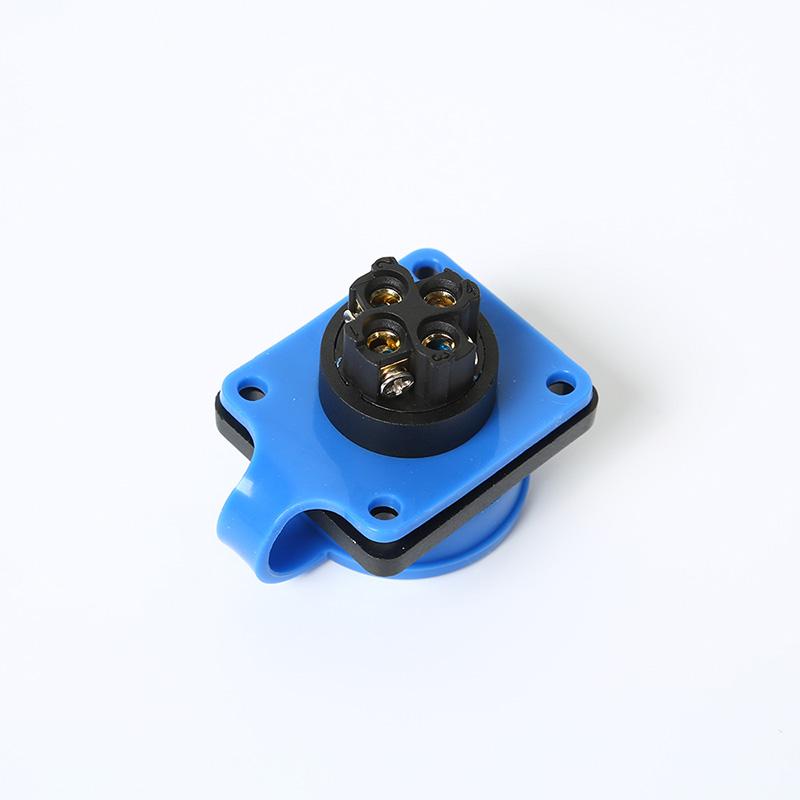

FD20 Connector
Durable Structure for Long Service Life
Manufactured with high-strength materials and precise molding technology, the connector offers excellent resistance to mechanical stress, corrosion, and environmental wear.
Connector
Stable Power and Signal Transmission
The optimized internal contact design ensures consistent electrical conductivity and reduces the risk of connection failure during continuous operation.
Connector
Flexible Wiring and Easy Integration
Pre-wired configuration simplifies installation and reduces assembly time, helping equipment manufacturers improve production efficiency.

Our Manufacturing Strength
Choosing us means choosing a reliable long-term partner in connector manufacturing.

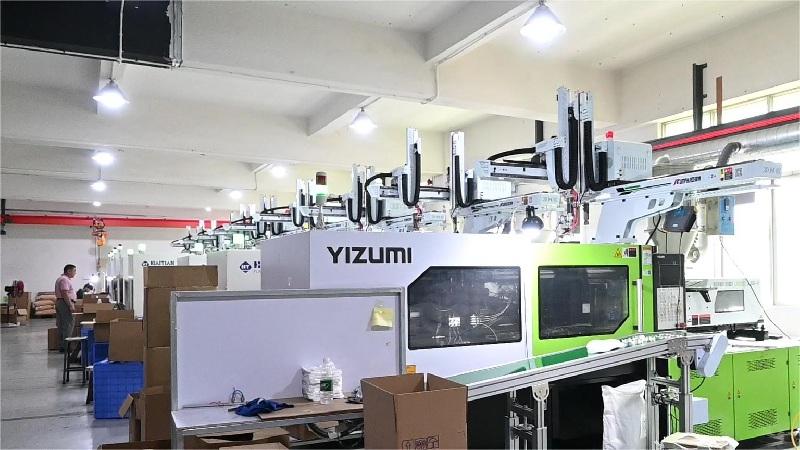

Complete In-House Production
We operate a fully integrated production system covering die-casting, mold development, CNC machining, injection molding, cable processing, and assembly. This enables strict quality control and stable product consistency.
Connector
Professional Testing and Quality Control
Each connector undergoes multiple inspections, including waterproof testing, mechanical durability testing, electrical performance testing, and dimensional verification before shipment.
Connector
Rich Industry Experience
With more than 15 years of experience in connector and cable assembly manufacturing, we have supplied reliable products to customers in industrial automation, energy systems, communication equipment, and outdoor electronics.
Connector
Fast Delivery and Customization Support
We provide flexible customization services such as cable length, wire gauge, connector color, and packaging, ensuring your project requirements are met efficiently.

 Item

 Parameters

 Number of Cores

 2-20Pin

 Gender

 Male/Female

 Housing Material

 PC/PA66

 Cores Material

 Brass Plated with Gold

 Insulator Material

 PPS

 Locking System

 Screw Locking

 Temperature Range

 -40℃, +105℃

 Rated Current (A)

 5A - 15A

 Rated Voltage (AC.V)

 250V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 1000㏁

 Contact Resistance (㏁)

 ≤5㏁

 Termination

 Solder
