YOUR POSITION：HOME > Industry > Robotics Connectors >

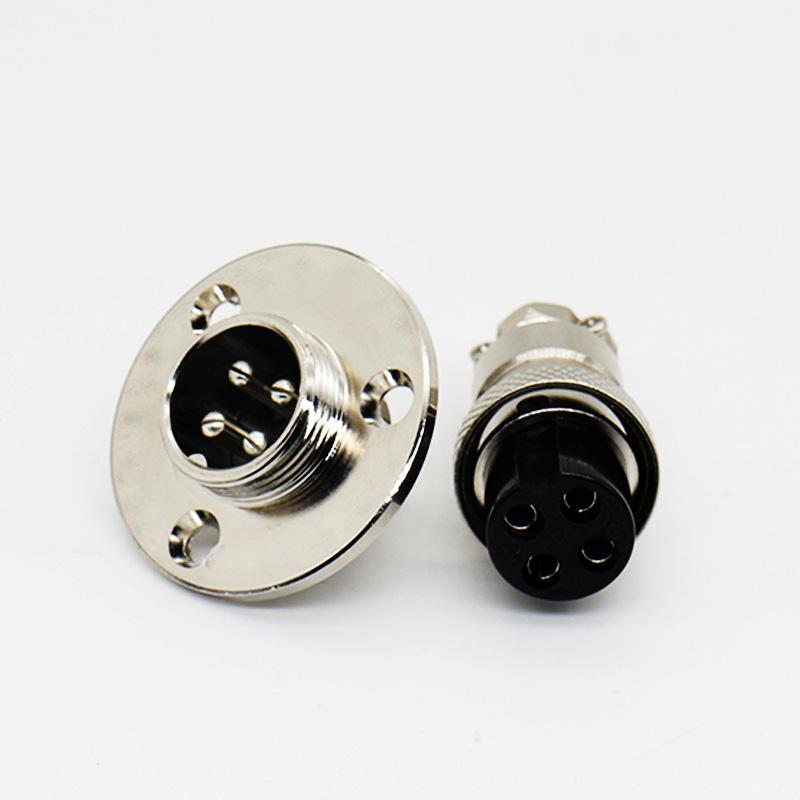

GX16 Connector
< >

GX16 Connector for Industrial Robot Servo Motors

MOQMOQ >200
>Number Of CoresNumber Of Cores 2-10Pins
Contact DiameterContact Diameter(mm) 1.2mm/2.5mm
IP RatingIP Rating IP55
Shell MaterialShell Material Zinc Alloy With Nickel Plated
Temperature RangeTemperature Range -30°C to +85°C
TerminationTermination Solder
Rated CurrentRated Current(A) 5A - 15A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

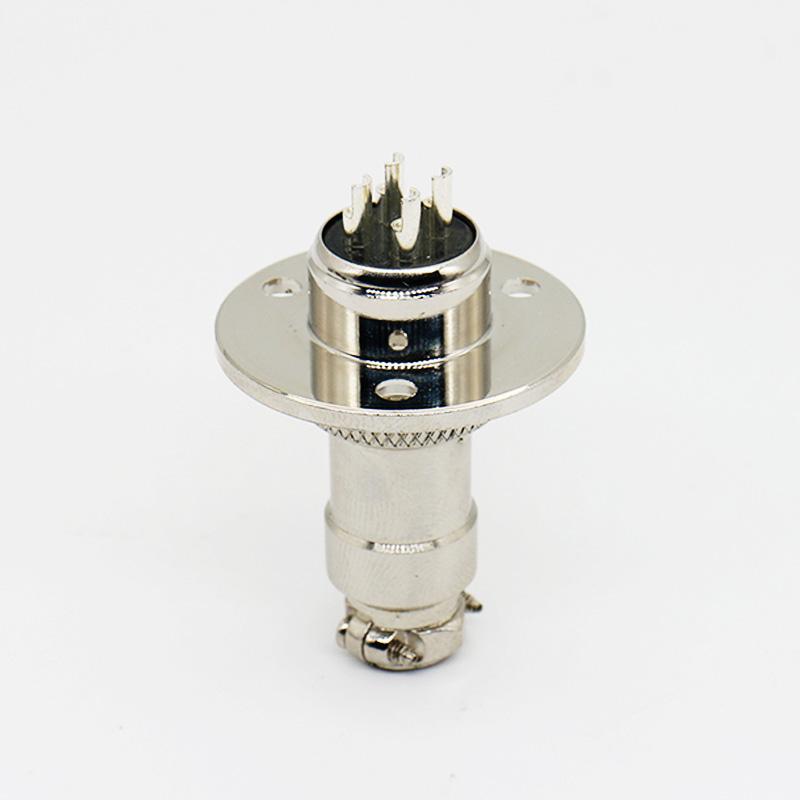

GX16 Connector for Industrial Robot Servo Motors
Reliable GX16 Connector for Robotic Servo Systems

The GX16 connector for industrial robot servo motors is designed to deliver stable power and signal connections in demanding robotic automation environments. With its durable metal housing and secure threaded locking mechanism, this circular connector ensures reliable performance for servo motor systems used in industrial robots.

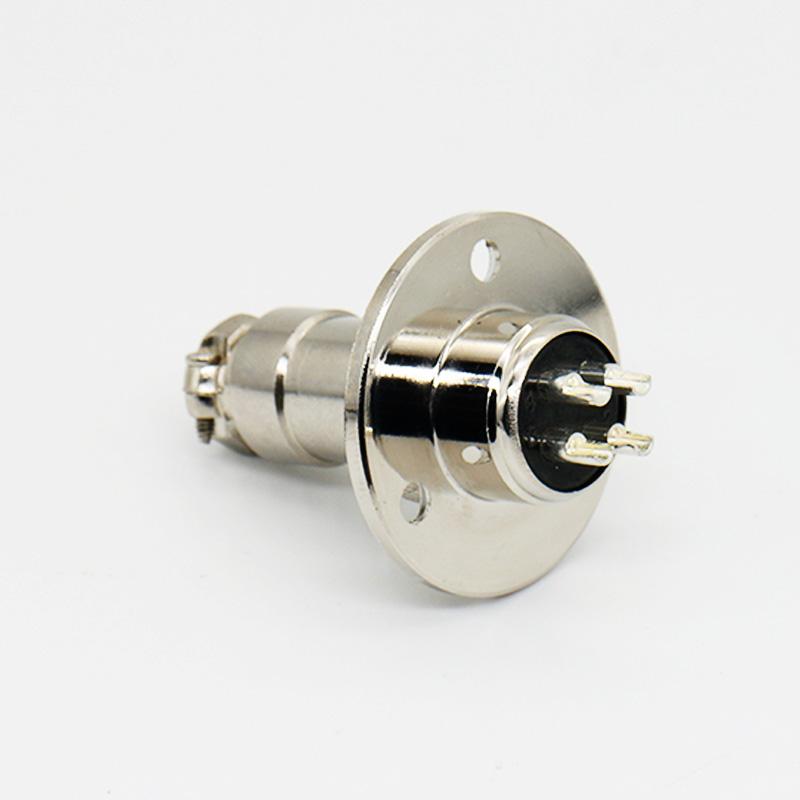

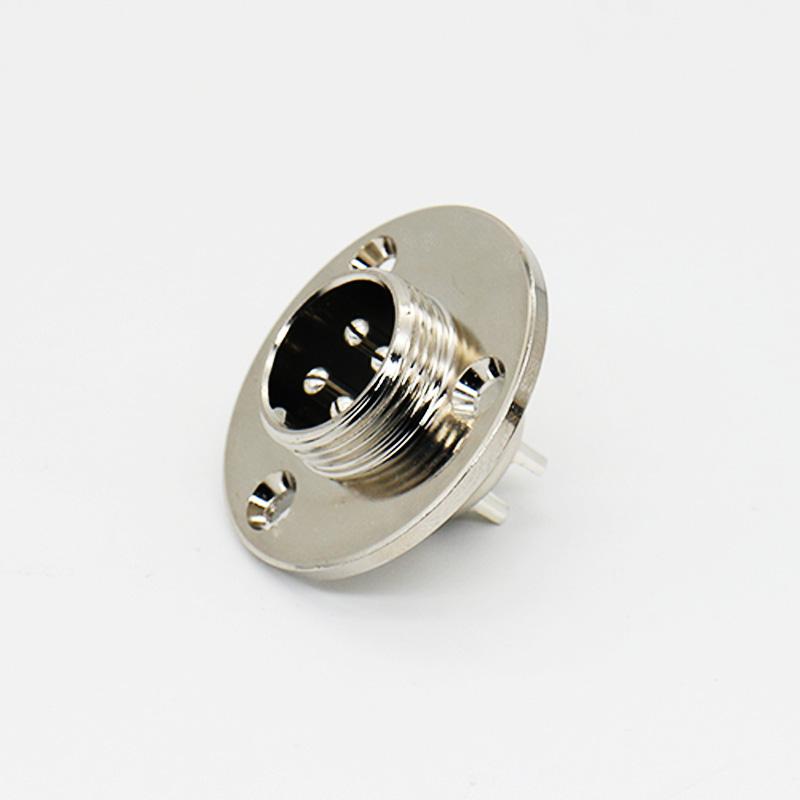

Durable Metal Circular Connector Design

This GX16 circular connector features a rugged metal shell that provides excellent mechanical protection and long service life. The threaded coupling design ensures a firm connection and prevents accidental disconnection caused by vibration in robotic equipment.

Stable Signal and Power Transmission

GX16 connectors provide consistent electrical performance, making them suitable for both signal and power transmission in servo motor control systems. They help maintain stable communication between controllers and motors in robotic automation.

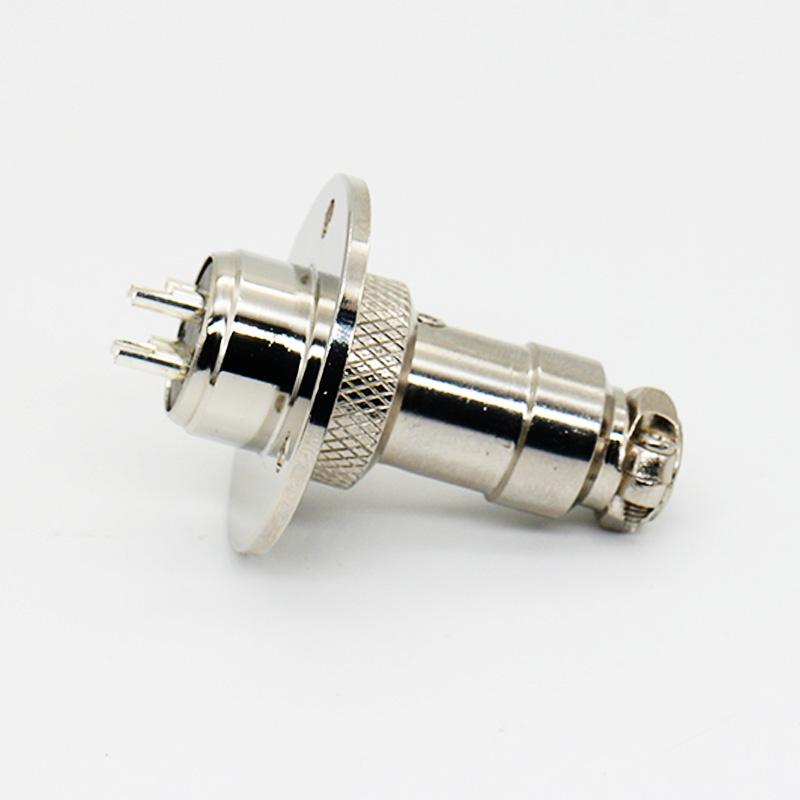

Connectors


Ideal for Industrial Robot Applications

The GX16 connector is widely used in industrial robotics and automation equipment, including:

Industrial robot servo motors

Robotic arm joint drive systems

Automated production line robots

Robotic welding equipment

Robotics motion control systems

Item

Parameters

Number of Cores

2-10Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Silver/Gold

Insulator Material

Phenolics

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

5A - 15A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Solder
