M12 Connector for Robotic Arm Control Systems

M12 Connector for Robotic Arm Control Systems

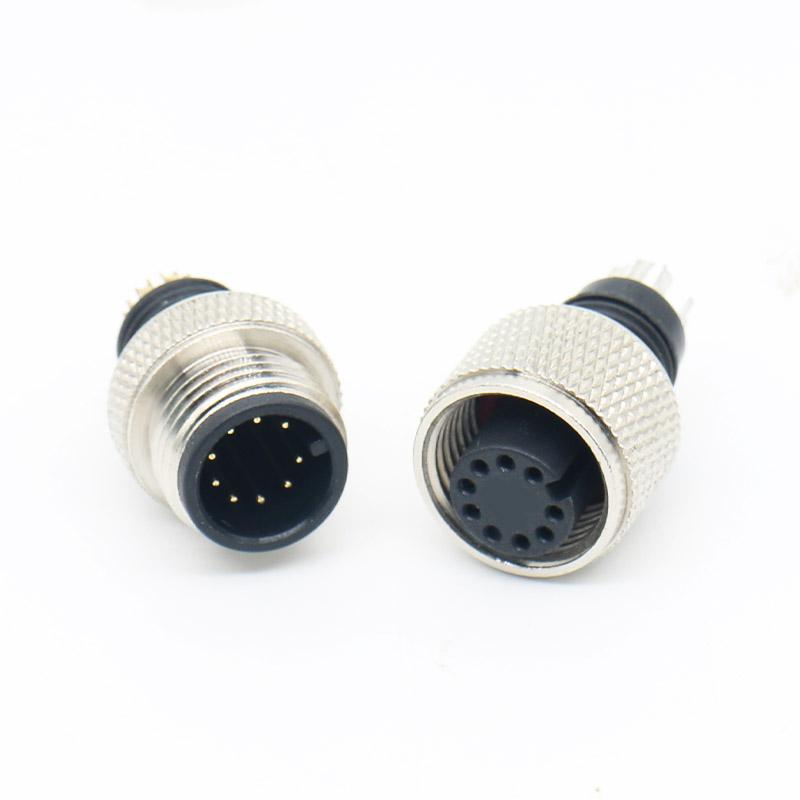

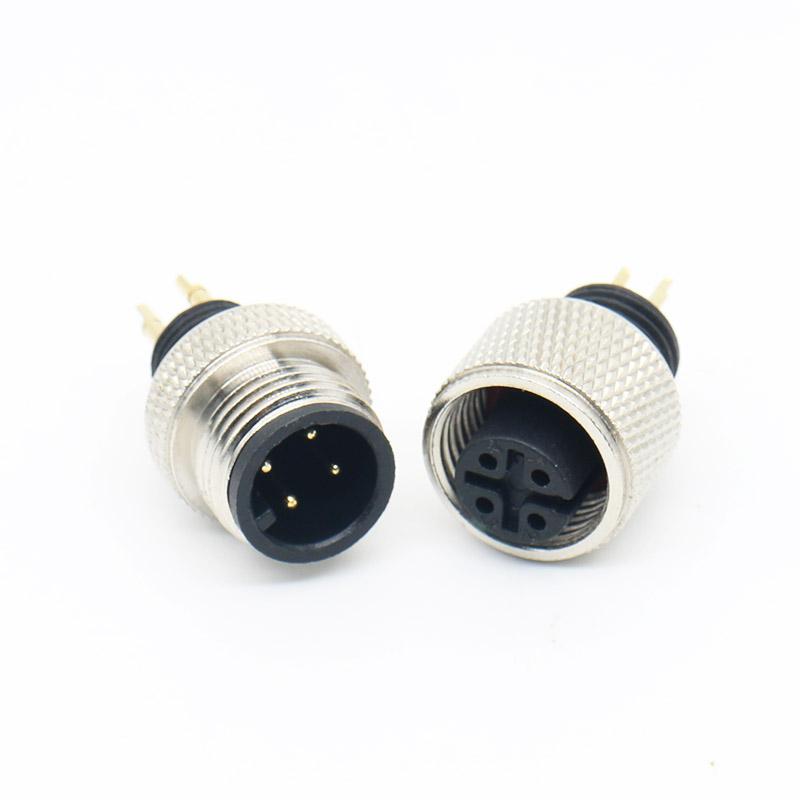

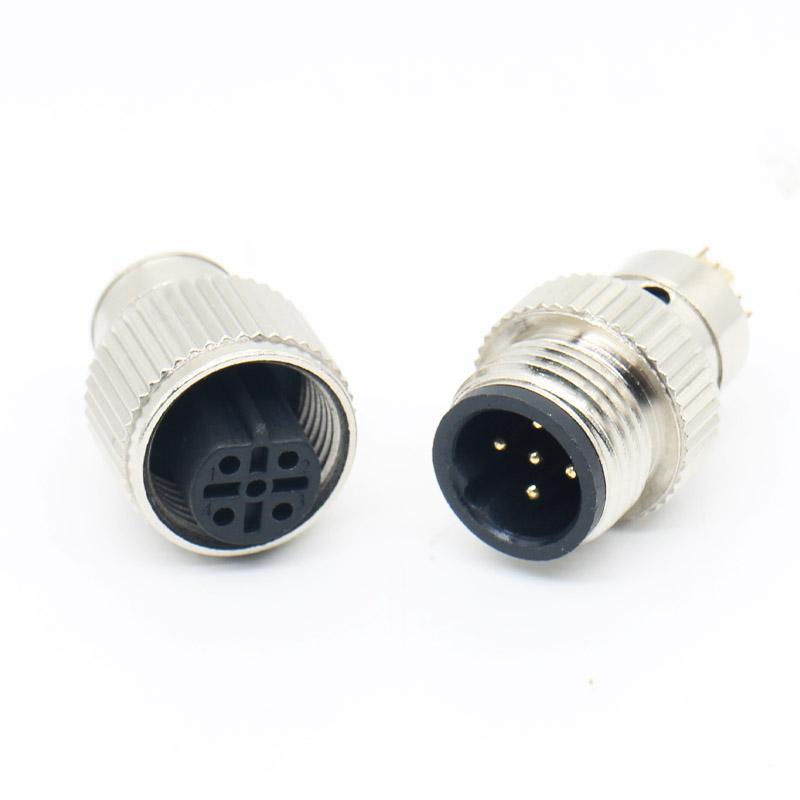

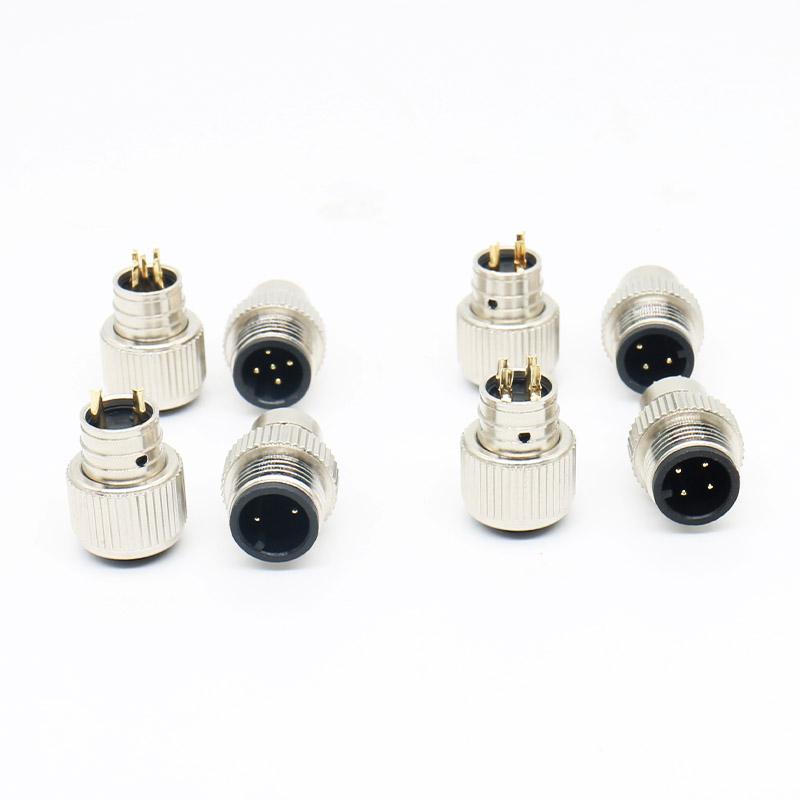

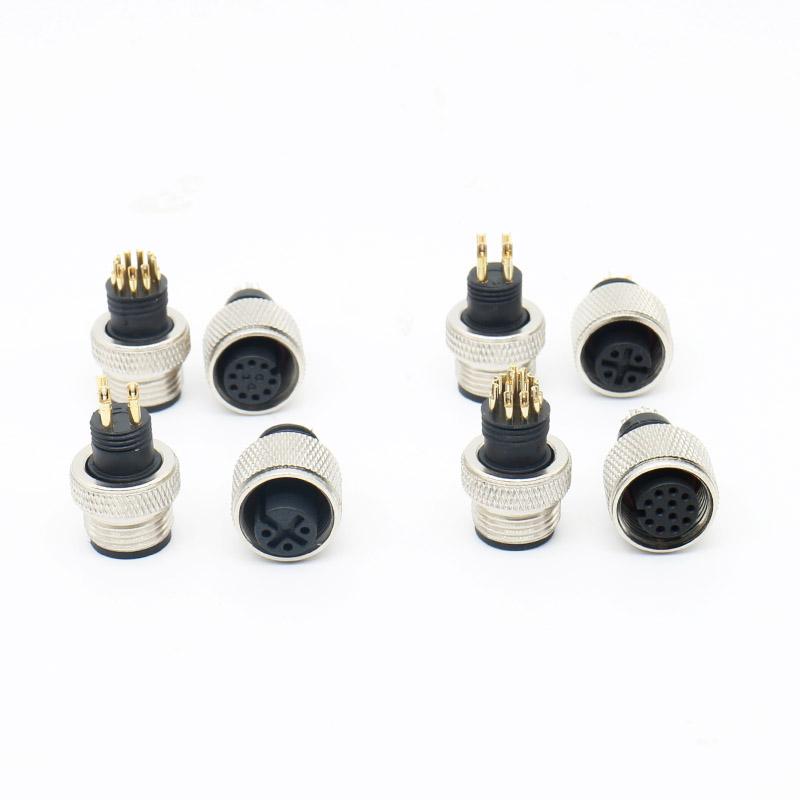

The M12 connector is a circular interface engineered for robotic arm control systems, supporting both data and power transmission in factory automation. It is suited for engineers and maintenance teams who need a dependable connection point for servo drives, sensors, and control signals in environments with vibration, dust, and moisture.

Selection Criteria for Robotic Applications

When choosing an M12 connector for a robotic arm, consider the following decision points to match the interface to your control architecture:

• Pin count and layout: Confirm the number of cores (2-17 pin range) required for your signal and power lines, and verify the male/female gender needed for your cable and panel configuration.
• Environmental protection: The IP67 rating supports operation in dusty and wet conditions, but verify that the mating interface is properly sealed when connected; unmated connectors are not protected.
• Material compatibility: The PA66 housing and nickel-plated brass shell provide mechanical strength, while silver or gold-plated brass contacts support signal integrity; select plating based on your cycle and corrosion requirements.
• Installation method: The plug-and-play design reduces setup time, but confirm whether your application requires a field-wireable or molded cable assembly for the specific cable diameter.

Application Scope and Boundaries

This M12 connector is intended for robotic arms, assembly line robots, and automated manufacturing systems where stable signal and power transmission are required. It is suitable for control cabinets, end-of-arm tooling, and sensor feedback loops.

It is not designed for high-voltage power distribution, submersible applications, or environments where the connector remains unmated and exposed to liquids. For robotic arms requiring military-standard interfaces, consider the MS5015 Military Standard Connector for Industrial Robot Arms.

Parameter Interpretation

The connector supports 2-17 cores with male or female configurations. The housing is made of PA66 or nickel-plated brass, and the contacts are brass plated with silver or gold. These values define the mechanical and electrical envelope; refer to the Technical Specifications field for the complete rated values. Final configuration, including pinout and cable length, should be confirmed with your drawings before ordering.

Installation and Maintenance Considerations

For reliable long-term operation, verify the following before installation:

• Confirm the cable outer diameter fits the connector's clamping range.
• Ensure the mating threads are clean and properly torqued to maintain the IP67 seal.
• Check that the pinout matches your control system wiring diagram to avoid signal errors.
• Plan for periodic inspection of contact plating in high-cycle applications.

Inquiry Checklist

To receive an accurate quotation and matching recommendation, prepare the following information:

• Required pin count and gender (male/female).
• Cable type, conductor size, and outer diameter.
• Mounting style: panel mount, cable mount, or field-wireable.
• Operating temperature range and environmental exposure.
• Any specific plating preference (silver or gold) for the contacts.

For a broader selection of interfaces, review the M12 Circular Connectors catalog to compare configurations.
