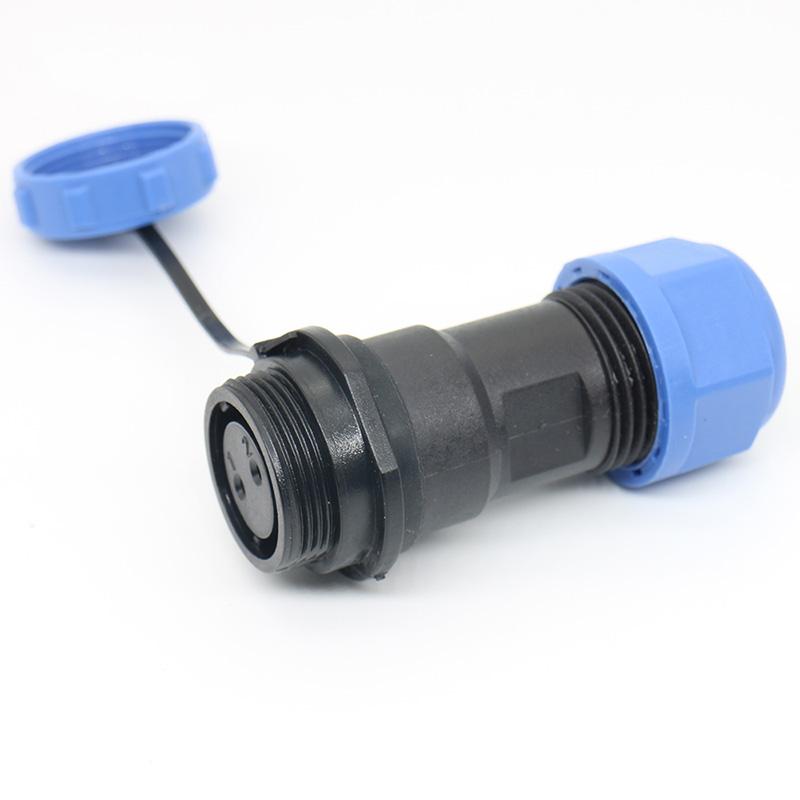

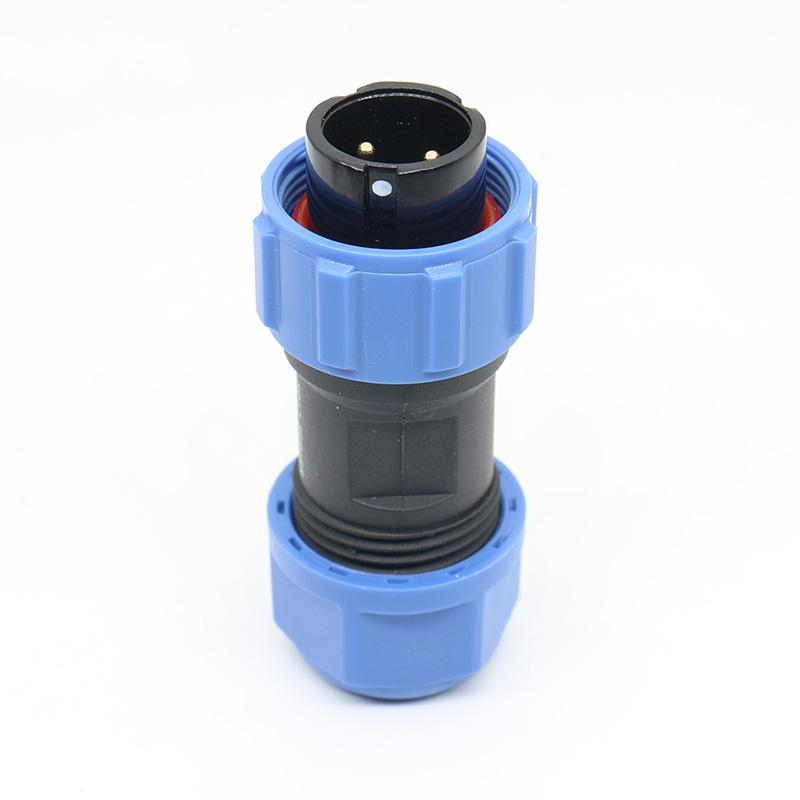

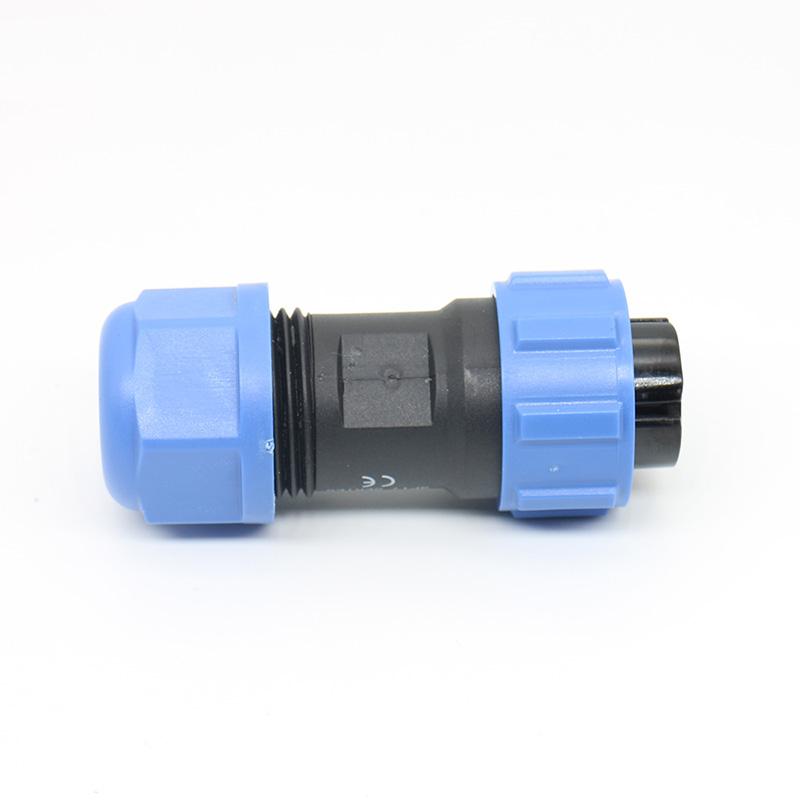

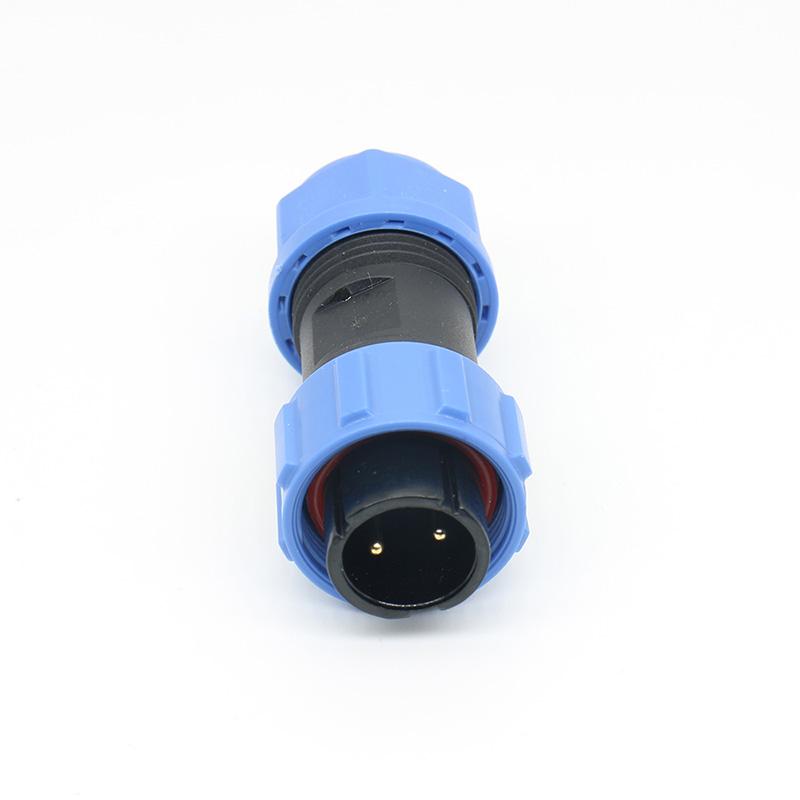

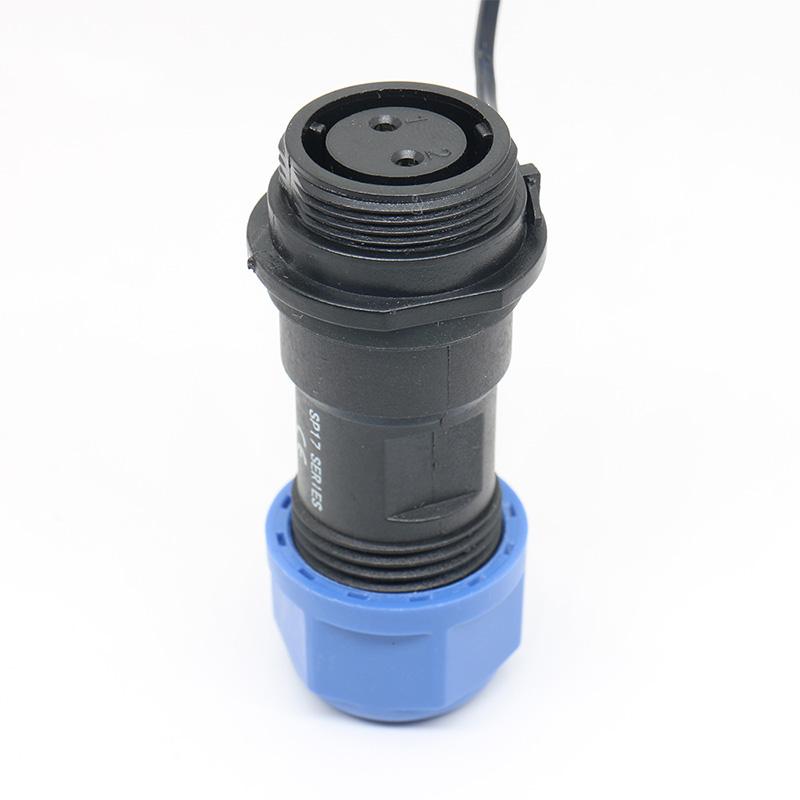

SP17 Connector for Environmental Monitoring Instruments

The SP17 connector is designed to deliver stable electrical connections for environmental monitoring systems, including air quality analyzers, water quality testers, and data acquisition equipment. Its sealed construction and robust materials make it a practical choice for field installations where consistent performance matters.

Key Selection Considerations for the SP17 Connector

When evaluating the SP17 for your monitoring application, focus on these decision points:

• Pin configuration: Available in 2 to 9 pin options, with male and female variants to match your device layout.
• Environmental sealing: The sealed structure provides waterproof and dustproof protection suited for long-term outdoor installations.
• Mechanical stability: A robust metal shell with threaded coupling resists vibration and corrosion in demanding conditions.
• Material compatibility: Housing options in PC or PA66, with brass contacts plated in gold for reliable signal transfer.

Application Fit for Outdoor Monitoring Systems

The SP17 connector is intended for monitoring equipment exposed to weather and repeated handling. Its sealed design helps maintain connection integrity in outdoor enclosures, sensor masts, and remote data logging stations. For indoor or controlled environments, simpler connector options may be sufficient, so confirm your exposure conditions before selecting this series.

Installation and Mating Guidance

Before ordering, verify the following to ensure correct mating and installation:

• Required pin count and gender (male or female) for both cable and panel sides.
• Cable diameter and termination method compatible with your wiring.
• Mounting style needed: panel mount, cable mount, or inline.
• Operating temperature range and any chemical exposure in your environment.

Providing a wiring diagram or pinout drawing with your inquiry helps confirm the correct configuration before production.

Suitable and Unsuitable Use Cases

The SP17 is well suited for environmental monitoring instruments that require a durable, sealed connection in outdoor or industrial settings. It is not intended for high-current power distribution, submersible applications beyond its rated protection, or environments where chemical resistance beyond the stated housing materials is required. Confirm your specific electrical and environmental limits against the Technical Specifications before finalizing your design.

Inquiry Checklist for SP17 Connector Orders

To receive an accurate quotation and sample matching, include the following details in your inquiry:

• Number of cores and gender required.
• Housing material preference (PC or PA66).
• Cable outer diameter and conductor size.
• Mounting configuration and any custom cable length needs.
• Expected operating environment, including temperature and moisture levels.

For related panel mount options, review the LD32/SP32 Electrical Panel Mount Connector. To explore the full range of sealed connection solutions, see the Waterproof Connectors catalog.
