M12 Connectors in Industrial Sensor Networks

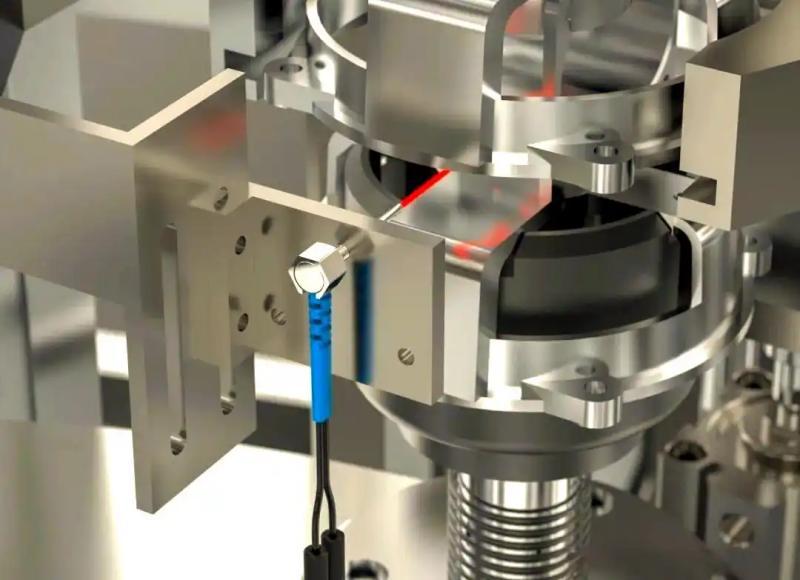

M12 connectors provide secure connections between various industrial sensors and controllers, ensuring stable signal transmission for accurate monitoring. Their threaded coupling design and IP67 rating make them suitable for harsh industrial environments, maintaining long-term reliability in demanding applications.

Application Context and Requirements

In modern industrial automation, sensor networks rely on robust interconnection solutions to deliver real-time data from field devices to control systems. M12 connectors are commonly deployed in factory floors, process control, and machine-building environments where vibration, moisture, dust, and temperature fluctuations are present. The IP67 rating ensures protection against dust ingress and temporary water immersion, supporting reliable operation in washdown areas and outdoor installations.

Electrical and Mechanical Specifications

The M12 interface supports multiple pin configurations and coding options to match signal, power, and data transmission needs. The threaded locking mechanism provides a vibration-resistant connection, reducing the risk of accidental disconnection during machine operation. Cable ranges and termination styles vary by series, so selection should be based on the actual cable diameter, conductor size, and installation method required by the application.

Selection Considerations

• Determine the required pin count and coding (A, B, D, X, etc.) based on the signal type and protocol.
• Verify the current and voltage ratings against the connected sensor or actuator load.
• Confirm the cable diameter range and whether a field-wireable or molded version suits the installation environment.
• Check the mating cycle requirement and environmental exposure to confirm the IP rating and material suitability.

Installation and Verification

Proper installation of M12 connectors involves correct torque application on the coupling nut, ensuring the O-ring seal is intact, and verifying that the cable gland is tightened to the specified range. Before commissioning, continuity and insulation resistance tests are recommended to confirm correct wiring and contact integrity. For applications involving high vibration or frequent mating, periodic inspection of the locking mechanism and seal condition is advised.

For related product options and technical reference, see the Aviation Plug Connectors catalog or review the PT Series Connectors Catalog Types, Ratings, Termination for additional industrial interconnection solutions.

Inquiry and Next Steps

To select the appropriate M12 connector for your sensor network, provide the following details in your inquiry: pin count, coding type, cable diameter, operating voltage and current, environmental exposure, and required IP rating. This information allows our engineering team to recommend a suitable configuration and confirm availability.
