How BNC Connectors Enhance Oscilloscope Measurement Accuracy in Poland

Electronic oscilloscopes represent fundamental tools for visualizing and analyzing electrical signals across diverse applications including electronics design, telecommunications, automotive testing, and scientific research. Connectors serving as the critical interface between oscilloscopes and devices under test determine measurement accuracy, signal integrity, and overall system performance.

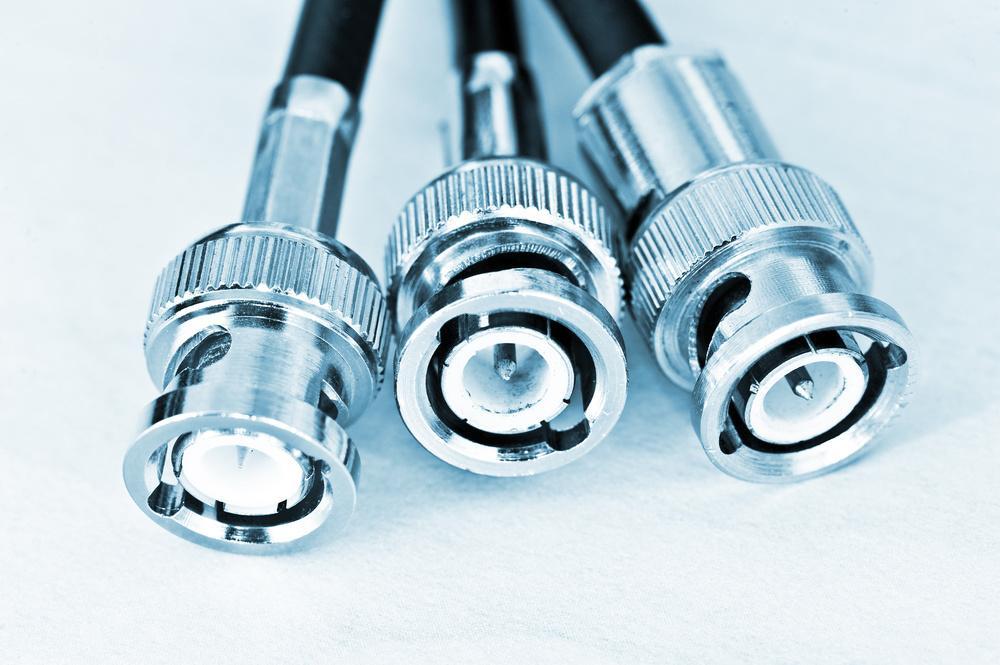

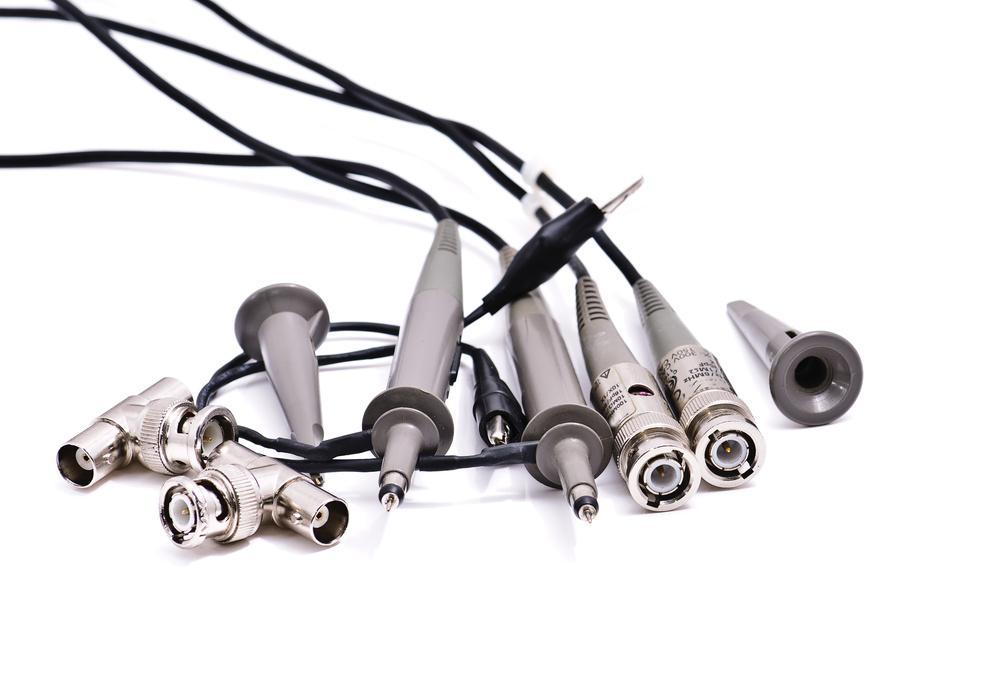

BNC connectors emerge as the universal standard for oscilloscope probe connections, providing reliable quick-connect functionality while maintaining excellent signal integrity across wide frequency ranges. The bayonet locking mechanism ensures secure connections during critical measurements while allowing rapid probe changes without compromising calibration.

Design Advantages

Quick Connection: Bayonet lock enables fast mating and unmating cycles

Secure Fit: Positive locking prevents accidental disconnection

Impedance Matching: Standardized 50-ohm impedance for high-frequency applications

Shielding Effectiveness: Excellent electromagnetic interference protection

Durability: Robust construction withstands repeated mating cycles

Computer Interface Connectors

Modern oscilloscopes integrate various communication interfaces for remote control, data acquisition, and automation. USB, Ethernet, and other communication connectors enable seamless integration into automated test systems and computer-controlled measurement environments.

Harsh Environment Applications

Field applications and industrial environments require connectors with enhanced environmental protection, including IP-rated sealing, temperature tolerance, and vibration resistance. These connectors maintain performance in challenging operating conditions.

Ensuring Long-Term Performance

Connector reliability directly impacts oscilloscope measurement accuracy and system uptime. Regular maintenance, proper handling, and appropriate storage practices ensure consistent connector performance throughout equipment lifetime.

Connectors serve as critical enabling components in oscilloscope measurement systems, establishing the interface between measurement instruments and devices under test. The selection and proper implementation of appropriate connector solutions directly impacts measurement accuracy, signal integrity, and overall system reliability.

As oscilloscope applications continue advancing across electronics design, telecommunications, automotive testing, and scientific research, connector technology evolves to meet new challenges in bandwidth, signal integrity, and integration capabilities. Understanding connector applications in oscilloscopes and selecting optimal solutions ensures these essential measurement instruments deliver consistent, accurate performance in critical measurement applications.
