M12 Connector for Laboratory Analytical Instruments

M12 Connector for Laboratory Analytical Instruments

This M12 connector is designed to deliver accurate and stable connections for laboratory analytical instruments, minimizing signal loss and interference to support reliable measurement and control in research environments.

Built for the Rigors of Laboratory Use

Constructed with a PA66 housing and nickel-plated brass components, this connector is engineered to withstand repeated mating cycles, vibration, and the demanding conditions of a busy lab. The brass contacts, plated with silver or gold, provide a secure and corrosion-resistant interface for consistent performance.

Versatile Applications in Research and Testing

Ideal for spectrometers, chromatographs, and other laboratory sensors, this M12 connector supports efficient data acquisition and control. Its standardized design allows for quick integration into existing equipment, making it a practical choice for upgrading or maintaining analytical setups.

• Selection: Choose from 2 to 17 pins and male or female configurations to match your device's interface.
• Integration: The compact, standardized M12 interface simplifies wiring and replacement in space-constrained instruments.
• Reliability: Durable materials and plated contacts help maintain signal integrity over time.

Key Decision Points for Buyers

When selecting this connector for your application, consider the following factors to ensure a proper match:

• Pin Count and Gender: Verify the number of cores (2-17) and whether you need a male or female connector to match your existing cabling or panel mount.
• Environmental Fit: While built for lab conditions, confirm the specific IP rating and temperature range required for your equipment's environment.
• Termination Method: Determine if your setup requires a field-wireable or pre-molded cable assembly for secure installation.

Understanding the Specifications

The connector's performance is defined by its materials and construction. The PA66 housing offers good mechanical strength and insulation, while the nickel-plated brass shell provides durability. The silver or gold plating on the brass contacts ensures low contact resistance, which is critical for accurate signal transmission in sensitive analytical instruments. For detailed electrical ratings and dimensions, please refer to the Technical Specifications section.

Suitable and Unsuitable Use Cases

This connector is well-suited for internal wiring and panel connections in laboratory devices where reliable signal transfer is essential. It is not designed for high-power applications or environments requiring continuous submersion in liquids. For outdoor or high-vibration industrial settings, please consult our other connector series, such as the Aviation Plug Connectors, which may offer different sealing or locking features.

Information to Include in Your Inquiry

To receive an accurate quotation and ensure compatibility, please provide the following details when contacting us:

• Required pin count and gender (male/female).
• Preferred termination type (solder, crimp, or PCB).
• Cable outer diameter and conductor size.
• Specific application environment (e.g., temperature, exposure to chemicals).
• Any need for custom cable lengths or overmolding.

For a broader selection, you can also review our M12 Circular Connectors catalog to compare different series and options.

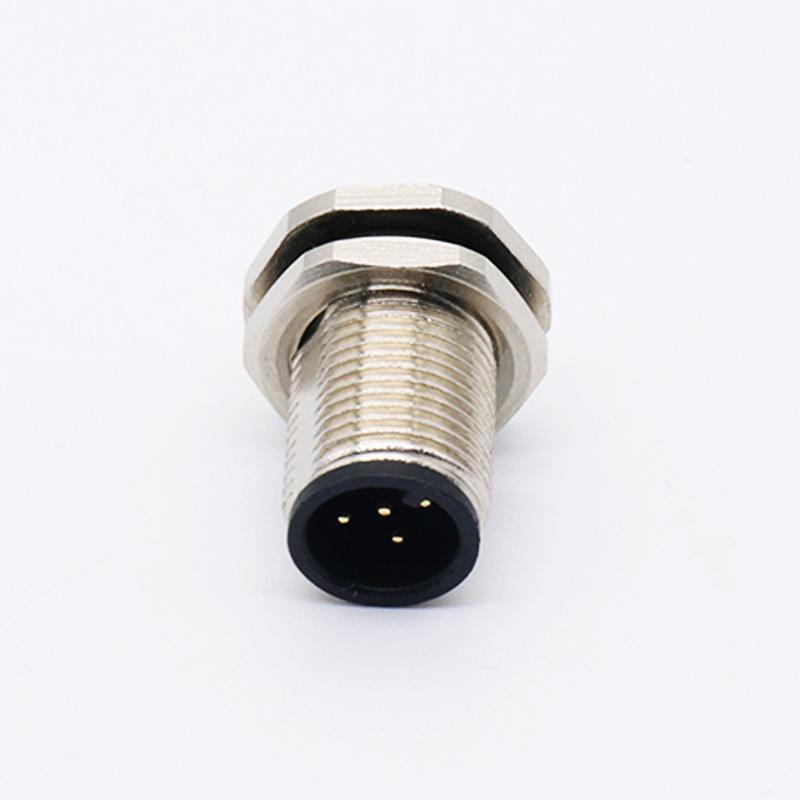

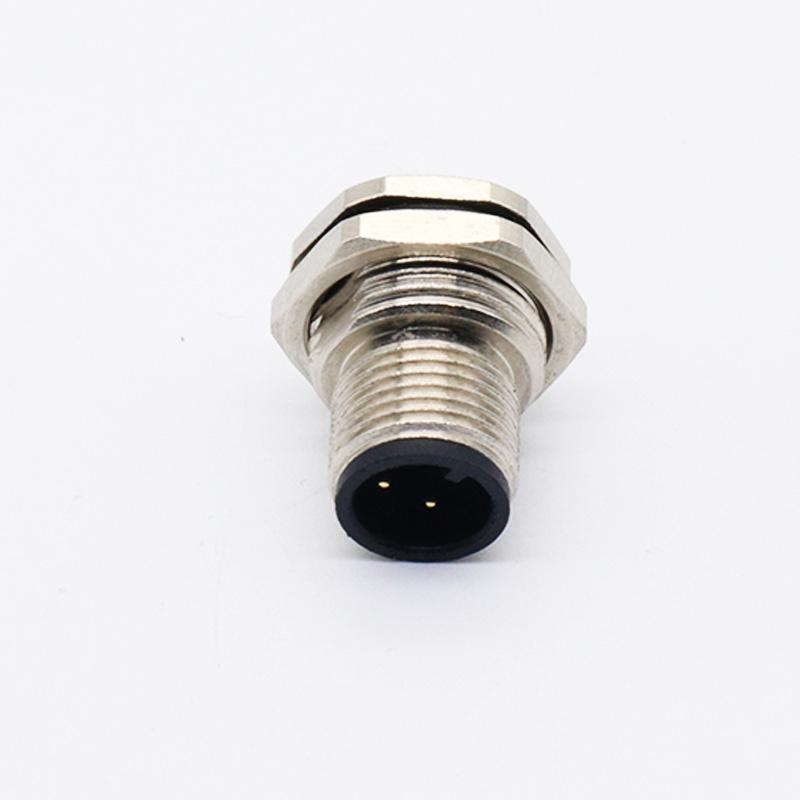

Connector Image
