LD24/SP24 Heavy-Duty Square Flange Connector: Dimensions, Specifications, and Materials

This technical guide details the LD24/SP24 square flange connector series, covering dimensions, electrical ratings, and material options. It is intended for engineers and procurement specialists who need to verify mechanical fit, electrical performance, and environmental resistance before integrating this connector into heavy-duty equipment, automation systems, or industrial machinery.

Product Scope and Interface

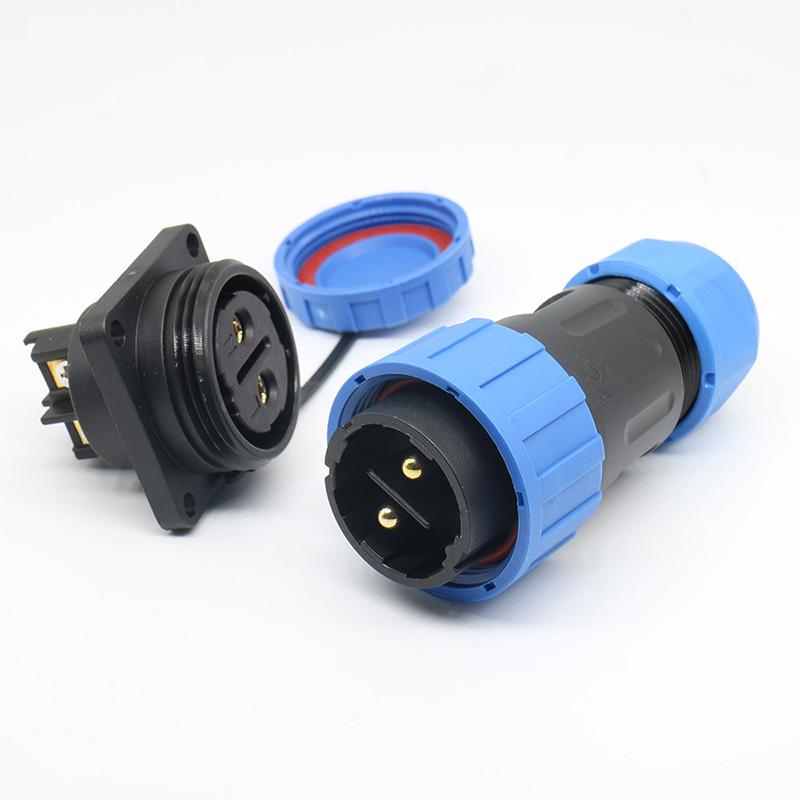

The LD24/SP24 is a heavy-duty square flange connector series. In this series, LD24 typically designates the plug (cable side) and SP24 the socket (panel mount side), though exact gender and mounting configuration should be confirmed against the specific part number. This series is designed for industrial applications requiring a robust, secure connection in demanding environments.

Core Selection Criteria

When evaluating the LD24/SP24 for your application, focus on these decision points:

• Electrical Ratings: Verify the rated current and voltage against your system requirements. These values are defined per contact and must be derated based on ambient temperature and wire gauge.
• Environmental Protection: Confirm the Ingress Protection (IP) rating, which indicates resistance to dust and water ingress when properly mated and locked. The rating applies to the mated condition only, not unmated.
• Mechanical Fit: The square flange mounting dimensions and panel cutout are critical. Verify flange size, mounting hole spacing, and overall connector length against your enclosure design.
• Termination Method: Determine whether the connector uses crimp, solder, or screw terminals. This affects assembly time, tooling requirements, and field serviceability.
• Material Compatibility: Housing, insert, and contact materials must suit your operating environment, including temperature range, chemical exposure, and mechanical stress.

Interpreting Rated Parameters

Rated values are defined under specific test conditions. For example, a current rating is typically valid at a certain ambient temperature with a specified wire size. Operating at higher temperatures or with smaller gauge wires requires derating. Similarly, the IP rating is guaranteed only when the connector is fully mated and the locking mechanism is engaged. Consult the full datasheet for complete derating curves and test conditions.

Application Fit and Boundaries

The LD24/SP24 series suits applications such as industrial automation, machine tools, and power distribution where a reliable, heavy-duty connection is required. It is not intended for high-frequency signal transmission or applications requiring continuous flexing of the cable near the connector without proper strain relief. For vibration-prone applications, ensure the connector is properly secured and the cable is strain-relieved to prevent mechanical fatigue on the contacts.

Installation and Maintenance Considerations

Proper installation is essential for achieving rated performance. Ensure the panel cutout is accurate and the flange is mounted with the correct gasket to maintain the IP rating. For field-wireable versions, follow the manufacturer's instructions for stripping, terminating, and assembling the connector. Regular inspection of contacts for wear, corrosion, or damage is recommended, especially in harsh environments.

Related Resources

For a broader understanding of the LD series, the following resources may be useful:

• LD20/SP20 Heavy-Duty Square Connector Dimensions and Specs
• LD28/SP28 Square Flange Connector Dimensions and Materials

Next Steps for Your Project

To proceed with the LD24/SP24 connector, verify the specific part number against your requirements for pin count, termination style, and mounting configuration. If you need assistance with selection or have a custom requirement, use the inquiry form to provide your project details, including electrical load, environmental conditions, and mechanical constraints. Our team can help confirm the correct configuration for your application.
