SP20 Connectors
< >

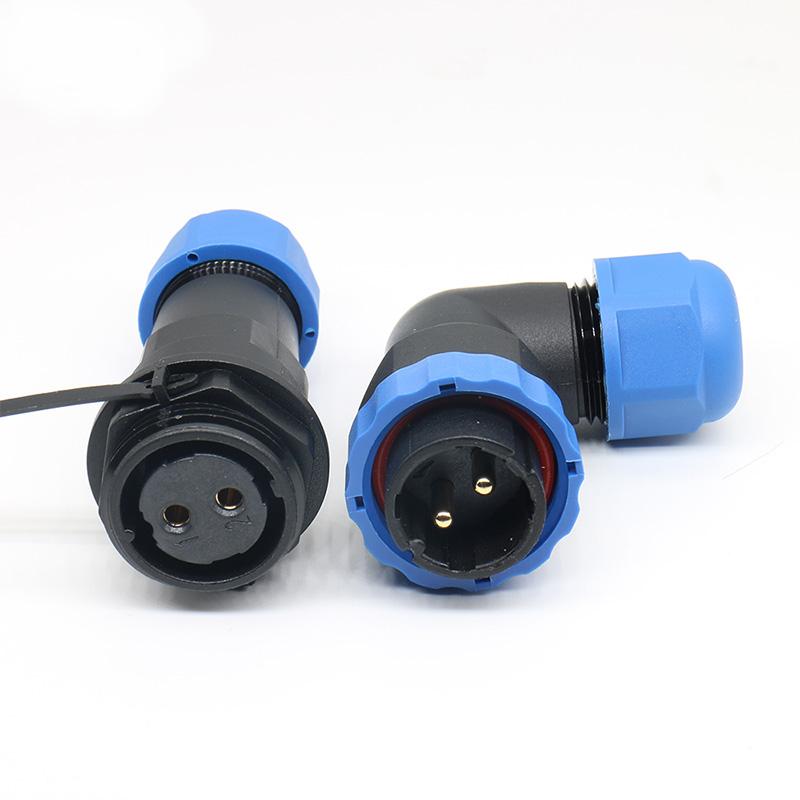

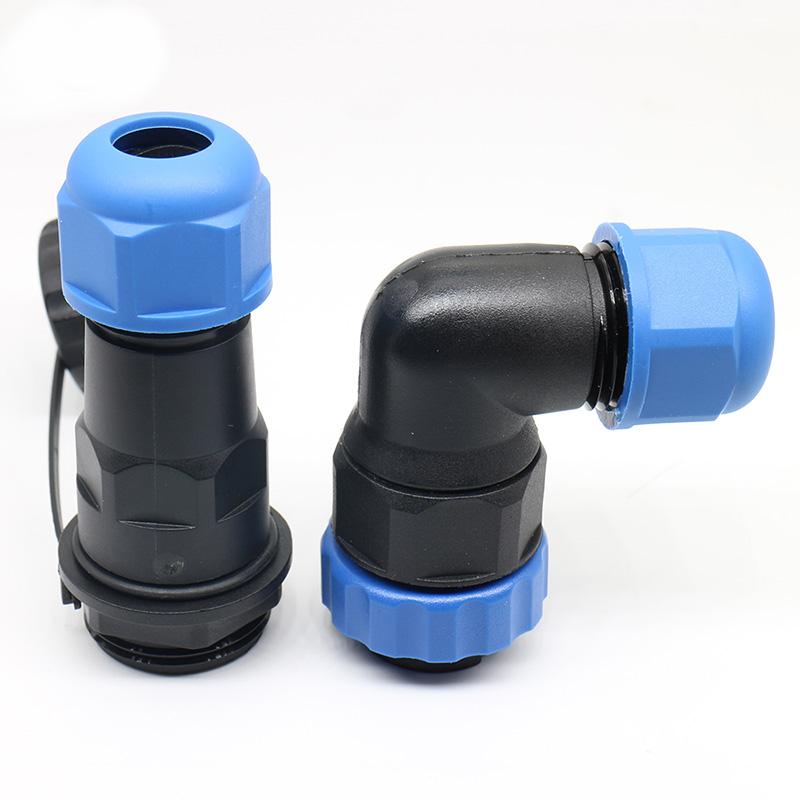

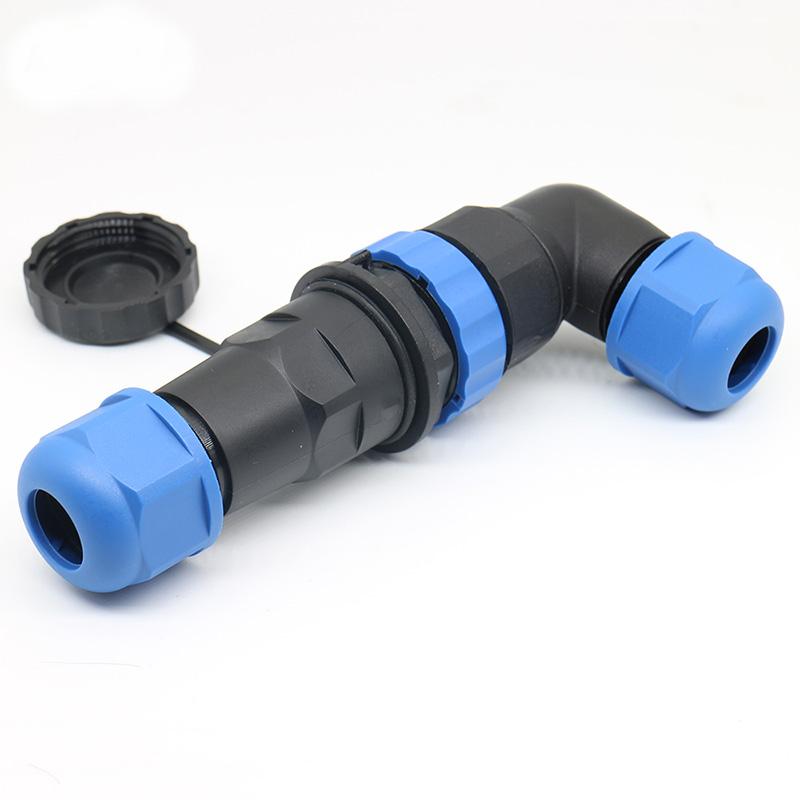

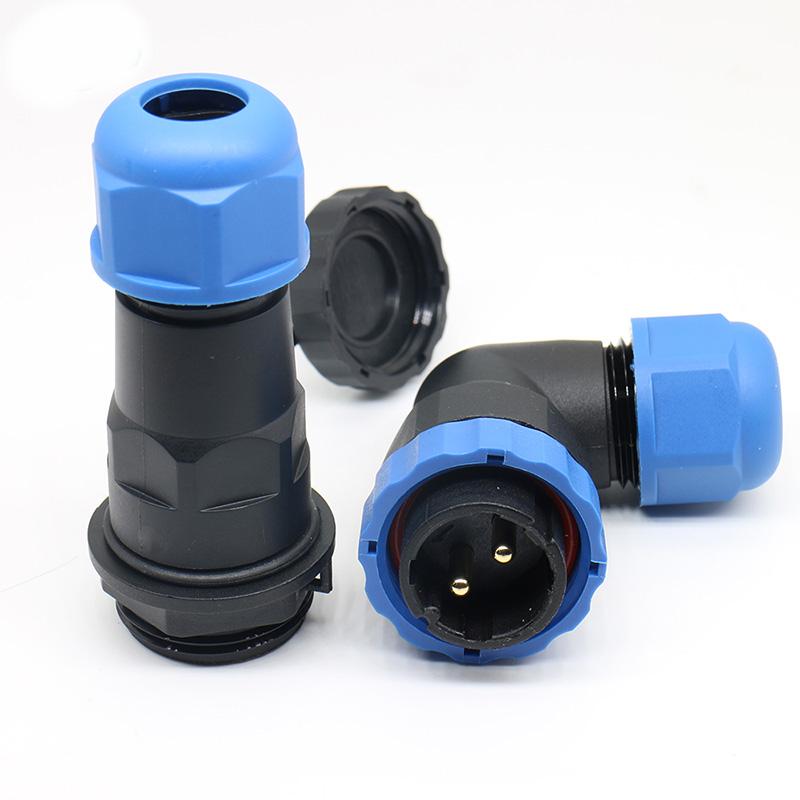

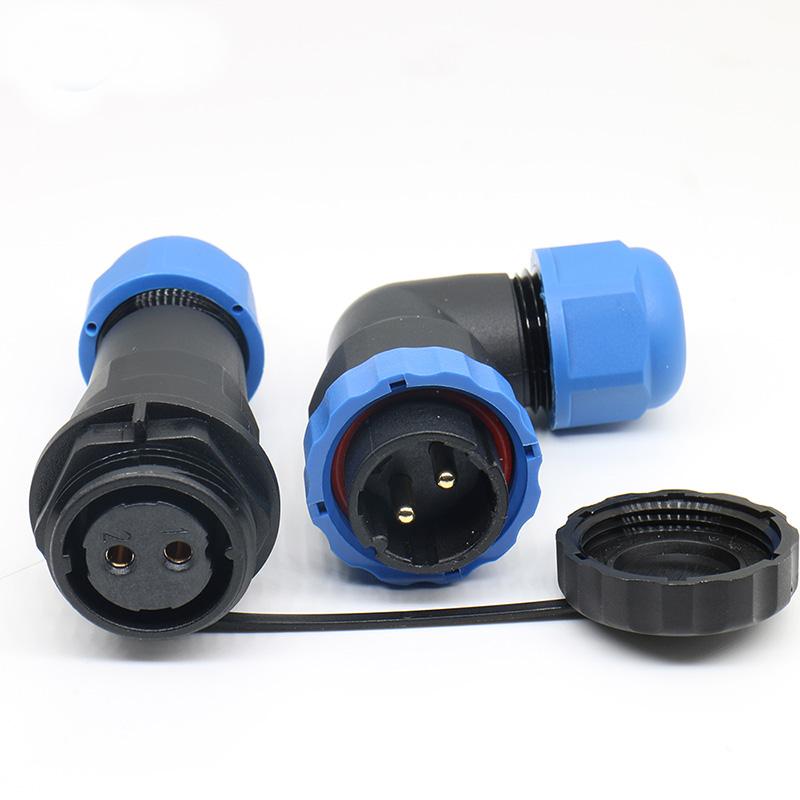

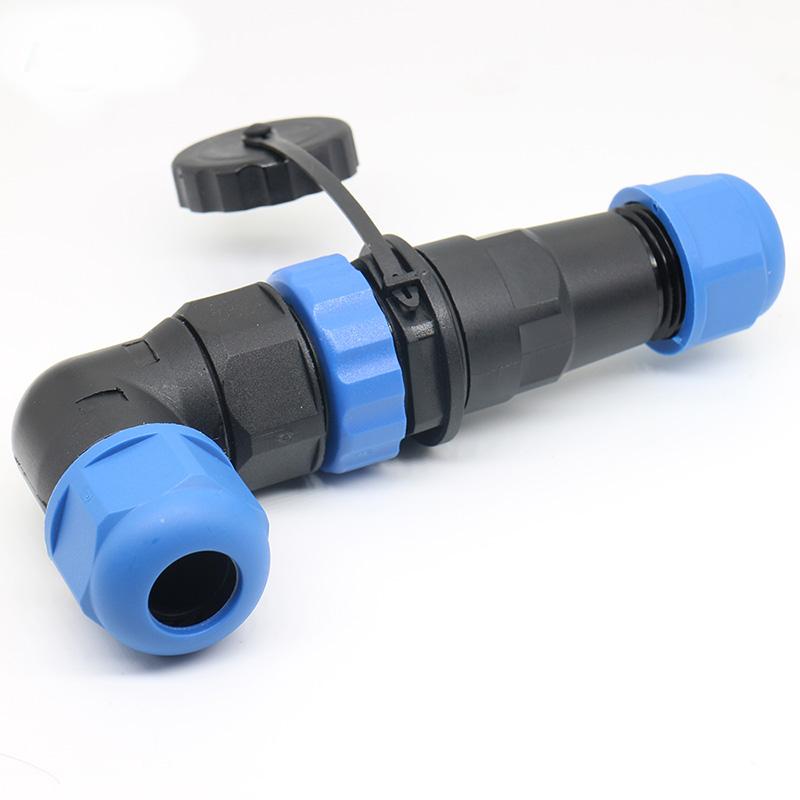

SP20/SD20 Right-Angle Docking Connector for Medical and Laboratory Devices

>Number Of CoresNumber Of Cores 2 - 14Pins
Contact DiameterContact Diameter(mm) 1.0mm/2.8mm
IP RatingIP Rating IP68
Shell MaterialShell Material Thermoplastic PA66/PA6
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Welding
Rated CurrentRated Current(A) 5A/10A/25A
Rated VoltageRated Voltage(Ac.V) 250V/380V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

High-Performance SP20/SD20 Right-Angle Connector

The SP20/SD20 Right-Angle Docking Connector is designed for medical and laboratory devices, offering secure and reliable connections even in compact setups. Its right-angle design ensures space-saving installation without compromising performance.

Durable and Reliable
Crafted from premium materials, this connector provides long-lasting durability and stable signal transmission, making it ideal for precision equipment where reliability is critical.

Easy Integration for Medical & Lab Equipment
Whether for medical instruments, laboratory analyzers, or other high-precision devices, the SP20/SD20 connector integrates seamlessly, ensuring efficient workflow and minimized downtime.

Industrial-Grade Quality

Engineered to meet rigorous industrial standards, this connector resists wear and environmental factors, delivering consistent performance for professional applications.

SP20 Connectors


Applications for SP20/SD20 Connectors
Medical diagnostic devices
Laboratory testing equipment
Research and analytical instruments
Precision medical machinery

Item

Parameters

Number of Cores

2-9Pin

Gender

Male/Female

Housing Material

Thermoplastic PA66/PA6

Cores Material

Brass Plated with Silver

Insulator Material

PPS

Locking System

Threaded Connection

Temperature Range

-20℃, +85℃

Rated Current (A)

5A/10A/25A

Rated Voltage (AC.V)

250V/380V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Welding
