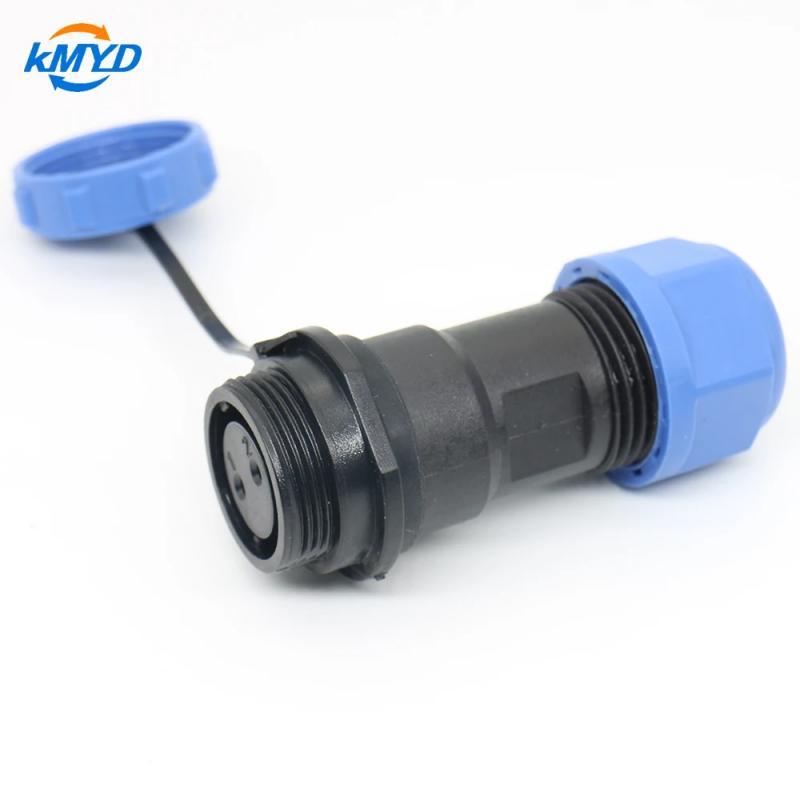

In electronic control equipment, reliable and waterproof connections are critical for ensuring uninterrupted operation, signal integrity, and system safety. SP17 IP68 connectors are widely used to connect sensors, actuators, power modules, and control interfaces, providing stable electrical connections even in harsh environments.

Project Background and Application Environment

Electronic control systems often operate in industrial settings with exposure to dust, moisture, vibration, and temperature fluctuations. SP17 IP68 connectors, with their robust housings and IP68-rated sealing, maintain dependable connectivity under these demanding conditions. Their secure locking mechanisms prevent accidental disconnections and protect sensitive electronics from environmental damage.

Key Requirements and Solution

For control cabinets and distributed I/O stations, the primary requirements include a stable IP68 seal against washdown and condensation, a secure mating interface that resists vibration, and a cable entry that accommodates common control cabling. The SP17 series addresses these needs with its circular interface, positive locking, and molded or field-wireable options, allowing integration with sensors, actuators, and power distribution blocks.

Installation and Commissioning Process

During commissioning, installers verify the connector's mating torque, confirm the cable gland is tightened to the specified range, and check that the IP68 seal is intact before energizing the circuit. The push-pull or threaded locking action provides clear tactile feedback, reducing the risk of incomplete mating. When modules require servicing, the connector allows quick disconnection and reconnection without special tools, minimizing system downtime.

Result and Operational Benefits

By providing reliable and waterproof connectivity, SP17 IP68 connectors enhance operational stability, system reliability, and overall performance in modern electronic control equipment applications. The sealed interface reduces maintenance intervals and protects signal integrity in humid or dusty production areas.

For related products, see the Waterproof Connectors catalog or review the LD20/SP20 Industrial Flange Connector Dimensions and Specs for additional mounting options.

If you are selecting a connector for a control system, please provide your pin count, cable diameter, mounting style, and IP rating requirement via the inquiry form or WhatsApp for a verified recommendation.
