GX16 Aviation Female Connector 4 Pin Screw Locking Zinc Alloy

GX16 Aviation Connector Types and Specifications

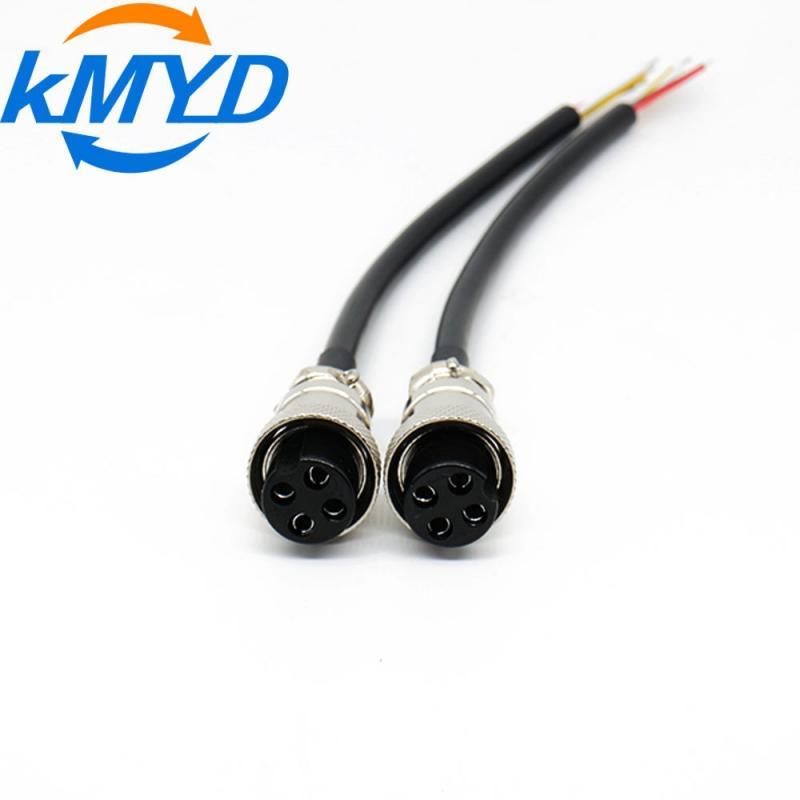

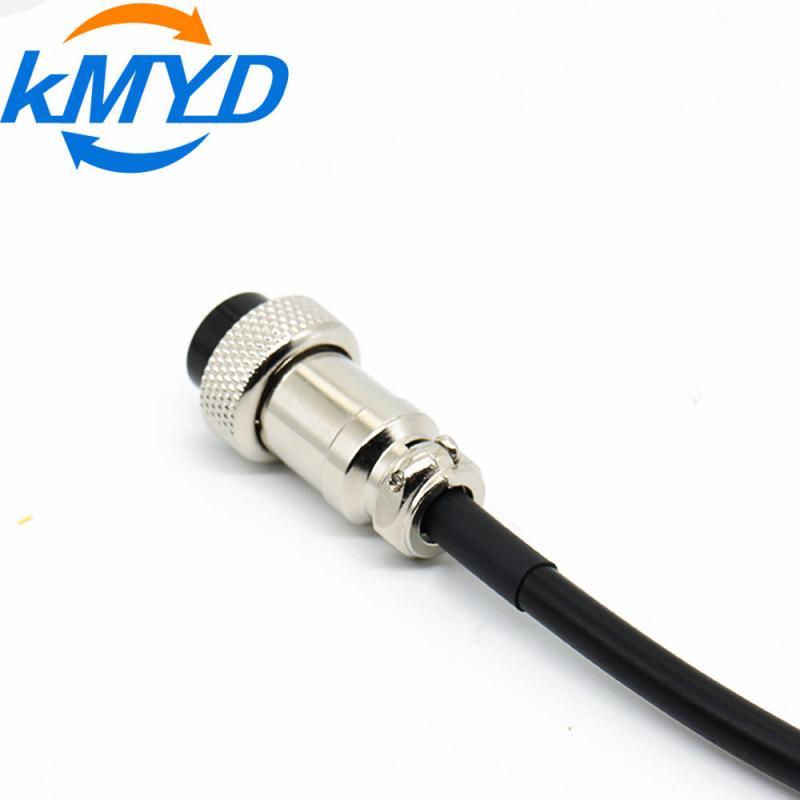

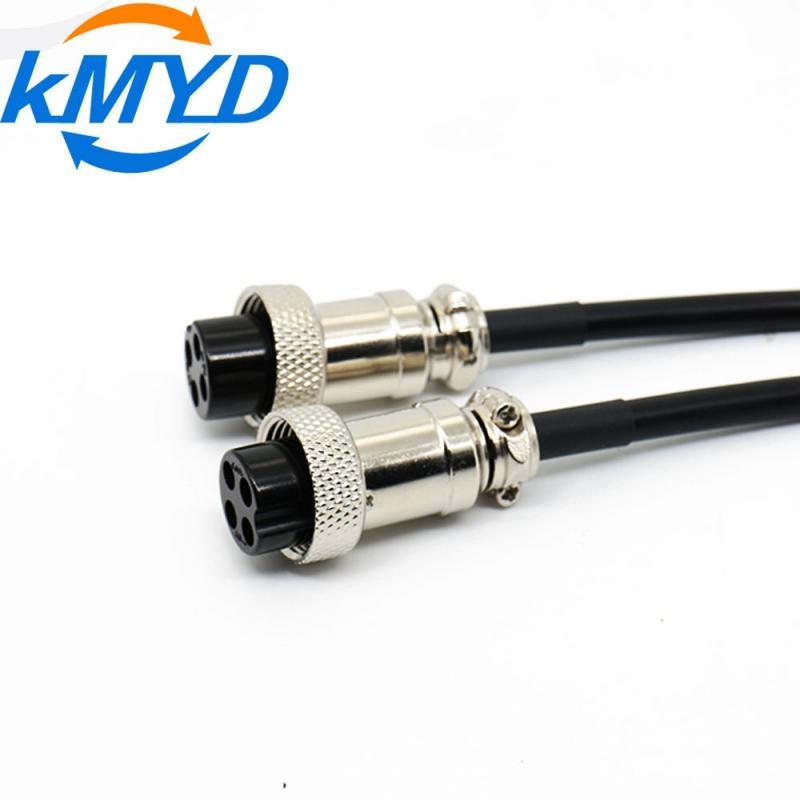

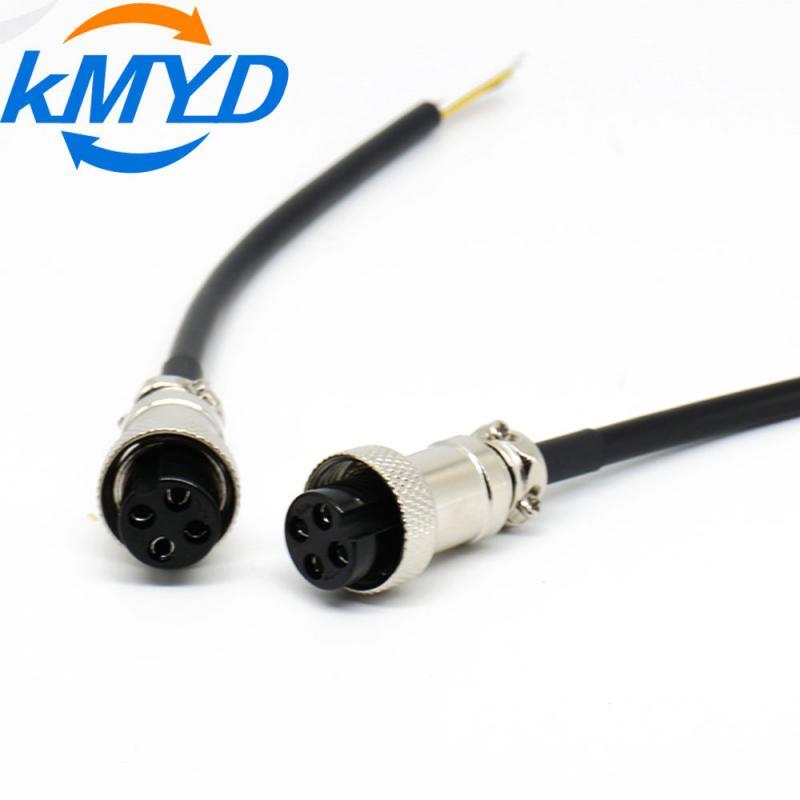

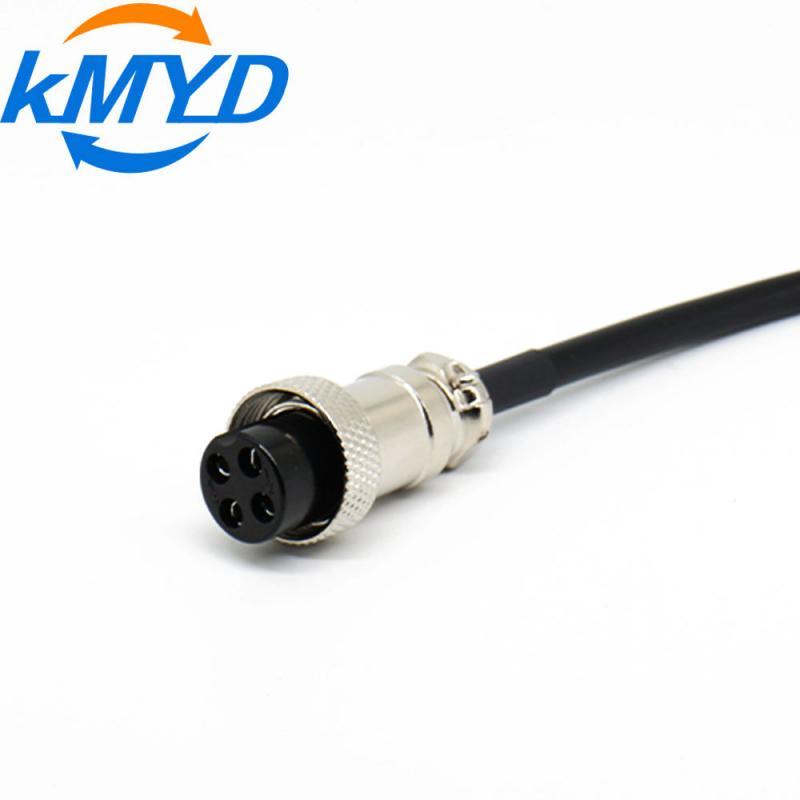

GX16 Aviation Female Connector Overview

The GX16 aviation female connector is a widely used circular connector designed for stable and secure electrical connections in industrial and electronic equipment. Known for its compact structure and dependable performance, it is an ideal solution for applications where reliability and ease of installation are essential.

With multiple pin configurations available, the GX16 connector can support both power and signal transmission, making it suitable for a wide range of devices and systems. Its standardized design allows easy integration into different types of equipment without complex modifications.

This connector is commonly used in control systems, LED lighting equipment, industrial devices, and electronic instruments that require consistent and durable connectivity.

Durable Zinc Alloy Housing for Enhanced Protection

The GX16 connector features a high-strength zinc alloy housing that provides excellent mechanical durability and long-term performance. Compared with plastic alternatives, the metal shell offers better resistance to wear, impact, and environmental stress.

This robust construction ensures the connector maintains its shape and performance even after repeated use. It is particularly suitable for equipment exposed to vibration or frequent connection cycles.

Additionally, the metal housing provides effective electromagnetic shielding, helping to reduce interference and improve signal stability in sensitive electronic systems.

Secure Threaded Locking Mechanism

The connector adopts a classic aviation-style threaded locking system that ensures a firm and reliable connection. Once tightened, the connector remains securely in place, preventing accidental disconnection caused by vibration or movement.

This feature is especially important in industrial environments where stable connections must be maintained during continuous operation.

At the same time, the threaded design allows for quick installation and removal, making maintenance and replacement more convenient.

Wide Range of Applications

Thanks to its durability, flexibility, and secure connection design, the GX16 connector is suitable for various industries and use cases.

Typical applications include:

• Industrial automation equipment
• Control panels and systems
• LED lighting and stage equipment
• Electronic instruments and devices
• Communication and monitoring systems

Its compact size and reliable performance make it a preferred choice for engineers and manufacturers worldwide.

Selection Considerations for Your Application

When selecting a GX16 aviation female connector, consider the following factors to ensure proper fit and performance:

• Pin count and layout: Confirm the number of cores required for your power and signal lines, and verify the mating pinout against your equipment drawing.
• Mating side: Ensure the corresponding male plug matches the shell size, keyway orientation, and thread pitch of this female connector.
• Cable preparation: Check the cable outer diameter and conductor size against the connector's clamping range and solder or crimp termination style.
• Environmental exposure: Evaluate whether the application involves vibration, moisture, or temperature extremes that may require additional protection or a different connector family.

For detailed technical parameters such as rated current, voltage, IP rating, and contact specifications, please refer to the Technical Specifications section on this page.

Inquiry Checklist

To receive an accurate quotation and compatibility confirmation, please provide the following information when contacting us:

• Required pin count and pinout or wiring diagram
• Cable outer diameter and conductor size
• Electrical load (current and voltage)
• Operating environment (temperature, humidity, vibration)
• Order quantity and target delivery schedule

For more information on GX16 connector variants and specifications, you can also review our GX16 Aviation Connector Types and Specifications guide. If you need a complete cable assembly solution, see our GX16 Aviation Female Connector with Custom Cable Assembly page.

Conclusion

Whether used in industrial environments or electronic applications, the GX16 connector ensures stable performance and long-term reliability. Confirm your mating and cable requirements before ordering to ensure the correct configuration for your system.
