GX12 2-7 Pin Aviation Circular Connector

Name: GX12 2-7 Pin Aviation Circular Connector
Brand: KMYD
SKU: 2-7 Pin
Price: 1.00 USD
Availability: InStock
Rating: 4.9 (12 reviews)

MOQ	>200
Number Of Cores	2-7 Pin
Contact Diameter(mm)	1.2mm
IP Rating	IP40
Shell Material	Zinc Alloy With Nickel Plated
Temperature Range	-30℃, +85℃
Termination	Solder
Rated Current(A)	7A
Rated Voltage(Ac.V)	250V
Test Voltage(Ac.V)1Min	1500V
Insulation Resistance (MΩ)	2000MΩ
Contact Resistance (MΩ)	≤5MΩ
Certification	CE, RoHS,BASCI,ISO9001

Get Quote

+86-19924482730

GX12 2 - 7 Pin Aviation Circular Connector – Compact and High-Reliability Industrial Solution
The GX12 2–7 Pin Aviation Circular Connector is engineered for industrial, automation, and aerospace applications requiring compact, durable, and reliable connectivity. Its circular design and flexible 2–7 pin configurations allow for efficient power and signal transmission in space-limited installations, while maintaining high mechanical and environmental resilience.

Unlike standard GX12 connectors, this model emphasizes industrial-grade durability, vibration resistance, and precise electrical contact, making it suitable for control panels, sensors, robotics, and aerospace instruments.

Designed for Demanding Industrial Environments
Industrial and aerospace equipment often operates under vibration, temperature extremes, and moisture exposure. The GX12 connector ensures:
Stable electrical performance in vibration-prone systems
Resistance to dust, water, and mechanical stress
Compact circular interface for tight installations

Flexible pin options for power, signal, or mixed applications

GX12-4Pin Connector

Its 2 - 7 pin range supports both simple power lines and moderate multi-signal connections, providing versatility for various industrial setups.

Key Features
2 - 7 Pin Versatility
Accommodates a range of industrial and aerospace wiring needs.
Compact Aviation Circular Design
Space-saving interface ideal for panels, devices, and tight assemblies.
Industrial-Grade Durability
Reinforced housing and high-quality contacts resist vibration, impact, and repeated mating cycles.
Precision Contacts
Ensure low contact resistance, reliable conductivity, and long-term performance.
Environmental Protection

Designed to withstand dust, moisture, and other harsh conditions in industrial and aerospace environments.

Factory Capabilities and Manufacturing Strength

We are a professional aviation connector manufacturer with over 15 years of experience, capable of delivering GX12 connectors with strict quality control and customization options.

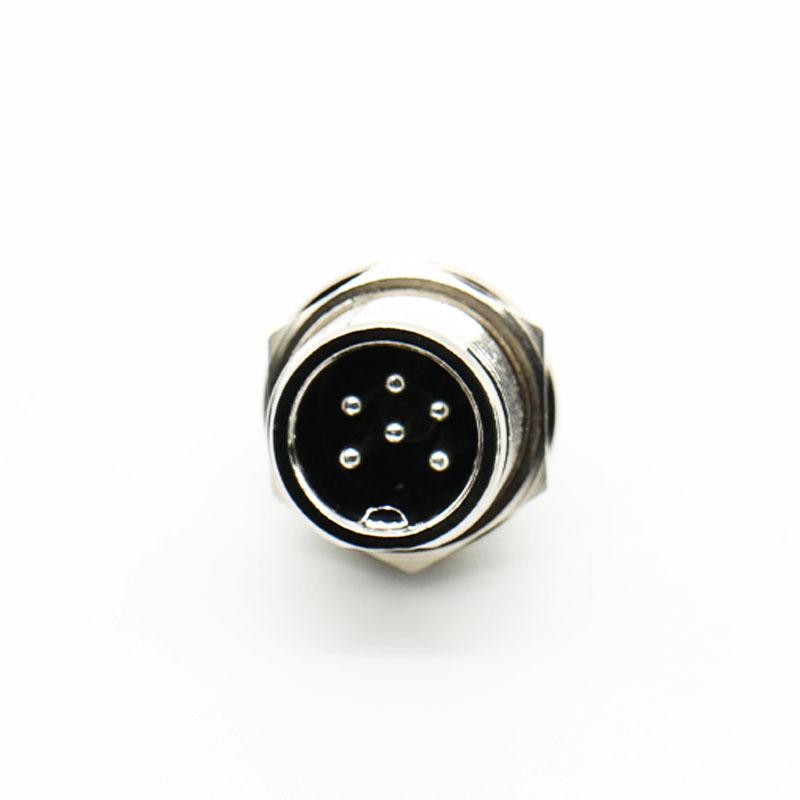

Connector

Our in-house capabilities include:
Precision mold and tooling design
CNC machining for metal housings and contacts
Injection molding for insulating and structural components
Full assembly and cable integration

Rigorous electrical, mechanical, and environmental testing

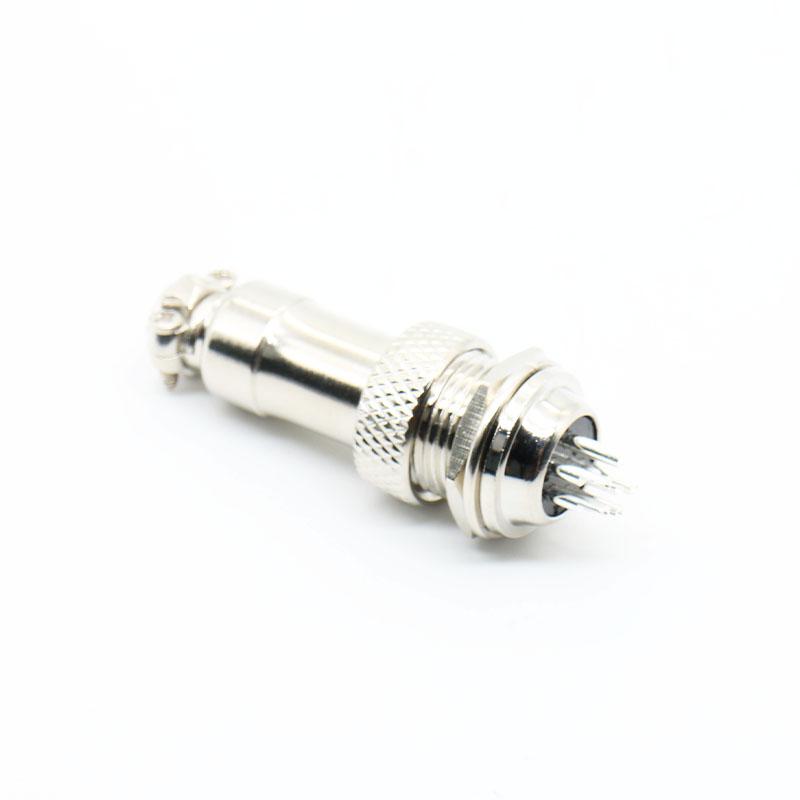

Connector

This vertical manufacturing process ensures consistent quality, quick delivery, and OEM/ODM flexibility.

Quality Assurance
Each GX12 connector undergoes:
Electrical continuity and insulation resistance testing
Vibration and mechanical shock testing
Mating cycle durability verification
Dimensional and structural inspections

Optional dust and moisture exposure testing

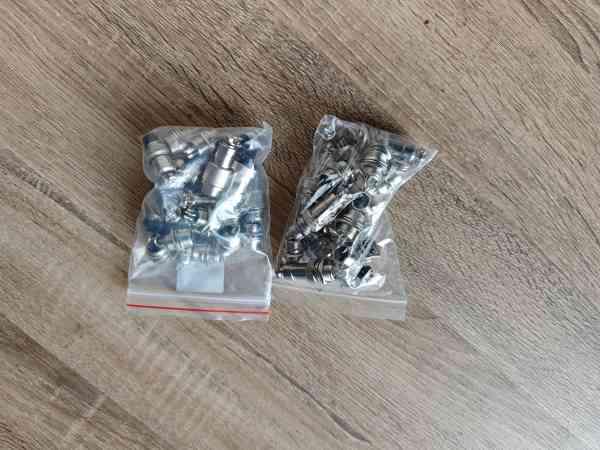

Connector

All products comply with ISO9001, CE, RoHS, and UL standards, ensuring dependable performance in critical industrial and aerospace applications.

Customization Options
Pin configuration adjustments (2 - 7 pins)
Cable length and wire specification customization
Housing material and finish modifications
Shielded or anti-interference options
OEM/ODM branding and packaging
Our engineering team supports projects from prototype design to mass production, ensuring connectors meet your specific industrial or aerospace requirements.

Application Areas
Industrial machinery and automation systems
Robotics and motion control devices
Sensor and actuator networks
Control panels and equipment interfaces
Aerospace instrumentation and avionics

Data acquisition and monitoring systems

Why Choose This Connector?
The GX12 2 - 7 Pin Aviation Circular Connector provides a compact, reliable, and versatile connectivity solution with industrial-grade durability, making it ideal for applications where space, performance, and reliability are critical.

Contact Us
We provide samples, technical support, and OEM/ODM customization services.
Reach out today for factory-direct GX12 aviation connector solutions with high-quality assurance and competitive pricing.

Item	Parameters
Number of Cores	2-7Pin
Gender	Male/Female
Housing Material	Zinc Alloy with Nickel Plated
Cores Material	Brass Plated with Silver
Insulator Material	Phenolics
Locking System	Screw Locking
Temperature Range	-30℃, +85℃
Rated Current (A)	7A
Rated Voltage (AC.V)	250V
Test Voltage (AV.C)1Min	1500V
Insulation Resistance (㏁)	2000㏁
Contact Resistance (㏁)	≤5㏁
Termination	Solder
