GX16 Connectors in CCTV Cameras and Surveillance Systems

In CCTV cameras and surveillance systems, reliable electrical connections are essential for maintaining continuous video monitoring and stable system performance. GX16 connectors are commonly used to connect cameras, power supplies, control panels, and signal transmission modules, ensuring consistent power delivery and clear video signal transmission across the surveillance network.

Project Background and Industry Context

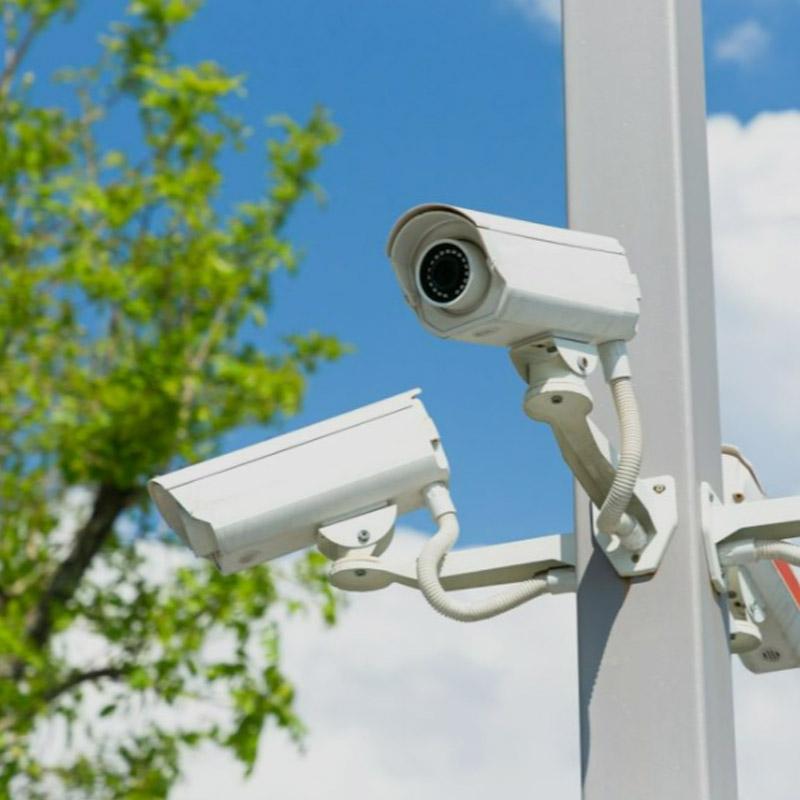

CCTV systems are often installed in environments such as commercial buildings, factories, parking lots, and public infrastructure, where equipment may be exposed to vibration, dust, and temperature variations. GX16 connectors, with their durable metal housings and secure threaded locking mechanisms, maintain stable connections under these demanding conditions. Their compact size and robust construction make them suitable for both indoor and outdoor surveillance installations.

Solution and Installation Considerations

When selecting GX16 connectors for a surveillance project, engineers should verify the electrical load requirements, cable diameter range, and mating cycle expectations. The threaded coupling design provides a vibration-resistant interface, which is particularly important for cameras mounted on poles, walls, or moving gantries. For outdoor deployments, confirm that the connector's IP rating and temperature range match the installation environment.

Commissioning and Maintenance Process

During commissioning, each GX16 connection should be torqued to the recommended specification and visually inspected for proper seating. When cameras or system components require servicing or replacement, these connectors allow quick and secure reconnection, minimizing downtime. Periodic checks of the locking ring and contact surfaces help sustain long-term signal integrity.

Result and Performance Benefits

By providing dependable connectivity, GX16 connectors help enhance video reliability, system stability, and long-term performance in modern CCTV and surveillance applications. For related guidance on signal transmission and connector selection, see RF Connector Types, Materials, and Electrical Specs or review the Connectors Video for installation demonstrations.
