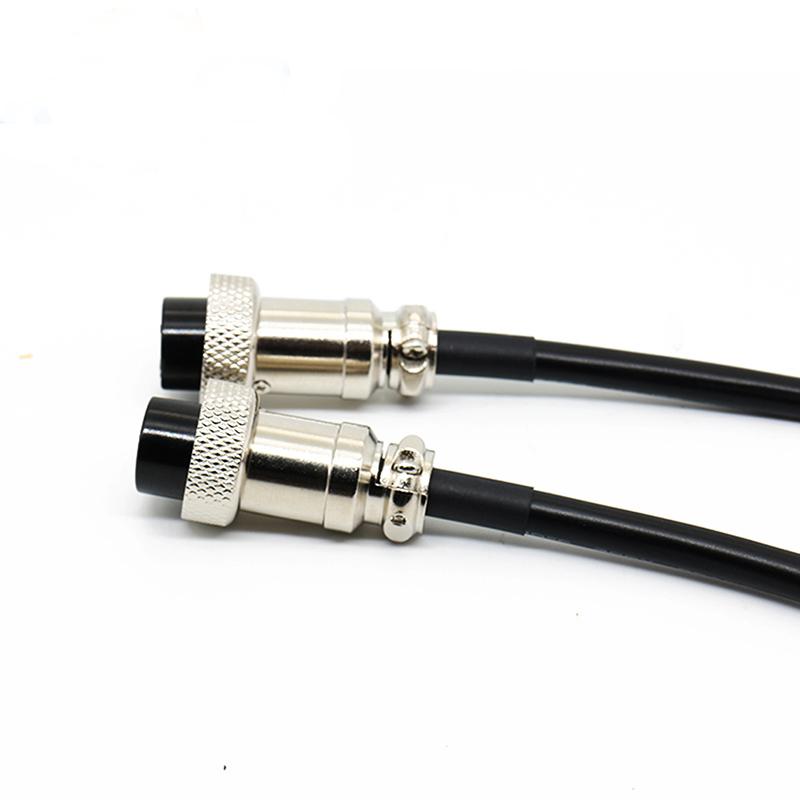

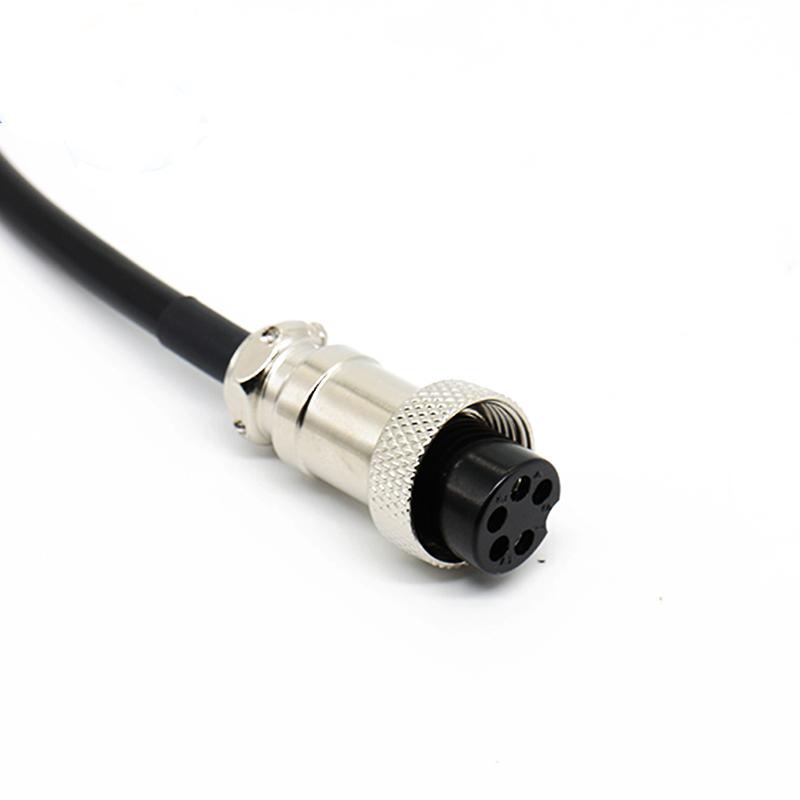

4 Pins GX16 Aviation Female Connector Cable Assembly

>Number Of CoresNumber Of Cores 4 Pin
Contact DiameterContact Diameter(mm) 0.6mm/1.0mm
IP RatingIP Rating IP67
Shell MaterialShell Material Zinc Alloy, Nickel Plating
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 1A-3A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote

4 Pins GX16 Aviation Female Connector Cable Assembly

The 4 Pins GX16 aviation female connector cable assembly is a durable and easy-to-install connection solution designed for equipment requiring stable power or signal transmission. With its classic metal housing and secure threaded locking mechanism, the GX16 connector ensures reliable connectivity in industrial and commercial applications.

Pre-assembled with cable, this connector simplifies installation and reduces wiring time, making it suitable for production environments where efficiency and consistency are essential. Its robust structure provides dependable performance under frequent connection cycles and daily operational use.

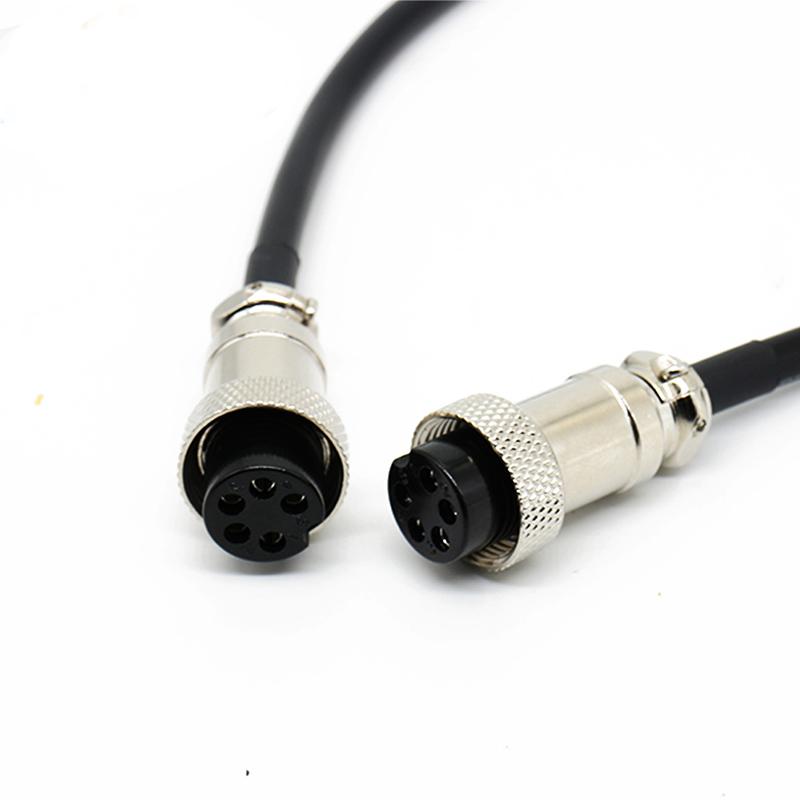

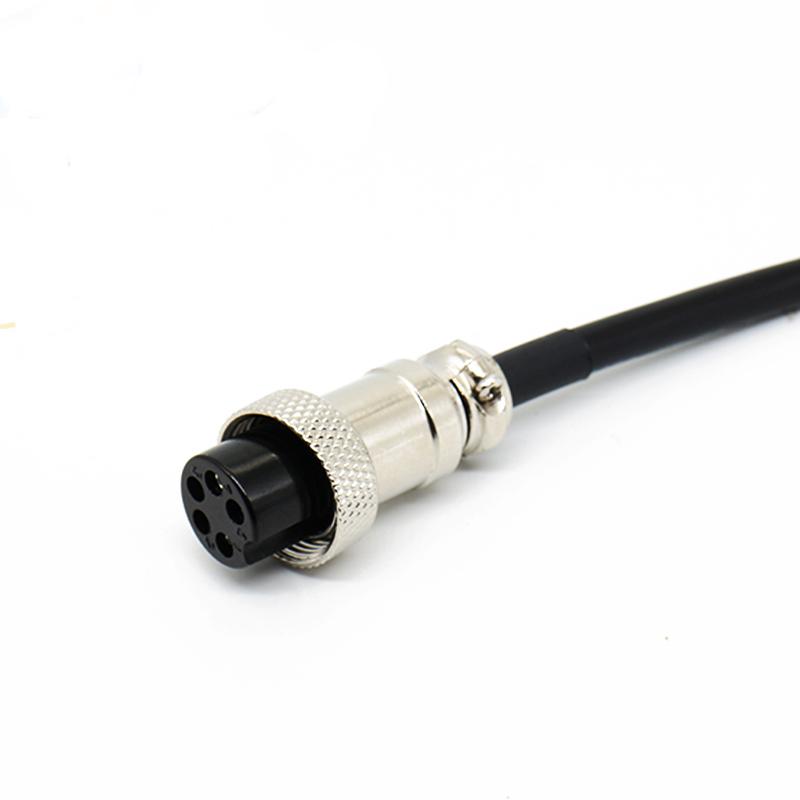

GX16 Aviation Connector


Key Advantages of GX16 Aviation Female Connector
4-pin GX16 female connector with pre-wired cable
Strong metal housing for mechanical durability
Secure threaded locking for stable connection
Reliable power and signal transmission
Easy installation with plug-and-play structure
Suitable for repeated connection and disconnection

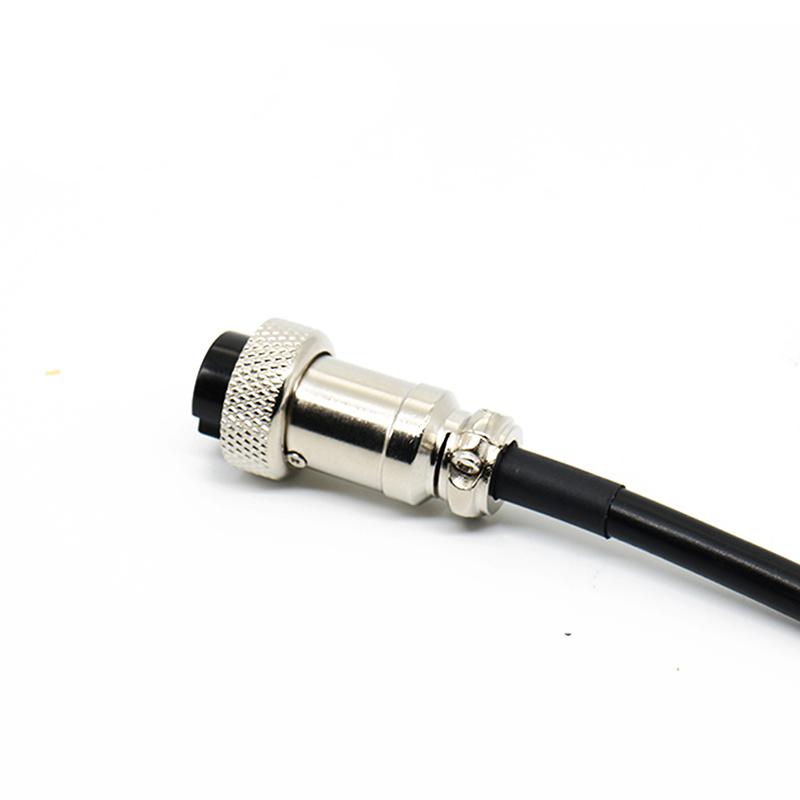

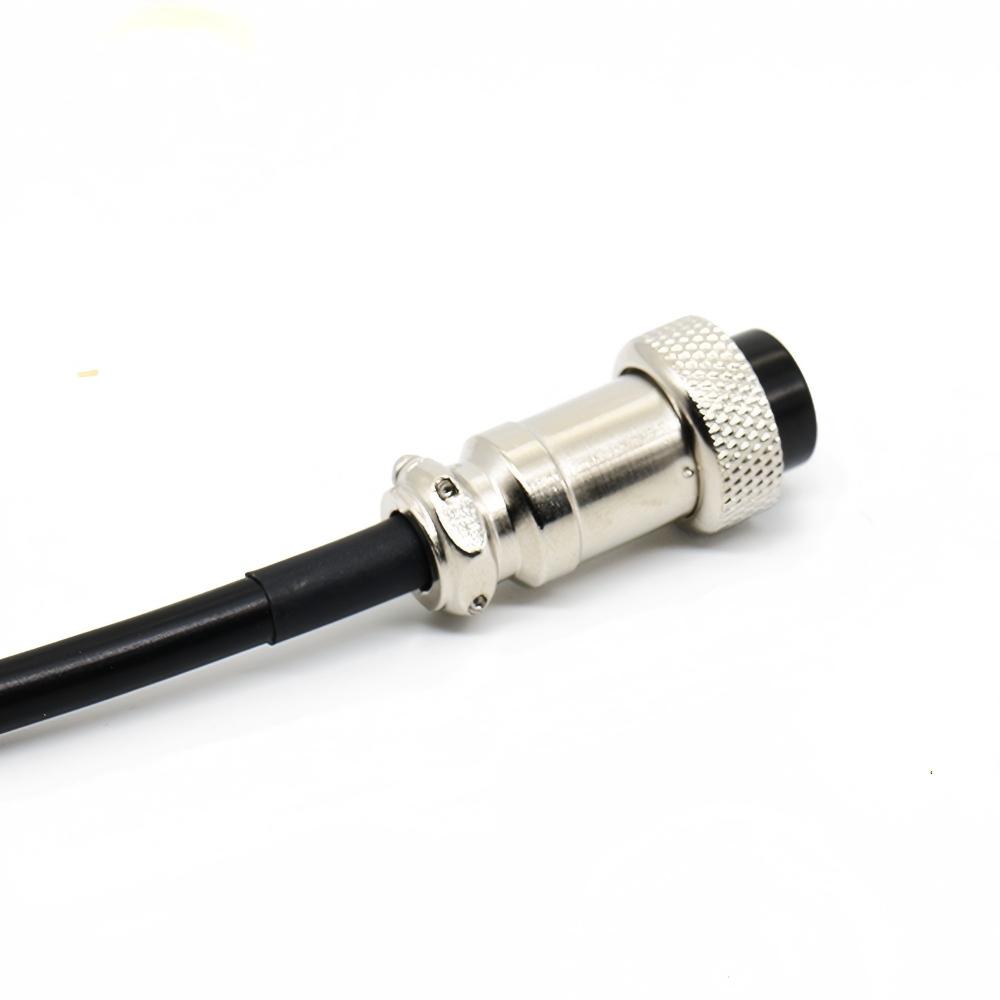

GX16 Female Connector

Application Scenarios for GX16 Aviation Female Connector

This GX16 cable assembly is commonly used in:
Industrial control equipment
Power supply devices
LED lighting systems
Audio and communication equipment
Test and measurement instruments

Machinery and automation systems


Production Strength from a Practical Perspective
Instead of relying on outsourced assembly, our cable connectors are manufactured through a controlled in-house process that combines connector production and cable termination in a single workflow. This integrated approach helps ensure consistent wiring quality and reduces connection failure risks during installation.
Connector
Our assembly team follows standardized procedures for cable stripping, soldering or crimping, insulation, and final inspection, allowing every cable assembly to maintain stable electrical performance before delivery.

Reliable Supply for Ongoing Projects
We support stable lead times, flexible order quantities, and customized cable configurations to match different equipment requirements. Whether for prototype development or regular production supply, this GX16 connector assembly provides a dependable and practical connection solution.

Item

Parameters

Number of Cores

4 Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

1A/3A

Rated Voltage (AC.V)

125V/180V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance ()

1500

Insulation Resistance ()

10

Termination

Solder
