WS20 Connector
< >

WS20 Aviation Connector with Wire 2 - 15 Pin

>Number Of CoresNumber Of Cores 2-15 Pin
Contact DiameterContact Diameter(mm) 1.0mm/1.5mm/2.0mm
IP RatingIP Rating IP65
Shell MaterialShell Material Zinc Alloy With Nickel Plated
Temperature RangeTemperature Range -20℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 5A - 15A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

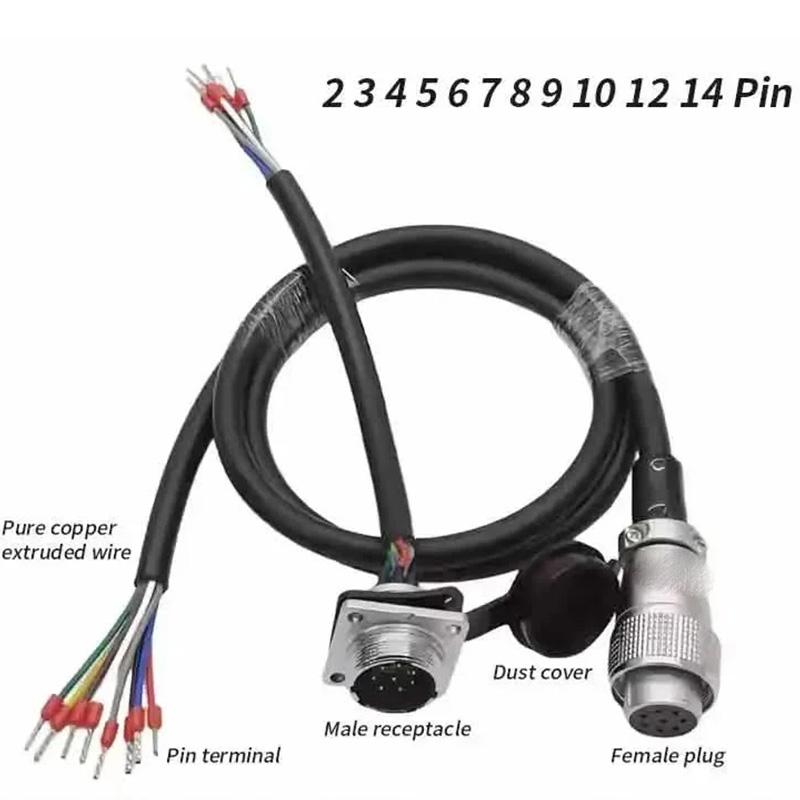

WS20 Aviation Connector with Wire 2 - 15 Pin
The WS20 Aviation Connector with Wire (2-15 Pin) is a robust circular connection solution designed for reliable power and signal transmission in demanding industrial and electrical environments. Featuring a durable metal shell and secure threaded locking mechanism, this connector ensures stable performance where vibration resistance and long-term durability are essential.

Supplied as a pre-wired cable assembly, the WS20 connector helps reduce installation time and wiring errors, making it suitable for both equipment manufacturing and field deployment.

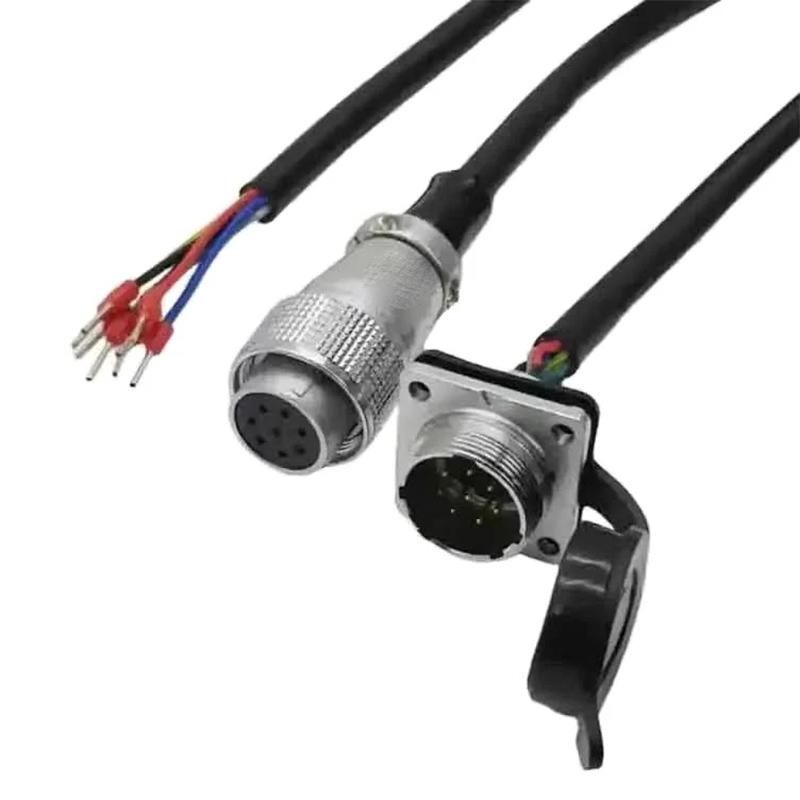

WS20 Connectors


Wide Pin Configuration for Flexible Applications
The WS20 series supports 2 to 15 pin configurations, allowing it to handle different signal and power requirements within the same equipment platform. Its aviation-style structure provides strong mechanical protection and consistent electrical performance.
Key advantages include:
2-15 Pin configurations for versatile system design
Durable metal housing for mechanical strength
Secure threaded locking for vibration resistance
Stable electrical contact for reliable transmission
Pre-wired cable design for easy installation
Long service life in industrial environments

Custom Cable Assembly Options
To meet various installation and engineering requirements, the WS20 aviation connector can be customized as a complete cable assembly solution.
Available customization options include:
Custom cable length based on equipment layout
PVC, rubber, or PUR cable materials
Different wire gauges and color configurations
Straight or right-angle cable outlet
Shielded cable for signal-sensitive systems
OEM labeling and packaging support
This flexibility makes the connector suitable for both standard equipment production and customized industrial projects.

Typical Applications for WS20 Aviation Connector
The WS20 aviation connector with wire is commonly used in equipment that requires secure and durable electrical connections, such as:
Industrial machinery and automation systems
Power distribution equipment
Control cabinets and electrical panels
LED lighting and display systems
Testing and measurement devices

Transportation and mechanical equipment


Manufacturing Capability - Built for Industrial Reliability

Our factory specializes in circular connectors and cable assemblies for industrial applications, with a production system designed to ensure stable performance and repeatable quality. From component machining to cable termination and final inspection, each step is controlled to maintain consistent reliability.

Connectors

Manufacturing strengths include:
Integrated production from connector components to cable assembly
Precision machining for stable mechanical fit
Controlled wiring and termination processes
Batch consistency management for large-volume orders
Flexible production scheduling for OEM projects

This structure supports long-term supply for equipment manufacturers and engineering projects.

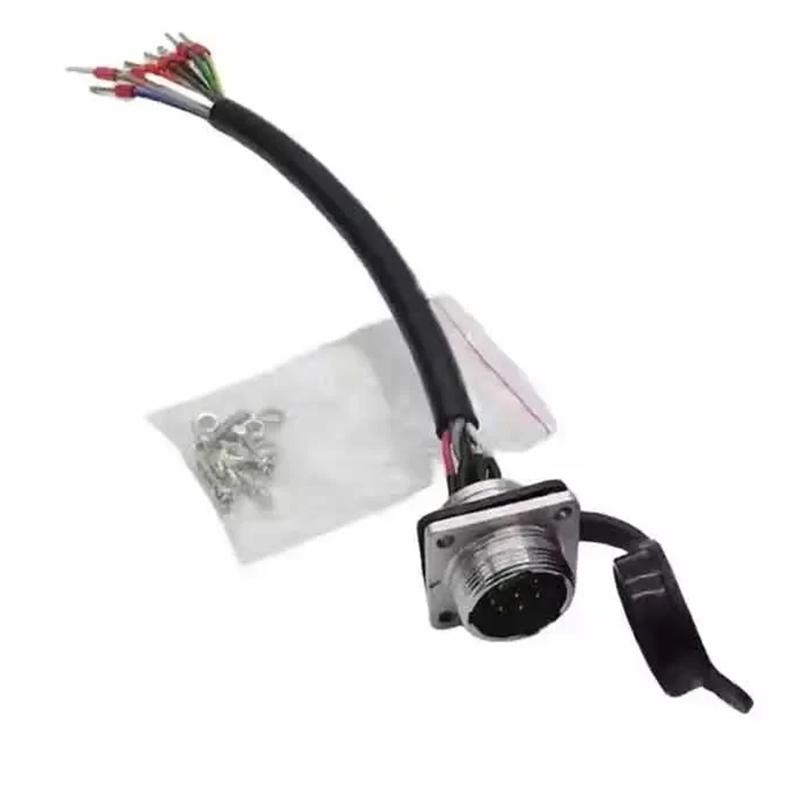

WS20 Wire Connector


Quality Control & Compliance
Each WS20 connector assembly undergoes strict testing to ensure dependable performance in real operating conditions.
Quality checks include:
Electrical continuity and insulation testing
Mechanical durability and mating cycle testing
Vibration resistance verification
Assembly integrity inspection

Visual and dimensional quality control

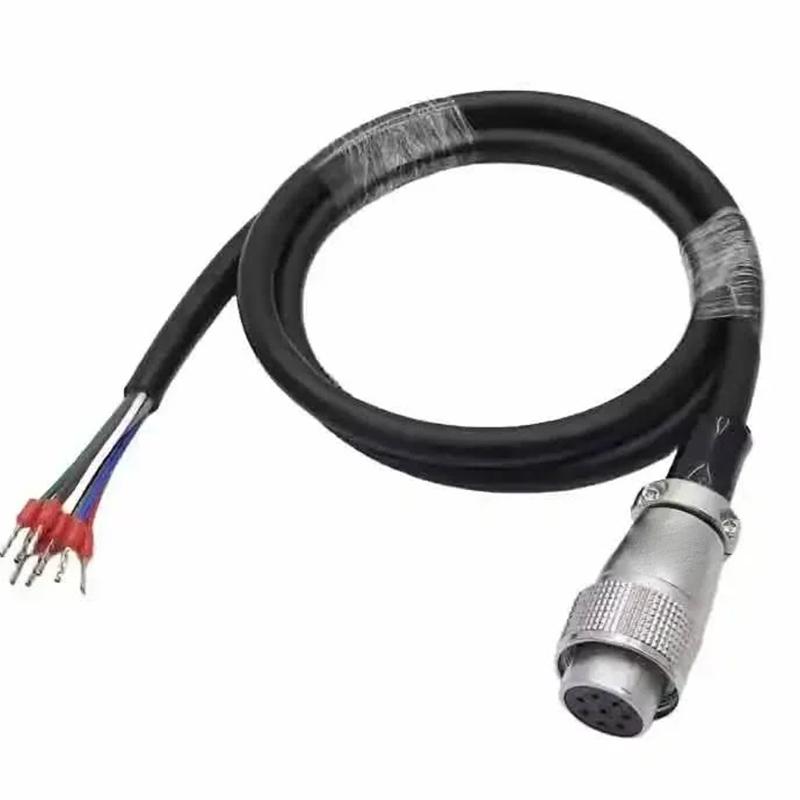

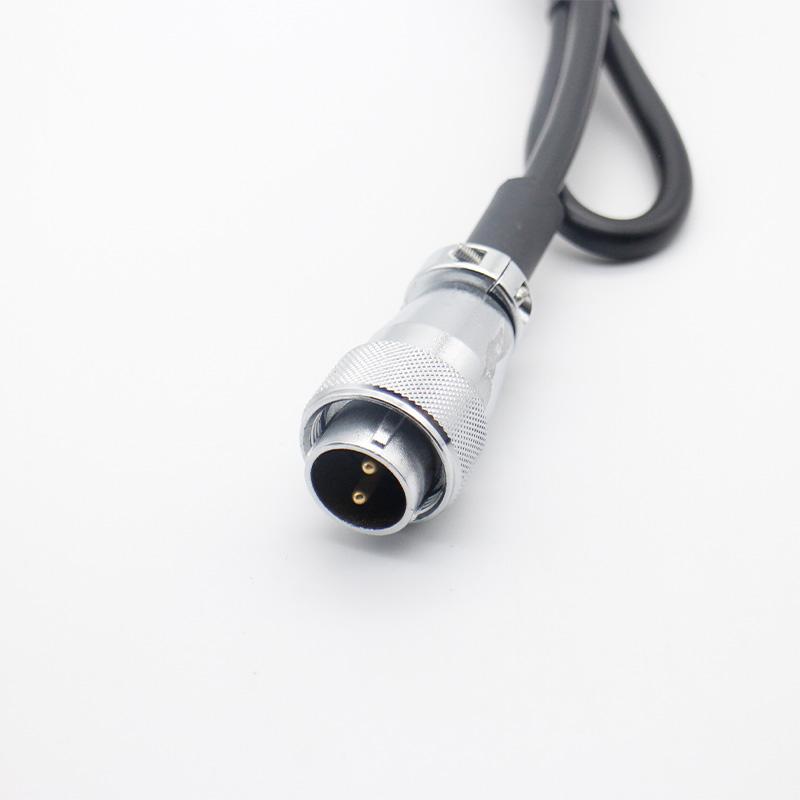

WS20 Cable Connector

Products are manufactured under recognized international standards, including: ISO9001 Quality Management System, CE Certification, RoHS Environmental Compliance, etc.

WS20 Female Connector


Reliable Wired Connector Solution for Industrial Equipment

The WS20 Aviation Connector with Wire (2-15 Pin) combines durable construction, flexible configuration, and stable manufacturing quality. It is an ideal choice for industrial systems requiring dependable electrical connections and efficient installation.

Item

Parameters

Number of Cores

2-15Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Gold

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-20℃, +85℃

Rated Current (A)

5A - 15A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤10㏁

Termination

Solder
