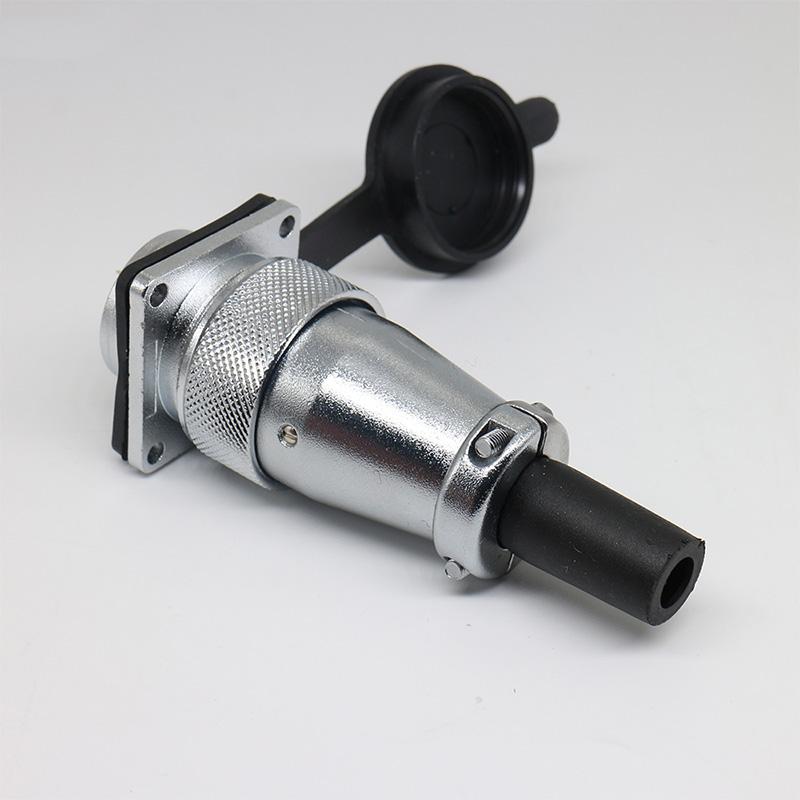

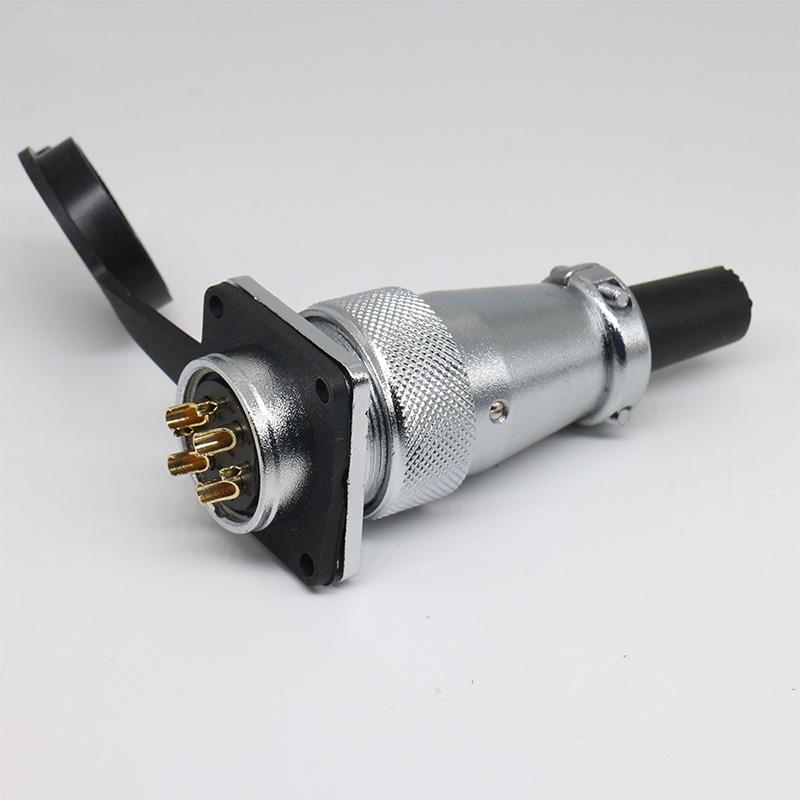

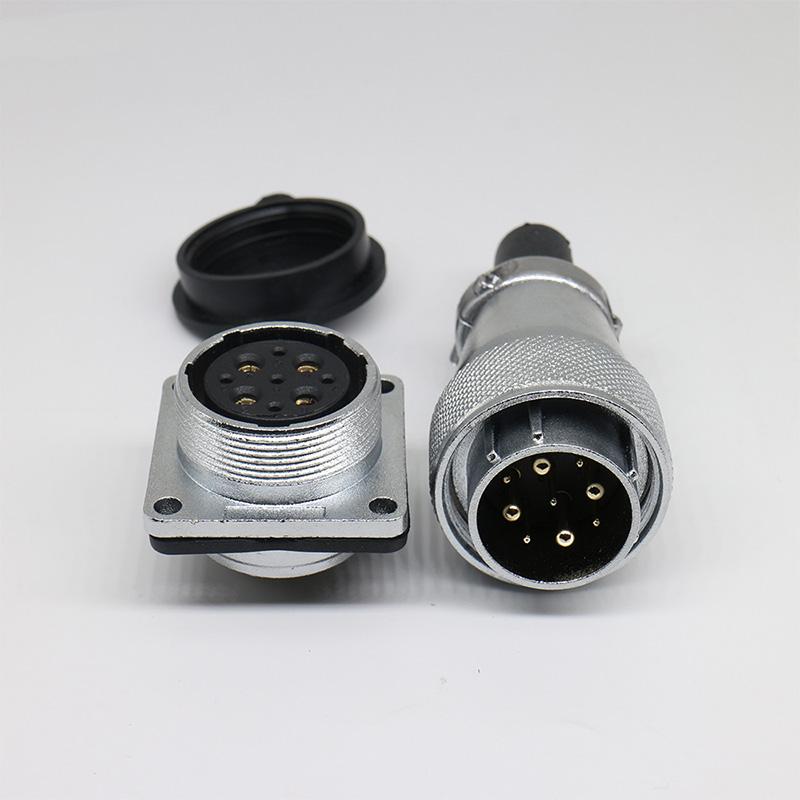

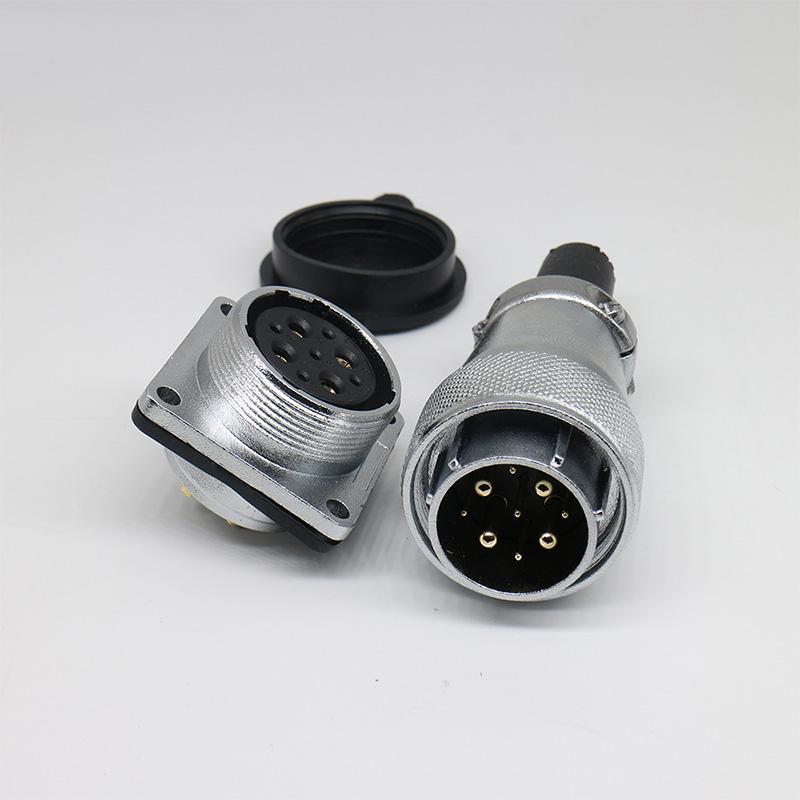

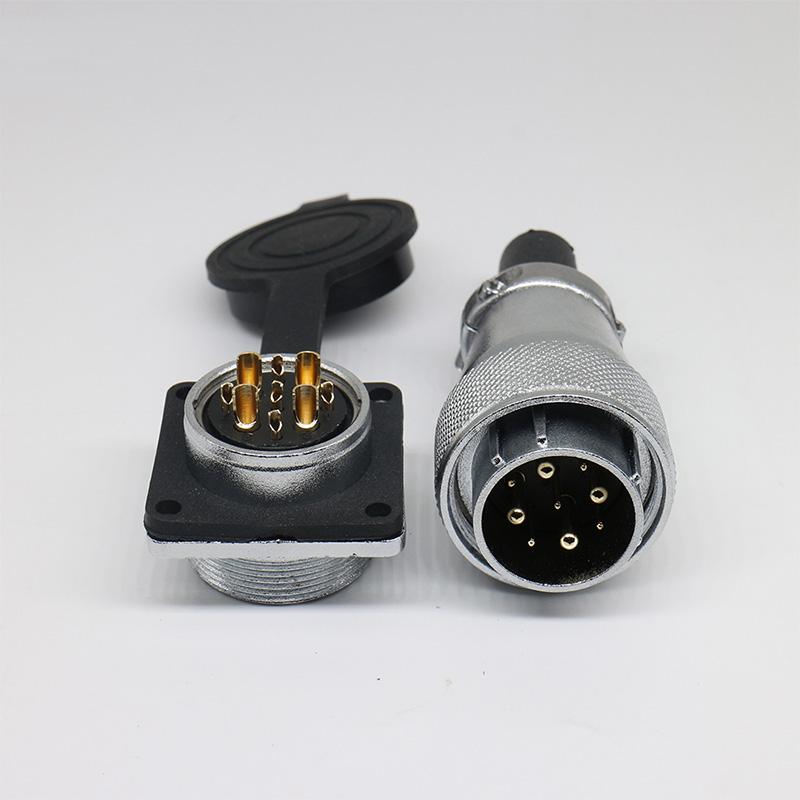

WS24 Connectors
< >

WS24 2-19 Pin Industrial Connector for Machinery and Control Systems

>Number Of CoresNumber Of Cores 2-19 Pin
Contact DiameterContact Diameter(mm) 1.0mm - 2.5mm
IP RatingIP Rating IP65
Shell MaterialShell Material Zinc Alloy With Chorme Plated
Temperature RangeTemperature Range -30°C to +85°C
TerminationTermination Solder/Crimp
Rated CurrentRated Current(A) 5A - 20A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

WS24 2-19 Pin Industrial Connector – Multi-Circuit Integration Solution for Complex Machinery
In modern industrial equipment, connectors are no longer simple accessories — they act as electrical integration nodes inside the system architecture.
The WS24 2-19 Pin Industrial Connector is designed for machines that require high-density multi-function connectivity within a single interface, combining power distribution, control signals, feedback channels, and communication lines into one structured connection point.

WS24 Connectors

From Fragmented Wiring to Integrated System Design
Traditional industrial equipment often relies on multiple separate connectors, which results in:
Complex wiring layouts
More panel openings
Higher maintenance workload
Increased risk of connection failure
WS24 replaces this fragmented structure with a single high-density interface (up to 19 pins), allowing engineers to design cleaner and more modular systems.

Built for High-Complexity Industrial Systems
The WS24 series is widely used in systems where electrical architecture is dense and multi-layered, such as:
Multi-axis industrial control platforms
Automated production equipment
Testing and measurement systems
Robotics control cabinets
Smart manufacturing modules
In these environments, the goal is not only connection - but organized and stable system-level integration.

Engineering Focus: Stability in High-Density Contact Design
High-pin connectors require more than compact structure - they must ensure long-term electrical consistency across all contacts.
WS24 is engineered with emphasis on:
Stable alignment under repeated mating cycles
Reliable contact pressure across multiple pins
Reduced signal interference in dense wiring environments
Mechanical locking stability under vibration
This ensures consistent performance even in continuous industrial operation.

Factory Strength - Industrial Manufacturing Behind the Product
The performance of a high-density connector is highly dependent on manufacturing capability.
WS24 is produced in a factory system built specifically for precision industrial connector production, not general assembly.
Connector
Integrated Manufacturing System
Our production base covers the full process chain:
Precision mold development for high-pin circular structures
CNC machining for metal components
Injection molding for insulating parts
Metal stamping for contact terminals
In-house assembly for alignment accuracy

Final electrical and mechanical testing

Connector

This integrated system ensures dimensional consistency and stable mass production quality.

Precision Control for High-Pin Reliability
For connectors like WS24 (up to 19 pins), small deviations can affect performance.
We control this through:
Strict terminal stamping tolerance control
Stable plating thickness management for conductivity
Multi-stage assembly positioning to avoid misalignment

Full inspection of insertion and withdrawal force consistency

Connector

This ensures every connector performs consistently from sample to mass production.

Quality Validation Process
Each WS24 connector is tested under industrial conditions, including:
Electrical continuity and resistance testing
Mating cycle durability testing
Vibration and mechanical stress testing
Environmental resistance evaluation (dust / moisture / temperature)

Connector

OEM & ODM Capability

We support customized industrial solutions, including:
Pin configuration customization (2 - 19 pins)
Cable harness integration
Shielded signal designs
Housing material and structural modification
Logo branding and packaging customization
From prototype development to mass production, we support full project execution.

Core Value of WS24 Connector
WS24 is designed to deliver:
Simplified system-level wiring architecture
High-density multi-function integration
Reduced maintenance complexity
Stable long-term industrial performance

 Item

 Parameters

 Number of Cores

 2-19Pin

 Gender

 Male/Female

 Housing Material

 Zinc Alloy with Chrome Plated

 Cores Material

 Brass Plated with Gold/Silver

 Insulator Material

 PPS

 Locking System

 Screw Locking

 Temperature Range

 -30℃, +85℃

 Rated Current (A)

 5A - 20A

 Rated Voltage (AC.V)

 250V

 Test Voltage (AV.C)1Min

 1500V

 Insulation Resistance (㏁)

 2000㏁

 Contact Resistance (㏁)

 ≤10㏁

 Termination

 Solder
