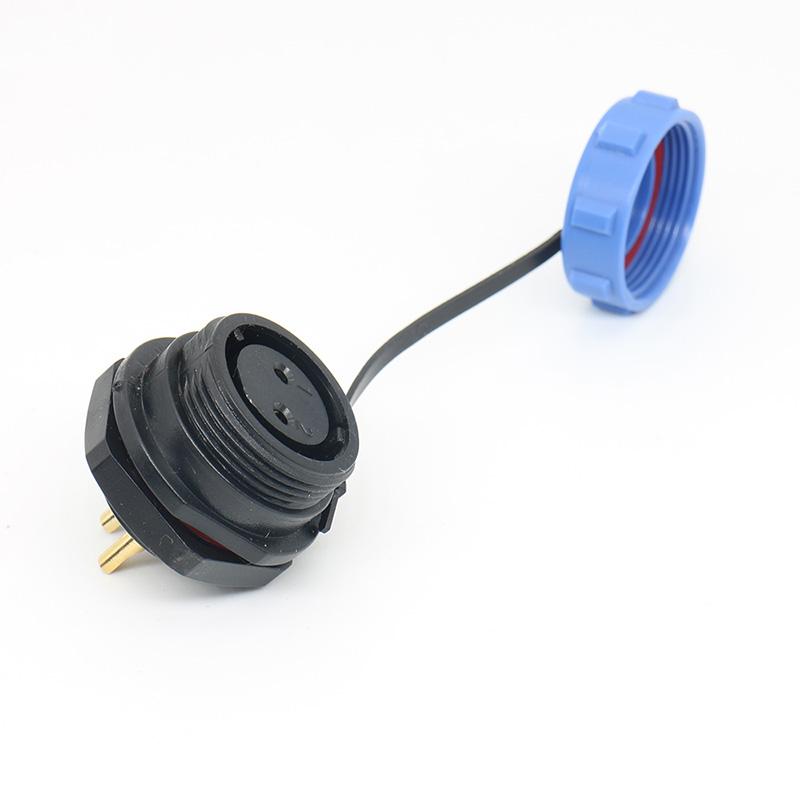

IP68 Connectors
< >

SP17 IP68 Connector for Electronic Control Equipment

>Number Of CoresNumber Of Cores 2 - 9Pin
Contact DiameterContact Diameter(mm) 1.0mm/1.5mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 5A-100A
Rated VoltageRated Voltage(Ac.V) 400V-500V
Test VoltageTest Voltage(Ac.V)1Min 1000V-1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

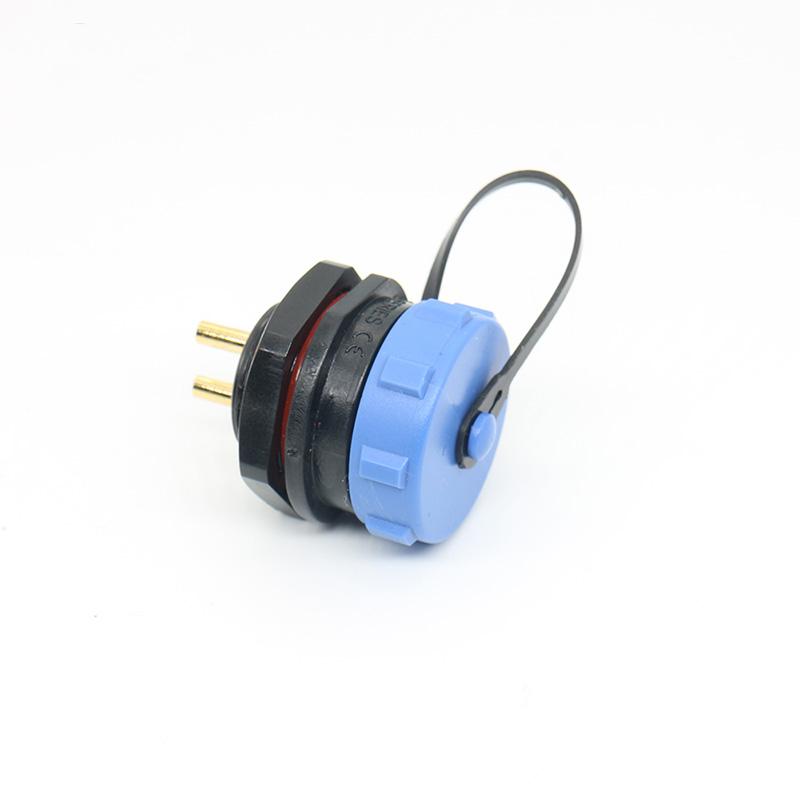

SP17 IP68 Connector for Electronic Control Equipment

The SP17 IP68 connector is a high-performance waterproof circular connector designed for use in electronic control equipment and industrial automation systems. With reliable sealing and durable construction, it ensures stable power and signal transmission in demanding working environments.

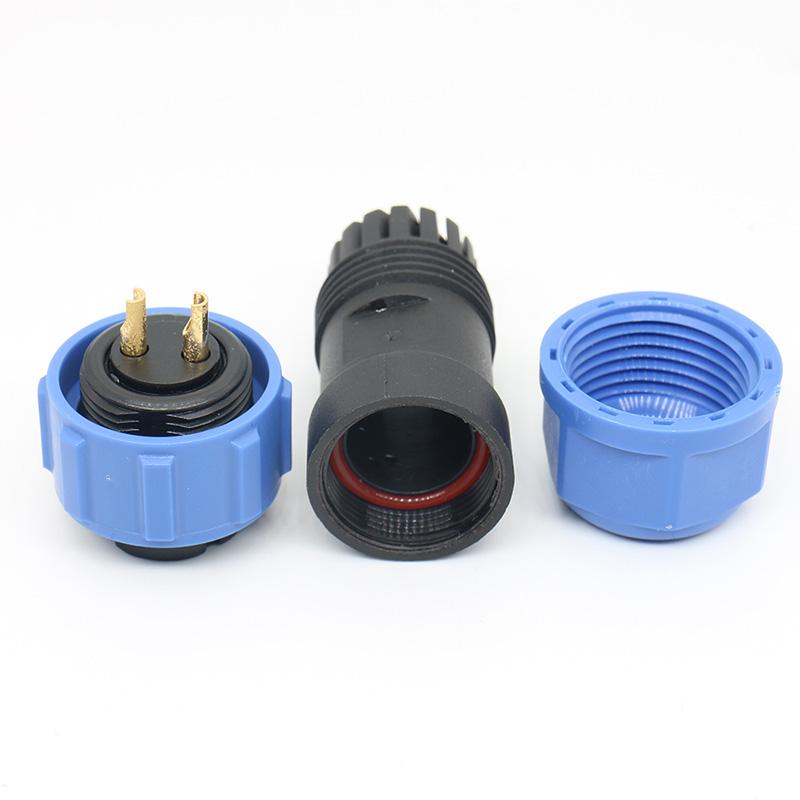

Connectors

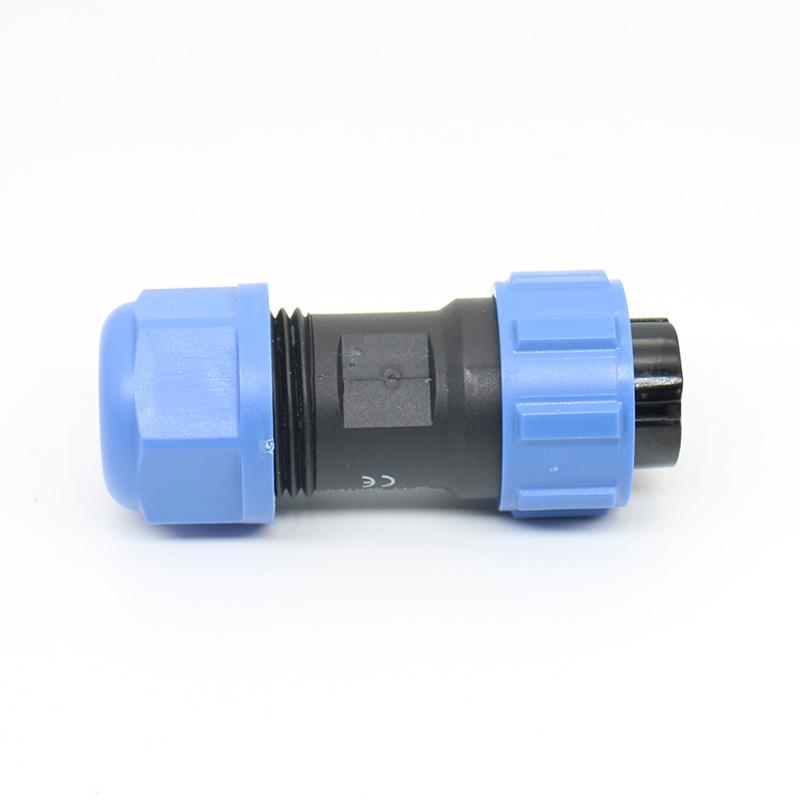

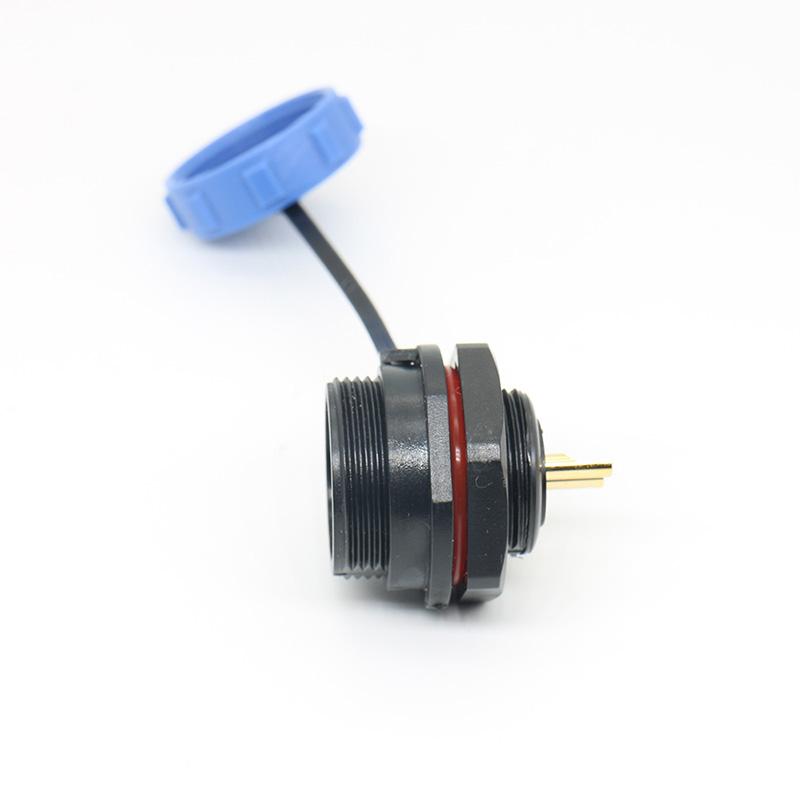

Reliable SP17 Waterproof Connector

Featuring IP68 waterproof protection, the SP17 connector is suitable for equipment that operates in environments exposed to dust, moisture, or vibration. It provides secure and stable connections for long-term industrial use.

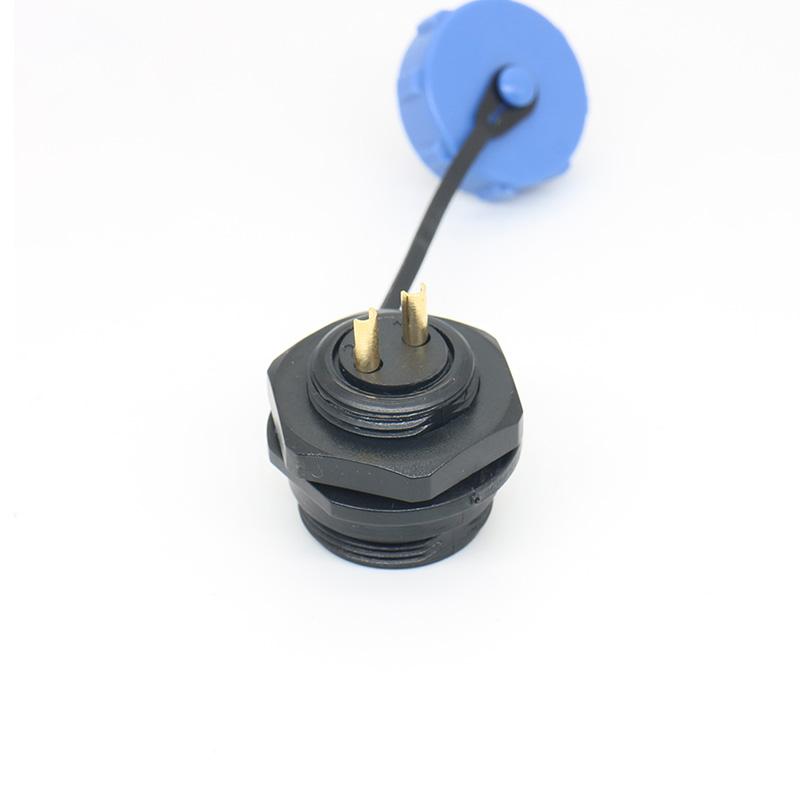

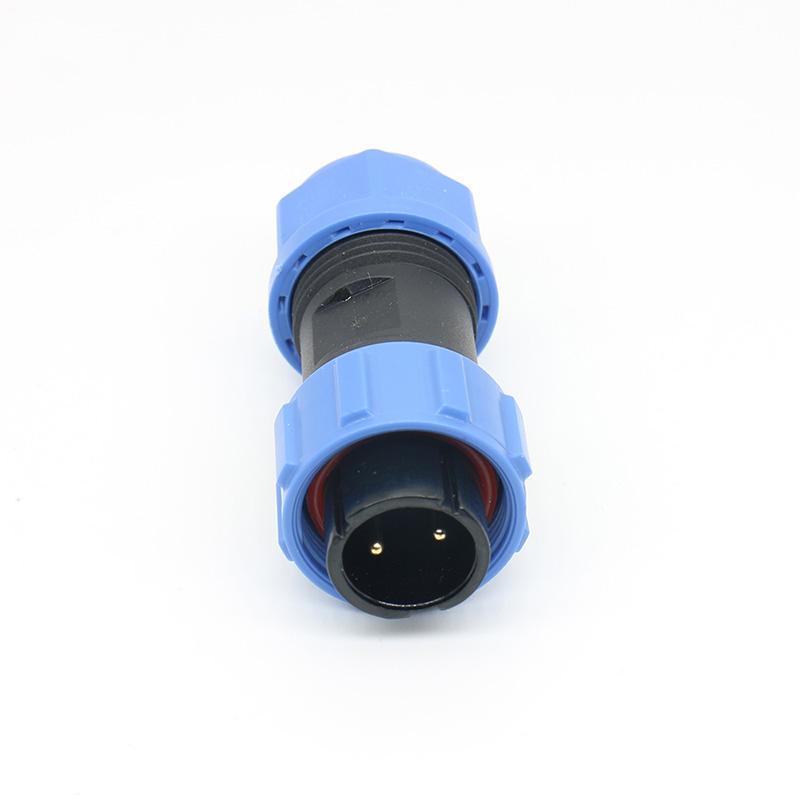

Ideal SP17 Connector for Automation Control Systems

This SP17 circular connector is widely used in PLC control cabinets, automation control panels, CNC equipment, and other electronic control systems, ensuring efficient and reliable connectivity between devices.

Item

Parameters

Number of Cores

2-9Pin

Gender

Male/Female

Housing Material

PC/PA66

Cores Material

Brass Plated with Gold

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

5A - 10A

Rated Voltage (AC.V)

400V - 500V

Test Voltage (AV.C)1Min

1000V - 1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Solder
