M12 Connectors in PLC Control Systems in the Netherlands

Programmable Logic Controllers (PLCs) form the backbone of modern industrial automation, coordinating processes across manufacturing, packaging, and material handling operations. In the Netherlands, where advanced logistics and high-tech manufacturing drive significant automation investment, the reliability of every connection between a PLC and its field devices directly impacts production uptime and data integrity.

This case outlines how M12 circular connectors support dependable field connectivity in Dutch industrial environments, focusing on the interface between control cabinets and distributed sensors, actuators, and I/O modules.

Project Background and Industry Context

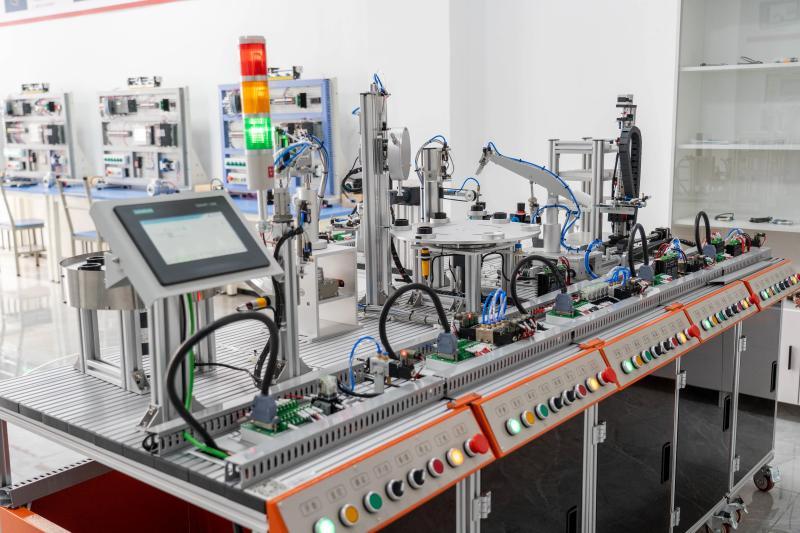

Dutch industrial facilities—from greenhouse automation in the Westland region to high-mix electronics assembly in Brabant—increasingly rely on distributed control architectures. In these systems, remote I/O blocks and field-mounted sensors communicate with a central PLC over industrial networks. The physical layer of this communication depends on connectors that can withstand repeated mating, cable strain, and exposure to washdown or humid conditions common in food processing and logistics hubs.

The requirement was straightforward: a standardized, field-proven connector family that could support both signal and data transmission while simplifying installation and maintenance across multiple machine builders and end-user sites.

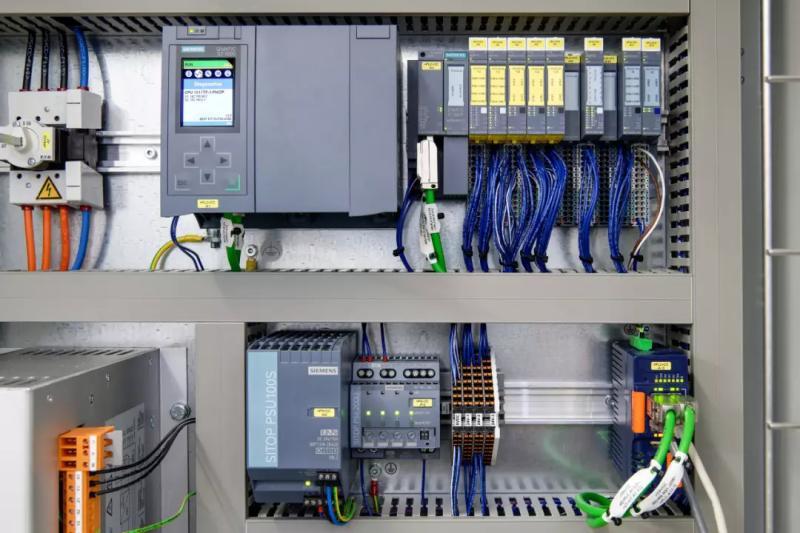

Connector Application in the Control System

M12 connectors were selected as the interface standard at several critical points in the PLC architecture:

• Sensor and actuator connections: M12 A-coded connectors provide secure, vibration-resistant terminations for discrete sensors and pneumatic actuators.
• I/O module interfaces: M12 D-coded and X-coded variants support Industrial Ethernet protocols (PROFINET, EtherNet/IP) used for remote I/O communication.
• Signal transmission between field equipment and control cabinets: Pre-assembled M12 cable assemblies reduce wiring errors and installation time compared to traditional terminal-block terminations.

Design Characteristics and Selection Criteria

The M12 connector family offers several design features that made it suitable for this application:

• Threaded locking mechanism: The M12 × 1.0 thread provides a positive mechanical lock, preventing accidental disconnection under vibration.
• Coding options: A, B, D, and X coding prevents mismating between power, fieldbus, and Ethernet circuits within the same cabinet or junction box.
• Pre-assembled cable solutions: Factory-terminated cordsets with molded strain relief reduce field-wiring labor and improve ingress protection at the cable entry point.

For this project, the engineering team evaluated IP67-rated M12 connectors with shielded versions for Ethernet segments, ensuring electromagnetic compatibility in areas with variable-speed drives and other noise sources.

Environmental Considerations and Installation

Industrial environments in the Netherlands often present a combination of challenges: high humidity, occasional washdown with cleaning agents, and continuous vibration from adjacent machinery. The M12 connectors specified for this project featured:

• Sealing rated to IP67 when mated, protecting contacts from dust ingress and temporary immersion.
• Nickel-plated brass housings for corrosion resistance in humid or mildly aggressive atmospheres.
• Gold-plated contacts for reliable low-level signal transmission over extended service life.

During commissioning, installers verified correct torque on all threaded couplings and confirmed that cable bend radii respected manufacturer guidelines, particularly at junction boxes and machine entry points.

Result and Operational Feedback

The standardized M12 interface simplified spare-part inventory and reduced commissioning time for the control system integrator. Field technicians reported that the positive locking action and clear coding made troubleshooting and reconnection straightforward during maintenance windows. The pre-assembled cable sets eliminated a common source of wiring errors found in field-terminated connections.

For engineers evaluating similar PLC or remote I/O architectures, the M12 family offers a balanced combination of mechanical robustness, environmental sealing, and network compatibility. Selection should be based on the specific protocol (Ethernet vs. fieldbus), pin count, and whether the application requires shielded construction for electromagnetic immunity.
