M12 Connector for Industrial PLC and Motor Control Systems

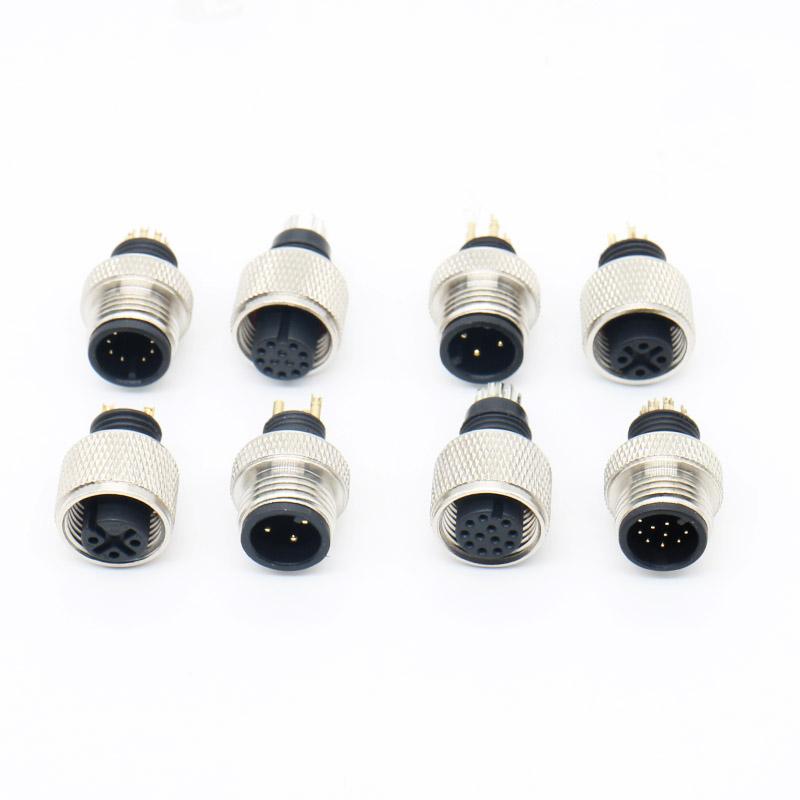

The M12 connector series provides a threaded circular interface for PLC cabinets, motor drives, sensors and other electronic control equipment that requires a compact, vibration-resistant connection. This page explains how to match the connector configuration to your control application, what to verify before ordering, and which installation conditions affect long-term reliability.

Selecting the Right M12 Connector Configuration

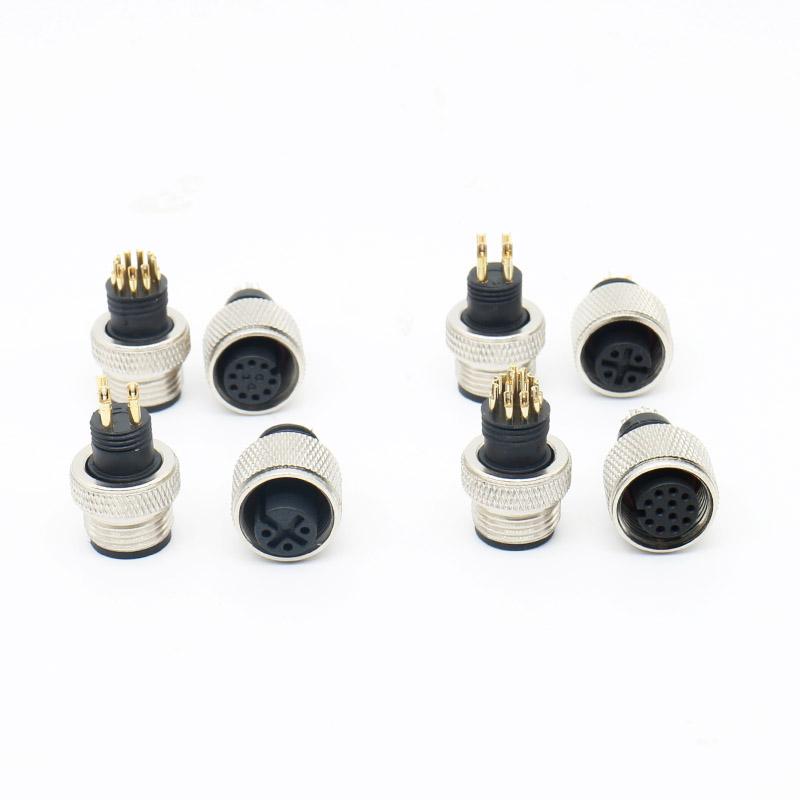

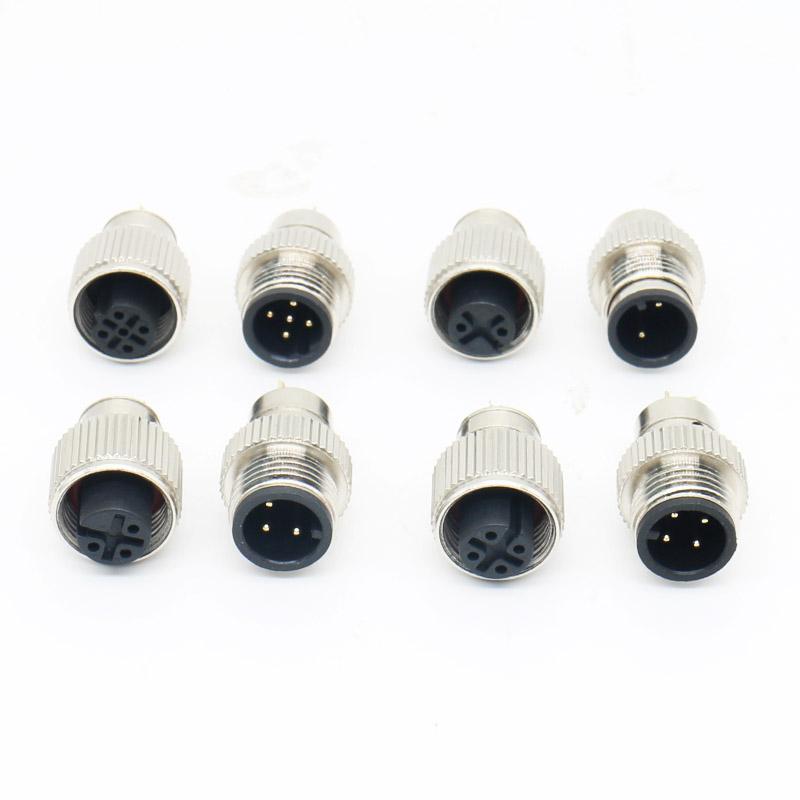

Before choosing a connector, confirm the number of cores, gender, and mounting style required by your device. The M12 series is available with 2 to 17 pins in male or female versions, so the correct selection depends on the signal or power path you need to establish between the control unit and the field device.

• Determine the pin count from the device pinout or wiring diagram before ordering.
• Confirm whether a male or female connector is needed at each end of the cable run.
• Check the housing style: straight or angled versions affect cable routing and panel clearance.
• Verify the locking mechanism suits the vibration level of your machine environment.

Construction and Materials for Industrial Service

The connector housing is available in PA66 or nickel-plated brass, while the contact cores are brass with silver or gold plating. This material combination supports repeated mating in control cabinets and field-mounted equipment where exposure to moisture or industrial dust is expected.

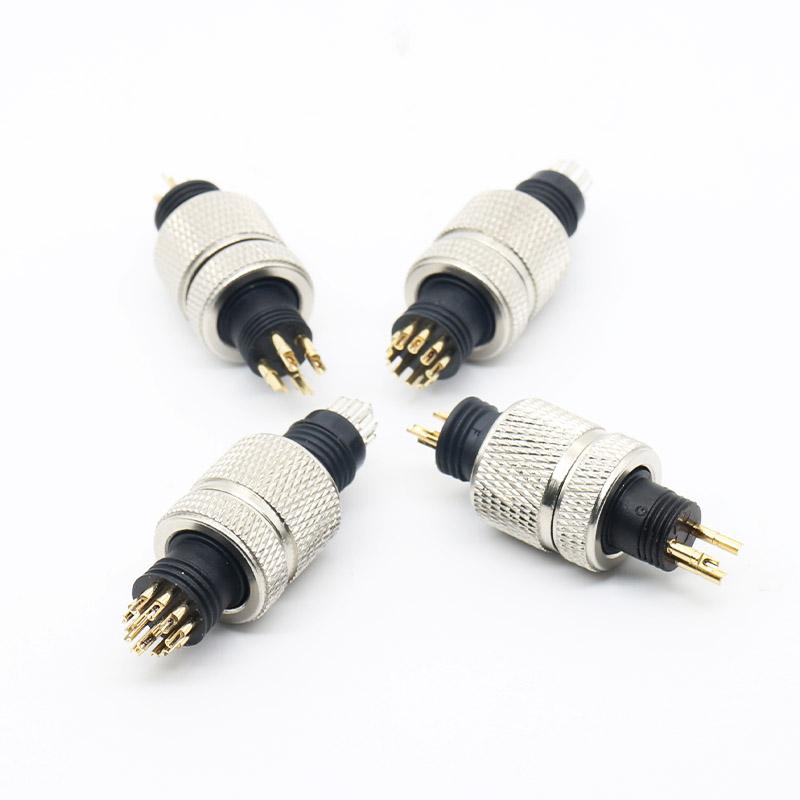

For applications requiring protection against water spray or dust ingress, the IP67 rating provides a defined level of sealing when the connector is properly mated. Confirm that both the plug and socket sides of your connection are rated for the same environmental conditions.

Electrical Performance and Application Boundaries

The M12 connector supports stable current and voltage transmission for electronic control applications. However, the actual electrical limits depend on the specific pin count, contact size, and plating option you select. Refer to the Technical Specifications section for the confirmed values of your chosen configuration.

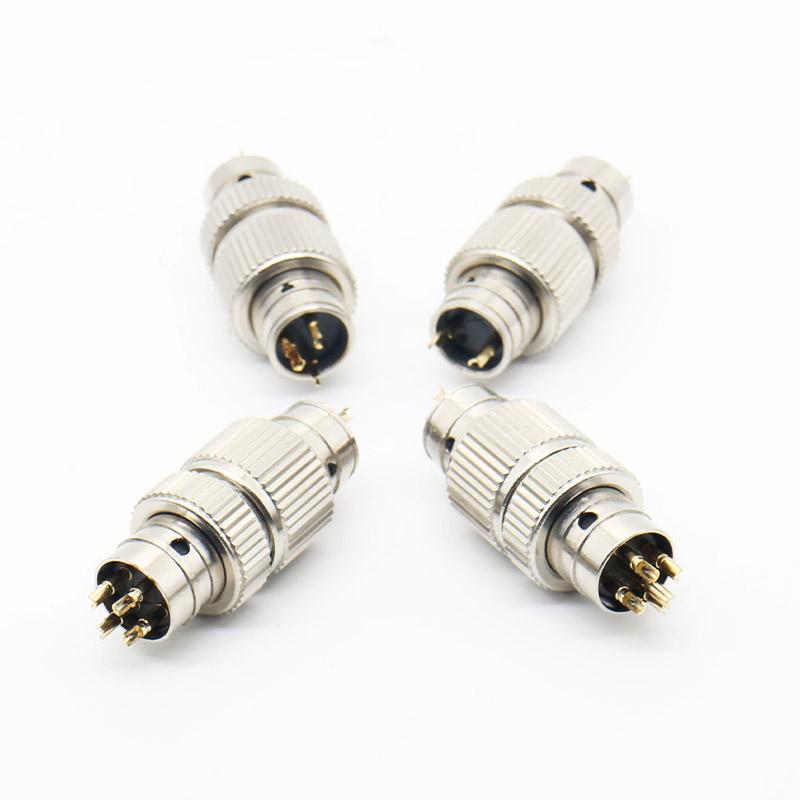

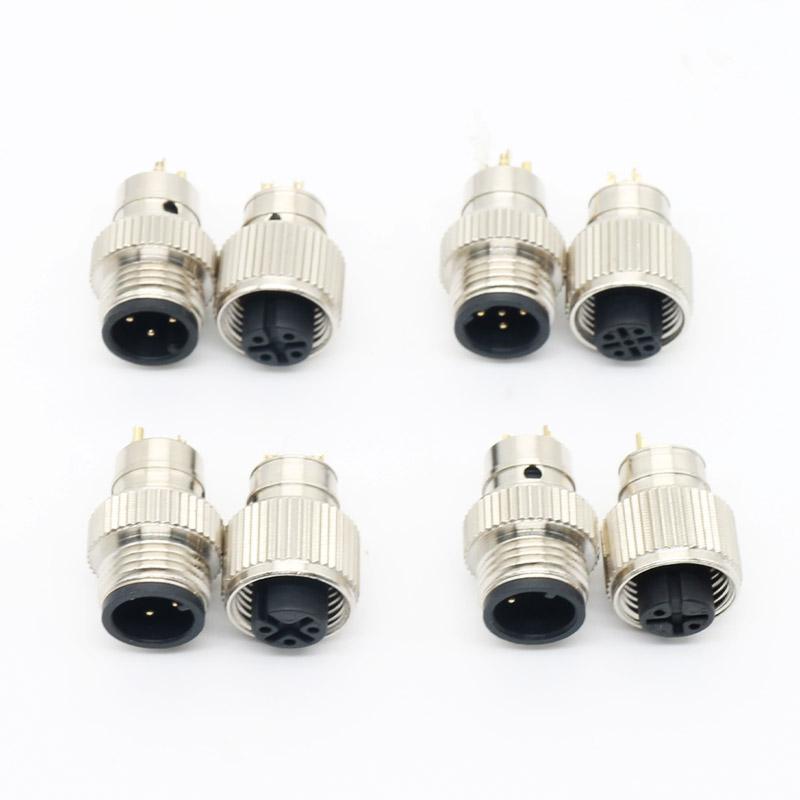

This connector is suitable for PLC I/O modules, motor controllers, sensors, and automation equipment that require a compact circular interface. It is not intended for high-power distribution, submersible applications, or environments where the connector remains unmated and exposed to moisture.

Installation and Mating Considerations

Proper installation begins with verifying the cable diameter and conductor size match the connector's termination range. The quick-locking mechanism reduces assembly time, but the mating torque should be applied consistently to maintain the IP67 seal and stable electrical contact over repeated cycles.

Before installation, confirm the following details to ensure correct matching:

• Cable outer diameter and conductor cross-section for the selected connector size.
• Pinout arrangement and core color coding from your device documentation.
• Whether a field-wireable or molded cable assembly suits your production process.
• Panel cutout dimensions and mounting thread specification for bulkhead versions.

Related Resources

For additional guidance on connector selection for control systems, review the frequency converter and PLC communication connector FAQ. To compare other circular connector options for electronic control cabinets, see the SP13 IP68 waterproof circular connector for PLC control cabinets.

Inquiry Checklist

When requesting a quotation or technical confirmation, provide the following information so we can match the correct M12 connector configuration:

• Number of cores and gender required (male or female).
• Mounting style: cable connector, panel mount, or field-wireable.
• Cable diameter and conductor size for termination.
• Environmental requirements such as IP rating and operating temperature range.
• Application details including vibration level and mating frequency.

If any parameter is uncertain, contact our engineering team with your device documentation and we will confirm the suitable configuration before you place an order.
