SP21 Connectors
< >

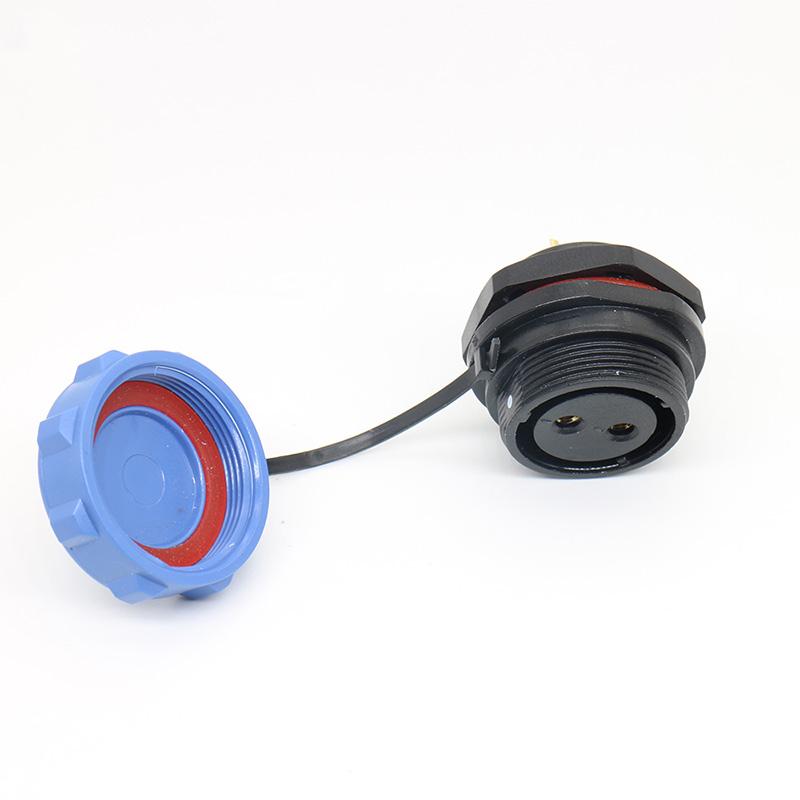

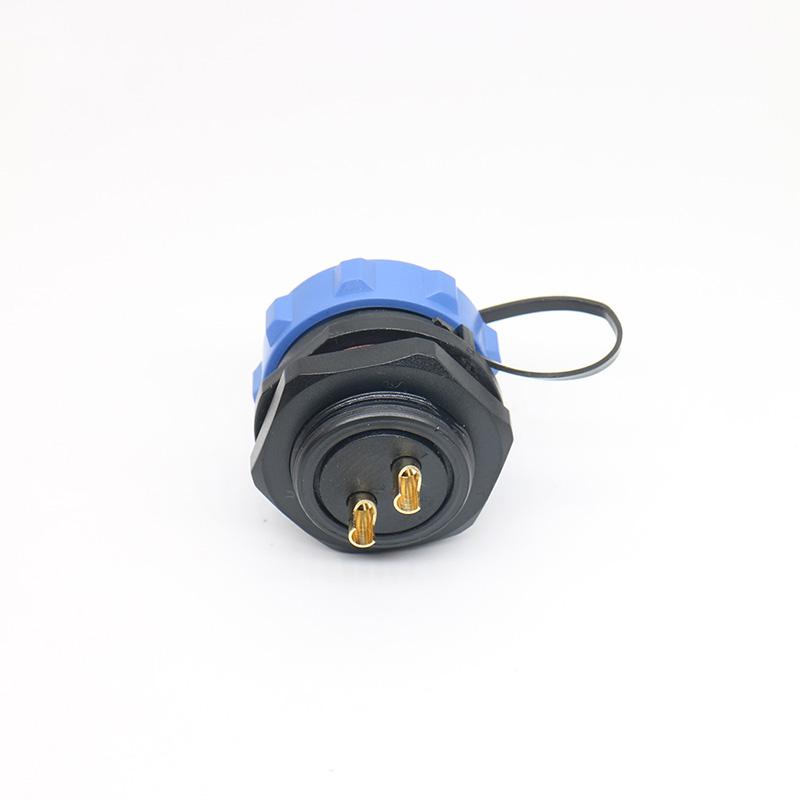

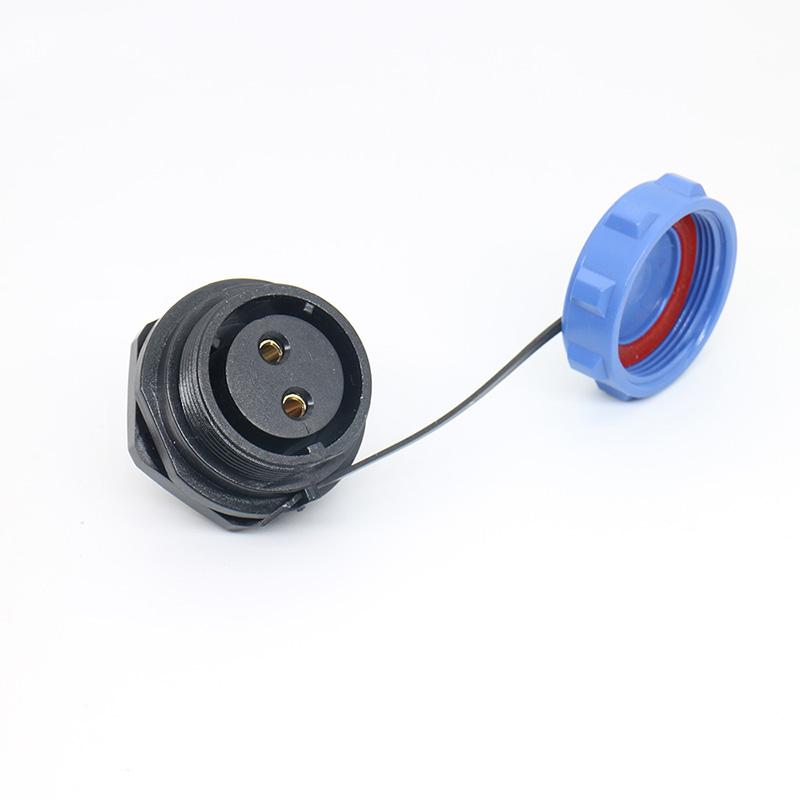

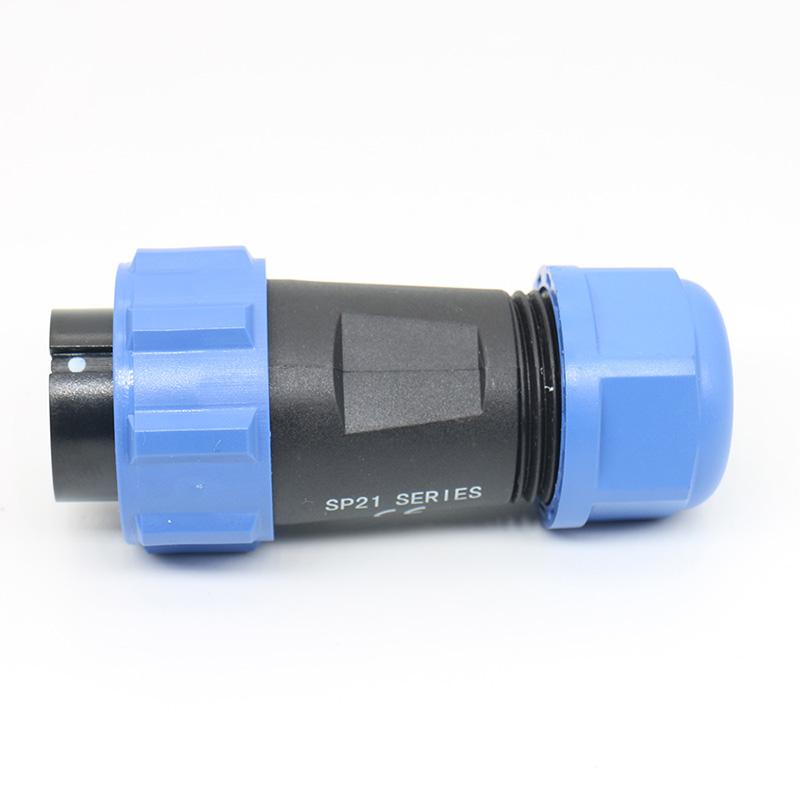

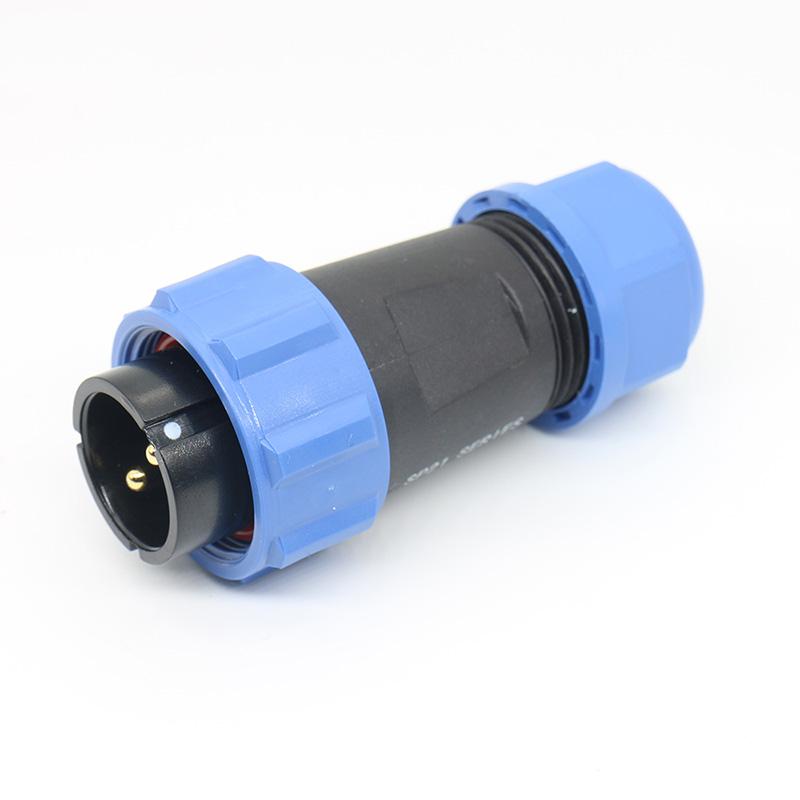

SP21 IP68 Connector for Smart Electrical Control Boxes

MOQMOQ >200
PricePrice
>Number Of CoresNumber Of Cores 3-12Pins
Contact DiameterContact Diameter(mm) 1.0 mm - 3.0mm
IP RatingIP Rating IP68
Shell MaterialShell Material PC/PA66
Temperature RangeTemperature Range -40℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 5A-30A
Rated VoltageRated Voltage(Ac.V) 400V-500V
Test VoltageTest Voltage(Ac.V)1Min 1200V-1500V
Insulation ResistanceInsulation Resistance (MΩ) 2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+8619924482730

SP21 IP68 Connector for Smart Electrical Control Boxes

The SP21 IP68 connector is a rugged waterproof circular connector designed for reliable electrical connections in smart electrical control boxes and automation control systems. With its strong sealing performance and durable construction, it ensures stable operation even in demanding industrial environments.

Reliable Waterproof SP21 Connector for Control Equipment

Featuring an IP68 waterproof rating, the SP21 connector effectively protects internal contacts from dust, moisture, and harsh environmental conditions. This makes it highly suitable for long-term use in intelligent control equipment and outdoor electrical installations.

Durable Circular Connector for Industrial Control Systems

The SP21 circular connector is engineered with a robust structure that provides excellent mechanical strength and vibration resistance. It is widely used in smart control cabinets, automation equipment, industrial electronics, and electrical control boxes where stable and secure connections are essential.

Connectors

Item

Parameters

Number of Cores

2-12Pin

Gender

Male/Female

Housing Material

PC/PA66

Cores Material

Brass Plated with Gold

Insulator Material

PPS

Locking System

Screw Locking

Temperature Range

-40℃, +85℃

Rated Current (A)

5A-30A

Rated Voltage (AC.V)

400V-250V

Test Voltage (AV.C)1Min

1200V-1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Solder


Related Products

More》

Related Resource


SP21 IP68 Connector
SP21 IP68 Connector for Smart Electrical Control BoxesRelated Cases
D-Sub Connectors in Industrial Control Panels in the United Kingdom

1. D-Sub Connectors in Industrial Control Panels in the United Kingdom

Learn how D-Sub connectors are used in industrial control panels in the United Kingdom, supporting multi-signal connections in compact interfaces.

2. Heavy-Duty Connectors in Power Distribution Systems for Industrial Equipment in Spain

Explore how heavy-duty connectors are used in power distribution systems for industrial equipment in Spain, supporting high-current connections.
Heavy-Duty Connectors in Power Distribution Systems for Industrial Equipment in Spain
Integrating Interconnections in Electrical Control Systems

3. Integrating Interconnections in Electrical Control Systems

M8 Circular Connectors are essential for reliable electrical control system integration in industrial automation, offering IP67-rated durability for PLCs, sensors, and harsh environments. Their compact, modular design supports hot-swapping and EMI shielding, ensuring seamless power/signal transmission with minimal maintenance.
SP21 IP68 Connector for Smart Electrical Control BoxesRelated Application
SP13 Connectors in PLC Control Cabinet Wiring Systems
SP13 Connectors in PLC Control Cabinet Wiring Systems
SP13 connectors are widely used to connect sensors, actuators, power supplies, and communication cables within PLC cabinets, providing secure and consistent power and signal distribution across the control system.

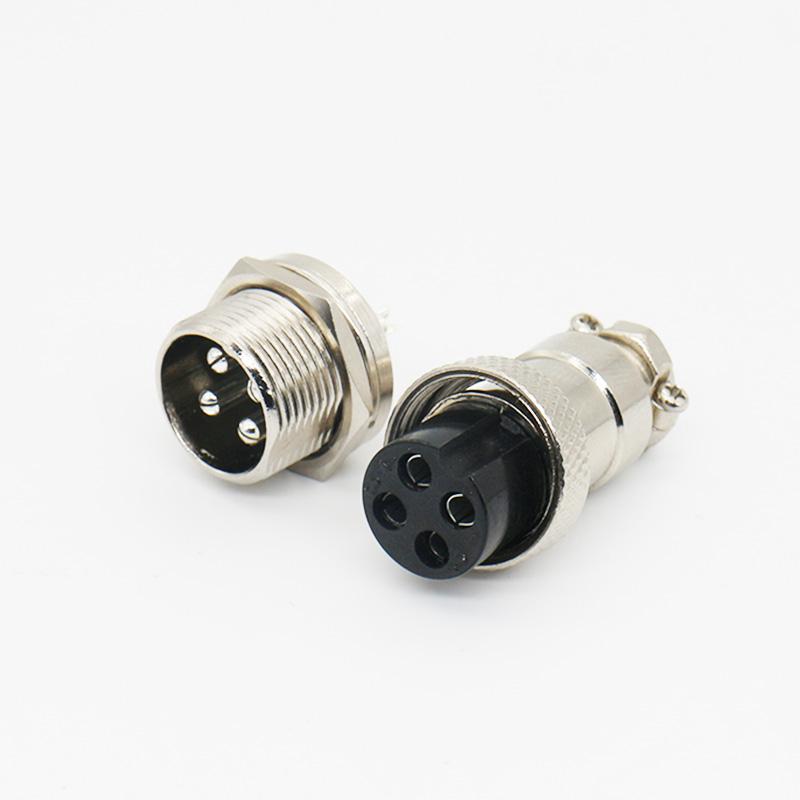

GX16 Connectors in PLC-Based Control Panels
GX16 Connectors in PLC-Based Control Panels
GX16 connectors are commonly used to connect sensors, actuators, power supplies, and communication modules to programmable logic controllers, supporting efficient automation and process control.
M8 Circular Connectors in Electrical Control Systems
M8 Circular Connectors in Electrical Control Systems
M8 circular connectors are widely used to connect sensors, switches, control modules, and monitoring devices, providing secure and consistent electrical connections within control panels and automation systems.

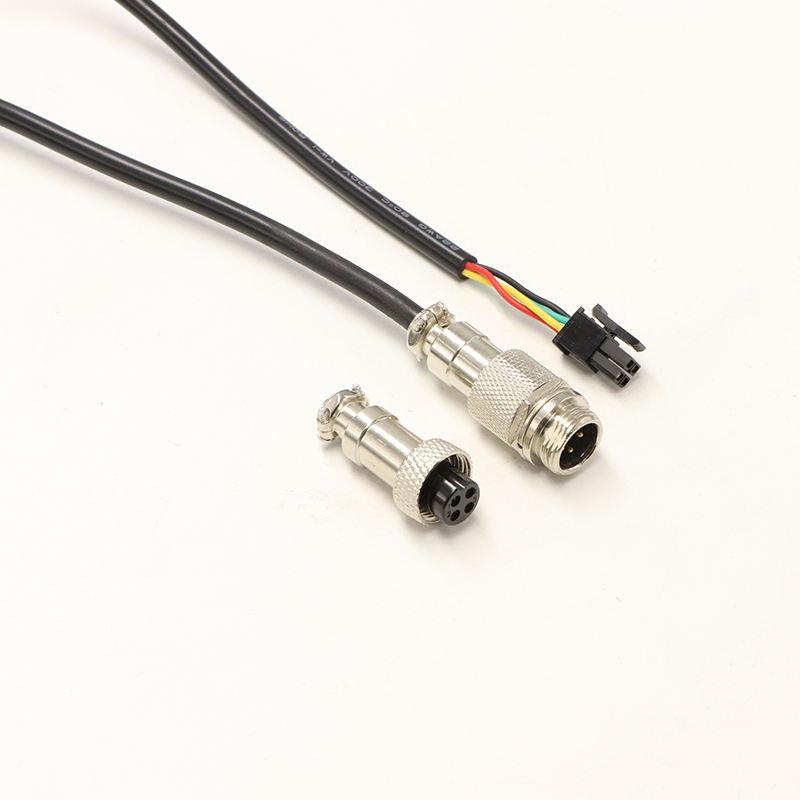

GX12 Connectors in CNC Routers
