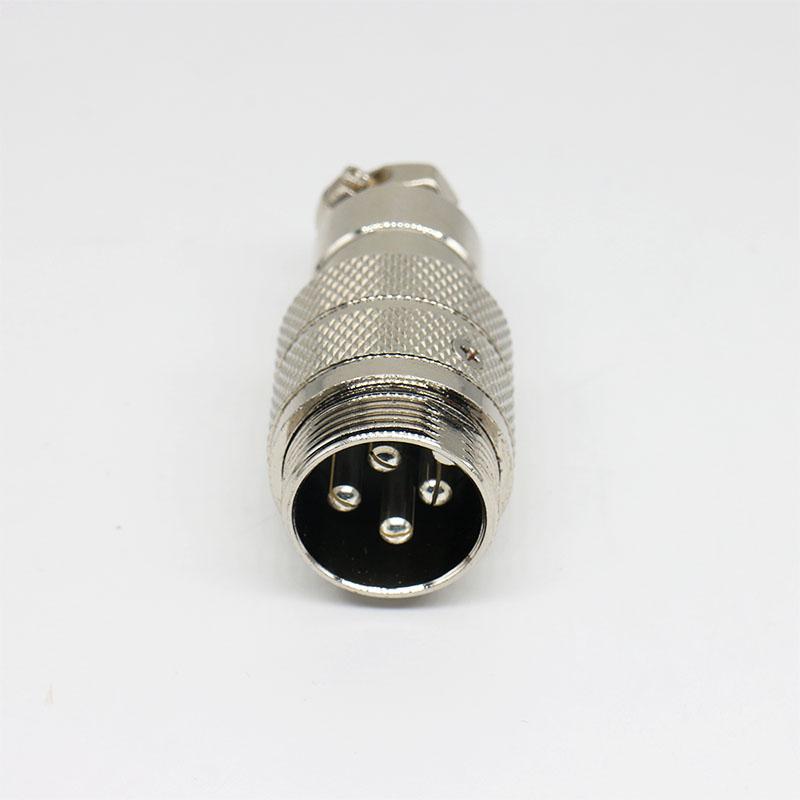

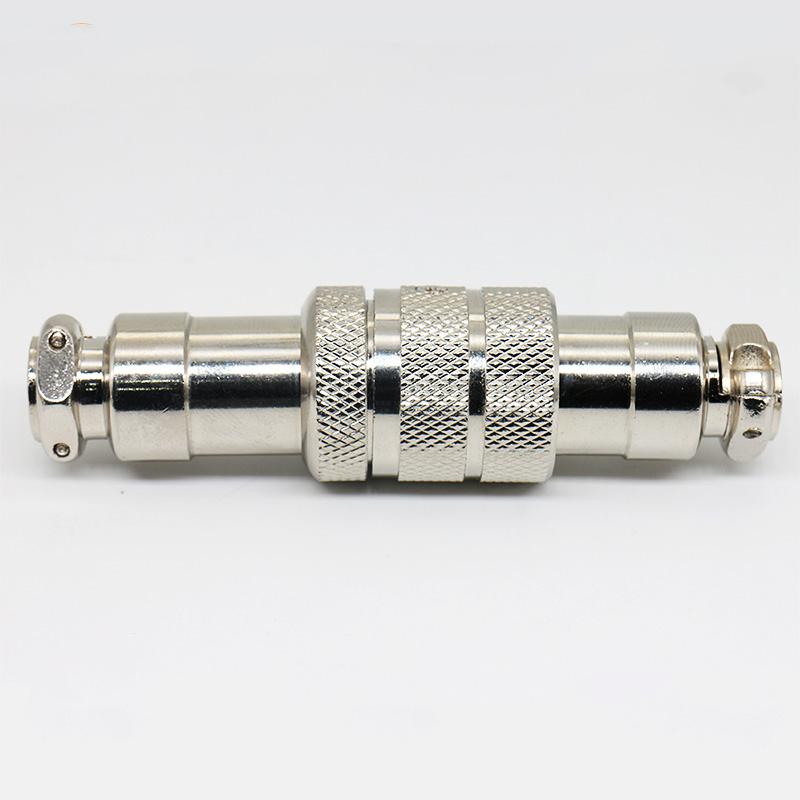

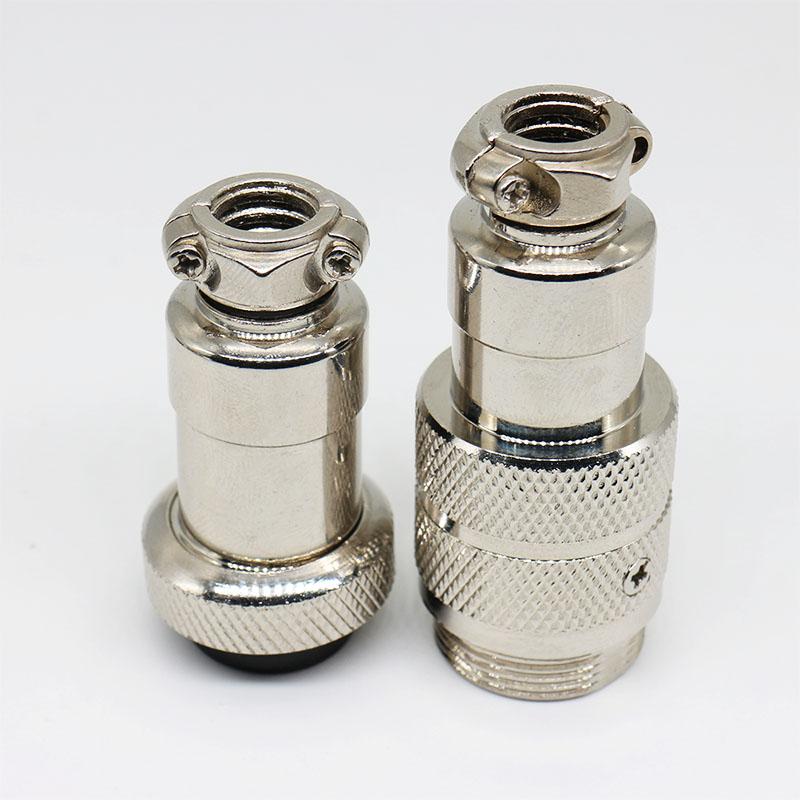

GX20 Connector
< >

GX20 Connector for Automated Packaging Control Systems

MOQMOQ >200
>Number Of CoresNumber Of Cores 2-15Pins
Contact DiameterContact Diameter(mm) 1.5mm/2.0mm/3.0mm
IP RatingIP Rating IP55
Shell MaterialShell Material Zinc Alloy With Nickel Plated
Temperature RangeTemperature Range -30°C to +85°C
TerminationTermination Solder
Rated CurrentRated Current(A) 7A - 20A
Rated VoltageRated Voltage(Ac.V) 250V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥2000MΩ
Contact ResistanceContact Resistance (MΩ) ≤5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

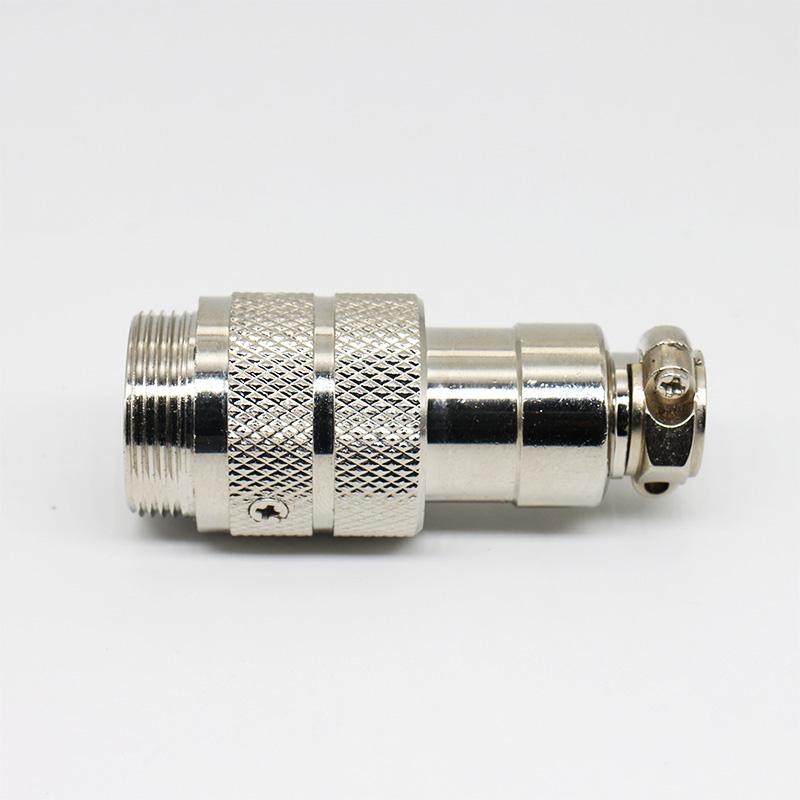

GX20 Connector for Automated Packaging Control Systems

The GX20 connector is widely used in automated packaging control systems where stable electrical connection is essential. Its robust metal housing provides excellent mechanical protection, making it suitable for continuous operation in industrial environments.

Connectors


Reliable Performance for Packaging Machinery

Designed to support high-speed packaging machines, filling equipment, labeling systems, and conveyor control units, the GX20 connector ensures consistent power and signal transmission between control panels and field devices.

Secure and Durable Circular Connection

With a threaded coupling mechanism, the GX20 connector offers secure locking performance to prevent loosening caused by vibration. It is an ideal solution for PLC-based control systems and electronic control cabinets requiring dependable connectivity.

Item

Parameters

Number of Cores

2-15Pin

Gender

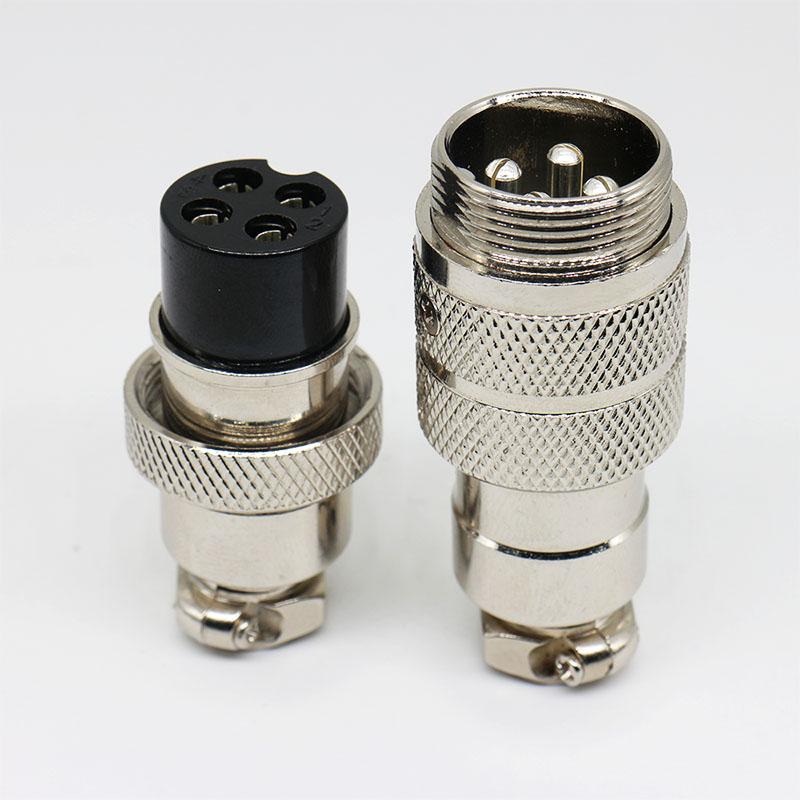

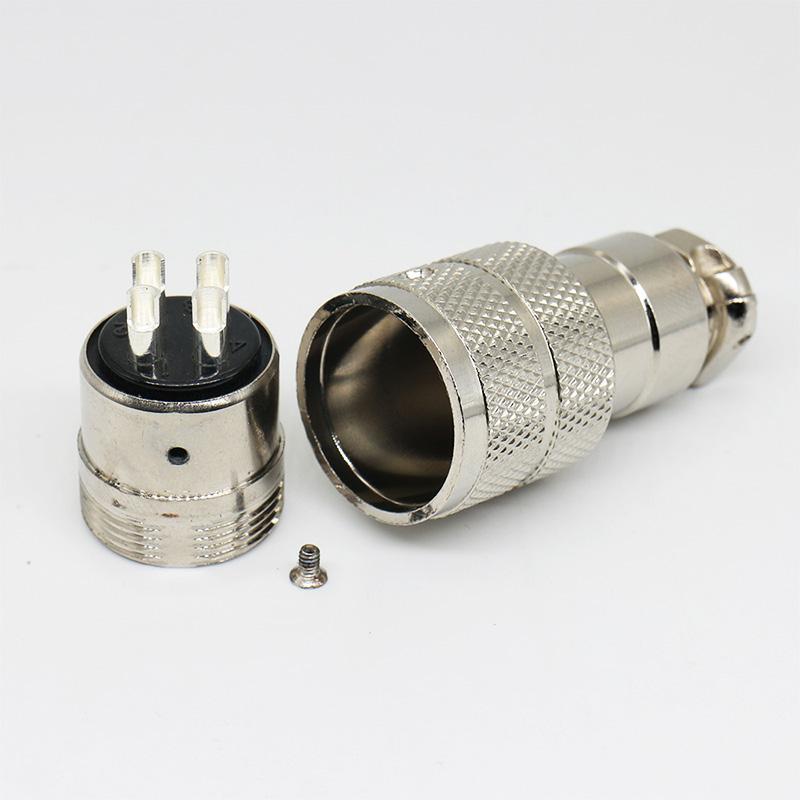

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Silver/Gold

Insulator Material

Phenolics

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

7A - 20A

Rated Voltage (AC.V)

250V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

2000㏁

Contact Resistance (㏁)

≤5㏁

Termination

Solder
