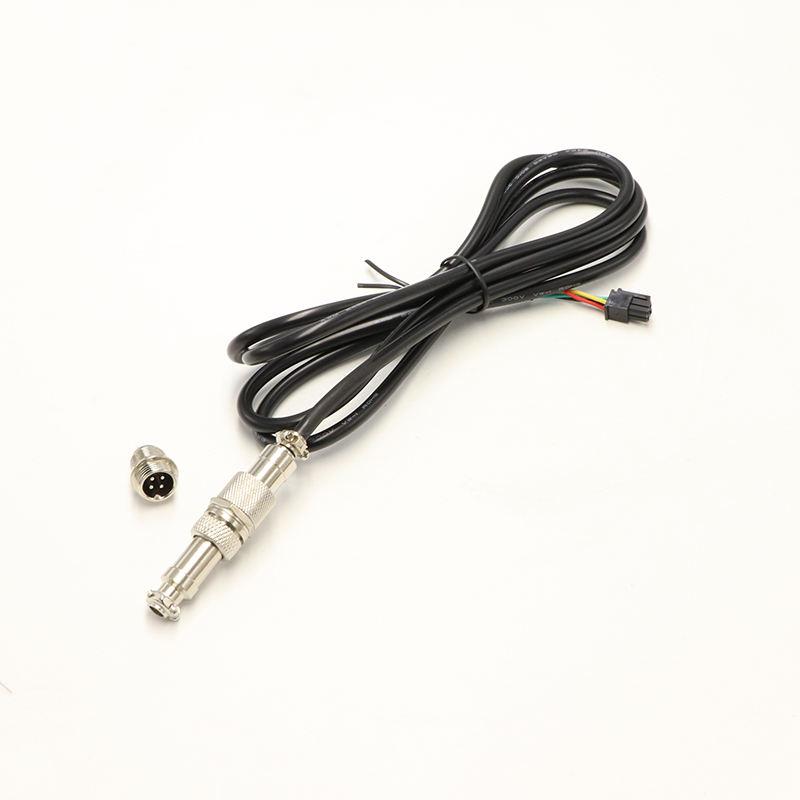

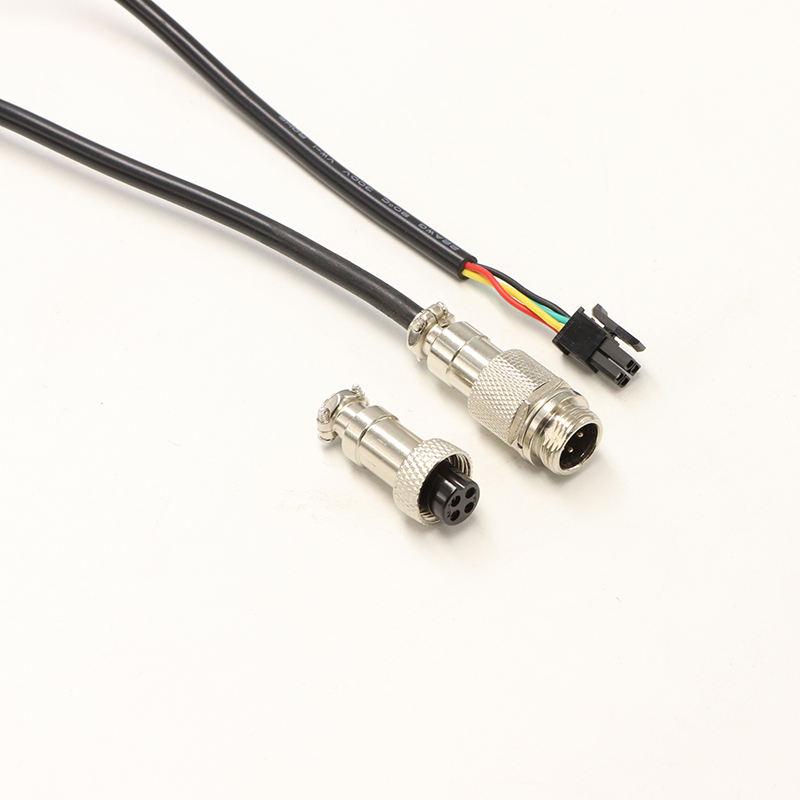

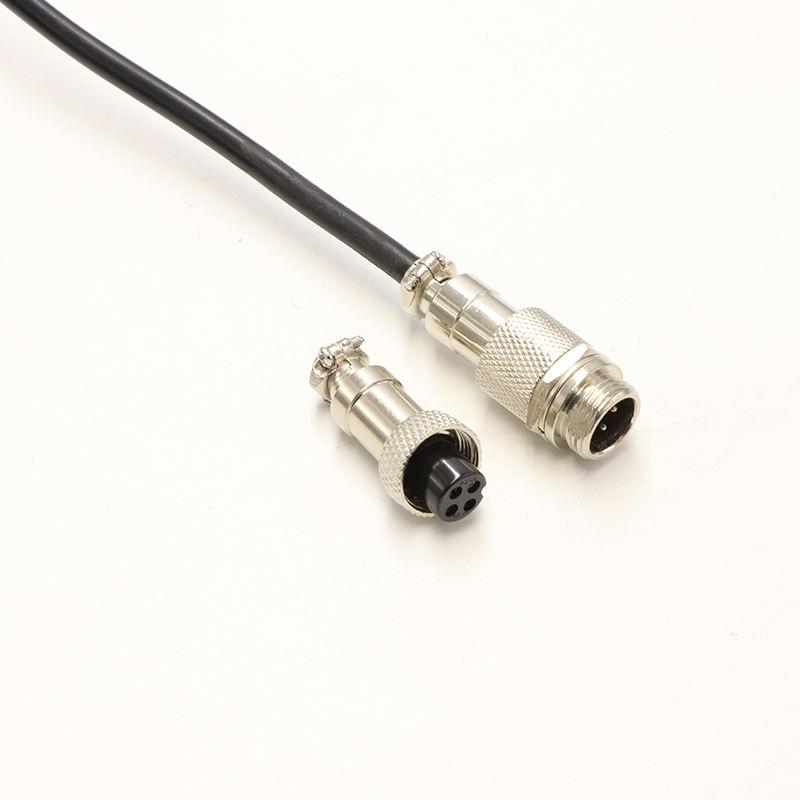

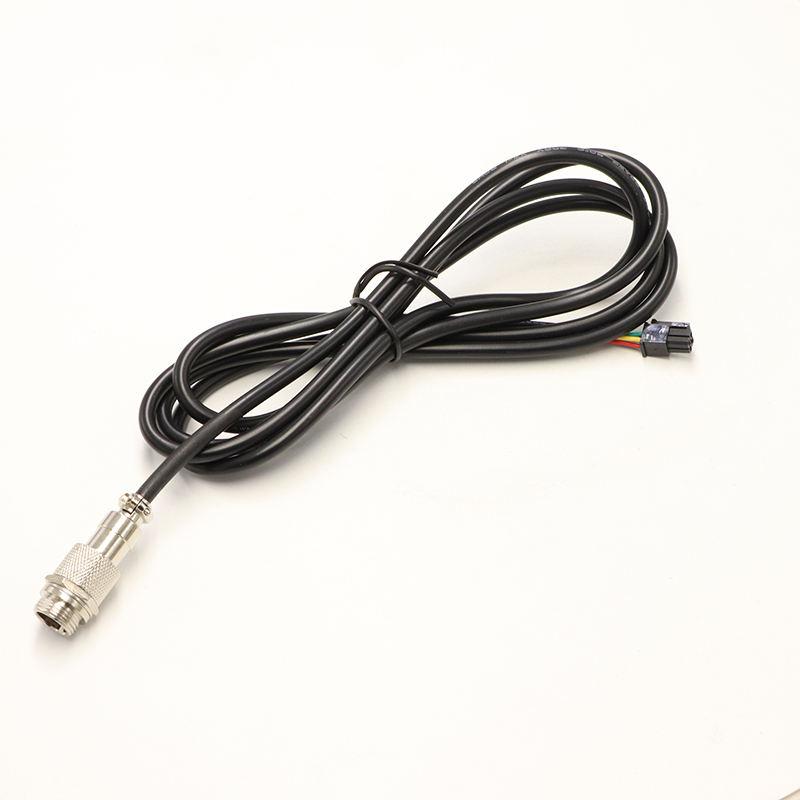

GX12 Connector for CNC Router Electronic Control

The GX12 connector provides a compact and robust interconnection solution for electronic control systems in CNC routers and related automation equipment. Its circular bayonet-style design and screw locking mechanism are engineered to maintain a secure connection in environments where vibration and repeated mating are common.

Key Selection Considerations for the GX12 Series

When evaluating the GX12 for your control cabinet or machine interface, focus on these decision points:

• Pin Configuration: Available in 2 to 7-pin layouts to match your signal and low-power distribution needs.
• Contact Plating: Brass contacts with gold or silver plating support reliable signal transfer and corrosion resistance.
• Housing Durability: The zinc alloy housing with nickel plating provides a rugged shell for industrial settings.
• Termination Method: Supports solder or crimp termination, allowing flexibility based on your assembly process and maintenance requirements.
• Locking System: The screw locking mechanism prevents accidental disconnection due to machine vibration.

Application Scope and Integration

This connector is suited for internal wiring and panel-to-cable connections in CNC routers, electronic control cabinets, and modular automation systems. Its compact form factor is advantageous where space is limited. The IP67 rating indicates protection against dust ingress and temporary water immersion when properly mated, making it suitable for environments with coolant mist or washdown procedures.

Construction and Material Quality

The GX12 series utilizes a zinc alloy shell with nickel plating for structural integrity. The insulator is made from phenolics, providing stable electrical insulation. The contact cores are machined from brass and plated with gold or silver to ensure consistent conductivity over the connector's service life.

Installation and Maintenance Guidance

For optimal performance, ensure the cable outer diameter is compatible with the connector's cable clamp before assembly. Proper soldering or crimping techniques are critical to avoid cold joints or damaged contacts. During maintenance, inspect the contacts for wear or contamination and verify that the screw locking ring is fully tightened to maintain the IP rating.

Suitable and Unsuitable Use Cases

Suitable for: Signal transmission and low-current control circuits in dry or intermittently wet industrial environments, particularly where a secure, vibration-resistant connection is required.

Not suitable for: High-current power distribution, direct burial, or continuous submersion. For higher pin count or different mounting requirements, consider other series in our Waterproof Connectors range.

Information to Include in Your Inquiry

To ensure accurate configuration and mating compatibility, please provide the following details when requesting a quote:

• Required number of pins (2-7) and gender (male or female).
• Cable outer diameter and conductor size for the chosen termination method.
• Whether you need a panel mount or cable mount version.
• Specific plating preference (gold or silver) if your application demands it.
• Operating temperature range and any specific environmental exposure.

For a broader view of flange-mounted options, review the LD20/SP20 Industrial Flange Connector Dimensions and Specs.
