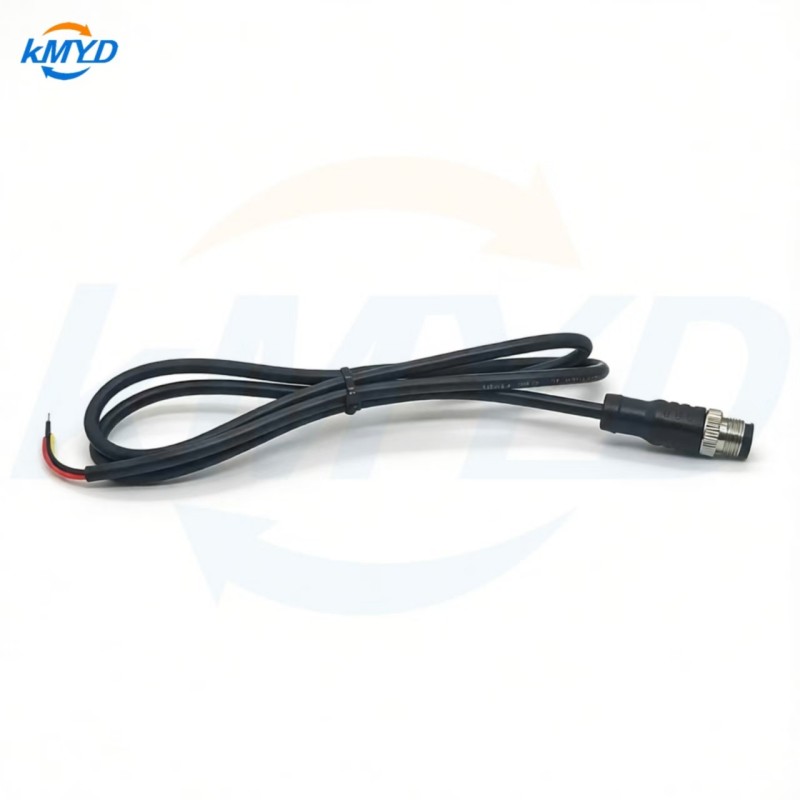

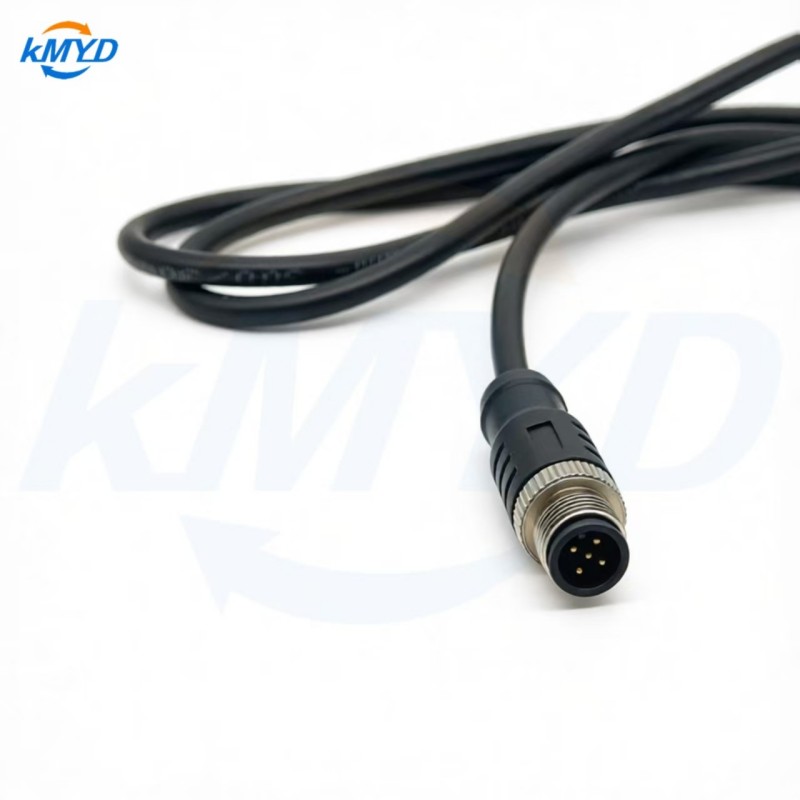

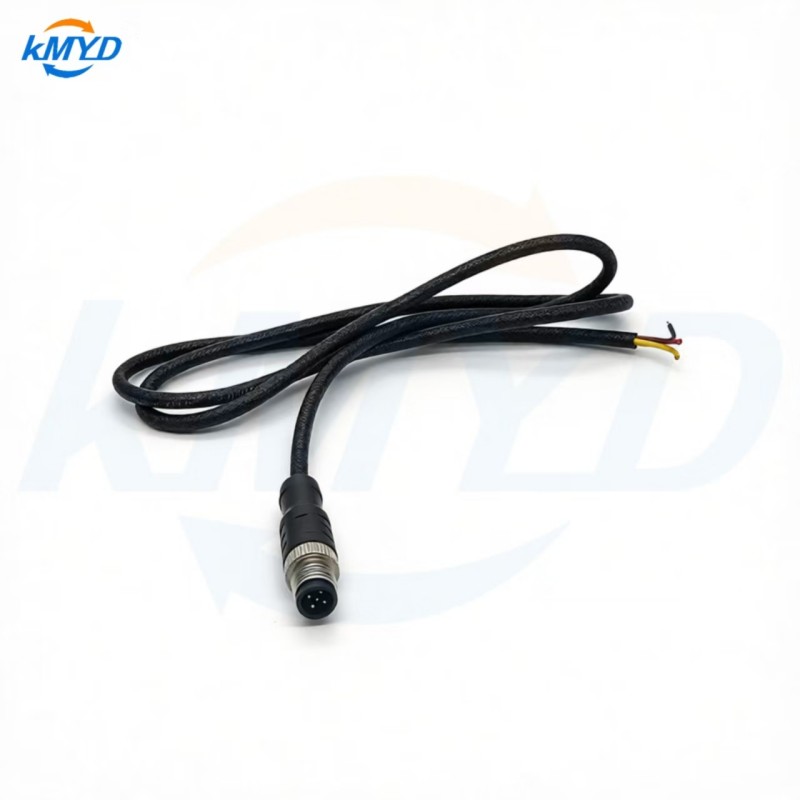

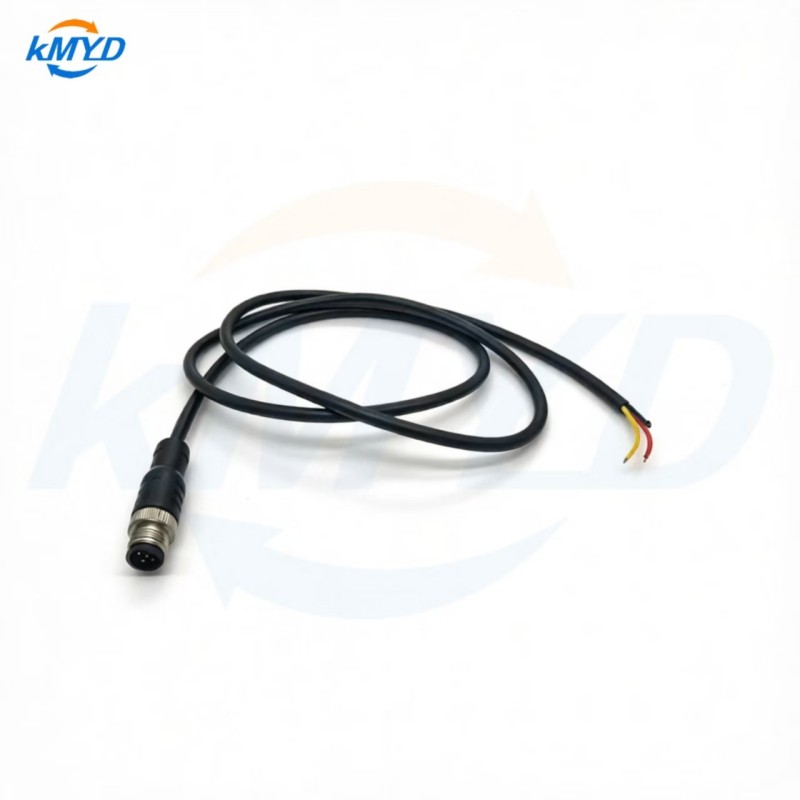

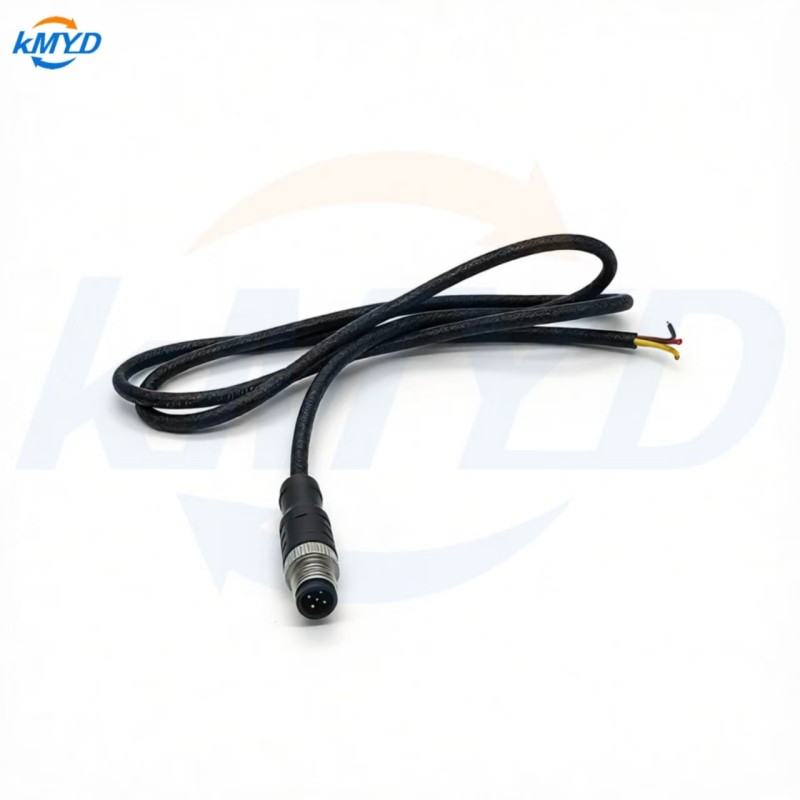

M12 5 Pin A-Coded Male Straight Connector Overmolded Cable Assembly

M12 5 Pin A-Coded Male Straight Connector Overmolded Cable Assembly with PVC/PUR Jacket

The M12 5 Pin A-Coded Male Straight Connector Overmolded Cable Assembly is designed for industrial automation systems, sensors, and control equipment requiring reliable signal connections and long-term durability. This assembly provides a secure, standardized interface for sensor-based applications where consistent electrical performance and mechanical integrity are essential.

Design and Construction

Featuring an M12 5 pin A-coded male connector, this cable assembly ensures accurate mating and dependable electrical performance for sensor-based applications. The straight connector design simplifies installation and is suitable for equipment layouts where direct cable routing is preferred. The overmolded cable structure creates a strong connection between the connector and cable, improving resistance against bending, vibration, and mechanical stress.

Available with PVC or PUR jacket options, the cable can be selected according to different working environments. PVC provides a flexible and economical solution, while PUR offers improved abrasion resistance and durability for demanding industrial conditions.

Product Features

• M12 5 Pin A-Coded Male Connector – Standard industrial interface for sensor applications
• Straight Connector Design – Convenient installation and reliable connection
• Overmolded Cable Assembly – Provides enhanced mechanical protection
• PVC/PUR Jacket Selection – Meets different application requirements
• Industrial-Grade Construction – Suitable for continuous operation
• OEM/ODM Customization Available – Cable length, wiring, and jacket options can be customized

Applications

• Industrial Sensors
• Automation Control Systems
• PLC Equipment
• Machine Building
• Robotics Systems
• Industrial Instrumentation

Selection Guidance

When selecting this cable assembly, consider the following factors to ensure proper fit and performance:

• Confirm the mating connector type and pinout configuration required by your device.
• Specify the required cable length and conductor size based on your installation layout.
• Choose the jacket material (PVC or PUR) according to the environmental conditions, such as exposure to abrasion, chemicals, or temperature extremes.
• Verify the electrical load and signal requirements of your application to ensure compatibility.

For detailed technical parameters including pin count, contact diameter, rated current, voltage, IP rating, and temperature range, please refer to the Technical Specifications section. For more information on M12 connector options, see our M12 Circular Connectors catalog.

Factory Strength

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional manufacturer specializing in industrial connectors and customized cable assemblies.

With more than 15 years of experience, Meiyadi provides integrated manufacturing capabilities including connector development, mold production, injection molding, cable assembly, and quality inspection.

Through strict quality management, advanced testing equipment, and flexible OEM/ODM services, Meiyadi delivers reliable connection solutions for industrial automation, electronics, and specialized equipment applications. For related solutions, explore our M12 4 Pin Male A/D Code Shielded IP68 Waterproof Molded Cable.
