SY11 4 Pin Male to Male IP67 Waterproof Molded Ethernet Cable Assembly

SP Waterproof Connector

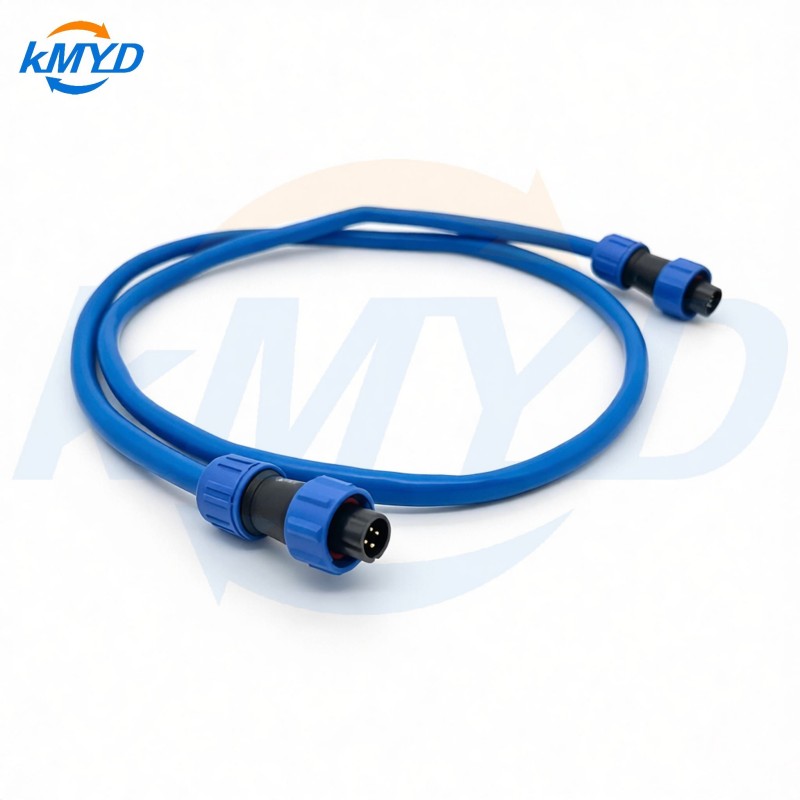

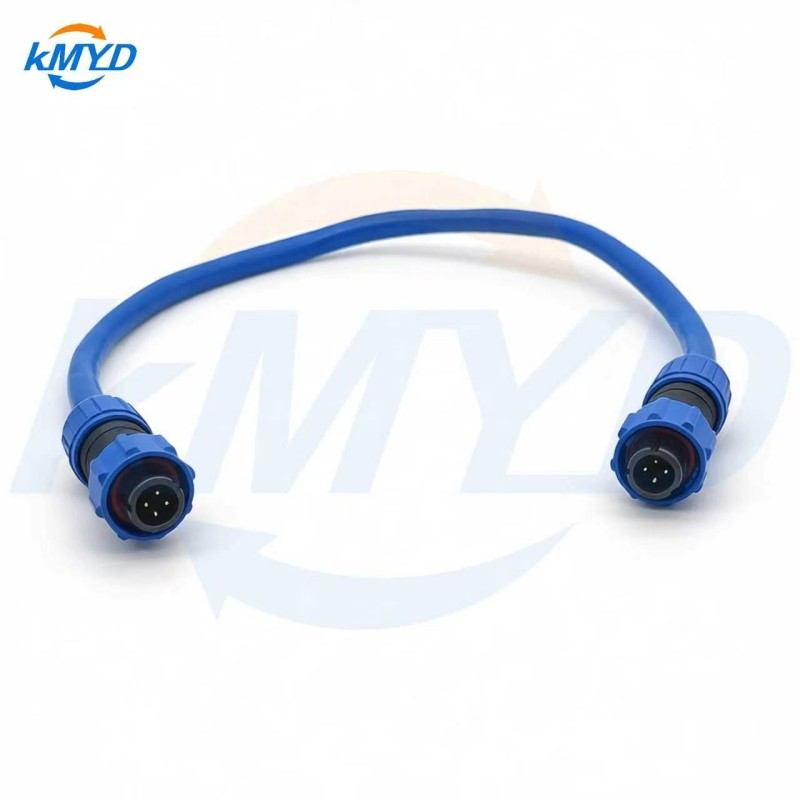

SY11 4-Pin Male-to-Male Molded Ethernet Cable Assembly

This SY11 series molded Ethernet cable assembly provides a durable, IP67-rated connection solution for industrial environments. Featuring a male-to-male configuration with a secure bayonet locking system, this cable is designed for applications requiring a reliable and watertight link between compatible devices.

Selection Guidance: Matching the Assembly to Your Application

The primary function of this assembly is to establish a reliable connection between compatible devices. The molded construction and IP67 rating protect the internal contacts from dust, moisture, and incidental water exposure, ensuring signal integrity in demanding conditions.

Engineered for longevity, the assembly uses a robust housing and gold-plated brass contacts to resist corrosion and wear. This design contributes to a long service life, reducing the frequency of replacements and maintenance downtime.

The bayonet locking mechanism allows for fast, secure mating and unmating. This ensures a positive connection that resists vibration and accidental disconnection, while also simplifying installation and field service.

Construction and Material Quality

The SY11 series is constructed with a focus on environmental resilience. The housing is available in PC or Nylon66, materials selected for their mechanical strength and dimensional stability. The insulator uses PPS, which provides excellent electrical insulation and thermal resistance. All contact cores are brass plated with gold, ensuring low and stable contact resistance for consistent electrical performance.

Application Fit and Boundaries

This male-to-male molded cable assembly is suitable for a variety of industrial applications, including but not limited to:

• Ethernet and data transmission for industrial networking equipment.
• Sensor and actuator connections in automation systems.
• Outdoor or washdown areas where water ingress is a concern.
• Interconnection between control panels and field devices.

When selecting this connector, consider the specific electrical load and environmental conditions of your application. The assembly is rated for a temperature range of -40°C to +85°C. For detailed electrical ratings, please refer to the Technical Specifications section.

Installation and Mating Considerations

This assembly is a molded cable, meaning the connector is over-molded onto the cable for a permanent, strain-relieved termination. It is designed to be mated with a corresponding SY11 series female connector or panel mount receptacle. The bayonet locking system requires a simple push-and-twist action to secure the connection. Ensure the mating surfaces are clean and free of debris before connection to maintain the IP67 seal.

Inquiry Input Checklist

To ensure you receive the correct assembly for your needs, please provide the following details when making an inquiry:

• Required pin count (2-5 pin options available).
• Cable length and type (e.g., Ethernet cable category).
• Specific electrical requirements (current and voltage).
• Any special housing material or color requirements.

For more information on our range of waterproof connection solutions, please explore our Waterproof Connectors catalog. You may also find our guide on SY11 4 Pin IP67 Waterproof Female Connector Molded Ethernet Cable Assembly helpful for understanding mating options.
