PC7 7 Pin Female Connector Cable Assembly with 6 Core Silicone Jacket

PC7 7 Pin Female Connector Cable Assembly with 6 Core Silicone Jacket Cable

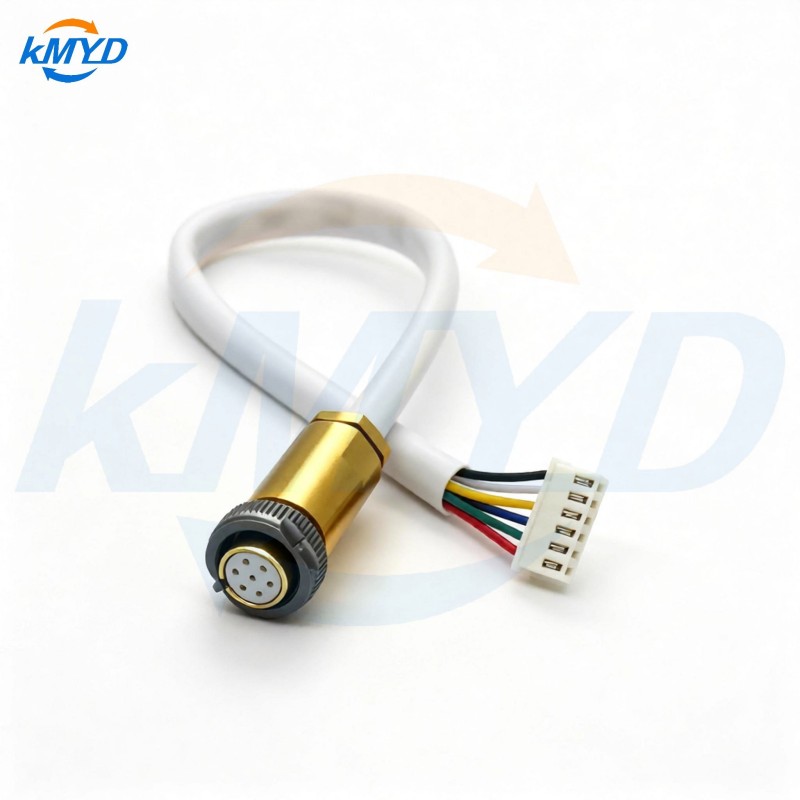

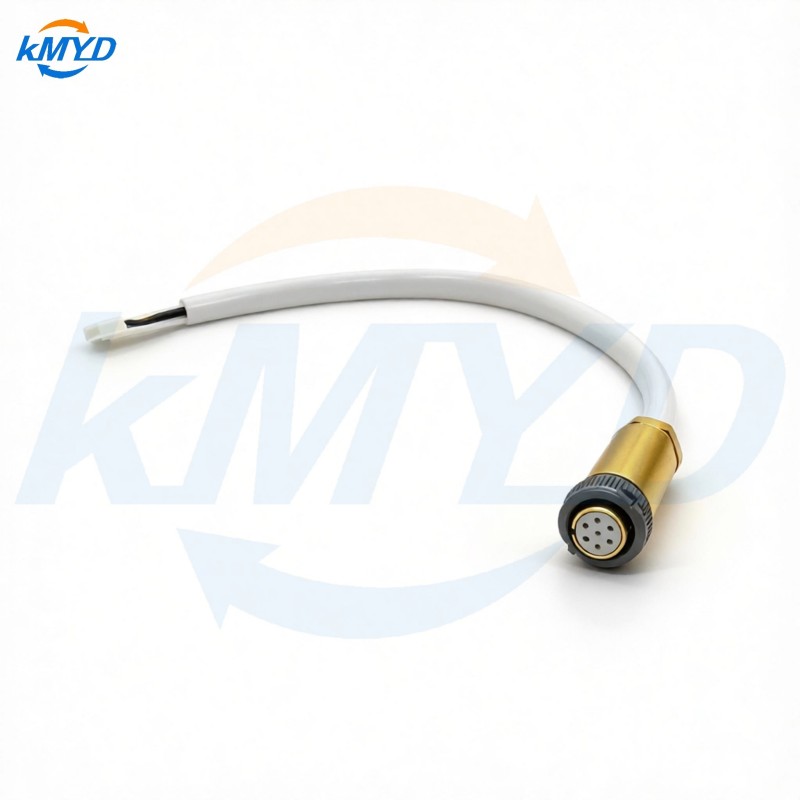

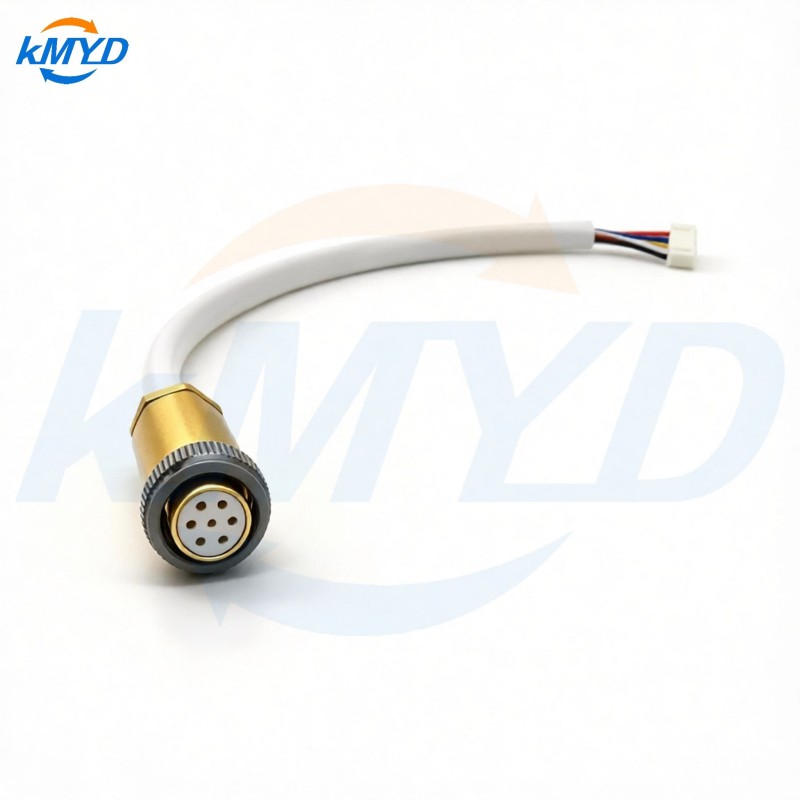

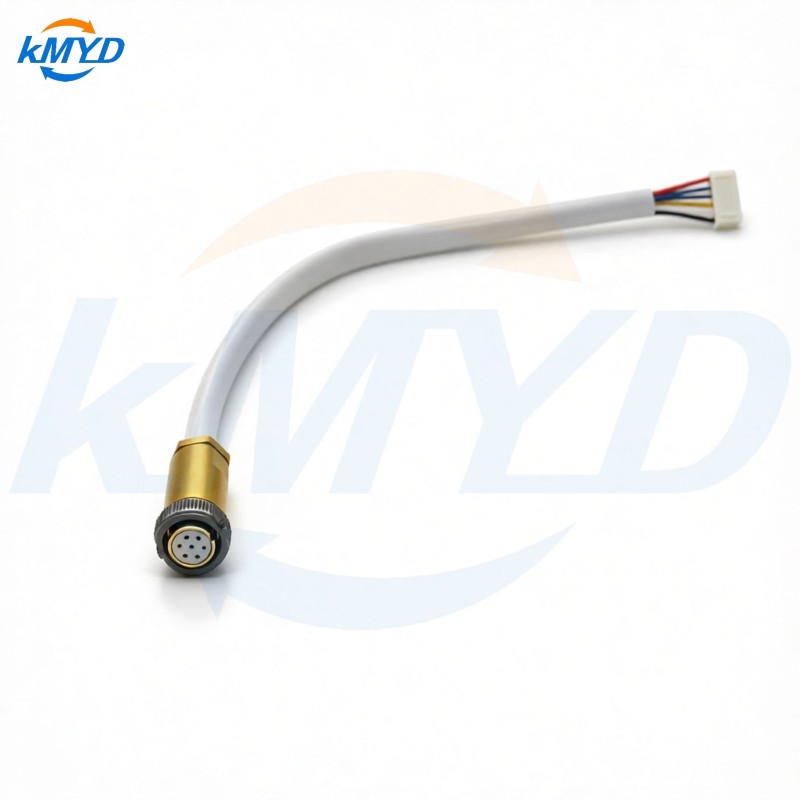

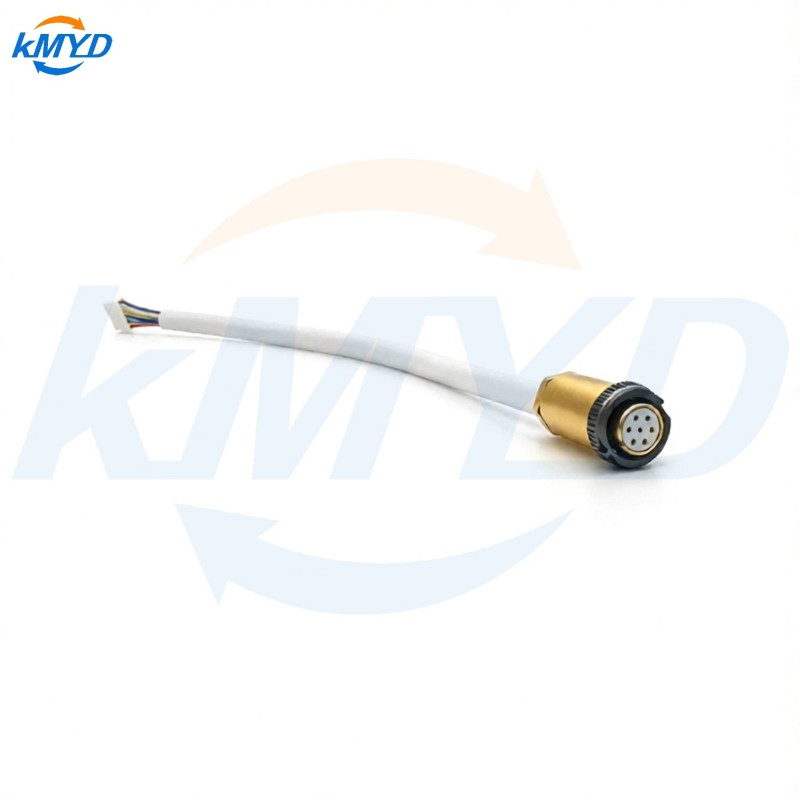

The PC7 7 Pin Female Connector Cable Assembly combines a 7-pin female circular connector with a 6-core silicone-jacketed cable, engineered for equipment that requires multi-core wiring, reliable connection, and enhanced cable flexibility. This assembly provides a practical solution for power, signal, and control applications where space efficiency and connection reliability are critical.

Why Choose a Silicone Jacket Over Standard PVC?

Unlike standard PVC cable assemblies, the silicone jacket offers superior softness, resilience, and temperature resistance. This allows the cable to maintain flexibility during repeated bending and operation in demanding environments. The high-quality cable structure helps extend service life while reducing stress on connection points, making it suitable for equipment with movement or limited installation space.

Key Selection Considerations

• Connector Configuration: The PC7 7-pin female connector is designed for secure and stable equipment connections, supporting integrated wiring for combined power and signal applications.
• Cable Flexibility: The 6-core silicone cable provides flexible wiring and reliable transmission performance, ideal for applications involving motion or tight routing.
• Environmental Suitability: The heat-resistant silicone jacket is appropriate for high-temperature and demanding environments where PVC may degrade.
• Customization Options: OEM/ODM services allow adjustment of cable length, wire configuration, and connector requirements to match specific equipment needs.

Typical Applications

• Industrial control equipment
• Automation systems
• Testing instruments
• Heating equipment
• Electronic devices
• Specialized machinery

Manufacturing and Quality Assurance

Manufactured by Shenzhen Meiyadi Technology Co., Ltd., a professional connector and cable assembly manufacturer specializing in customized connection solutions, this product benefits from over 15 years of industry experience. The company operates a complete manufacturing system covering connector R&D, mold production, precision machining, injection molding, cable assembly, and quality inspection.

The factory is equipped with advanced production and testing facilities to ensure stable product performance, including electrical testing, mechanical inspection, and reliability verification. From prototype development to mass production, Meiyadi provides efficient OEM/ODM services to meet different customer requirements.

Suitability and Limitations

Suitable for: Equipment requiring flexible cabling in high-temperature environments, multi-core power and signal transmission, and applications where repeated bending occurs.

Not recommended for: Applications requiring waterproof or IP-rated sealing (unless specified), high-vibration environments without additional strain relief, or installations where the connector must be mated/unmated frequently without proper locking verification.

Information Needed for Ordering

To ensure correct matching, please provide the following details when inquiring:

• Required cable length and conductor size
• Mating connector type (male or female) and pinout configuration
• Operating temperature range and environmental conditions
• Electrical load (current and voltage) per pin
• Order quantity and any specific customization requirements

For related connector options, see the 12G Series Circular Connectors or explore the GOST OHS Circular Connector with Multiple Core Count Options.
