SP13 2 Pin Female Socket to DTM04 Connector 18AWG Cable Assembly

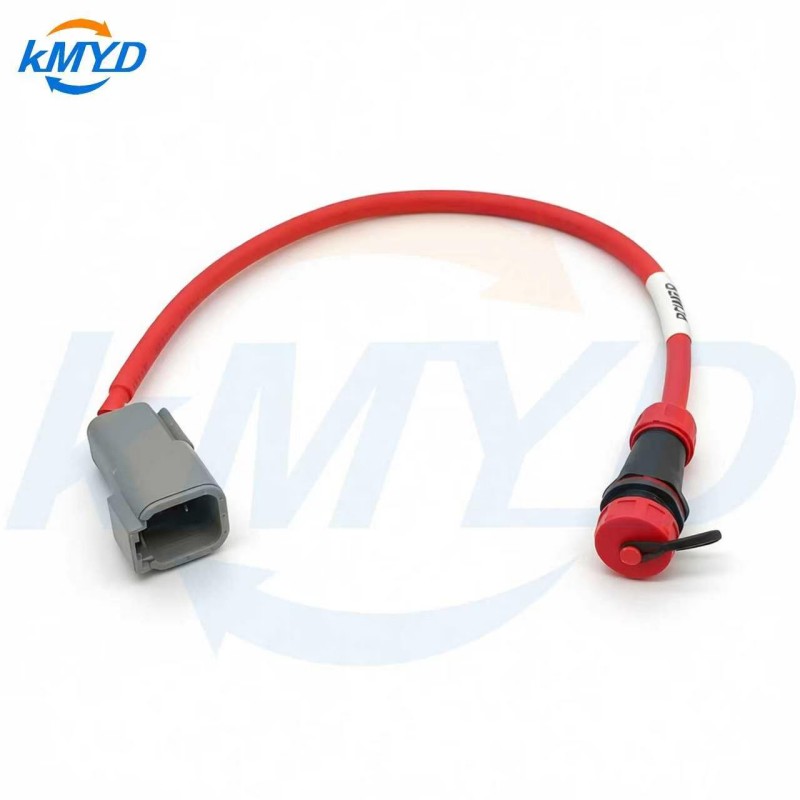

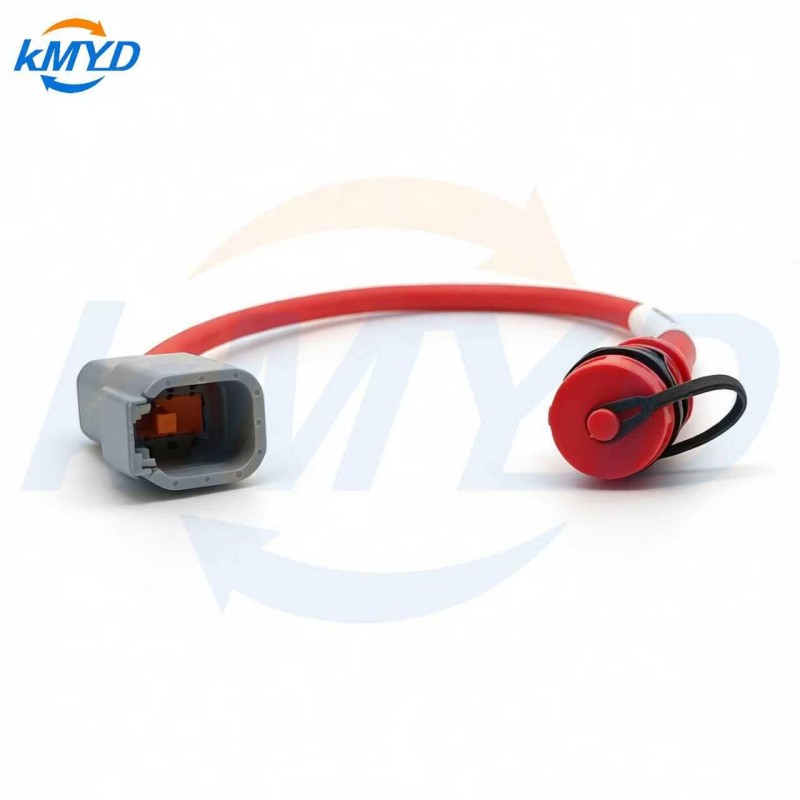

SP13 2 Pin to DTM04 Connector Cable Assembly Overview

This cable assembly provides a practical bridge between SP13 circular connectors and DTM04 series interfaces, using an 18AWG conductor for stable power delivery. It is intended for engineers and maintenance teams working with industrial controls, automotive electrical systems, or sensor networks that require a dependable, space-efficient wiring link between these two connector standards.

Key Selection Criteria

Before specifying this assembly, confirm the following points against your application requirements:

• Mating Interface: Verify that your equipment uses a DTM04 series plug on one side and an SP13 2-pin socket on the other. This assembly is not a universal adapter.
• Electrical Load: The 18AWG conductor supports moderate current levels. Review the continuous current draw and voltage of your circuit to ensure the wire gauge is adequate.

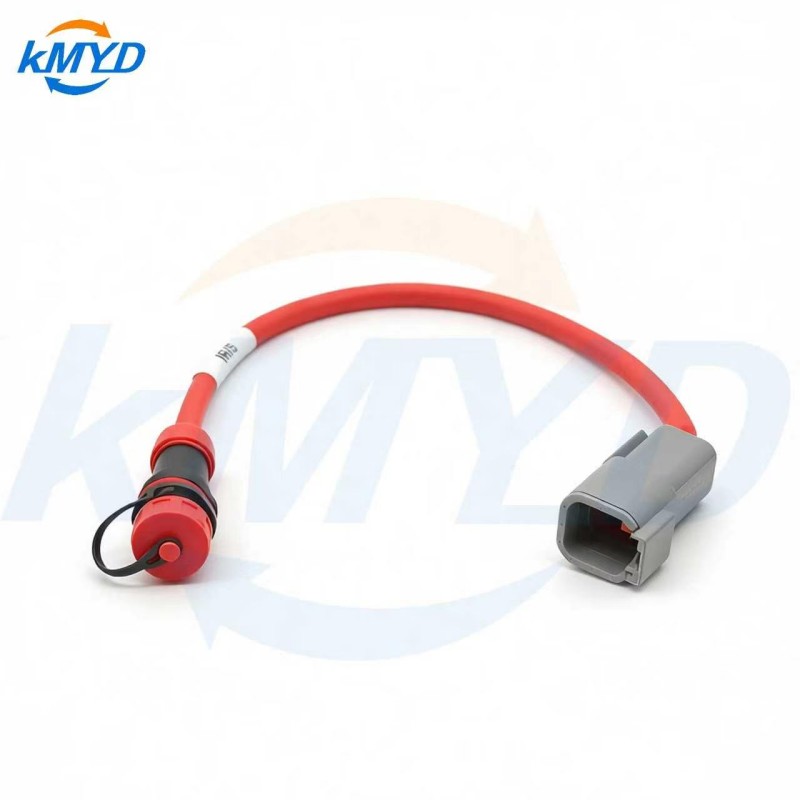

• Environmental Exposure: While the SP13 connector family is often used in sealed applications, confirm the specific IP rating required for your installation environment, especially if the connection point will be exposed to moisture or dust.
• Mechanical Strain: Consider whether the cable will be routed through areas with vibration or movement. The secure connection structure helps, but proper cable strain relief at both ends is still recommended.

Construction and Integration Notes

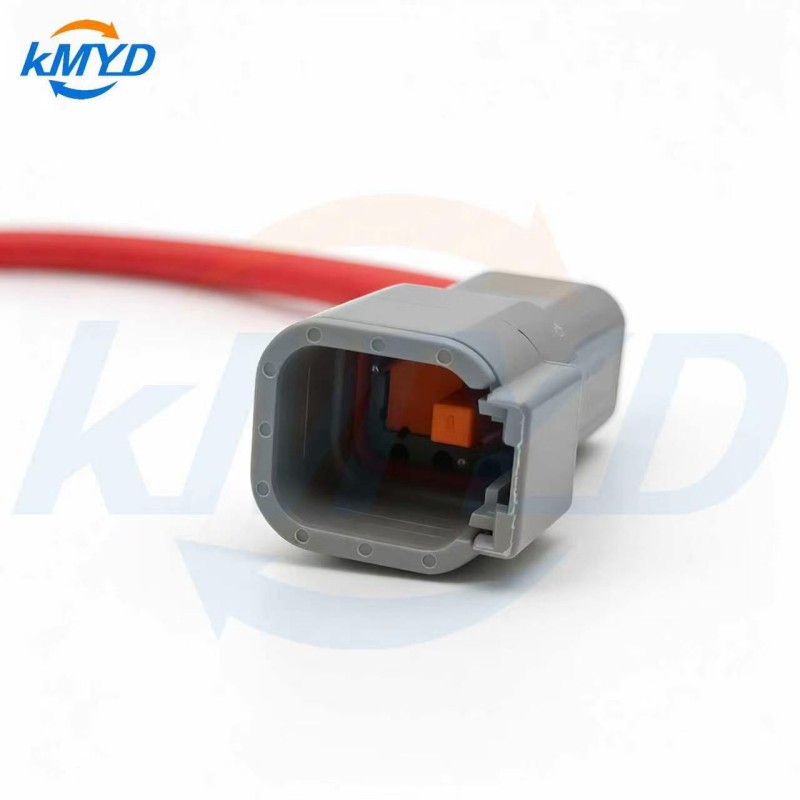

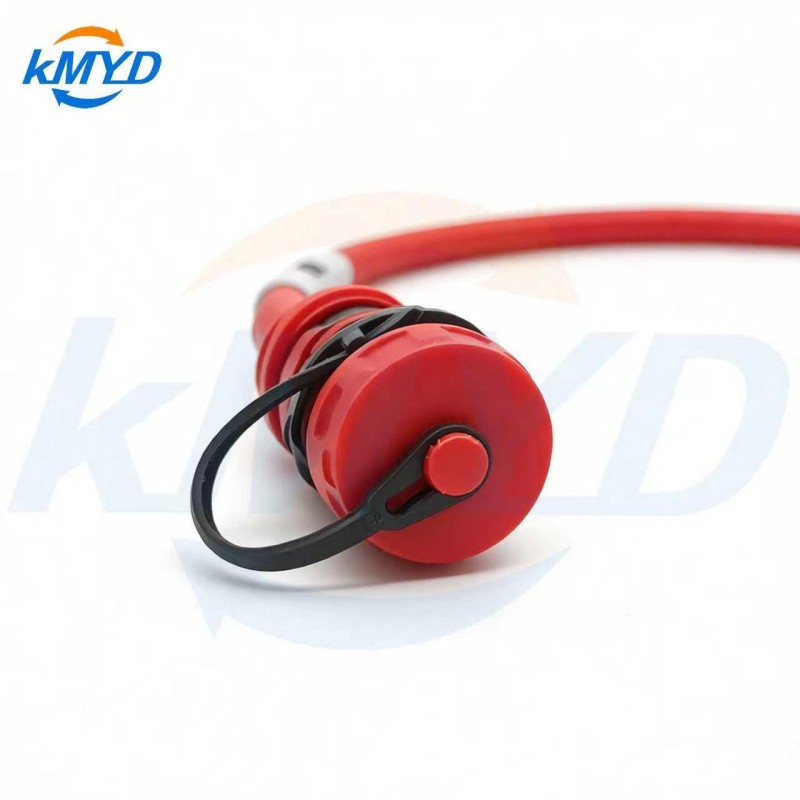

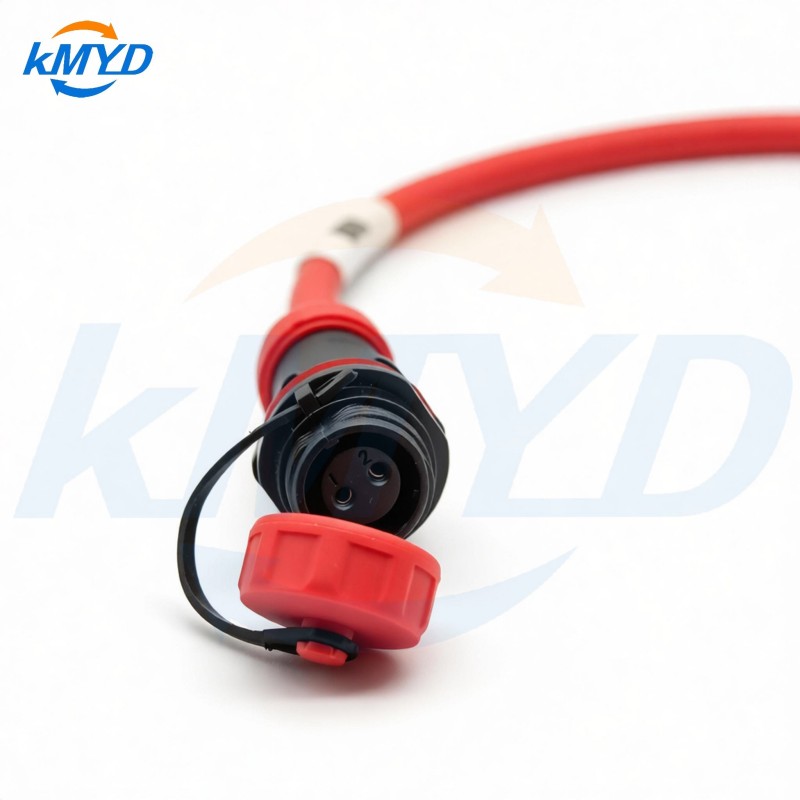

The assembly combines a compact SP13 connector with a DTM04-style interface, which simplifies the transition between different wiring systems in a control cabinet or vehicle harness. The 18AWG cable provides a balance of flexibility and conductivity, making it suitable for routing in confined spaces. For installation planning, note the overall cable length and bend radius required for your specific layout.

Suitable Applications

This cable assembly is well matched to the following use cases:

• Industrial automation equipment where a reliable power or signal link is needed between SP13 and DTM04 systems.
• Automotive electrical systems that require a secure, vibration-resistant connection.
• Control systems and sensor networks where space is limited and a compact wiring solution is preferred.
• Outdoor electrical equipment where the connector housing provides a degree of environmental protection.

Boundaries and Limitations

This product is not intended for high-voltage mains power distribution or for applications requiring a flexible, repeatedly flexed cable (such as robotic arms with continuous motion). It is also not a generic breakout adapter; it is specifically wired for a 2-pin configuration. If your application requires a different pin count or a different connector combination, please review other SP13 or DTM04 options in our catalog.

Customization and Ordering Information

For project-specific needs, OEM/ODM customization is available. To ensure an accurate match, please provide the following details when inquiring:

• Required cable length and any specific jacketing or shielding requirements.
• Exact pinout or wiring diagram for both the SP13 and DTM04 ends.
• Operating environment details, including temperature range and exposure to chemicals or moisture.
• Expected order quantity and target delivery schedule.

For related connector systems, you may also review the 12G Series Circular Connectors or the PC Series Circular Connector Types and Specifications for alternative interface options.

Manufacturing and Quality Assurance

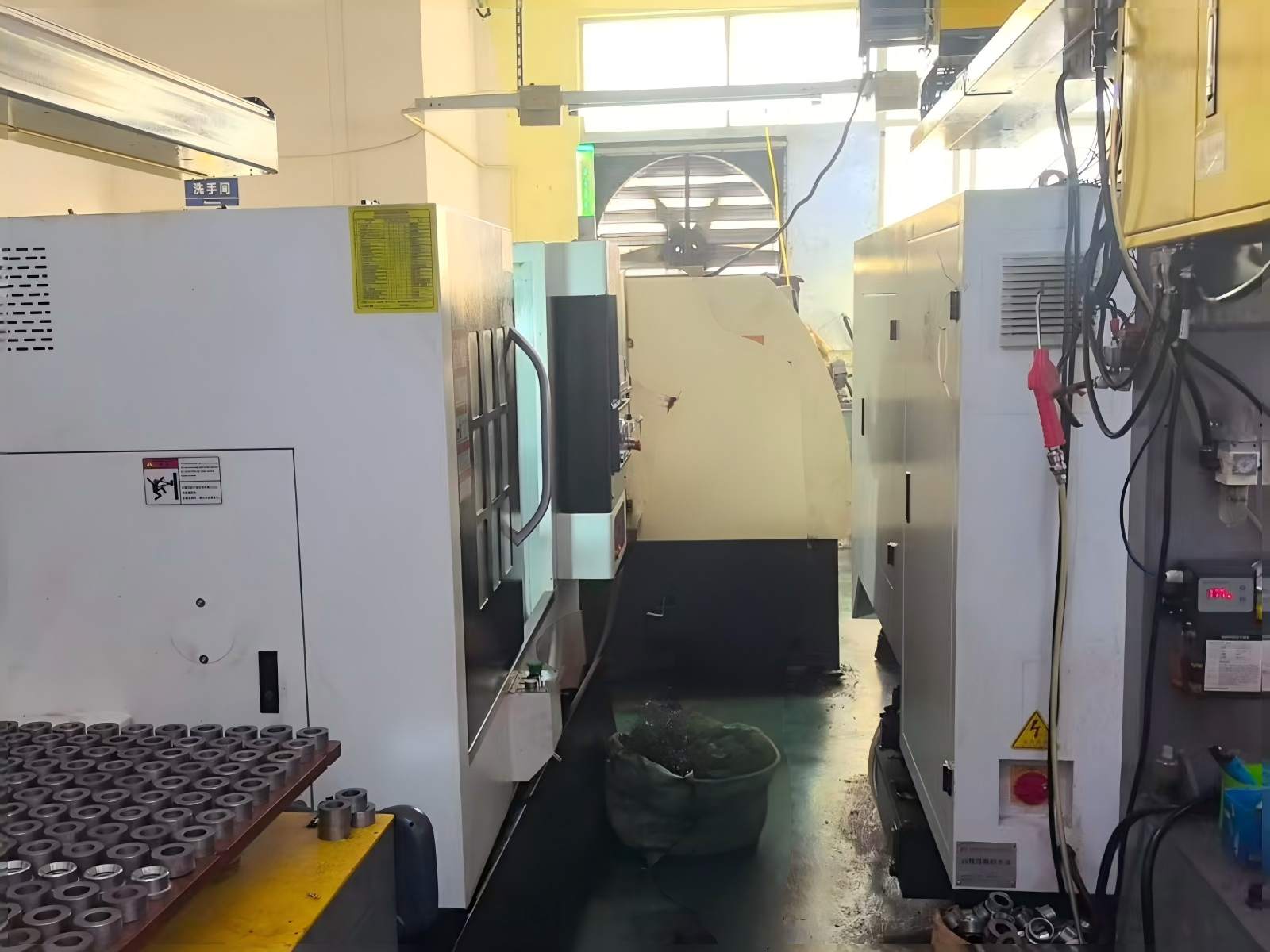

This assembly is produced by Shenzhen Meiyadi Technology Co., Ltd., a manufacturer with over 15 years of experience in connector and cable assembly production. Our facility integrates mold development, die casting, CNC machining, injection molding, and cable assembly under one roof, allowing for efficient prototype-to-production workflows.

Each assembly undergoes quality inspection procedures focused on electrical continuity and mechanical integrity. While we maintain strict internal controls, please note that specific test certifications or performance guarantees should be confirmed with our engineering team for your particular application requirements.
