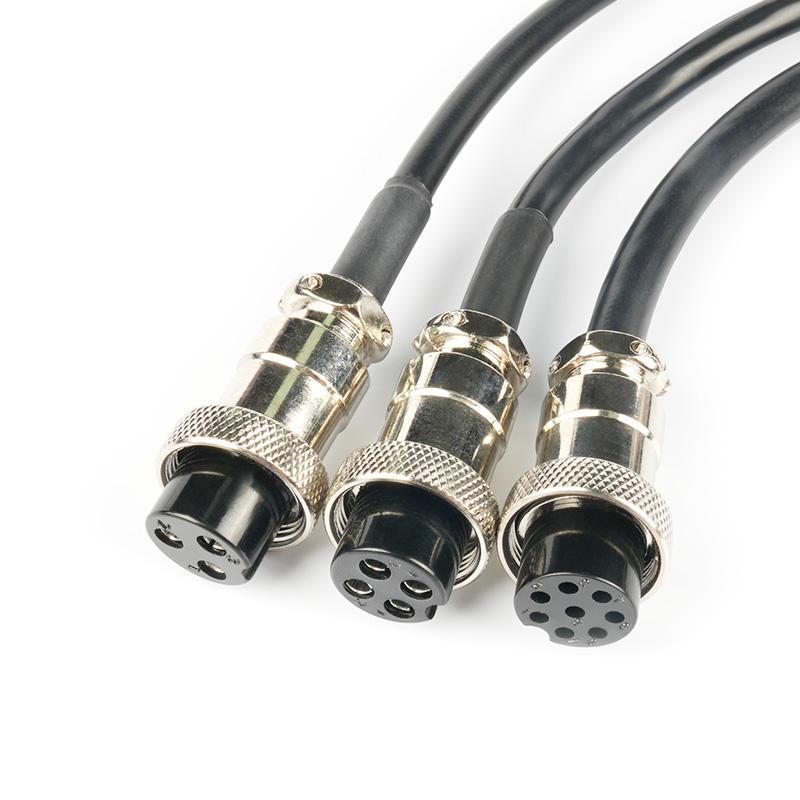

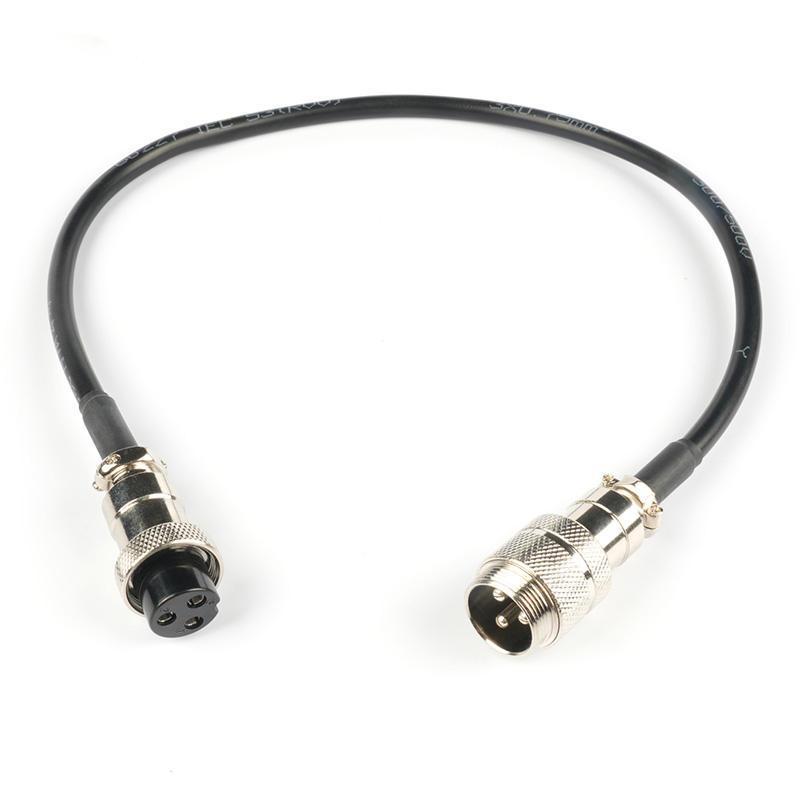

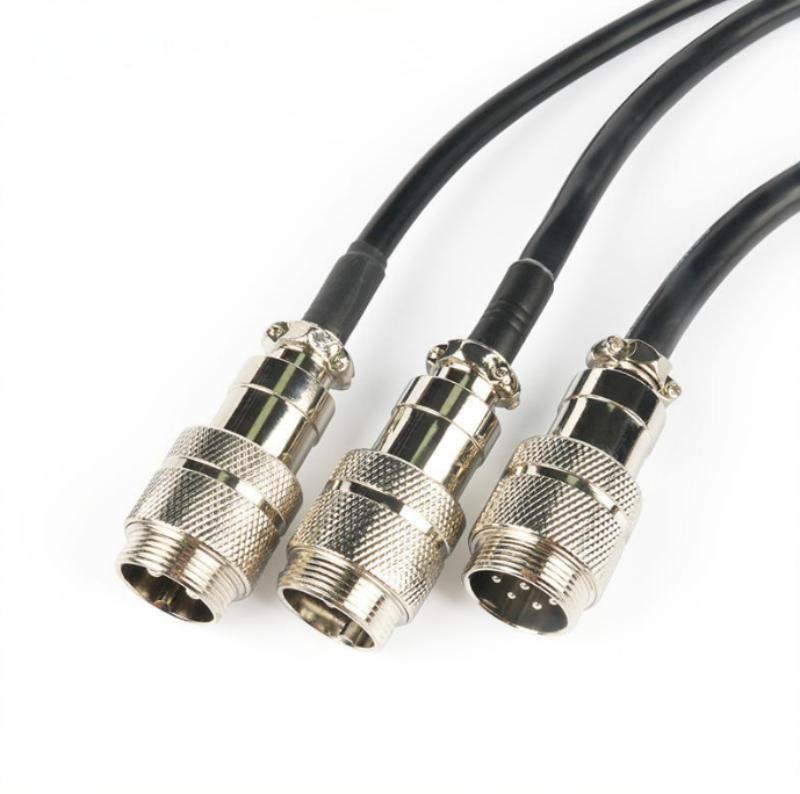

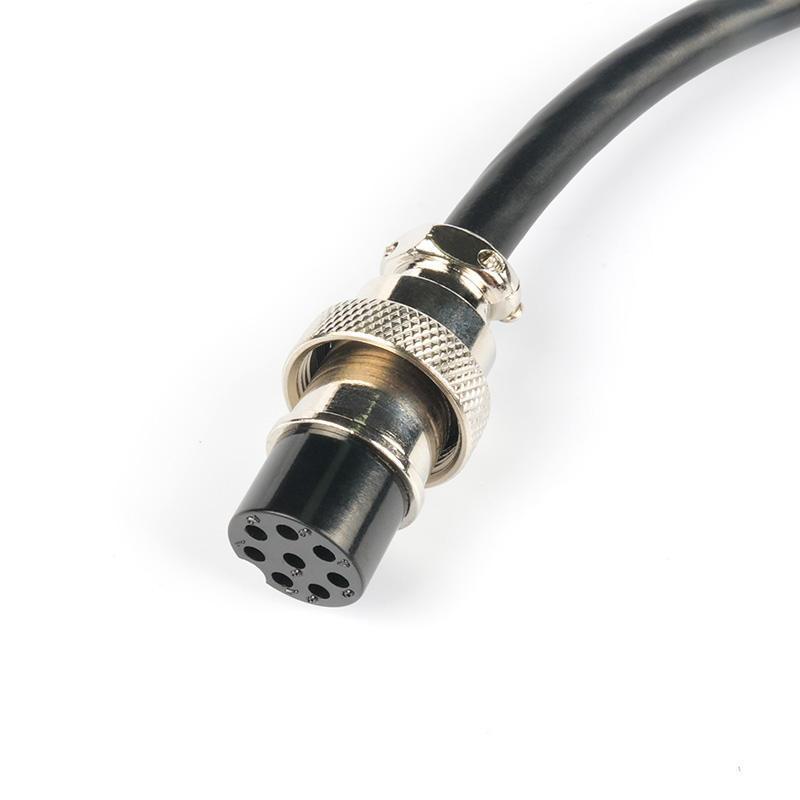

GX20 Aviation Connector with Integrated Cable – Pre-Assembled Connectivity Solution for Industrial Equipment

The GX20 Aviation Connector with Integrated Cable is designed for industrial applications that require a ready-to-use connection system instead of separate connector and wiring components. By combining the GX20 connector with a professionally assembled cable harness, this solution helps reduce installation time, improve wiring consistency, and simplify equipment integration.

Rather than treating the connector as an independent part, this product is built as a complete connectivity assembly, optimized for stable industrial operation.

Why Integrated Cable Solutions Are Becoming More Important

In many industrial projects, the real challenge is not purchasing the connector itself — it is ensuring that the final cable connection remains stable after installation. Separate assembly on-site can often lead to:

• Inconsistent wiring quality
• Incorrect pin assignments
• Weak soldering or crimping points
• Increased installation time
• Higher maintenance risk later in operation

The GX20 integrated cable version reduces these issues by delivering a factory-assembled and tested connection solution.

GX20 Structure for Industrial Equipment Stability

The GX20 series is known for its balanced combination of compact circular structure, stable locking mechanism, reliable electrical contact performance, and strong mechanical durability. When combined with integrated cable assembly, the connector becomes more suitable for systems exposed to continuous vibration, repeated movement, cable bending stress, and industrial operating environments.

This makes it widely used in industrial control and equipment connection applications.

More Than a Connector – A Production-Controlled Cable Assembly

The value of this product comes not only from the connector design, but from the consistency of the cable integration process. Our factory controls the entire assembly workflow, including connector production, cable processing, soldering and terminal connection, overmolding and strain relief, electrical testing, and final assembly inspection. This integrated production model helps reduce connection variability between batches.

Factory Strength – Specialized in Connector & Cable Integration

We are a professional connector manufacturer with over 15 years of experience in aviation connectors and industrial cable assemblies.

Unlike suppliers that outsource cable processing, we maintain in-house integration capability, allowing better quality consistency and faster customization response.

Complete Production Capability

Our manufacturing system includes precision mold development, CNC machining for metal components, injection molding workshops, terminal stamping and plating control, cable cutting and processing lines, connector assembly workshops, and electrical and mechanical testing laboratories.

This allows us to support both standard products and customized cable assembly projects efficiently.

Assembly-Oriented Quality Control

Each GX20 integrated cable assembly undergoes continuity and pin mapping verification, cable pull-force testing, soldering reliability inspection, connector locking performance testing, visual quality inspection, and electrical conductivity testing.

The goal is to ensure stable performance before the product reaches installation environments.

OEM & ODM Customization Support

We support customized industrial cable assembly solutions including custom cable lengths, different wire specifications, shielded cable options, pin configuration adjustments, connector orientation customization, and logo printing and packaging solutions. This flexibility helps support various industrial equipment requirements.

Applications

The GX20 Aviation Connector with Integrated Cable is widely used in industrial automation equipment, machinery control systems, robotics and motion systems, power and signal transmission equipment, testing and measurement devices, communication and monitoring systems, and smart manufacturing equipment.

Why Choose GX20 Integrated Cable Assemblies?

This solution provides faster installation efficiency, reduced field wiring errors, stable industrial connection performance, factory-controlled cable assembly consistency, and simplified maintenance and replacement. It is ideal for industrial systems requiring organized, reliable, and ready-to-install connectivity solutions.

For related selection guidance, see the Aviation Plug Connectors range or review the SD20/SP20 Square Flange Connector Design and Installation Guide for alternative mounting options.

Inquiry Checklist for GX20 Integrated Cable Assemblies

To receive an accurate quotation and configuration recommendation, please provide the following details when contacting us:

• Required pin count (2-12 pin range) and gender (male or female)
• Desired cable length and wire gauge
• Whether shielding is required
• Pinout or wiring diagram, if available
• Operating environment (vibration, temperature, moisture exposure)
• Required quantity and target delivery schedule

Contact us today for professional GX20 Aviation Connector with Integrated Cable solutions for industrial applications.
