GX12 Aviation Female Connector with Custom Cable Assembly

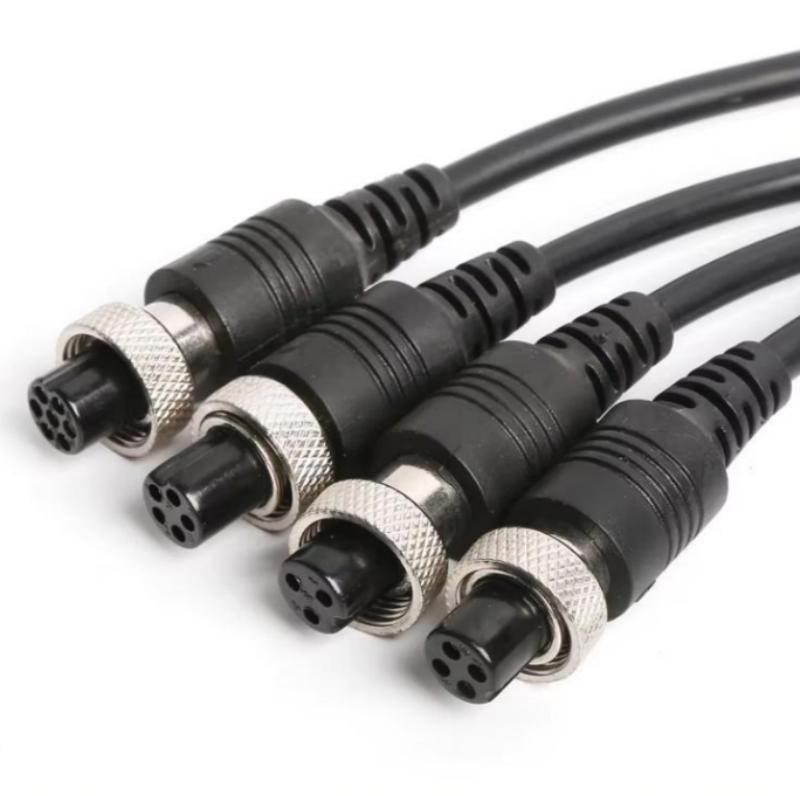

The GX12 aviation female connector with custom cable assembly provides a ready-to-install connection solution for industrial wiring. Its copper-zinc alloy housing offers mechanical strength and corrosion resistance, while the screw locking system helps maintain a stable connection in environments subject to vibration and moisture.

Key Selection Considerations

• Core count and gender: Available in 2-7 pin configurations, with male or female contacts to match your existing mating connector.
• Locking system: Screw locking ensures a vibration-resistant connection, suitable for equipment exposed to movement or continuous operation.
• Housing material: Copper-zinc alloy construction offers mechanical durability and corrosion resistance for industrial and outdoor use.
• Environmental protection: The waterproof design helps prevent dust and moisture ingress, supporting reliable performance in demanding conditions.
• Cable customization: Cable length, wire gauge, and jacket material can be tailored to your specific installation and routing requirements.

How to Specify Your Cable Assembly

To ensure the correct assembly for your application, please provide the following details when requesting a quotation:

• Required number of cores and pin configuration (pinout or wiring diagram)
• Mating connector type and gender (male or female)
• Cable length, conductor size, and jacket material
• Electrical load (current and voltage) and signal type
• Operating environment (indoor, outdoor, moisture, vibration, temperature range)
• Required quantity and target delivery schedule

Typical Applications

This pre-assembled connector solution is suited for equipment where reliable signal or power transmission is required in confined or demanding spaces:

• Industrial automation sensors, actuators, and control systems
• Robotics and dynamic motion equipment
• Control cabinets and electrical panels
• Testing and measurement instruments
• LED lighting and display modules in outdoor or high-moisture installations
• Transportation systems including automotive, marine, and rail equipment

Production and Quality Control

As a direct manufacturer, we control the full production chain from engineering to final testing. Our process includes connector injection molding, metal processing, terminal stamping and plating control, cable cutting and preparation, soldering or crimping with standardized procedures, overmolding, and strain relief protection. Each assembly undergoes continuity and pin mapping verification, pull-force testing, electrical conductivity and insulation resistance testing, and final visual inspection before shipment.

Customization Options

We support OEM and ODM projects with the following customization capabilities:

• Cable length and wire specification adjustments
• Shielded or interference-resistant cable options
• Pin configuration changes to match your device layout
• Connector orientation and structural modifications
• Logo printing and private labeling
• Custom packaging for OEM programs

When This Product Is Not Suitable

This connector is not intended for applications requiring high-density contacts beyond 7 pins, or for environments where the connector must remain sealed while unmated. For higher pin counts or different mounting styles, please review our other aviation connector series or contact us for guidance.

Inquiry Checklist

To receive an accurate quotation, please prepare the following information:

• Mating connector series and gender
• Pin count and pinout or wiring diagram
• Cable outside diameter and conductor size
• Electrical load and signal requirements
• Environmental conditions (IP rating needed, temperature, vibration)
• Order quantity and target delivery date

For related connector options, you may also review our Aviation Plug Connectors or the GX16 Aviation Female Connector with Custom Cable Assembly for comparison.

Contact us for technical consultation, sample evaluation, or a quotation for your GX12 custom cable assembly project.
