MS27467E13B35SB 22-Pin Bayonet Circular Connector for Radar Control

MS27467 Circular Connectors

MS27467E13B35SB Connector for Phased Array Radar Control Units

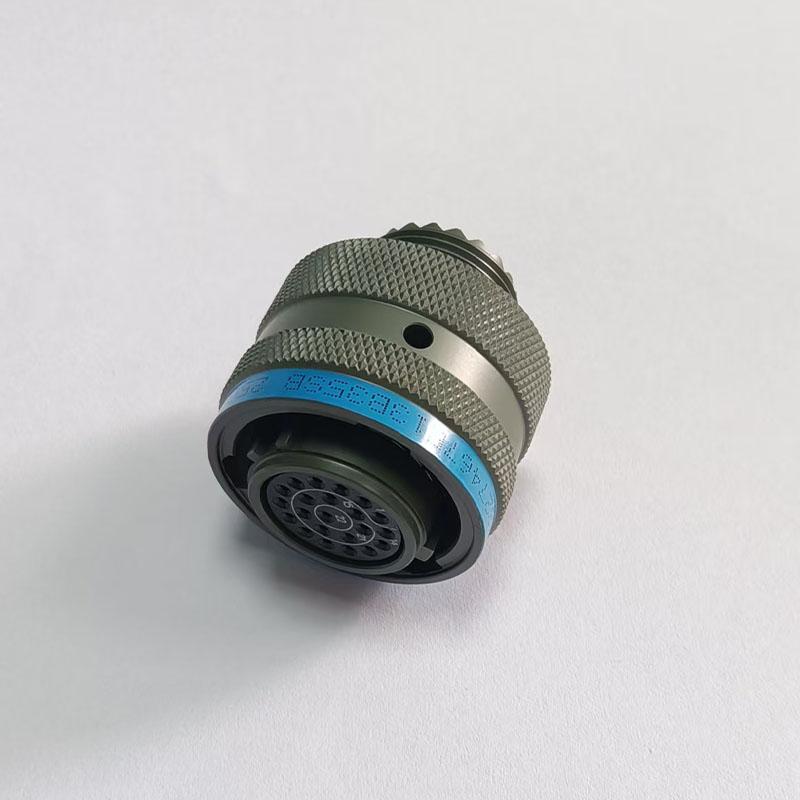

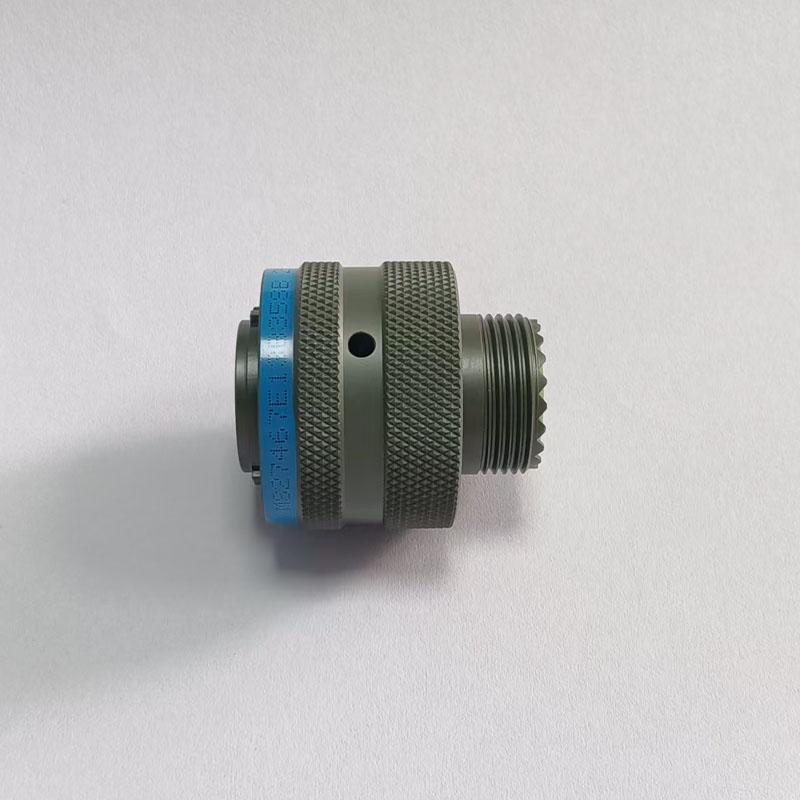

The MS27467E13B35SB is a MIL-spec circular connector engineered for communication radar systems and advanced electronic equipment. It provides stable signal and power transmission in phased array radar control units and other mission-critical radar subsystems where connection integrity directly affects system performance.

Why This Connector Suits Radar Control Applications

Phased array radar systems depend on uninterrupted electrical paths between control units, signal processing modules, and antenna steering electronics. The MS27467E13B35SB supports these interconnections with a bayonet quick-lock mechanism that secures mating even in high-vibration installations. Its 22-pin layout with gold-plated brass contacts provides consistent conductivity for control and monitoring signals.

Key Selection Considerations

• Pin configuration: 22 cores with male/female gender options to match your existing cable and panel assemblies.
• Locking system: Bayonet quick-lock reduces installation time and prevents accidental disconnection under mechanical stress.
• Environmental tolerance: Aluminum alloy housing with PTFE insulator supports operation from -55°C to +200°C for outdoor and enclosed radar installations.
• Contact reliability: Brass contacts plated with gold maintain low-resistance signal paths over repeated mating cycles.

Construction and Material Performance

The aluminum alloy housing provides structural rigidity while keeping weight manageable for cabinet and panel mounting. PTFE insulation delivers stable dielectric performance across the rated temperature range, which matters for radar electronics that generate sustained heat. The bayonet coupling design gives positive tactile feedback during engagement, helping field technicians confirm proper mating without special tooling.

Typical Radar Applications

• Phased array radar control units
• Radar antenna control modules
• Radar signal processing equipment
• Ground surveillance radar systems
• Communication radar electronic cabinets

Application Boundaries

This connector is intended for signal and moderate power distribution within radar and communication systems. It is not designed for high-current main power feeds or applications requiring sealed waterproof performance while unmated. For installations exposed to continuous salt spray or submersion, confirm the required protection level with your engineering team before specifying.

Configuration Guidance for Your Inquiry

To receive an accurate quotation and mating recommendation, include the following details with your inquiry:

• Required gender (plug or receptacle) and whether you need a cable or panel mount version
• Wire gauge and cable outer diameter for termination planning
• Backshell or strain relief requirements for your cable assembly
• Operating environment details such as vibration levels, temperature extremes, and exposure to moisture or chemicals
• Mating connector part number if you already have one half of the pair

For related MIL-spec circular connector options, review the MS27467 Circular Connectors catalog. For additional radar system connector configurations, see the MS27467E23B35P 100-Pin MIL-DTL-38999 Circular Connector.
