MS27473E8B35S MIL-DTL-38999 6-Pin Bayonet Coupling Connector

MS27467 Circular Connectors

MS27473E8B35S Connector for Communication Radar Receiver Modules

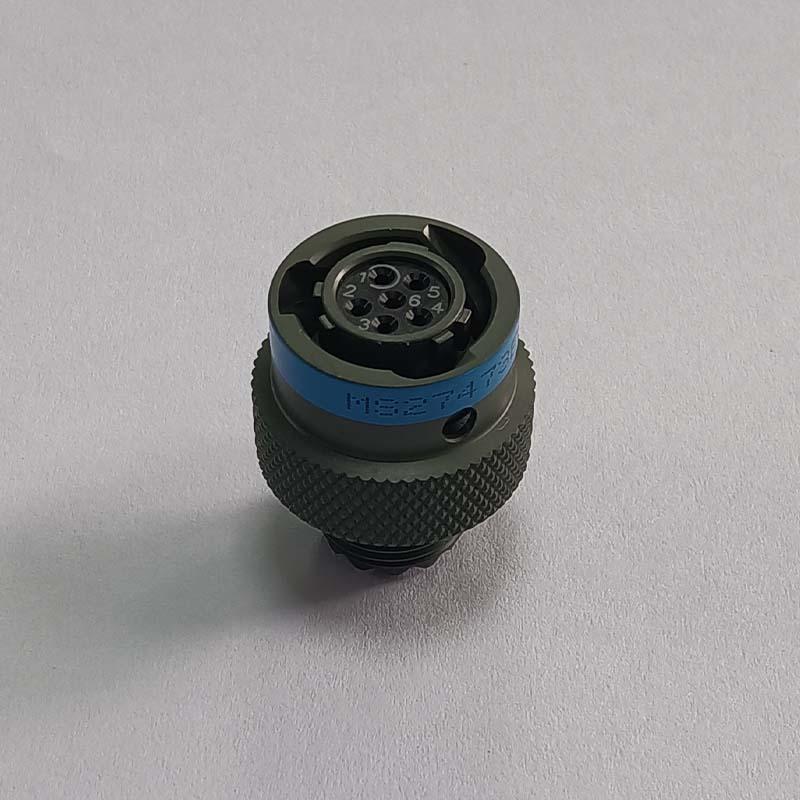

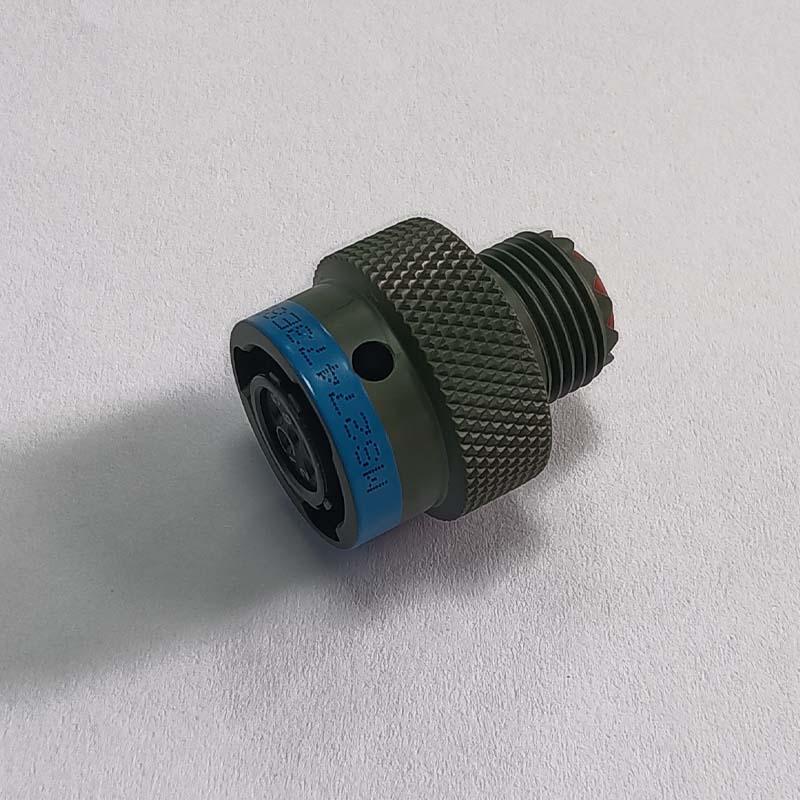

The MS27473E8B35S circular connector is engineered for high-reliability electrical connections in communication radar receiver modules. Designed according to MIL-DTL-38999 specifications, it ensures stable signal transmission and dependable performance in harsh military and aerospace environments.

Reliable Performance for Radar Receiver Systems

In communication radar systems, receiver modules require connectors that maintain consistent electrical performance. The MS27473E8B35S connector offers secure mating and excellent resistance to vibration and environmental stress, making it suitable for radar signal reception equipment.

Rugged Design for Harsh Environments

The connector features a durable metal shell and robust contact system designed to withstand shock, vibration, and extreme operating conditions. This ensures long service life in mission-critical radar and communication systems.

Key Selection Considerations

• Mating interface: Confirm the mating plug part number and shell size before ordering to ensure correct fit with your receiver module interface.
• Contact arrangement: Verify the required pin count and contact layout against your wiring scheme; the 6-pin configuration supports typical signal and low-power lines.
• Environmental rating: Check the IP rating and temperature range against your installation environment, especially for outdoor or unpressurized radar compartments.
• Termination method: Confirm whether your cable assembly requires crimp or solder termination and the acceptable wire gauge range.

Applications

• Communication radar receiver modules
• Radar signal processing equipment
• Ground surveillance radar systems
• Military communication electronics
• Tactical radar communication units

Configuration and Mating Dependencies

Before placing an order, verify the complete mating pair: the MS27473E8B35S is a receptacle with socket contacts, so confirm the corresponding plug part number and its pin arrangement. Also confirm the mounting style (jam nut or flange) and whether a backshell or protective cap is required for your cable entry. For correct matching, provide the drawing or pinout of your receiver module interface.

Suitable and Unsuitable Boundaries

This connector is suitable for communication radar receiver modules, signal processing equipment, and military communication electronics where MIL-DTL-38999-style performance is required. It is not intended for high-current power distribution, underwater or submersion applications, or non-military commercial equipment unless the specific environmental and electrical requirements are verified against the specification.

Inquiry Checklist

To receive an accurate quotation and mating recommendation, please provide the following information:

• Mating plug part number and shell size
• Required pin count and contact layout
• Cable diameter and wire gauge for termination
• Mounting style (jam nut, flange, or other)
• Operating temperature and environmental exposure
• Quantity and target delivery schedule
