Circular Connectors in Communication Base Stations: Application Overview

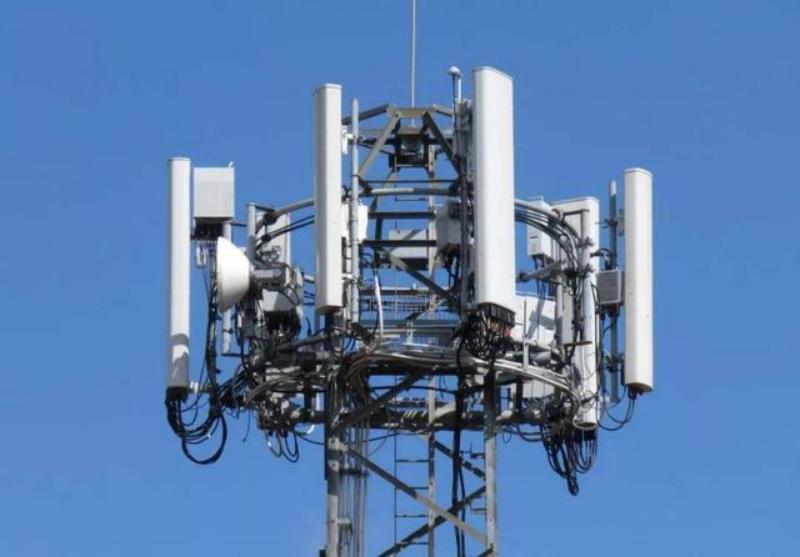

Circular connectors are used in communication base stations to connect power and control signals between equipment modules. In outdoor installations, connectors with sealing structures are preferred to handle dust and moisture. These connectors are typically deployed in radar communication nodes and wireless infrastructure, where stable connections are required under varying environmental conditions.

Typical Deployment Environments

The selection of a connector for this application depends on the specific electrical load, the required ingress protection rating, and the mechanical mating cycle expectations of the site. For example, a base station power supply with a current of 15A requires a connector series that can handle that load while maintaining a secure connection in outdoor enclosures. Environmental factors such as rain, dust, and temperature fluctuations directly influence the required IP rating and housing material choice.

Key Selection Considerations

• Electrical Requirements: Verify the current and voltage ratings against the base station's power supply and signal interface specifications. For a 15A power supply, confirm the connector's continuous current rating and contact resistance under load.
• Environmental Protection: Confirm the IP rating needed for the installation location, considering exposure to rain, dust, and temperature fluctuations. Outdoor pole-mounted or rooftop installations typically require a minimum of IP67 when mated.
• Mating and Mounting: Determine whether a cable-to-panel or cable-to-cable configuration is required, and check the locking mechanism for vibration resistance. Threaded or bayonet couplings are commonly preferred for sites with high wind or vibration exposure.

For a detailed comparison of connector series and technical specifications, refer to the Din Circular Connector Types and Specifications Guide. For related power connection solutions in similar infrastructure, see the Power Connectors in Radar Control Units article.

If you need assistance selecting a circular connector for a communication base station project, please use the inquiry form or contact us via WhatsApp to discuss your specific electrical and environmental requirements. Include your nominal current, voltage, cable diameter, and the expected installation environment (indoor or outdoor) to receive a tailored recommendation.
