4mm Banana Plug Connector with Gold-Plated Contacts and Screw-Clamp

SD20/SP20 Square Flange Connector Design and Installation Guide

Banana Plug Connector Overview

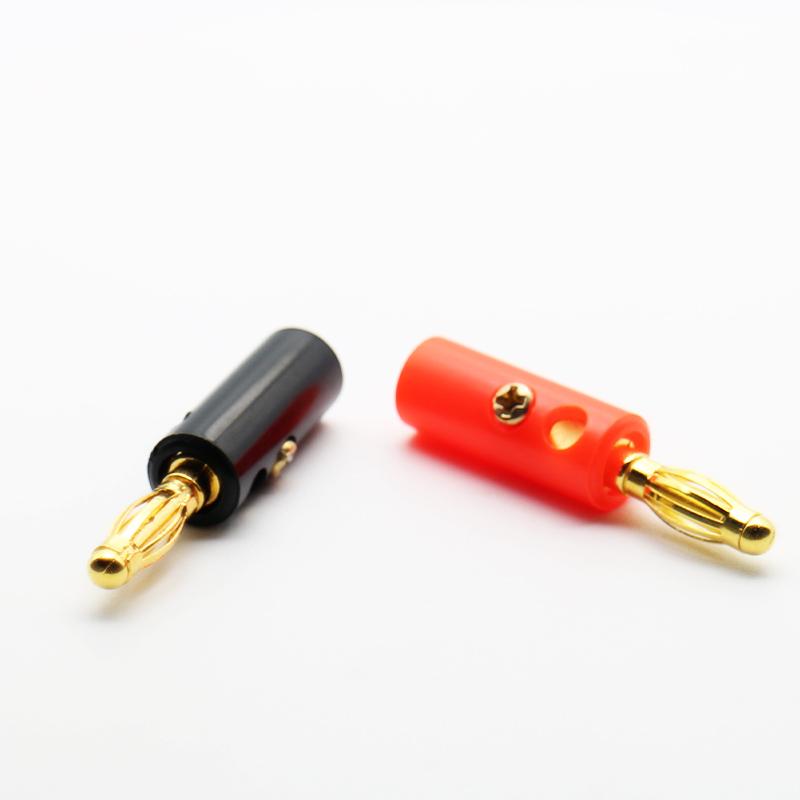

This 4mm banana plug connector is designed for reliable signal and power connections in test equipment, instrumentation, and audio systems. It features a single-pin configuration with gold-plated brass contacts to minimize contact resistance and ensure stable transmission. The connector supports 12-18 AWG wire and is suitable for applications requiring quick, secure terminations without soldering.

Key Decision Points for Selection

• Contact Quality: Pure brass contacts with 3μm gold plating reduce oxidation and contact resistance, supporting cleaner signal transfer.
• Connection Security: A patented spring-lock mechanism maintains a secure fit through 5000+ insertion cycles, reducing the risk of accidental disconnection.
• Installation Speed: Screw-clamp termination allows for a tool-only connection in about 5 seconds, simplifying field wiring and rework.
• Compatibility: Fits standard 4mm banana jacks and accepts 12-18 AWG conductors, covering common test lead and panel wiring needs.
• Safety Margin: Rated for 750V withstand voltage with a flame-retardant PC housing, suitable for controlled indoor environments.

Application and Installation Guidance

This banana plug is intended for use with standard 4mm binding posts or banana jacks commonly found on power supplies, multimeters, and audio amplifiers. For installation, strip the conductor to the recommended length, insert it into the clamp, and tighten the screw securely. Ensure the plug is fully seated into the jack to maintain the spring-lock engagement.

Suitable Use Cases

• Test and measurement leads for lab equipment.
• Patch cables for audio and signal routing.
• Power connections for low-current DC applications.

Boundaries and Limitations

• Not designed for high-vibration industrial machinery or outdoor exposure without additional protection.
• Rated for indoor use; verify environmental requirements for moisture or chemical resistance.
• Confirm current and voltage requirements against the Technical Specifications before deployment.

Quality and Construction Notes

The connector uses a flame-retardant PC housing with an insulator material of phenolics, providing a balance of mechanical strength and electrical insulation. The gold-plated contact surface is specified to resist oxidation, which is critical for maintaining low contact resistance over time in signal applications.

Inquiry Checklist for Ordering

To ensure the correct configuration for your project, please provide the following details when inquiring:

• Required quantity and target unit price.
• Wire gauge (AWG) and insulation diameter of your cable.
• Expected current and voltage load.
• Mating jack type and panel thickness if applicable.
• Any specific color or marking requirements.
