Zinc Alloy IEC TV Male Plug to Right Angle TV Female Connector

SF Series Aviation Connectors Specifications and Performance Data

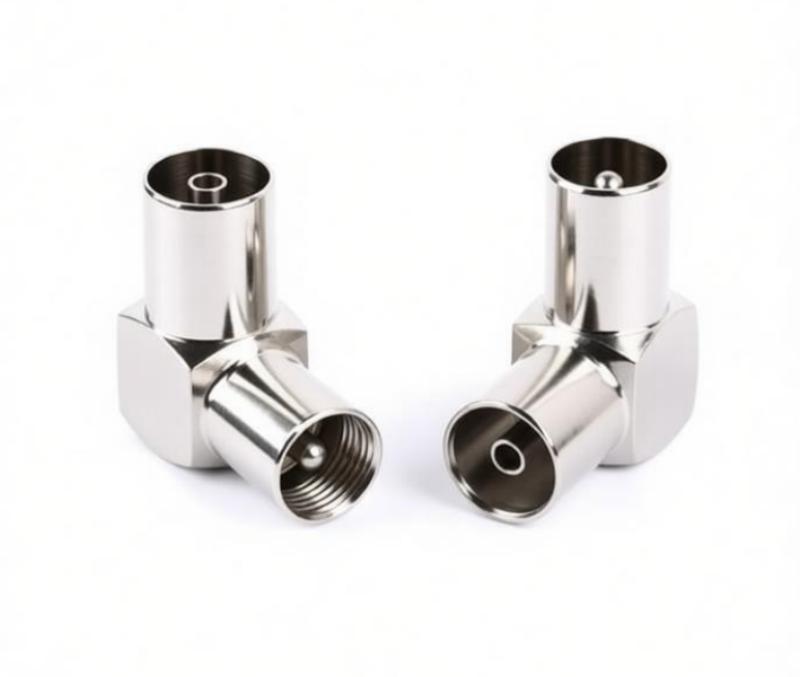

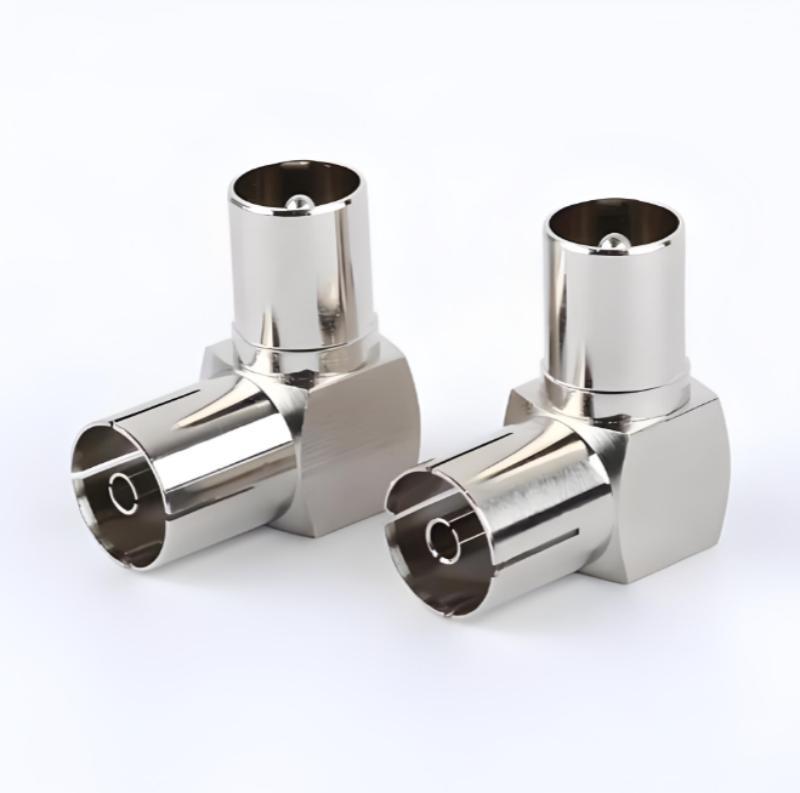

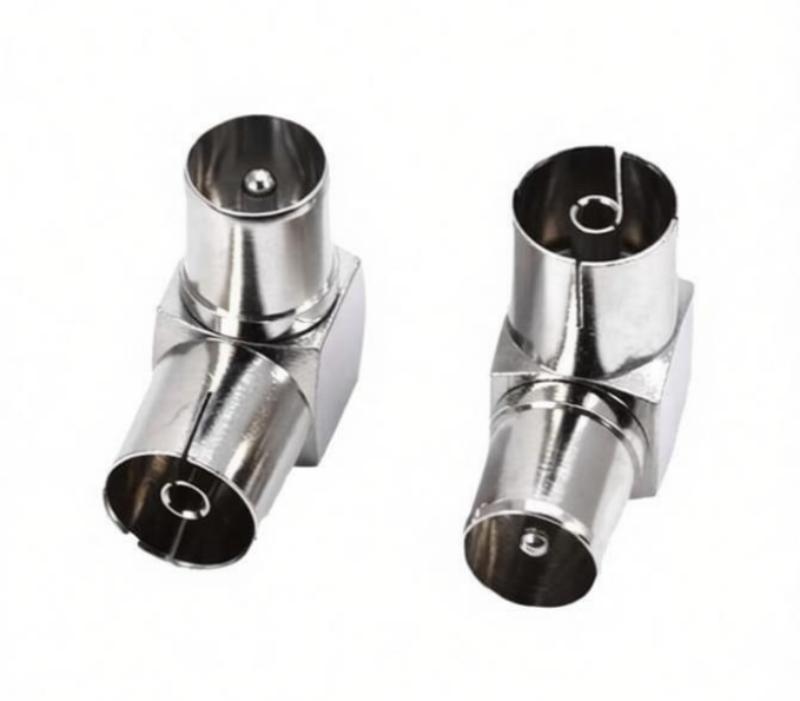

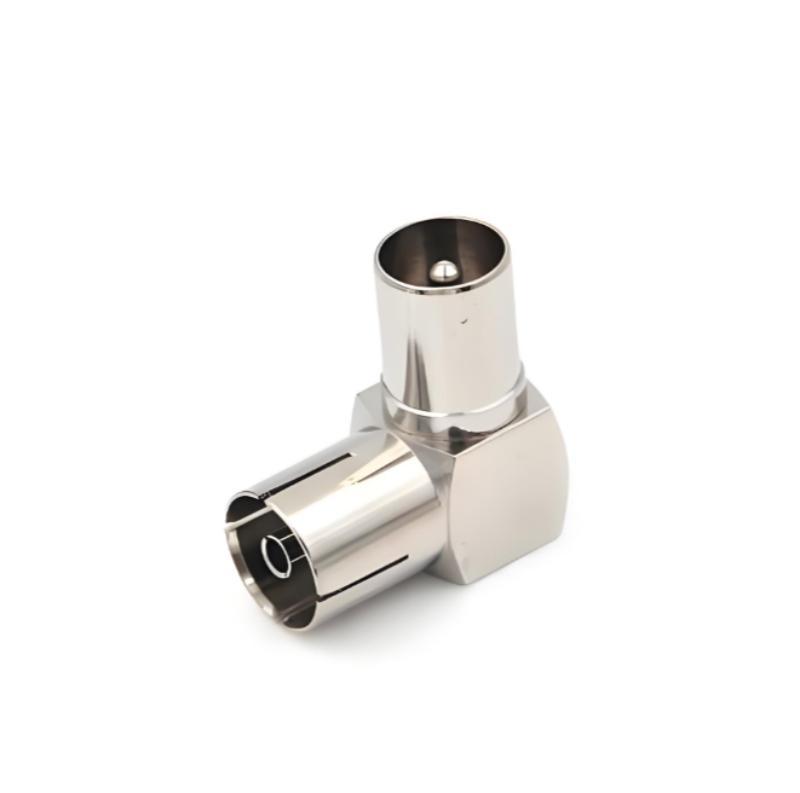

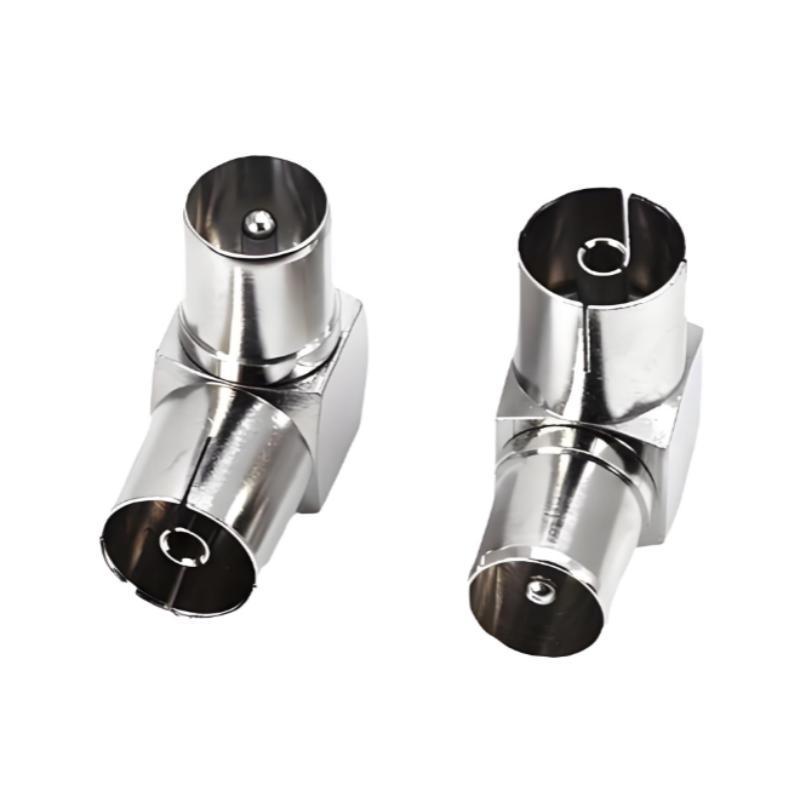

Zinc Alloy IEC TV Male Plug to Right Angle TV Female Connector Overview

The Zinc Alloy IEC TV Male Plug to Right Angle TV Female Connector provides a durable interconnection solution for television and RF signal applications in residential and commercial environments. This adapter supports stable connectivity between TVs, set-top boxes, wall outlets, and other RF-enabled devices while its right-angle configuration helps conserve space behind equipment.

Constructed with a zinc alloy housing and precision-engineered contacts, this connector offers mechanical strength for repeated use. The right-angle female design reduces cable bending stress, simplifies cable routing, and facilitates installation in confined areas.

Construction and Material Benefits

The zinc alloy housing provides corrosion resistance and mechanical durability compared to standard materials. This construction supports frequent plugging cycles and long-term exposure to varied environments without compromising signal integrity. The solid feel and precise fit help maintain a secure connection between male and female ends, reducing the risk of signal loss or interference.

Right Angle Design for Space-Constrained Installations

The right angle TV female plug minimizes space requirements behind devices and improves cable management. In tight areas where a straight connection would require bending or folding the cable, the right-angle design prevents strain on both the cable and connector. This is particularly useful for wall-mounted TVs, entertainment centers, and crowded media racks.

Compatibility and Application Scope

This connector is designed for use with standard IEC TV male plugs and coaxial TV connectors. It supports analog and digital TV signals, cable boxes, antennas, and other RF equipment. Suitable cable types include RG6, RG59, and other standard coaxial cables, offering flexibility across different setups.

Installation Considerations

Installation requires no special tools. The snug fit ensures a stable connection without excessive force. The right-angle design allows installation in confined spaces without bending the cable excessively, helping preserve cable and connector integrity.

Selection Checklist

• Confirm the mating connector type and gender required for your application.
• Verify cable type (e.g., RG6, RG59) and prepare the cable end properly.
• Check available space behind the device to confirm the right-angle configuration fits.
• Specify the signal type (analog or digital) and frequency range for your setup.
• Provide order quantity and any custom length or assembly requirements.

Suitable and Unsuitable Applications

Suitable for: Home entertainment systems, professional AV installations, wall-mounted TV setups, and media centers requiring reliable RF connections in tight spaces.

Not suitable for: Outdoor or wet environments without additional protection, high-vibration industrial applications, or installations requiring waterproof performance while unmated. For high-vibration or waterproof requirements, consider aviation plug connectors with appropriate IP ratings.

Quality and Performance Notes

The connector uses brass contacts plated with silver and a phenolics insulator. Screw locking secures the connection. Rated current ranges from 5A to 16A with a rated voltage of 250V AC. Test voltage is 1500V AC for 1 minute. Insulation resistance exceeds 1000 MΩ and contact resistance is ≤0.1 MΩ. Operating temperature range is -40°C to +85°C. Termination method is crimp. For detailed parameter values, refer to the Technical Specifications section.

Inquiry Information

To receive accurate matching and configuration support, please provide the following details when inquiring:

• Mating connector type and gender
• Pinout or wiring diagram if applicable
• Cable outside diameter and conductor size
• Electrical load requirements (current and voltage)
• Environmental conditions (temperature, humidity, exposure)
• Order quantity and delivery preferences

For custom cable assembly solutions with this connector type, review GX16 aviation female connector with custom cable assembly for reference on assembly options.
