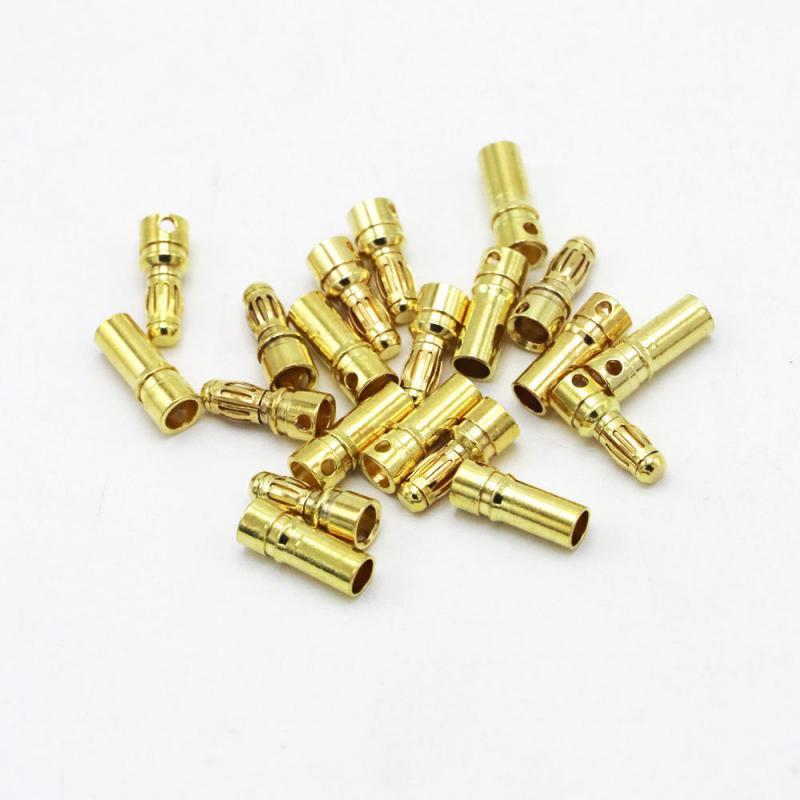

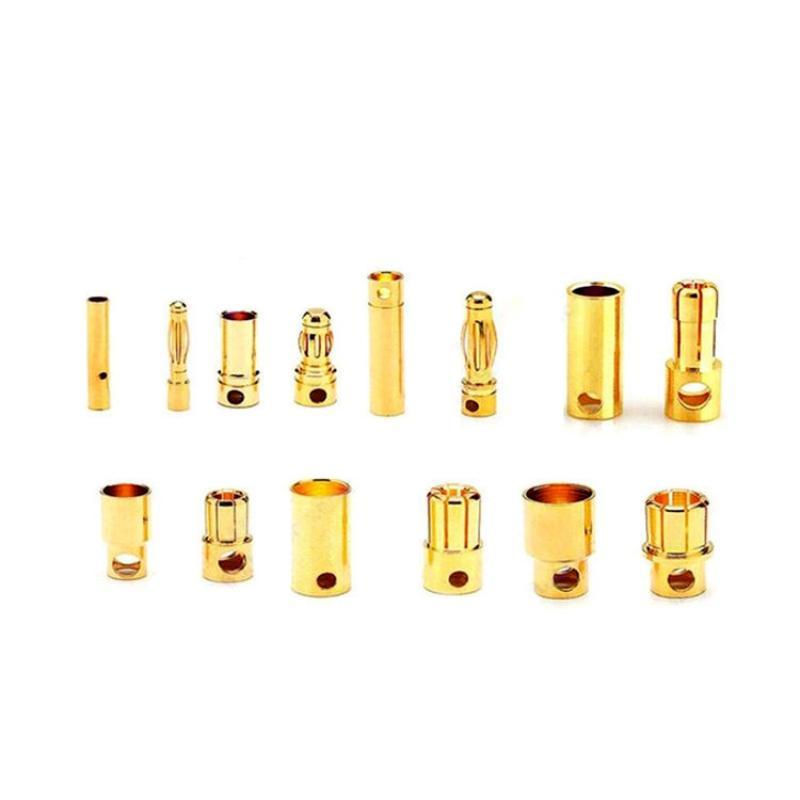

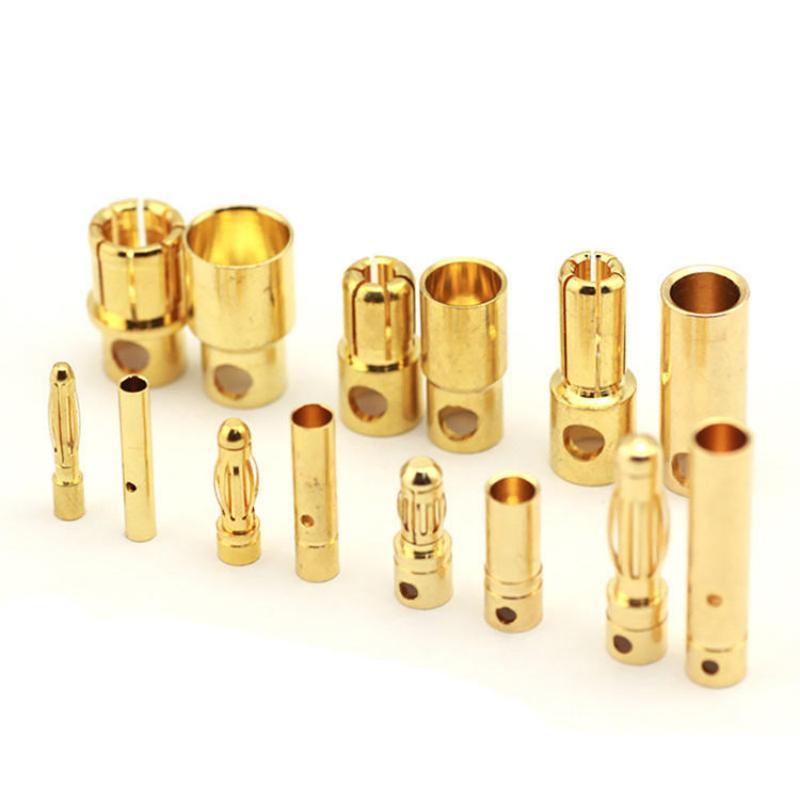

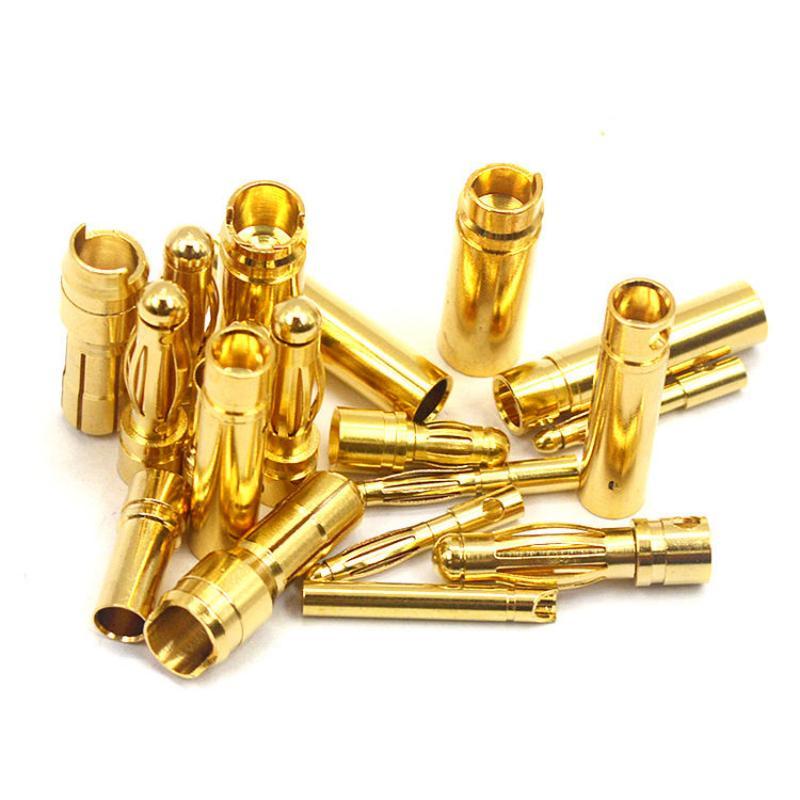

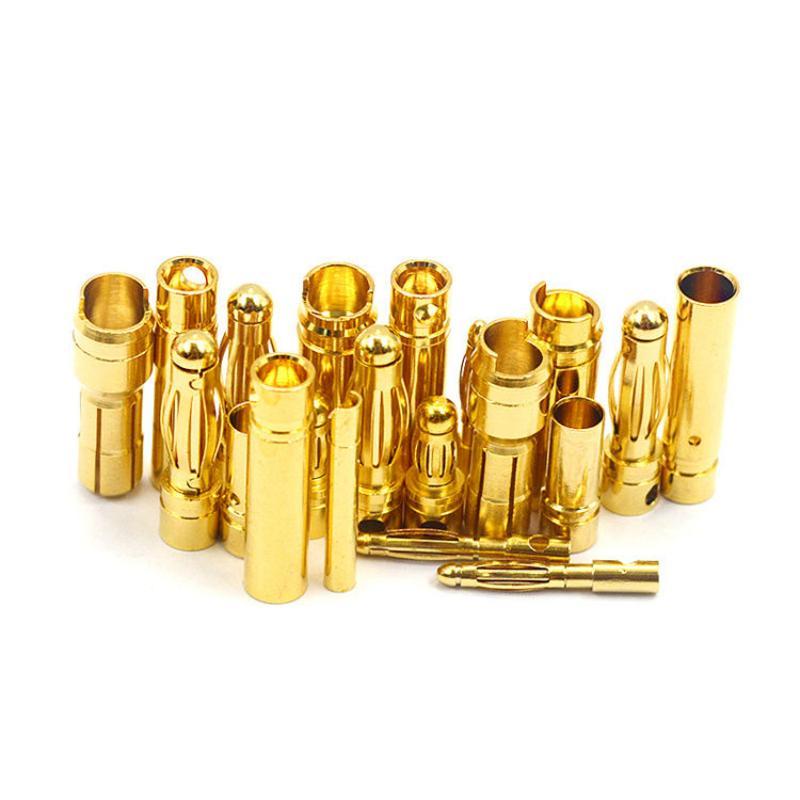

4.0mm Banana Plug Connector for Reliable Power Connections

The 4.0mm banana plug connector is a widely used electrical connector designed for fast, secure, and reliable power connections. Known for its simple structure and efficient conductivity, the banana plug has become a standard solution for applications requiring quick connection and disconnection. The 4mm banana plug is the most common size used in many electrical systems, and its universal design allows it to fit standard banana sockets and terminals, making it compatible with a wide range of devices and equipment.

Because of its convenient design and dependable performance, banana plug connectors are widely used in laboratory equipment, audio systems, battery connections, power supplies, and RC electronics.

Gold Plated Contact for Improved Conductivity

One of the key features of high-quality banana plugs is the gold plated contact surface. Gold plating improves electrical conductivity while reducing the risk of corrosion and oxidation over time. Compared with standard metal contacts, gold plated connectors provide several advantages:

• Lower contact resistance
• Stable electrical conductivity
• Better corrosion resistance
• Longer operational lifespan

These benefits help ensure consistent power transmission, especially in applications that require reliable current flow and frequent connection cycles.

Standard 4mm Design for Wide Compatibility

The 4mm banana plug follows a standardized size widely used across many electronic and electrical systems. This standardized design ensures compatibility with most banana sockets, terminal posts, and binding posts. Because of this universal compatibility, 4mm banana plugs are commonly used in:

• Electronic testing equipment
• Audio speaker connections
• Laboratory power supplies
• RC drone and battery systems
• Educational and experimental setups

The simple plug-in design allows users to quickly connect or disconnect circuits without complex tools or installation procedures.

Durable Construction for Long-Term Use

Banana plug connectors are designed to withstand frequent use while maintaining stable electrical performance. The internal spring contact structure helps ensure a firm and secure connection, preventing loose contact during operation. High-quality banana plugs are typically manufactured with durable metal materials and precision machining to guarantee reliable performance in different environments. Their robust structure makes them suitable for both professional and everyday electrical applications.

Easy Installation and Secure Connection

Another advantage of banana plugs is their easy installation process. Many banana plug connectors support screw or solder termination, allowing wires to be connected quickly and securely. Once installed, the plug can be inserted directly into a compatible socket, providing a stable and reliable connection. This convenience makes banana plugs especially useful in systems that require frequent cable replacement or equipment testing.

Selection Considerations for Your Application

When selecting a 4.0mm banana plug connector, consider the following factors to ensure proper fit and performance:

• Termination type: Confirm whether your installation requires screw-type or solder-type termination based on your cable preparation capability and maintenance needs.
• Mating socket standard: Verify that your target socket, terminal post, or binding post accepts standard 4mm banana plugs before ordering.
• Environmental conditions: The operating temperature range of -20°C to +80°C should be checked against your application environment, particularly for outdoor or high-temperature installations.
• Connection frequency: For applications involving frequent plugging and unplugging, the spring contact structure and gold plating help maintain consistent performance over many cycles.

Application Boundaries

The 4.0mm banana plug connector is well suited for low-to-medium current laboratory, testing, audio, and educational applications where quick connection and disconnection are valued. However, it is not designed for high-vibration industrial environments, outdoor waterproof installations, or high-current power distribution where locking mechanisms and sealed housings are required. For such demanding conditions, consider connectors with IP-rated housings or threaded coupling systems. For related high-reliability options, review the Banana plug Series Connectors or consult the SF Series Aviation Connectors Specifications and Performance Data for environmentally sealed alternatives.

Inquiry Checklist

To receive an accurate quotation and ensure the correct connector configuration, please provide the following information when contacting us:

• Required quantity and target unit price
• Cable outside diameter and conductor cross-section
• Termination preference (screw or solder)
• Mating socket type and brand, if known
• Operating environment and expected connection cycles
• Any specific color-coding or marking requirements

For detailed technical parameters including housing material, insulator material, and rated current, please refer to the Technical Specifications section. The 4mm gold plated banana plug connector is a practical and reliable solution for electrical power connections, offering excellent conductivity, universal compatibility, and a user-friendly design for engineers, technicians, and electronic manufacturers who require efficient and dependable power connectivity.
