RJ45 Series Circular Female Connector with Screw Thread

SF Series Aviation Connectors Specifications and Performance Data

RJ45 Series Connector Female: Selection and Application Overview

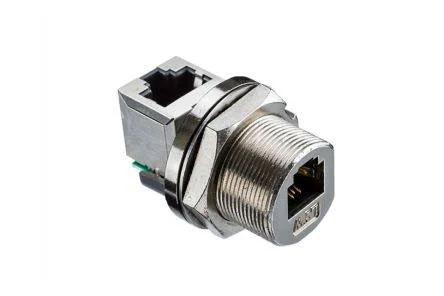

This RJ45 Series Connector is an unmated, circular female connector engineered for reliable networking in demanding industrial environments. Its screw-thread coupling provides secure attachment, while the front-fastened design simplifies installation in confined spaces. This page helps buyers evaluate the connector's interface, mechanical mounting, and environmental suitability for their specific application.

Key Decision Points for Your Application

• Mating and Mounting: The circular female interface with screw thread ensures a vibration-resistant connection. Front-fastened mounting is ideal for panel installations where rear access is limited.
• Environmental Fit: Designed for harsh environments, this connector is suitable for applications requiring a robust, secure data link. Confirm the specific IP rating and temperature range against your operating conditions.
• Data Integrity: Supports reliable data transmission for industrial Ethernet and networking protocols. Verify the cable category (e.g., Cat5e, Cat6) and shielding requirements for your network speed.
• Installation Preparation: The unmated state requires proper cable termination and assembly. Ensure your cable outer diameter and conductor size are compatible with the connector's termination range.

Interpreting the Specifications

While the detailed technical parameters are listed in the Technical Specifications section, the key selection factors are the connector's mechanical interface and its environmental sealing. The screw thread provides a secure, locking connection suitable for high-vibration machinery. The front-fastened mounting style dictates the panel cutout and installation sequence. For mating, you will need a corresponding RJ45 plug or a field-wireable connector that matches this female interface.

Suitable and Unsuitable Use Cases

Suitable: This connector is well-suited for industrial control panels, factory automation equipment, and outdoor networking enclosures where a robust, lockable RJ45 connection is required. It is appropriate for applications needing a reliable data link in dusty or humid conditions, provided the IP rating meets the requirement.

Unsuitable: This unmated connector is not a complete solution; it requires a compatible plug and proper cable assembly. It is not designed for high-flex or continuous motion applications without additional cable strain relief. For applications requiring frequent mating/unmating cycles, consider a connector with a higher mating cycle rating.

Inquiry Input Checklist for Accurate Quoting

To receive an accurate quotation and ensure compatibility, please provide the following details with your inquiry:

• Mating connector requirement (e.g., RJ45 plug type, shielded or unshielded).
• Cable outside diameter and conductor size (AWG).
• Required IP rating and operating temperature range.
• Panel cutout dimensions and mounting thickness.
• Network speed and cable category (e.g., Cat6, Cat6a).
• Order quantity and target delivery date.

Related Resources

For further guidance on connector selection and specifications, you may find the following resources helpful:

• 12G Series Circular Connectors – Explore other circular connector options for industrial applications.
• SF Series Aviation Connectors Specifications and Performance Data – Review detailed specifications for another high-reliability connector series.

Next Steps

To proceed with your project, please use the inquiry form or contact us via WhatsApp with the checklist above. Our team will confirm the technical details and provide a tailored solution.
