6 Pin Connector
< >

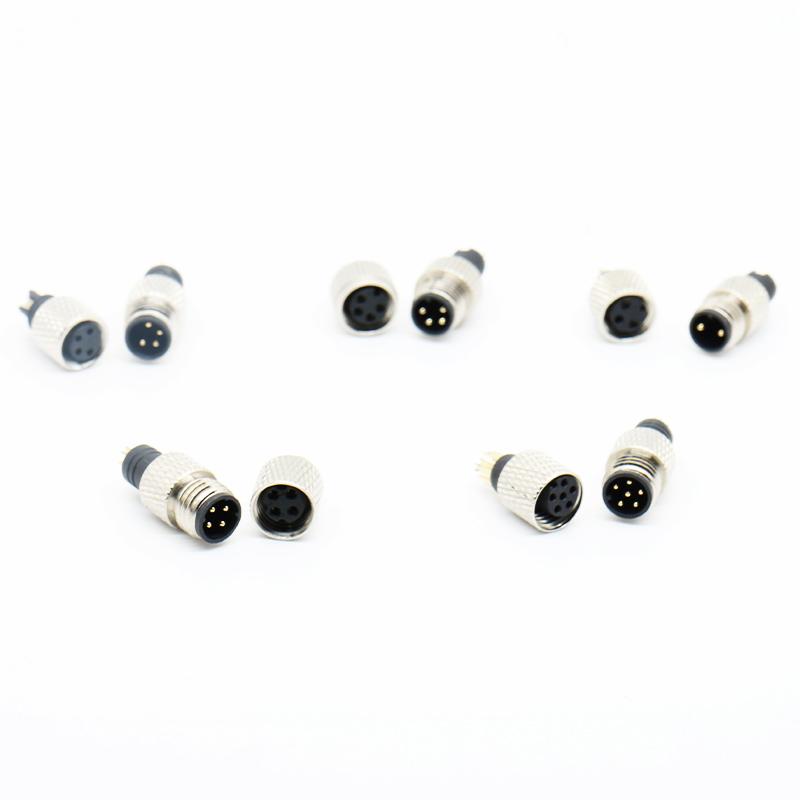

Industrial M8 Circular Connector for Automotive Sensors

>Number Of CoresNumber Of Cores 2-8 Pin
Contact DiameterContact Diameter(mm) 1.0mm/0.72mm/0.6mm
IP RatingIP Rating IP67
Shell MaterialShell Material PA66/Nickel Plated Brass
Temperature RangeTemperature Range -25℃ ~ +85℃
TerminationTermination Solder
Rated CurrentRated Current(A) 3A/1A
Rated VoltageRated Voltage(Ac.V) 180V
Test VoltageTest Voltage(Ac.V)1Min 1000V
Insulation ResistanceInsulation Resistance (MΩ) 1500MΩ
Contact ResistanceContact Resistance (MΩ) ≤10MΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

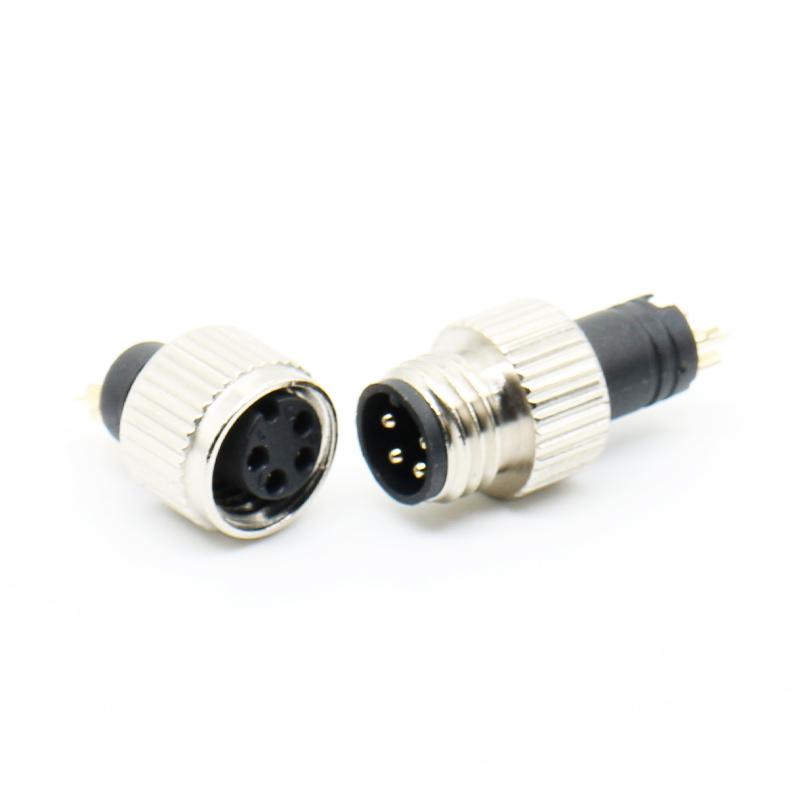

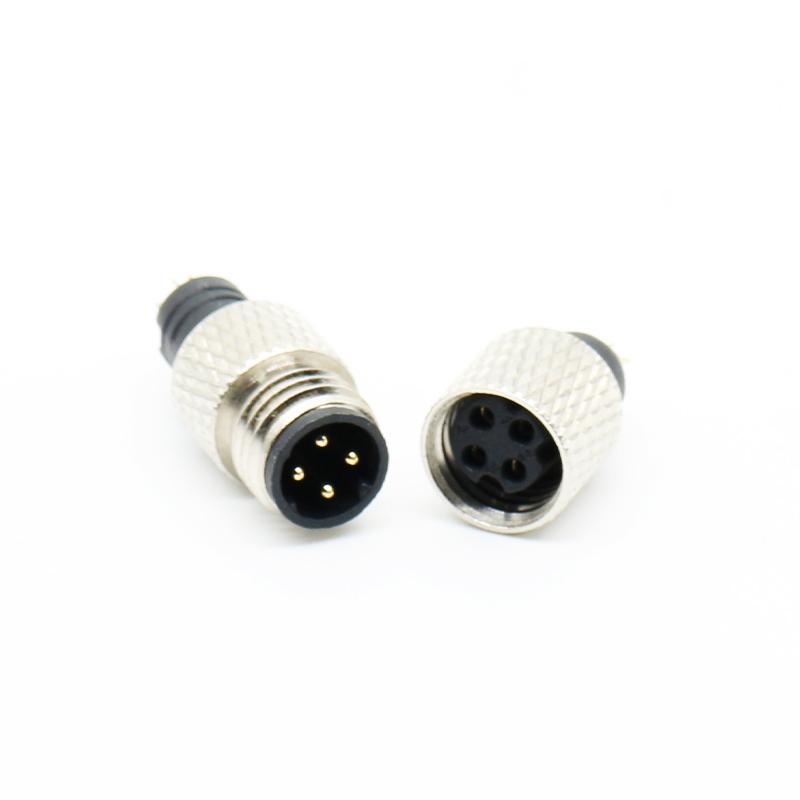

M8 Circular Connector for Automotive Applications

Our M8 circular connector is engineered for reliable signal and power transmission in demanding automotive environments. With its compact structure and secure locking mechanism, it is ideal for applications where space is limited and vibration resistance is critical.

Designed for use in automotive sensors, engine control units (ECU), transmission systems, and ADAS modules, this connector ensures stable electrical performance even under high temperature fluctuations, mechanical vibration, and exposure to oil or dust.

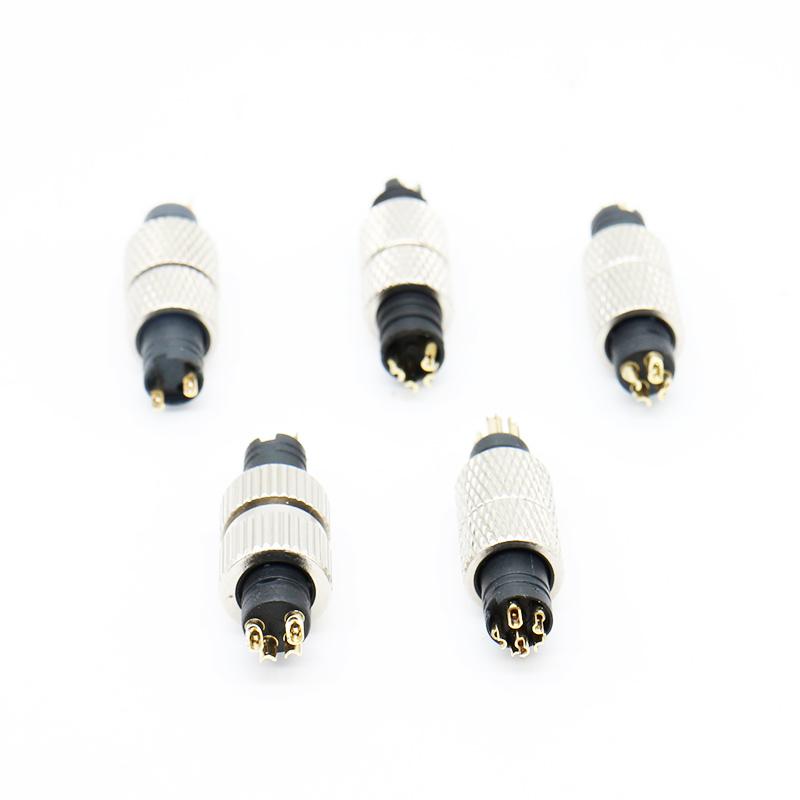

Connector


It is widely used in:

Engine and powertrain control systems

Automotive temperature and pressure sensors

ADAS camera and radar modules

Electric vehicle (EV) battery management systems

In-vehicle lighting and dashboard systems

Commercial vehicle electronic control units

The M8 connector provides secure mating, consistent signal integrity, and long service life, making it a dependable solution for modern automotive electronic architectures.

Item

Parameters

Number of Cores

2-8Pin

Gender

Male/Female

Housing Material

Zinc Alloy with Nickel Plated

Cores Material

Brass Plated with Silver/Gold

Insulator Material

PA66

Locking System

Screw Locking

Temperature Range

-30℃, +85℃

Rated Current (A)

3A(2-5Pin)/ 1A(6-8Pin)

Rated Voltage (AC.V)

180V

Test Voltage (AV.C)1Min

1000V

Insulation Resistance (㏁)

1500㏁

Contact Resistance (㏁)

≤10㏁

Termination

Solder
