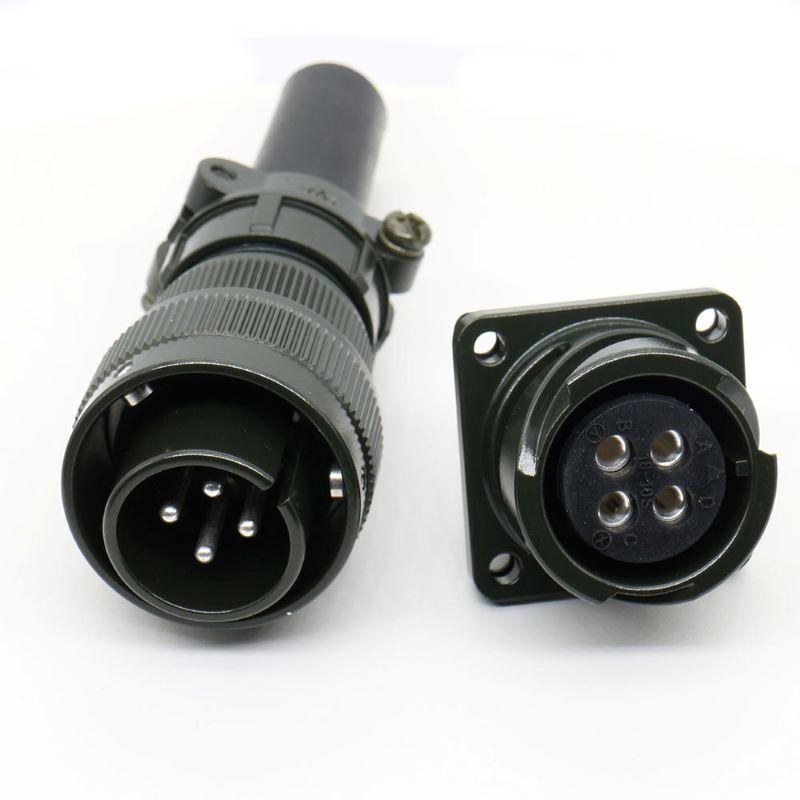

VG95234 Connector in US
< >

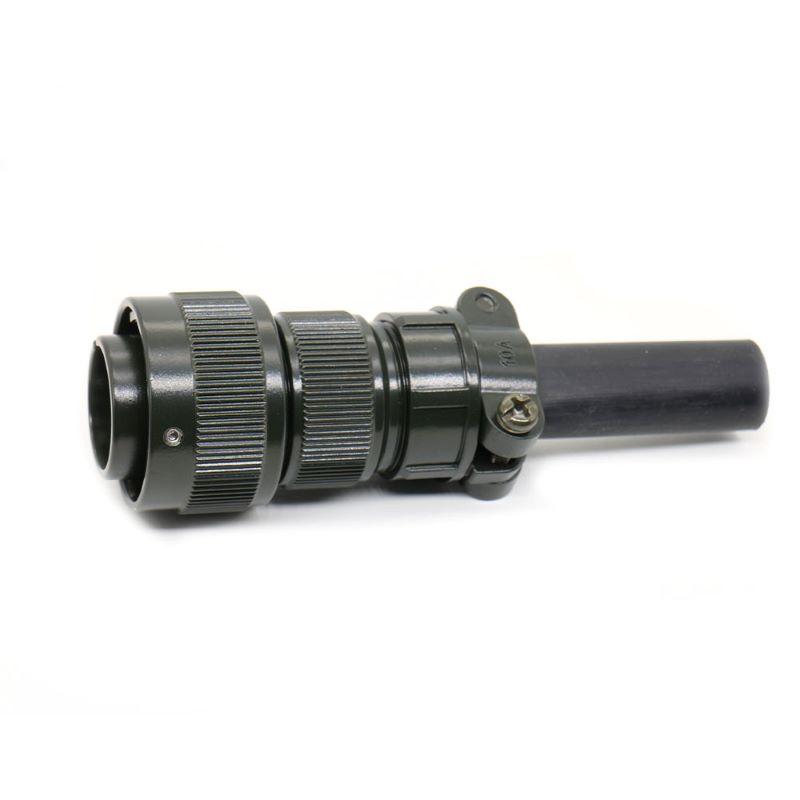

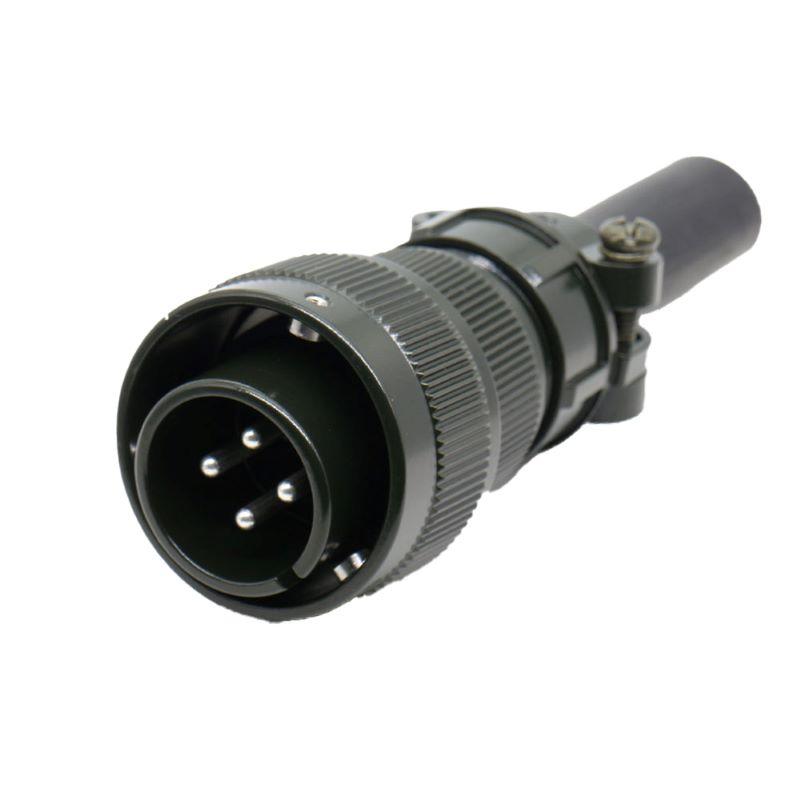

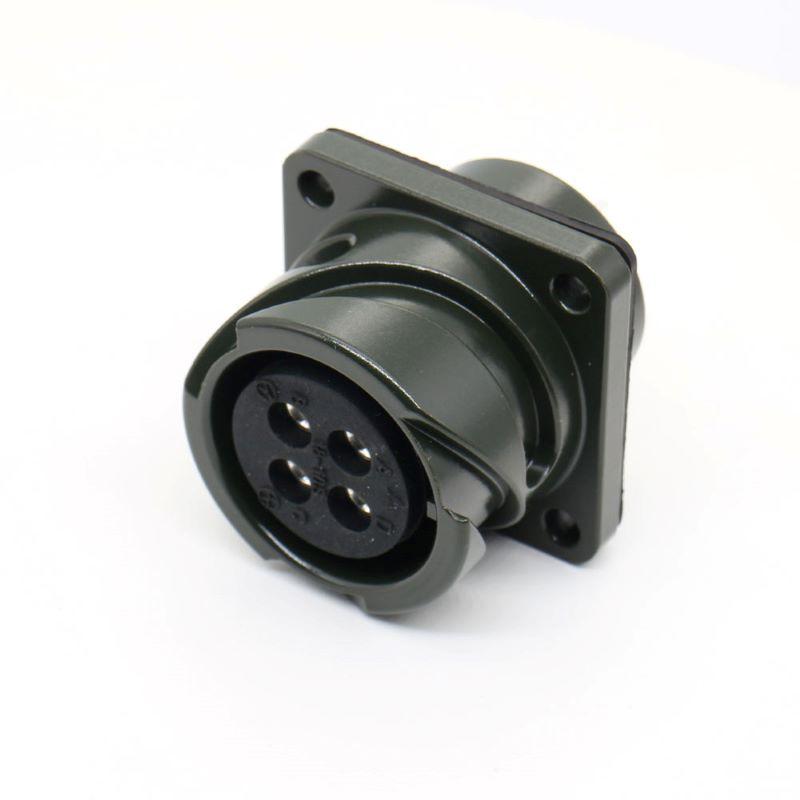

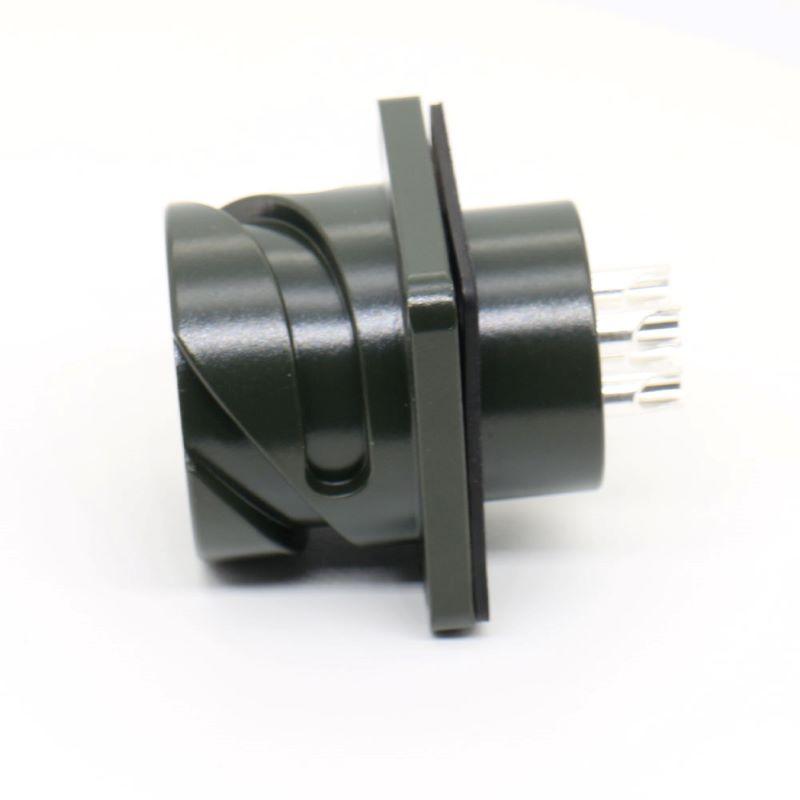

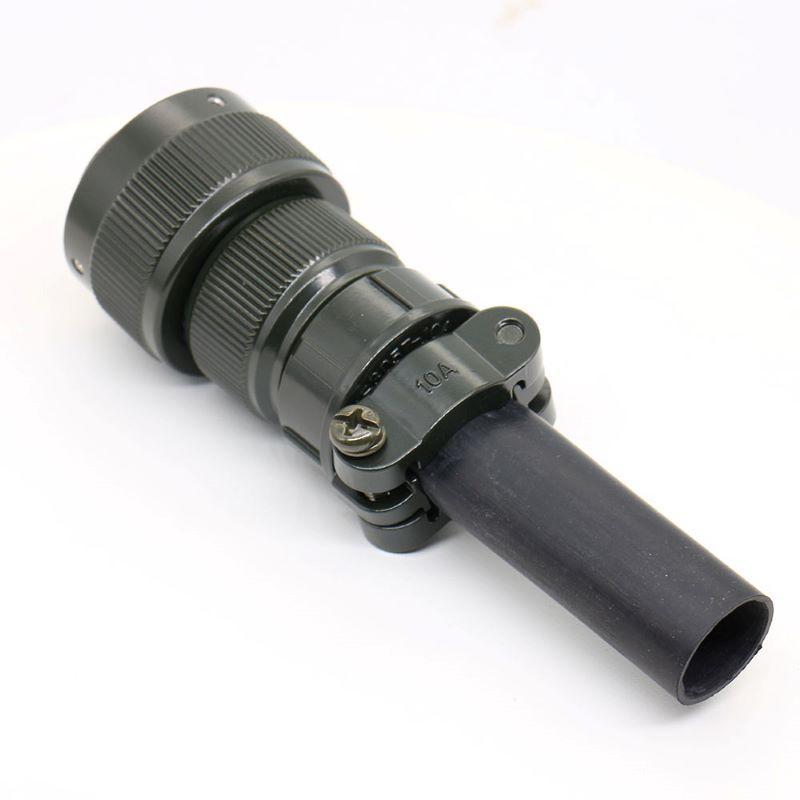

VG95234 Circular Connector for Automotive Wiring Harness

>Number Of CoresNumber Of Cores 2-61Pin
Contact DiameterContact Diameter(mm) 1.0-3.5mm
IP RatingIP Rating IP67
Shell MaterialShell Material Aluminum Alloy
Temperature RangeTemperature Range -55°C to +125°C
TerminationTermination Solder / Crimp (optional)
Rated CurrentRated Current(A) 5A-46A
Rated VoltageRated Voltage(Ac.V) 500V-1000V
Test VoltageTest Voltage(Ac.V)1Min 1500V
Insulation ResistanceInsulation Resistance (MΩ) ≥ 5000 MΩ
Contact ResistanceContact Resistance (MΩ) ≤ 5 mΩ
CertificationCertification CE, RoHS,BASCI,ISO9001
Get Quote
+86-19924482730

The VG95234 circular connector is engineered for demanding automotive applications where stable power supply and signal integrity are critical. Featuring a rugged metal housing and secure locking design, it performs reliably in high-vibration and harsh vehicle environments.

This connector is widely used in heavy-duty trucks, commercial vehicles, buses, off-road vehicles, and electric vehicle battery systems. It supports automotive wiring harness assemblies, control modules, power distribution units, and onboard diagnostic interfaces.

Connectors


With strong resistance to dust, moisture, oil, and mechanical stress, the VG95234 connector ensures long-term durability and consistent performance in both conventional fuel vehicles and new energy vehicles. Multiple contact configurations are available to meet various automotive electrical system requirements.

Item

Parameters

Number of Cores

2-61Pin

Gender

Male/Female

Housing Material

Aluminum Alloy

Cores Material

Brass Plated with Gold

Insulator Material

PEFT

Locking System

Bayonet Coupling

Temperature Range

-55°C to +125°C

Rated Current (A)

5A-46A

Rated Voltage (AC.V)

500V-1000V

Test Voltage (AV.C)1Min

1500V

Insulation Resistance (㏁)

5000㏁

Insulation Resistance (㏁)

≤5㏁

Termination

Solder/Crimp


Related Products

More》

Related Resource


VG95234 Circular Connector
Related Cases Professional VG95234 Circular Connector for Automotive Wiring Harness Manufacturer！
Sealed Wire-to-Wire Connectors in Automotive Lighting Systems in Italy
Sealed Wire-to-Wire Connectors in Automotive Lighting Systems in Italy
Push-Pull Connectors in Automotive Diagnostic Interfaces in France
Push-Pull Connectors in Automotive Diagnostic Interfaces in France
Board-to-Wire Connectors in Automotive Infotainment Systems in Japan
Board-to-Wire Connectors in Automotive Infotainment Systems in Japan
M12 Connectors in Vehicle-Mounted Camera Systems in Germany
M12 Connectors in Vehicle-Mounted Camera Systems in Germany
WF20 Series Circular Connectors for Electric Forklifts in the United States
WF20 Series Circular Connectors for Electric Forklifts in the United States
VG95234 Circular Connector for Automotive Wiring HarnessRelated Application

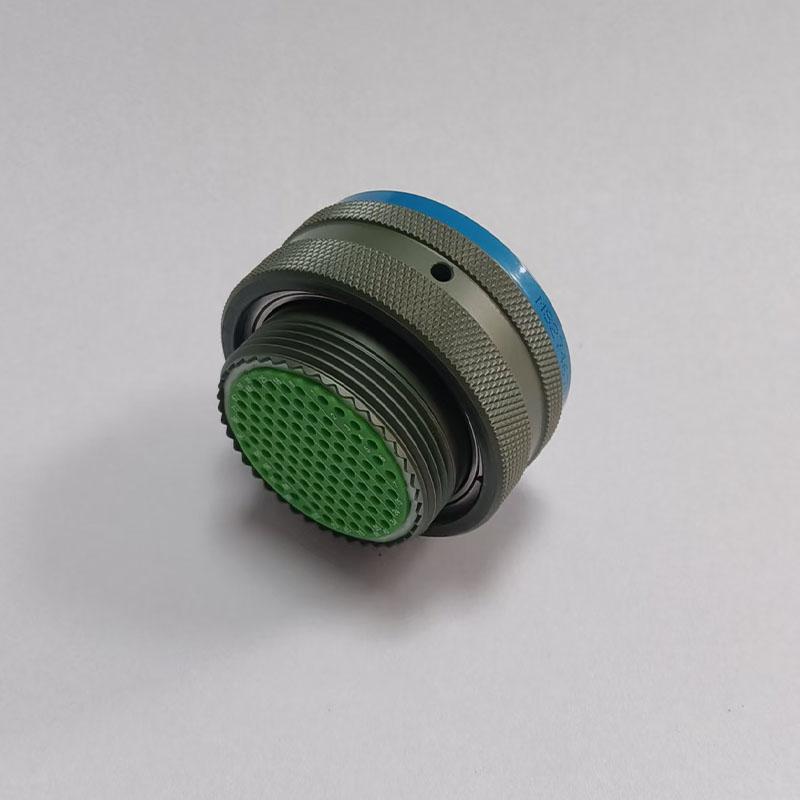

MS27467E23B35P Connectors in Automotive Powertrain
